spark plugs replace Mercury Mountaineer 2002 Owner's Manuals

MOTORCRAFT PART NUMBERS
Component 4.0L SOHC V6 engine 4.6L V8 engine
Air filter element FA-1695 FA-1695
Fuel filter FG-986B FG-986B
Battery BXT-65-650 BXT-65-650
Oil filter FL-820S FL-820S
PCV valve EV-243 F6ZE-6C324-CA
Spark plugs* AGSF-22PP ** AWSF-32P
* Refer to Vehicle Emissions Control Information (VECI) decal for spark
plug gap information.
** If a spark plug is removed for inspection, it must be reinstalled in the
same cylinder. If a spark plug needs to be replaced, use only spark plugs
with the service number suffix letter as shown on the engine decal.
REFILL CAPACITIES
Fluid Ford Part
NameApplication Capacity
Brake fluid Motorcraft High
Performance
DOT 3 Motor
Vehicle Brake
FluidAll Fill to the MAX
line on reservoir
Engine oil
(including filter
change)Motorcraft SAE
5W-30 Super
Premium Motor
Oil4.0L 4.7L (5.0
quarts)
Motorcraft SAE
5W-20 Premium
Synthetic Blend
Motor Oil4.6L 5.7L (6.0
quarts)
Fuel tank N/A All 85.2L (22.5
gallons)
Capacities and specifications
282

fluid,checking and adding ....246
fluid, refill capacity ................282
fluid, specifications .........285, 287
Power Windows ...........................93
Preparing to drive your
vehicle ........................................180
R
Radio ......................................54, 63
Radio reception .....................76–77
Rear window defroster ...............53
Relays ................................206, 214
Remote entry system .......101, 103
illuminated entry ....................106
locking/unlocking
doors ................................102, 113
opening the trunk ...................103
panic alarm .............................103
replacement/additional
transmitters .............................105
replacing the batteries ...........104
Reverse sensing system .............33
Roadside assistance ..................204
Roof rack ...................................202
S
Safety belts (see Safety
restraints) ....13, 133, 135–138, 142
Safety Canopy ...................154–155
Safety defects, reporting ..........303
Safety restraints .......133, 135–138,
141–142
belt minder .............................143
cleaning the safety belts ........149
extension assembly ................142
for adults .........................136–138for children .............................158
lap belt ....................................139
warning light and
chime ...........................10, 13, 143
Safety seats for children ..........161
Seat belts (see Safety
restraints) ..................................133
Seats ..........................................120
child safety seats ....................161
heated ......................................124
memory seat ...................103, 123
SecuriLock passive anti-theft
system ................................116–118
Servicing your vehicle ..............229
Snowplowing .................................3
Spark plugs, specifications ......282,
287
Special notice ................................3
ambulance conversions ..............3
utility-type vehicles ....................3
Specification chart,
lubricants ...........................285, 287
Speed control ..............................78
Speedometer ...............................14
Starting your vehicle ........169, 171
jump starting ..........................222
Steering wheel
controls ..........................78, 82, 84
tilting .........................................82
T
Tachometer .................................16
Tire warning ..............................255
Tires ...................216, 251–253, 255
changing ..........................216, 218
checking the pressure ............253

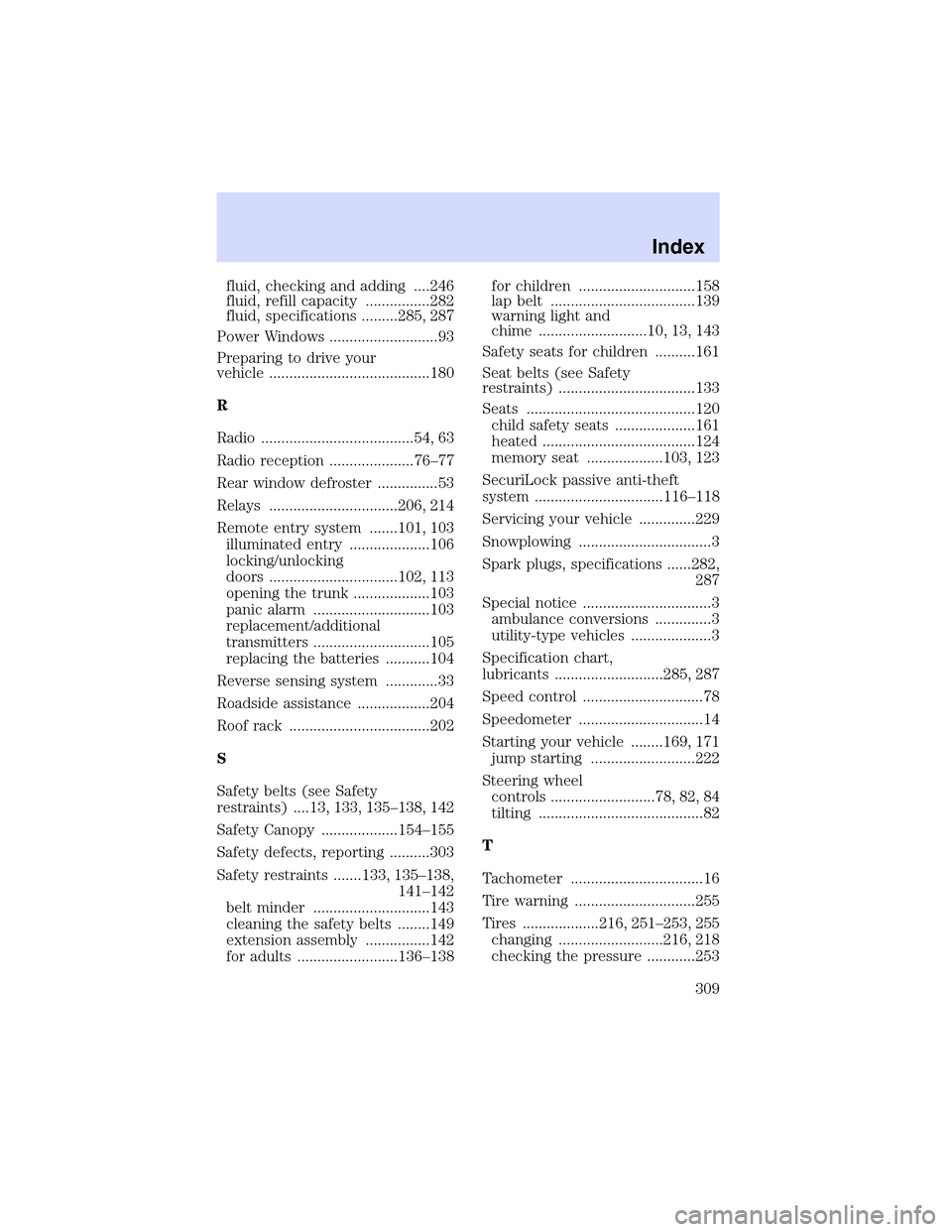

Index
309
