Occupancy:Press DSP again to change the occupancy mode to optimize
sound for ALL SEATS, DRIVERS SEAT or REAR SEATS. Press SEL to
scroll through settings.
4.Mute:Press to MUTE playing
media; press again to return to
playing media.
5.Eject:Press to eject a CD. Press
and hold to eject all loaded discs.
6.Bass:Press BASS; then press
SEL
/to decrease/increase
the bass output.
Treble:Press TREB; then press
SEL
/to decrease/increase
the treble output.
7.Select:Use with Bass, Treble,
Balance and Fade controls, to adjust
levels, set the clock, and with
Autostore and Autoset functions.
8.Balance:Press BAL; then press
SEL
/to shift sound to the
left/right speakers.
Fade:Press FADE; then press
SEL
/to shift sound to the
rear/front speakers.
9.Menu:Press MENU and SEL to
access clock mode, RDS on/off,
Traffic announcement mode,
Program type mode, Shuffle and
Compression mode.
The Federal Communications Commission (FCC) and the Canadian Radio
and Telecommunications Commission (CRTC) recommend that FM radio
broadcasters use RDS technology to transmit information. FM radio
stations are independently operated and individually elect to use RDS
technology to transmit station ID and program type as desired.
2004 Mountaineer(mnt)
Owners Guide (post-2002-fmt)
USA English(fus)
Entertainment Systems
22

Traffic:Allows you to hear traffic broadcasts. With the feature ON, press
SEEK or SCAN to find a station broadcasting a traffic report (if it is
broadcasting RDS data).Traffic information is not available in most
U.S. markets.
FIND Program type:Allows you to search RDS-equipped stations for a
certain category of music format: Classic, Country, Info, Jazz, Oldies,
R&B, Religious, Rock, Soft, Top 40.
Show TYPE:Displays the station’s call letters format.
Shuffle:Press to play tracks in a random order. Press MENU until SHUF
appears in the display. Use SEL to select SHUFFLE DISC, SHUFFLE
TRK or SHUFFLE OFF.
Compression:Brings soft and loud CD passages together for a more
consistent listening level. Press MENU until compression status is
displayed. Press the SEL control to enable the compression feature when
COMPRESS OFF is displayed. Press the SEL control again to disable the
feature when COMPRESS ON is displayed.
Setting the clock:Press MENU until SELECT HOUR or SELECT MINS
is displayed. Use SEL to manually increase (
) or decrease () the
hours/minutes. Press MENU again to disengage clock mode.
10.Memory presets:To set a
station: Select frequency band
AM/FM; tune to a station, press and
hold a preset button until sound
returns.
11.SAT (if equipped):Your
Audiophile radio comes equipped
with Satellite Ready capability. The
kit to enable the Satellite reception is available through your Mercury
dealer. Detailed satellite instructions are included with the dealer
installed kit.
12.AM/FM:Press to select AM/FM
frequency band.
Autoset:Allows you to set the
strongest local radio stations without losing your original manually set
preset stations for AM/FM1/FM2 . Press and momentarily hold AM/FM.
AUTOSET will flash on the display. When the six strongest stations are
filled, the station stored in preset 1 will begin playing. If there are less
than six strong stations, the system will store the last one in the
remaining presets. Press again to disengage.
2004 Mountaineer(mnt)
Owners Guide (post-2002-fmt)
USA English(fus)
Entertainment Systems
23

HEADLAMP CONTROL
Turns the lamps off.
Turns on the parking lamps,
instrument panel lamps, license
plate lamps and tail lamps.
Turns the headlamps on.
Autolamp system
The autolamp system sets the headlamps to turn on and off
automatically. The autolamp control, located on the headlamp control,
may be set to:
•turn on the lamps automatically at night
•turn off the lamps automatically during the daylight
•keep the lamps on for up to three minutes after the key is turned to
OFF.
To turn the autolamps on, rotate the control counterclockwise to
.
Foglamp control
The foglamps can be turned on only
when the headlamp control is in
the
,andposition and
the high beams are not turned on.
Pull headlamp control towards you
to turn foglamps on. The foglamp
indicator light
will illuminate
when foglamp is activated.
Push the headlamp control towards the instrument panel to deactivate
the foglamps.
Daytime running lamps (DRL) (if equipped)
To activate DRL:
•the ignition must be in the ON position and
•the headlamp control is in the OFF or Parking lamps position
•the parking brake must be disengaged.
A
A
2004 Mountaineer(mnt)
Owners Guide (post-2002-fmt)
USA English(fus)
Lights
Lights
33

3. Turn the wrench
counterclockwise until the tire is
lowered to the ground and the cable
has slack. When turning the wrench,
make sure that it does not scuff the
kick plate.
4. Slide the tire rearward, lift one
side and remove the retainer from
the spare tire.
Changing the spare tire
To prevent the vehicle from moving when you change a tire, be
sure the parking brake is set, then block the wheel that is
diagonally opposite (other end of the vehicle) to the tire being
changed.
If the vehicle slips off the jack, you or someone else could be
seriously injured.
Do not attempt to change a tire on the side of the vehicle close
to moving traffic. Pull far enough off the road to avoid the
danger of being hit when operating the jack or changing the wheel.
1. Use the tip of the lug wrench to
remove the beauty cap by twisting
the tip under the cap. The carpeted
floor lid can be used as a kneeling
pad.
2. Loosen each wheel lug nut by half
a turn, but do not remove them
until the wheel is raised off the
ground.
REVIEW COPY:
2004 Explorer(exp), Owners Guide (post-2002-fmt)(own2002),
Market:USA English(fus)
Roadside Emergencies
191

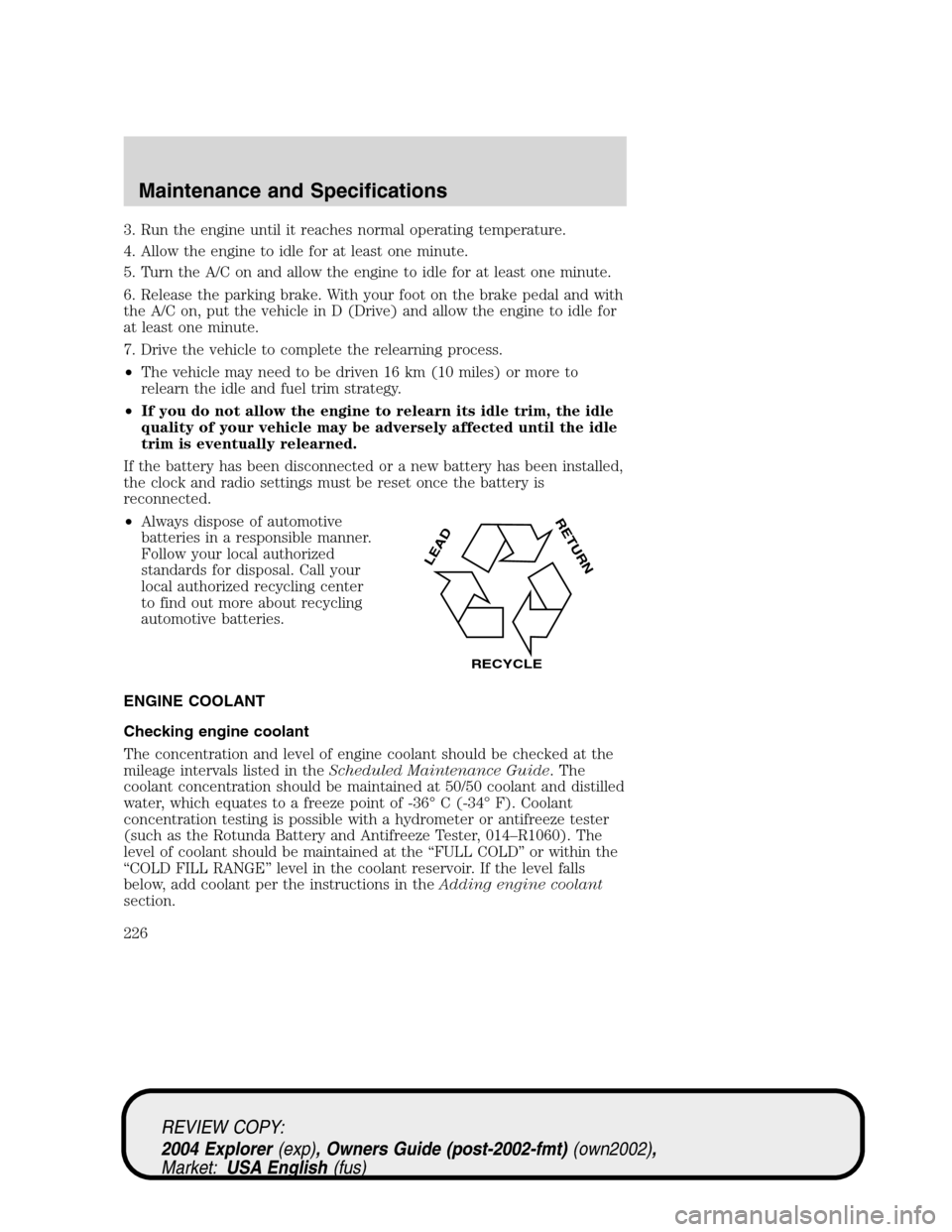

3. Run the engine until it reaches normal operating temperature.
4. Allow the engine to idle for at least one minute.
5. Turn the A/C on and allow the engine to idle for at least one minute.
6. Release the parking brake. With your foot on the brake pedal and with
the A/C on, put the vehicle in D (Drive) and allow the engine to idle for
at least one minute.
7. Drive the vehicle to complete the relearning process.
•The vehicle may need to be driven 16 km (10 miles) or more to
relearn the idle and fuel trim strategy.
•If you do not allow the engine to relearn its idle trim, the idle
quality of your vehicle may be adversely affected until the idle
trim is eventually relearned.
If the battery has been disconnected or a new battery has been installed,
the clock and radio settings must be reset once the battery is
reconnected.
•Always dispose of automotive
batteries in a responsible manner.
Follow your local authorized
standards for disposal. Call your
local authorized recycling center
to find out more about recycling
automotive batteries.
ENGINE COOLANT
Checking engine coolant
The concentration and level of engine coolant should be checked at the
mileage intervals listed in theScheduled Maintenance Guide. The
coolant concentration should be maintained at 50/50 coolant and distilled
water, which equates to a freeze point of -36° C (-34° F). Coolant
concentration testing is possible with a hydrometer or antifreeze tester
(such as the Rotunda Battery and Antifreeze Tester, 014–R1060). The
level of coolant should be maintained at the “FULL COLD” or within the
“COLD FILL RANGE” level in the coolant reservoir. If the level falls
below, add coolant per the instructions in theAdding engine coolant
section.
LEAD
RETURN
RECYCLE
REVIEW COPY:
2004 Explorer(exp), Owners Guide (post-2002-fmt)(own2002),
Market:USA English(fus)
Maintenance and Specifications
226

plastic parts ............................212
safety belts ..............................213
washing ....................................209
waxing .....................................209
wheels ......................................210
wiper blades ............................212
Climate control (see Air
conditioning or Heating) ............28
Clock adjust
6-CD in dash .............................23
AM/FM/CD .................................18
Compass, electronic ....................61
calibration .................................62
set zone adjustment ...........61, 64
Console ........................................45
overhead ....................................46
rear ......................................46, 48
Controls
power seat .................................94
steering column ........................54
Coolant
checking and adding ..............226
refill capacities ................230, 263
specifications ..................265, 267
Cruise control
(see Speed control) ....................51
Customer Assistance ................173
Ford accessories for your
vehicle .....................................214
Ford Extended Service
Plan ..........................................201
Getting assistance outside
the U.S. and Canada ..............205
Getting roadside assistance ...173
Getting the service
you need .................................201
Ordering additional
owner’s literature ...................206
The Dispute Settlement
Board .......................................202Utilizing the Mediation/
Arbitration Program ...............205
D
Daytime running lamps
(see Lamps) ................................33
Defrost
rear window ..............................32
Dipstick
automatic transmission
fluid ..........................................245
engine oil .................................220
Doors
lubricant specifications ..........265
Driveline universal joint and
slip yoke ....................................246
Driving under special
conditions ..................149, 154, 157
sand .........................................156
snow and ice ...........................158
through water .................156, 161
Dual automatic temperature
control (DATC) ...........................28
E
Electronic message center .........63
Emergencies, roadside
jump-starting ..........................195
Emergency Flashers .................174
Emission control system ..........241
Engine ........................................267
cleaning ...................................210
coolant .....................................226
fail-safe coolant ......................230
idle speed control ...................224
lubrication
specifications ..................265, 267
REVIEW COPY:
2004 Explorer(exp), Owners Guide (post-2002-fmt)(own2002),
Market:USA English(fus)
Index
275

P
Parking brake ............................140
Parts (see Motorcraft parts) ....262
Pedals (see Power adjustable
foot pedals) .................................51
Power adjustable foot pedals .....51
Power distribution box
(see Fuses) ...............................181
Power door locks ........................79
Power point .................................48
Power Point
Cigar lighter ..............................48
Power steering ..........................143
fluid, checking and adding ....243
fluid, refill capacity ................263
fluid, specifications .........265, 267
Power Windows ...........................48
Preparing to drive
your vehicle ...............................144
R
Radio ......................................18, 21
Rear window defroster ...............32
Relays ................................176, 184
Remote entry system .................81
illuminated entry ......................85
opening the trunk .....................82
Reverse sensing system ...........149
Roadside assistance ..................173
Roof rack .....................................77
S
Safety Belt Maintenance ..........114
Safety belts (see Safety
restraints) ..........102, 105–108, 110Safety Canopy ...................120–121
Safety defects, reporting ..........208
Safety restraints ........102, 105–110
belt minder .............................111
extension assembly ................110
for adults .........................106–108
for children .............................123
safety belt maintenance .........114
warning light and
chime ...............................110–111
Safety seats for children ..........126
Seat belts (see
Safety restraints) ......................102
Seats ............................................92
child safety seats ....................126
front seats .................................93
heated ........................................96
memory seat .......................82, 95
Setting the clock
AM/FM/CD .................................18
AM/FM/In-dash 6 CD ................23
Snowplowing .................................7
Spark plugs,
specifications .....................262, 267
Special notice
ambulance conversions ..............7
utility-type vehicles ....................7
Specification chart,
lubricants ...........................265, 267
Speed control ..............................51
Starting a flex fuel vehicle .......137
Starting your vehicle ........135, 137
jump starting ..........................195
Steering wheel
controls ......................................54
tilting .........................................44
T
Tilt steering wheel ......................44
REVIEW COPY:
2004 Explorer(exp), Owners Guide (post-2002-fmt)(own2002),
Market:USA English(fus)
Index
278
