Mercury Mountaineer 2007 Owner's Manuals

MOTORCRAFT PART NUMBERS
Component 4.0L SOHC V6 engine 4.6L 3V V8 engine
Air filter element FA-1695 FA-1780
Fuel filter FG-1083 FG-1083
Battery BXT-65-650 BXT-65-650
Oil filter FL-820S FL-820S
PCV valve
1
Spark plugs2
1
The PCV valve is a critical emission component. It is one of the items
listed inscheduled maintenance informationand is essential to the
life and performance of your vehicle and to its emissions system.
For PCV valve replacement, see your authorized dealer. Refer to
scheduled maintenance informationfor the appropriate intervals for
changing the PCV valve.
Replace the PCV valve with one that meets Ford material and
design specifications for your vehicle, such as a Motorcraft or
equivalent replacement part. The customer warranty may be void
for any damage to the emissions system if such a PCV valve is not
used.
2For spark plug replacement, see your authorized dealer. Refer to
scheduled maintenance informationfor the appropriate intervals for
changing the spark plugs.
Replace the spark plugs with ones that meet Ford material and
design specifications for your vehicle, such as Motorcraft or
equivalent replacement parts. The customer warranty may be
void for any damage to the engine if such spark plugs are not
used.
2007 Mountaineer(mnt)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
341

MAINTENANCE PRODUCT SPECIFICATIONS AND CAPACITIES
Item CapacityFord Part Name or
equivalentFord Part Number /
Ford Specification
Brake fluidBetween MIN and
MAX on reservoirMotorcraft High
Performance DOT 3
Motor Vehicle Brake
FluidPM-1 or PM-1-C /
ESA-M6C25-A or
WSS-M6C62-A
Body hinges, latches,
door striker plates and
rotors, seat tracks, fuel
filler door hinge and
spring, hood latch,
auxiliary latch, seat
tracks— Multi-Purpose GreaseXG-4 or XL-5 /
ESB-M1C93-B
Door weatherstrips — Silicone Spray LubricantXL-6 /
ESR-M13P4-A
Lock cylinders —Motorcraft Penetrating
and Lock LubricantXL-1 /
None
Driveshaft, slip spline,
universal joints—
Premium Long-Life
GreaseXG-1-C /
ESA-M1C75-B
Transfer case front
output slip shaft (AWD)—
2007 Mountaineer(mnt)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
342

Item CapacityFord Part Name or
equivalentFord Part Number /
Ford Specification
Engine coolant 4.0L
engine without auxiliary
climate control12.2 quarts
(11.5L)
Motorcraft Premium
Gold Engine Coolant
with bittering agent
(yellow-colored)
1
VC-7-B /
WSS-M97B51-A1 Engine coolant 4.0L
engine with auxiliary
climate control13.9 quarts
(13.2L)
Engine coolant 4.6L
engine without auxiliary
climate control13.9 quarts
(13.2L)
Engine coolant 4.6L
engine with auxiliary
climate control15.7 quarts
(14.9L)
Cooling system stop
leak pellets—Motorcraft Cooling
System Stop Leak PelletsVC-6 /
WSS-M99B37-B6
Engine oil (4.0L) 5.0 quarts (4.7L)Motorcraft SAE 5W-30
Premium Synthetic
Blend Motor Oil (US)
Motorcraft SAE 5W-30
Super Premium Motor
Oil (Canada)
2
XO-5W30-QSP (US)
CXO-5W30-LSP12
(Canada) /
WSS-M2C929-A with API
Certification Mark
2007 Mountaineer(mnt)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
343

Item CapacityFord Part Name or
equivalentFord Part Number /
Ford Specification
Engine oil (4.6L) 6.0 quarts (5.7L)Motorcraft SAE 5W-20
Premium Synthetic
Blend Motor Oil (US)
Motorcraft SAE 5W-20
Super Premium Motor
Oil (Canada)
2
XO -5W20-QSP (US)
CXO-5W20–LSP12
(Canada) /
WSS-M2C930-A with API
Certification Mark
Automatic transmission
(5R55S) fluid12.4 quarts
(11.7L)
3
Motorcraft MERCON
V
AT F
4
XT-5-QM /
MERCON
V
Automatic transmission
(6R60) fluid11.2 quarts
(10.6L)
3
Motorcraft MERCON
SP
AT F
5
XT-6-QSP /
MERCON
SP
Rear axle fluid 3.5 pints (1.7L)Motorcraft SAE 75W-140
Synthetic Rear Axle
LubricantXY-75W140-QL /
WSL-M2C192-A
Front axle fluid (AWD) 2.7 pints (1.3L)Motorcraft SAE 80W-90
Premium Rear Axle
LubricantXY-80W90-QL /
WSP-M2C197 -A
Power steering fluidFill between MIN
and MAX lines on
reservoirMotorcraft MERCON
V
AT FXT-5-QM /
MERCON
V
Transfer case fluid
(AWD)1.3 quarts (1.25L)Motorcraft MERCON

AT FXT-2-QDX /
MERCON

Windshield washer fluid 4.2 quarts (4.0L)Motorcraft Premium
Windshield Washer
ConcentrateZC-32-A /
WSB-M8B16-A2
2007 Mountaineer(mnt)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
344

Item CapacityFord Part Name or
equivalentFord Part Number /
Ford Specification
Fuel tank22.5 gallons
(85.2L)——
1Add the coolant type originally equipped in your vehicle.2Use of synthetic or synthetic blend motor oil is not mandatory. Engine oil need only have the API
Certification mark and meet the requirements of Ford specification WSS-M2C929-A (4.0L) or
WSS-M2C930-A (4.6L).3Indicates only approximate dry-fill capacity. Some applications may vary based on cooler size and
if equipped with an in-tank cooler. The amount of transmission fluid and fluid level should be
checked by a qualified technician.4Automatic transmissions that require MERCON
V should only use MERCON
V fluid or fluid that
is specified dual usage MERCON
/MERCON
V. Refer toscheduled maintenance informationto
determine the correct service interval. Use of any fluid other than the recommended fluid may
cause transmission damage.5Automatic transmissions that require MERCON
SP should only use MERCON
SP fluid. Use of a
dual usage fluid in an automatic transmission requiring MERCON
SP may cause transmission
damage. Refer toscheduled maintenance informationto determine the correct service interval.
Use of any fluid other than the recommended fluid may cause transmission damage.
2007 Mountaineer(mnt)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
345

ENGINE DATA
Engine 4.0L SOHC V6
engine4.6L 3V V8
engine
Cubic inches 245 281
Required fuel 87 octane 87 octane
Firing order 1-4-2-5-3-6 1-3-7-2-6-5-4-8
Ignition system EDIS Coil on Plug
Spark plug gap 0.052–0.056 inch
(1.32–1.42 mm)0.040–0.050 inch
(1.02–1.27 mm)
1
Compression ratio 9.7:1 9.8:11Spark plug gap is not adjustable
Engine drivebelt routing
•4.0L V6 Engine
•4.6L V8 Engine
2007 Mountaineer(mnt)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
346

IDENTIFYING YOUR VEHICLE
Safety Compliance Certification Label
The National Highway Traffic Safety
Administration Regulations require
that a Safety Compliance
Certification Label be affixed to a
vehicle and prescribe where the
Safety Compliance Certification
Label may be located. The Safety
Compliance Certification Label is
located on the structure (B-Pillar)
by the trailing edge of the driver’s
door or the edge of the driver’s
door.
Vehicle identification number
The vehicle identification number
(VIN) is a 17 digit combination of
letters and numbers. The VIN is
located on the driver side
instrument panel. The VIN number
is also found on the Certification
label. (Please note that in the
graphic XXXX is representative of
your vehicle identification number.)
1. World manufacturer identifier
2. Brake type and gross vehicle
weight rating (GVWR)
3. Vehicle line, series, body type
4. Engine type
5. Check digit
XXXXXXXXXXXXXXXXX
2007 Mountaineer(mnt)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
347

6. Model year
7. Assembly plant
8. Production sequence number

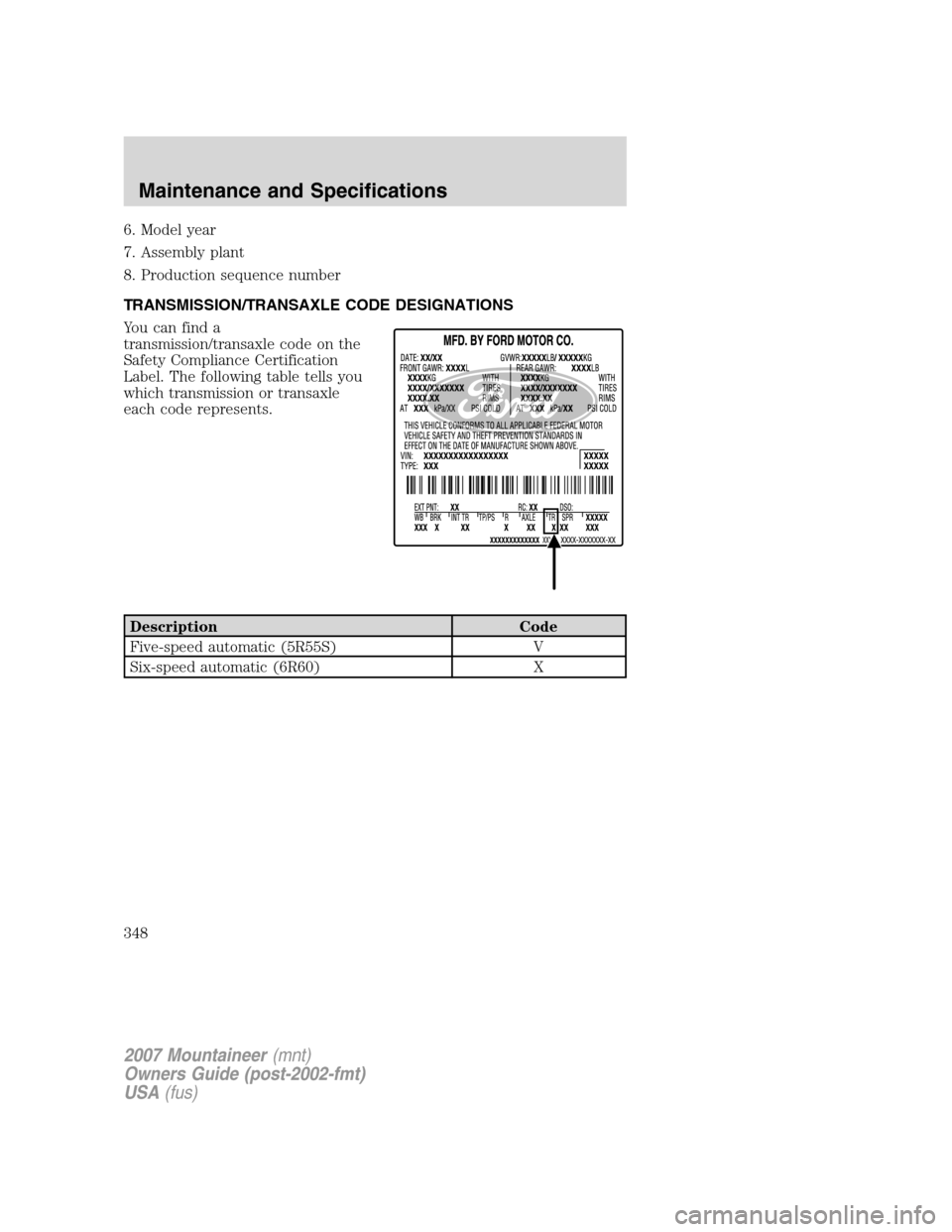

TRANSMISSION/TRANSAXLE CODE DESIGNATIONS
You can find a
transmission/transaxle code on the
Safety Compliance Certification
Label. The following table tells you
which transmission or transaxle
each code represents.
Description Code
Five-speed automatic (5R55S) V
Six-speed automatic (6R60) X
2007 Mountaineer(mnt)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
348

GENUINE MERCURY ACCESSORIES FOR YOUR VEHICLE
A wide selection of Genuine Mercury Accessories are available for your
vehicle through your local Mercury or Ford of Canada dealer. These
quality accessories have been specifically engineered to fulfill your
automotive needs; they are custom designed to complement the style
and aerodynamic appearance of your vehicle. In addition, each accessory
is made from high quality materials and meets or exceeds Mercury’s
rigorous engineering and safety specifications. Ford Motor Company will
repair or replace any properly dealer-installed Genuine Mercury
Accessories found to be defective in factory-supplied materials or
workmanship during the warranty period, as well as any component
damaged by the defective accessories. The accessories will be warranted
for whichever provides you the greatest benefit:
•12 months or 12,000 miles (20,000 km) (whichever occurs first), or
•the remainder of your new vehicle limited warranty.
Contact your dealer for details and a copy of the warranty.
Following is a list of several Genuine Mercury Accessories. Not all
accessories are available for all models. To find out what accessories are
available for your vehicle, please contact your dealer or visit our online
store at: www.mercuryaccessories.com.
Exterior style
Bug shields
Chrome exhaust tips
Deflectors
Running boards
Splash guards
Step Bars
Interior style
Electrochromatic compass/temperature interior mirrors
Floor mats
Lifestyle
Ash cup / smoker’s package
Cargo organization and management
Trailer hitches, wiring harnesses and accessories
2007 Mountaineer(mnt)
Owners Guide (post-2002-fmt)
USA(fus)
Accessories
349

Peace of mind
Mobile-Easehands-free communication system
Remote start
Vehicle security systems
Wheel locks
Not all accessories are available for all models.
For maximum vehicle performance, keep the following information in
mind when adding accessories or equipment to your vehicle:
•When adding accessories, equipment, passengers and luggage to your
vehicle, do not exceed the total weight capacity of the vehicle or of
the front or rear axle (GVWR or GAWR as indicated on the Safety
Compliance Certification label). Consult your authorized dealer for
specific weight information.
•The Federal Communications Commission (FCC) and Canadian Radio
Telecommunications Commission (CRTC) regulate the use of mobile
communications systems — such as two-way radios, telephones and
theft alarms - that are equipped with radio transmitters. Any such
equipment installed in your vehicle should comply with FCC or CRTC
regulations and should be installed only by a qualified service
technician.
•Mobile communications systems may harm the operation of your
vehicle, particularly if they are not properly designed for automotive
use.
•To avoid interference with other vehicle functions, such as anti-lock
braking systems, amateur radio users who install radios and antennas
onto their vehicle should not locate the Amateur Radio Antennas in
the area of the driver’s side hood.
•Electrical or electronic accessories or components that are added to
the vehicle by the authorized dealer or the owner may adversely affect
battery performance and durability.
