Page 91 of 376

Mercury Mountaineer 2008  s Owners Manual Function Number of bulbs Trade number
Side mounted turn
signal2
WY5W (amber)
Front sidemarker 2 194
Rear sidemarker 2 194
Fog lamp 2 9145
Cargo lamp 1 211-2
Interior overhead lamp 1 912 (906)
Front do

Page 92 of 376

Mercury Mountaineer 2008  s Owners Manual 3. Disconnect the electrical
connector.
4. Remove the old bulb by turning
counterclockwise and pull it out.
Handle a halogen headlamp bulb carefully and keep out of
children’s reach. Grasp the bulb

Page 93 of 376

Mercury Mountaineer 2008  s Owners Manual 4. Carefully pull the old bulb out of
the lamp assembly.
Reverse steps to reinstall bulb(s).
Replacing side-mounted turn signal bulbs
1. Turn the headlamp switch to off.
2. Carefully pry the lamp asse

Page 94 of 376

Mercury Mountaineer 2008  s Owners Manual Replacing tail/brake/turn/backup lamp bulbs
1. Turn the headlamp switch to OFF
and open the liftgate.
2. Remove the two bolts from the
lamp assembly.
3. Remove the lamp assembly.
4. Rotate the bulb so

Page 95 of 376

Mercury Mountaineer 2008  s Owners Manual Replacing license plate lamp bulbs
1. Make sure the headlamp switch is
in the OFF position.
2. Remove the lamp assembly by
depressing the small tab and rocking
the lamp assembly out.
3. Remove the bul

Page 96 of 376

Mercury Mountaineer 2008  s Owners Manual MULTI-FUNCTION LEVER
Windshield wiper:Rotate the end
of the control away from you to
increase the speed of the wipers;
rotate towards you to decrease the
speed of the wipers.
Windshield washer:Push th

Page 97 of 376

Mercury Mountaineer 2008  s Owners Manual OFF — Rear wiper and washer off.
For rear wash cycle, rotate (and hold as desired) the rear wiper/washer
control to either
position.
From either position, the control will automatically return to th

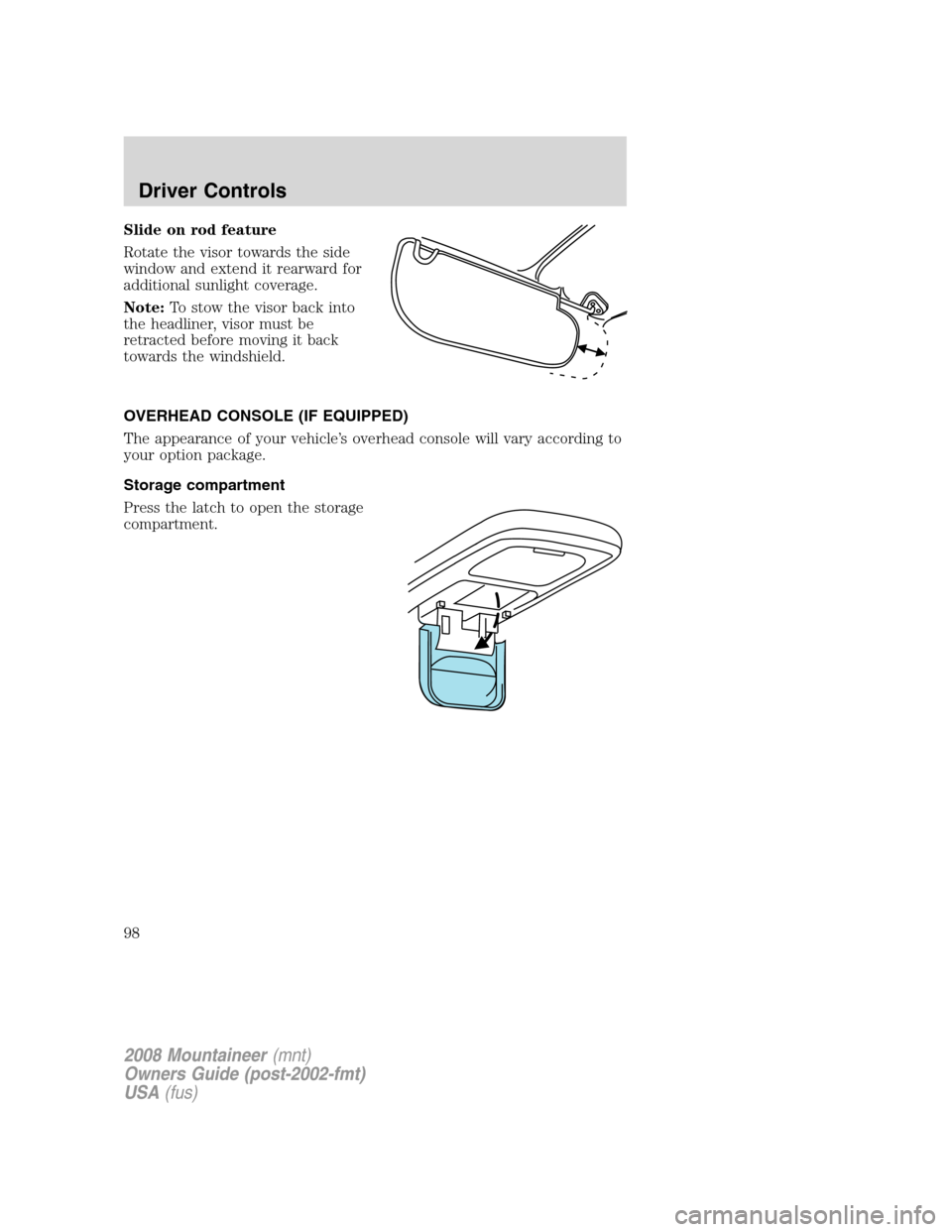

Page 98 of 376

Mercury Mountaineer 2008  s Owners Manual Slide on rod feature
Rotate the visor towards the side
window and extend it rearward for
additional sunlight coverage.
Note:To stow the visor back into
the headliner, visor must be
retracted before mo

Page 99 of 376

Mercury Mountaineer 2008  s Owners Manual Installing a garage door opener (if equipped)
The storage compartment can be converted to accommodate a variety of
aftermarket garage door openers:
•Place the VELCROhook onto
the side of the afterm

Page 100 of 376

Mercury Mountaineer 2008  s Owners Manual Use only soft cups in the cupholder. Hard objects can injure you
in a collision.
Rear center console features (if equipped)
The rear center console incorporates the following features:
•Utility comp
