Car2UHome Automation System (if equipped)
The Car2UHome Automation
System is a universal transmitter
located in the driver’s visor that
includes two primary features – a
garage door opener and a platform
for remote activation of devices
within the home. The Car2U
system’s garage door opener
function replaces the common
hand-held garage door opener with a three-button transmitter that is
integrated into the interior of your vehicle. After being programmed for
garage doors, the Car2Usystem transmitter can be programmed to
operate security devices and home lighting systems.
WARNING:Make sure that people and objects are clear of the
garage door or security device you are programming. Do not
program the Car2Usystem with the vehicle in the garage.
Do not use the Car2Usystem with any garage door opener that lacks
safety stop and reverse features as required by U.S. Federal Safety
Standards (this includes any garage door opener manufactured before
April 1, 1982).
Be sure to keep the original remote control transmitter for use in other
vehicles as well as for future Car2Usystem programming. It is also
recommended that upon the sale or lease termination of the vehicle, the
programmed Car2Usystem buttons should be erased for security
reasons. Refer toErasing the Car2UHome Automation System
buttonslater in this section.
Read the instructions completely before attempting to program the
Car2Usystem. Because of the steps involved, it may be helpful to have
another person assist you in programming the transmitter.
Additional Car2Usystem information can be found on-line at
www.learcar2U.com or by calling the toll-free Car2Usystem help line at
1-866-572-2728.
Types of garage door openers (rolling code and fixed code)
The Car2UHome Automation System may be programmed to operate
rolling code and fixed code garage door openers.
•Rolling code garage door openers were produced after 1996 and are
code protected. Rolling code means the coded signal is changed every
time your remote control garage door opener is used.
Driver Controls
131
2010 Mountaineer(mnt)
Owners Guide(own2002), 1st Printing
USA(fus)

•Fixed code garage door openers were produced prior to 1996. Fixed
code uses the same coded signal every time. It is manually
programmed by setting DIP switches for a unique personal code.
If you do not know if your garage
door opener is a rolling code or
fixed code device, open your garage
door opener’s remote control battery
cover. If a panel of DIP switches is
present your garage door opener is
a fixed code device. If not, your
garage door opener is a rolling code
device.
Rolling code programming
Note:Programming the rolling code garage door opener involves
time-sensitive actions. Read the entire procedure prior to beginning so
you will know which actions are time-sensitive. If you do not follow the
time-sensitive actions, the device will time out and you will have to
repeat the procedure.
Note:Do not program the Car2Usystem with the vehicle in the garage.
Make sure that your key is on and engine off while programming the
transmitter.
1. Firmly press the two outer
Car2Usystem buttons for
1–2 seconds, then release.
12
34
5
6789
1
01
1
1
2
C
T
S
206-12 T1
24
O
N
Driver Controls
132
2010 Mountaineer(mnt)
Owners Guide(own2002), 1st Printing
USA(fus)

2. Go to the garage to locate the
garage door opener motor and its
“learn” button. You may need a
ladder to reach the unit and you
may need to remove the unit’s cover
or light lens to locate the “learn”
button. Press the “learn” button,
after which you will have
10–30 seconds to return to your
vehicle and complete the following
steps. If you cannot locate the
“learn” button, refer to the Owner’s Guide of your garage door opener or
call the toll-free Car2Usystem help line at 1-866-57Car2U
(1-866-572-2728).
3. Return to your vehicle. Press and
hold the Car2Usystem button you
would like to use to control the
garage door. You may need to hold
the button from 5–20 seconds,
during which time the selected
button indicator light will blink
slowly. Immediately (within
1 second) release the button once the garage door moves. When the
button is released, the indicator light will begin to blink rapidly until
programming is complete.
4. Press and release the button again. The garage door should move,
confirming that programming is successful. If your garage door does not
operate, repeat the previous steps in this section.
After successful programming, you will be able to operate your Car2U
system by pressing the button you programmed to activate the opener.
The indicator light above the selected button will turn on to confirm that
the Car2Usystem is responding to the button command.
To program another rolling code device such as an additional garage door
opener, a security device or home lighting, repeat Steps 1 through 4
substituting a different function button in Step 3 than what you used for
the garage door opener. For example, you could assign the left-most
button to the garage door, the center button to a security device, and
the right-most button to another garage door opener.
Driver Controls
133
2010 Mountaineer(mnt)
Owners Guide(own2002), 1st Printing
USA(fus)

Note:The Car2Usystem allows for three devices to be programmed. If
you need to change or replace any of the three devices after it has been
initially programmed, it is necessary to erase the current settings using
theErasing the Car2UHome Automation System buttonsprocedure
and then programming all of the devices being used.
Fixed code programming
Note:Do not program the Car2Usystem with the vehicle in the garage.
Make sure that your key is on and engine off while programming the
transmitter.
1. To program units with fixed code DIP switches, you will need the
garage door hand-held transmitter, paper and a pen or pencil.
2. Open the battery cover and record the switch settings from left to
right for all 8 to 12 switches. Use the figure below:
When a switch is in the up, on, or + position, circle “L.”
When a switch is in the middle, neutral, or 0 position, circle “M.”
When a switch is in the down, off, or – position, circle “R.”
Switch
position1234567 8 9101112
Up, on
or +LLLLLLLLLLLL
Middle,
neutral
or 0MMMMMMMMMMMM
Down,
offor–RRRRRRRRRRRR
L=left; M=middle; R=right
Driver Controls
134
2010 Mountaineer(mnt)
Owners Guide(own2002), 1st Printing
USA(fus)

3. To input these positions into the
Car2Usystem, simultaneously
press all three Car2Usystem
buttons for a few seconds and then
release to put the device into
programming mode. The indicator
lights will blink slowly. Within
2.5 minutes enter your
corresponding DIP switch settings
from left to right into your Car2Usystem by pressing and releasing the
buttons corresponding to the settings you circled.
4. After inputting switch settings, simultaneously press and release all
three Car2Usystem buttons. The indicator lights will turn on.
5. Press and hold the Car2U
system button you would like to use
to control the garage door.
Immediately (within 1 second)
release the button once the garage
door moves. During this time the
selected button indicator light will
blink slowly. Do not release the
button until you see the garage door move. Most garage doors open
quickly. You may need to hold the button from 5–55 seconds before
observing movement of the garage door.
6. The indicator light will (begin to) blink rapidly until programming is
complete. If your garage door opener does not operate following these
steps, repeat Steps 2 through 6. Otherwise, call the toll-free Car2Uhelp
line at 1-866-57Car2U (1-866-572-2728).
After successful programming, you will be able to operate your Car2U
system by pressing the button you programmed to activate the opener.
The indicator light above the selected button will turn on to confirm that
the Car2Usystem is responding to the button command.
Erasing the Car2UHome Automation System buttons
Note:The system allows for three devices to be programmed. If you
need to change or replace any of the three devices after it has been
initially programmed, it will be necessary to erase the current settings
using the procedure below and then reprogramming all of the devices
being used.
Driver Controls
135
2010 Mountaineer(mnt)
Owners Guide(own2002), 1st Printing
USA(fus)

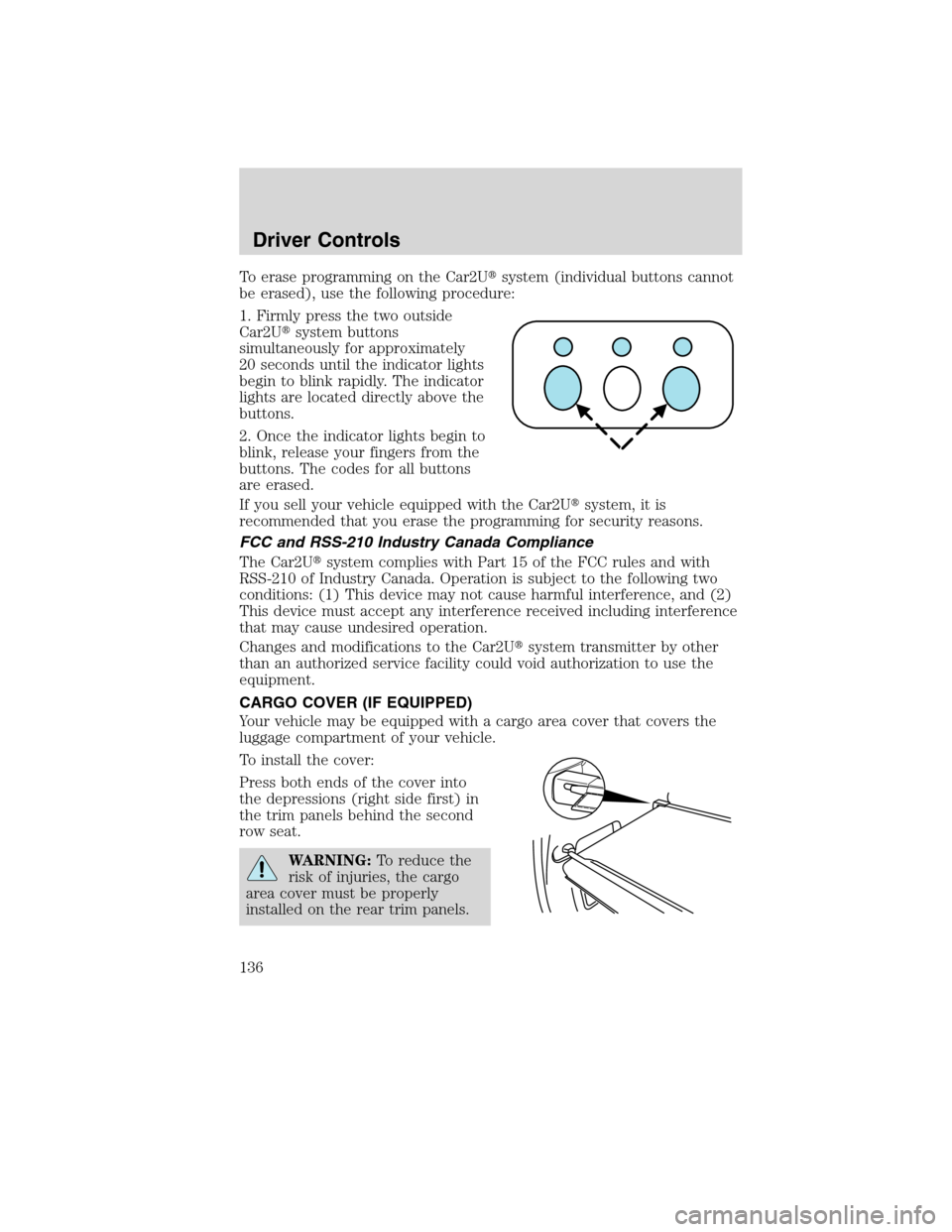

To erase programming on the Car2Usystem (individual buttons cannot
be erased), use the following procedure:
1. Firmly press the two outside
Car2Usystem buttons
simultaneously for approximately
20 seconds until the indicator lights
begin to blink rapidly. The indicator
lights are located directly above the
buttons.
2. Once the indicator lights begin to
blink, release your fingers from the
buttons. The codes for all buttons
are erased.
If you sell your vehicle equipped with the Car2Usystem, it is
recommended that you erase the programming for security reasons.
FCC and RSS-210 Industry Canada Compliance
The Car2Usystem complies with Part 15 of the FCC rules and with
RSS-210 of Industry Canada. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2)
This device must accept any interference received including interference
that may cause undesired operation.
Changes and modifications to the Car2Usystem transmitter by other
than an authorized service facility could void authorization to use the
equipment.
CARGO COVER (IF EQUIPPED)
Your vehicle may be equipped with a cargo area cover that covers the
luggage compartment of your vehicle.
To install the cover:
Press both ends of the cover into
the depressions (right side first) in
the trim panels behind the second
row seat.
WARNING:To reduce the
risk of injuries, the cargo
area cover must be properly
installed on the rear trim panels.
Driver Controls
136
2010 Mountaineer(mnt)
Owners Guide(own2002), 1st Printing
USA(fus)

WARNING:Do not place any objects on the cargo area cover.
They may obstruct your vision or strike occupants of the vehicle
in the case of a sudden stop or collision.
Cargo management system
The cargo management system consists of storage compartments located
in the floor of the rear cargo area.
7 passenger stowage:
1. To open, lift up on the handle and
the lid.
2. To close, lower and press the lid
down.
5 passenger stowage:
When the lid is open, it will stand
up on its own.
1. To open, lift the release handle
and the lid.
2. To close, lower the lid, lift the
release handle and press down on
the lid.
Driver Controls
137
2010 Mountaineer(mnt)
Owners Guide(own2002), 1st Printing
USA(fus)

REAR LIFTGATE
The liftgate area is only intended for cargo, not passengers. You can open
and close the liftgate from outside the vehicle. It cannot be opened from
inside the cargo area.
•To open the liftgate window,
press the control on the remote
entry transmitter or, with the
liftgate unlocked, press the
control button on theright side
under the license plate lamp
shield.
•To open the liftgate, unlock the
liftgate (with the power door
locks, the remote entry or the
keyless entry pad) and pull the
middlelever under the license plate lamp shield.
To lock the liftgate and the liftgate window, use the power door locks.
The liftgate door and window should be closed before driving. If not,
possible damage may occur to your vehicle.
WARNING:Always close liftgate window before opening liftgate.
Liftgate glass and liftgate should never be open at the same
time. Failure to observe this warning may result in personal injury or
damage to your vehicle.
WARNING:Make sure the liftgate door and/or window are
closed to prevent exhaust fumes from being drawn into the
vehicle. This will also reduce the risk of passengers and cargo falling
out.
Driver Controls
138
2010 Mountaineer(mnt)
Owners Guide(own2002), 1st Printing
USA(fus)

LUGGAGE RACK
Your vehicle is equipped with a roof rack for transporting items on the
exterior of the vehicle.
The maximum recommended load is
100 lb (45 kg), evenly distributed.
Use the tie down loops on the
thumbwheels (if equipped) to
secure the load.
To adjust cross-bar position (if
equipped):
1. Loosen the thumbwheel at both
ends of the cross-bar (If the
thumbwheel is too tight to release
by hand, a small screwdriver or
similar device can be used to release
the torque by inserting the shaft
into the tie-down loop and twisting
the thumbwheel counterclockwise).
Both cross-bars are adjustable.
2. Slide the cross-bar to the desired location.
3. Tighten the thumbwheel at both ends of the cross-bar.
Be sure to check that the thumbwheels are tight each time load is added
or removed from the roof rack, and periodically while traveling. Always
ensure that the load is secure before traveling.
Note:When the cross-bars are not in use, they can either be removed or
adjusted so that the rear crossbar is fully rearward, and the front
crossbar is 10 inches from the front end-cap for optimum wind noise.
Driver Controls
139
2010 Mountaineer(mnt)
Owners Guide(own2002), 1st Printing
USA(fus)

WARNING:Loaded vehicles, with a higher center of gravity,
may handle differently than unloaded vehicles. Extra
precautions, such as slower speeds and increased stopping distance,
should be taken when driving a heavily loaded vehicle.
WARNING:Vehicles with a higher center of gravity such as
utility and four-wheel drive vehicles handle differently than
vehicles with a lower center of gravity. Utility and four-wheel drive
vehicles are not designed for cornering at speeds as high as passenger
cars any more than low-slung sport cars are designed to perform
satisfactorily under off-road conditions. Avoid sharp turns, excessive
speed and abrupt maneuvers in these vehicles. Failure to drive
cautiously could result in an increase risk of loss of vehicle control,
vehicle rollover, personal injury and death.
Driver Controls
140
2010 Mountaineer(mnt)
Owners Guide(own2002), 1st Printing
USA(fus)
