Controls and features
65
Fuel pump shut-off switch
For information on the fuel pump
shut-off switch, refer to
Fuel
pump shut-off switch
in the
Roadside emergencies chapter.
Positive retention floor mat
Position the floor mat in the
footwell. Place the mat eyelet over
the pointed end of the retention
post from the rear and rotate
forward to install. Adjust the floor
mat position to allow proper
operation of accelerator pedal,
brake pedal and clutch pedal (if
equipped).
To remove, lift the floor mat just
forward of the retention post and
rotate it rearward to disengage it
from the retention post.
13MCten 4/13/99 3:36 PM Page 65

Starting
108
If starting a vehicle with a manual
transaxle:
¥ Make sure the parking brake is
set.
¥ Push the clutch pedal to the
floor. Otherwise, the engine will not
crank (turn over).
¥ Put the gearshift into neutral.
If starting a vehicle with an
automatic transaxle:
¥ Make sure the parking brake is
set.
¥ Make sure the gearshift is in P
(Park).
21MSten 4/13/99 2:23 PM Page 108

Driving
113
Two important
rules when
braking in
emergencies with
ABS:
1.
Apply full force
on both brake
and clutch pedal
(if equipped).
Braking with ABS
¥ In an emergency, apply full force
on the brake pedal. In vehicles
with manual transaxles, you must
also depress the clutch pedal. The
anti-lock braking system will be
activated immediately, allowing
you to retain full steering control
of your vehicle and, providing
there is sufficient space, will
enable you to avoid obstacles.
¥ We recommend that you
familiarize yourself with this
braking technique. However,
avoid taking any unnecessary
risks.
¥ Although the ABS ensures
optimum braking efficiency,
stopping distances can vary
greatly, depending on the road
surface and conditions. Use of
the ABS cannot eliminate the
dangers inherent in driving too
close to the vehicle in front of you,
hydroplaning, excessive cornering
speed, or poor road surfaces.
2.
Steer around the
obstacle. No matter
how hard you brake,
steering control is
maintained.
22MDren 4/13/99 3:40 PM Page 113

Driving
123
Manual transaxle (if equipped)
Vehicles equipped with a manual
transaxle have a starter interlock
that prevents cranking the engine
unless the clutch pedal is fully
depressed.
Using the clutch
When starting a vehicle with a
manual transaxle:
1. Hold down the brake pedal.
2. Depress the clutch pedal.
3. Put the gearshift lever in neutral.
4. Start the vehicle.
5. Put the gearshift in 1 (First) or R
(Reverse).
6. Release the clutch slowly while
pressing gradually down on the
accelerator pedal.
Do not drive with your foot resting
on the clutch pedal. Do not use the
clutch to hold your vehicle at a
standstill while waiting on a hill.
These actions may reduce the
clutch life.
22MDren 4/13/99 3:40 PM Page 123

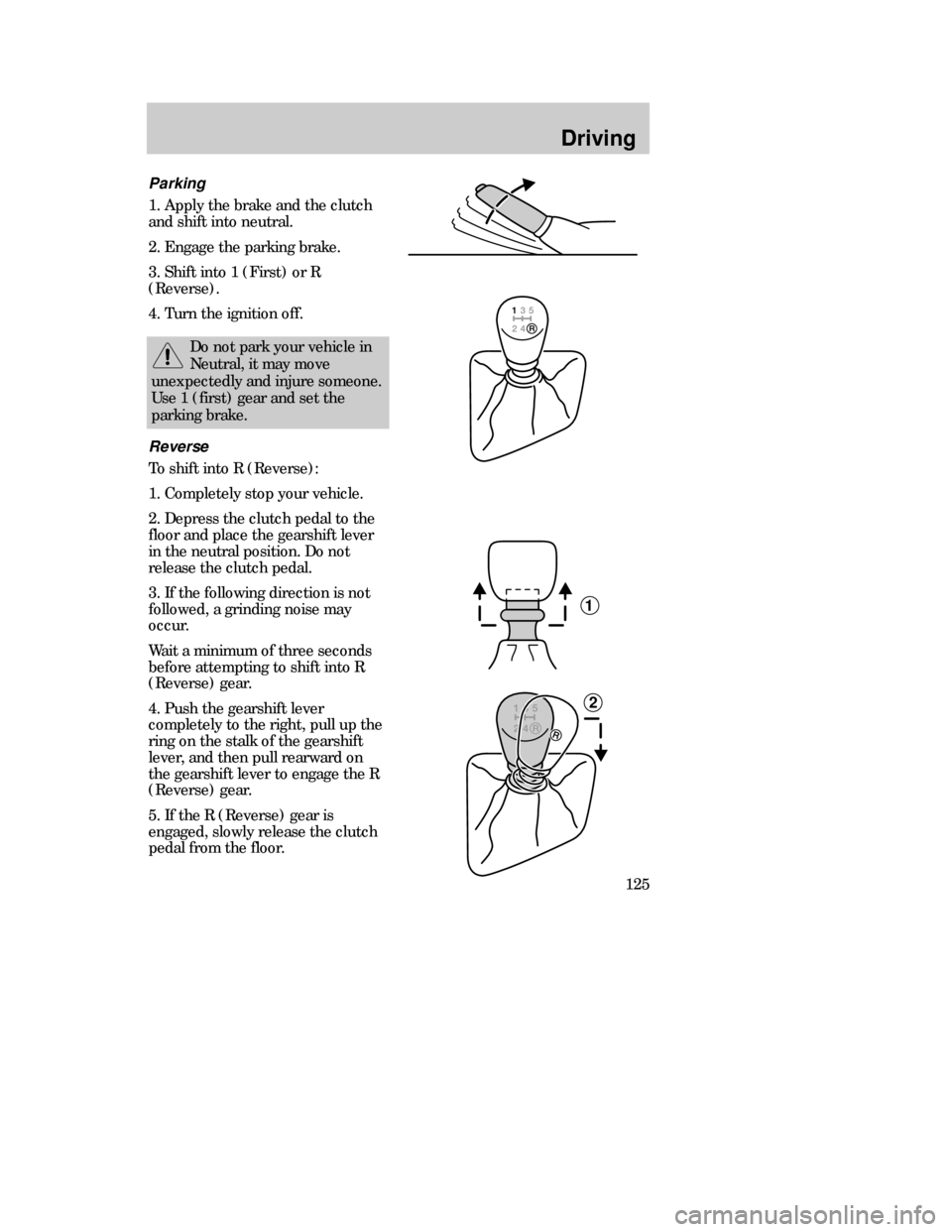

Driving
125
Parking
1. Apply the brake and the clutch
and shift into neutral.
2. Engage the parking brake.
3. Shift into 1 (First) or R
(Reverse).
4. Turn the ignition off.
Do not park your vehicle in
Neutral, it may move
unexpectedly and injure someone.
Use 1 (first) gear and set the
parking brake.
Reverse
To shift into R (Reverse):
1. Completely stop your vehicle.
2. Depress the clutch pedal to the
floor and place the gearshift lever
in the neutral position. Do not
release the clutch pedal.
3. If the following direction is not
followed, a grinding noise may
occur.
Wait a minimum of three seconds
before attempting to shift into R
(Reverse) gear.
4. Push the gearshift lever
completely to the right, pull up the
ring on the stalk of the gearshift
lever, and then pull rearward on
the gearshift lever to engage the R
(Reverse) gear.
5. If the R (Reverse) gear is
engaged, slowly release the clutch
pedal from the floor.
1
2
22MDren 4/13/99 3:40 PM Page 125

Maintenance and care
160
Working with engine off
(manual transaxle)
1. Set the parking brake, depress
the clutch and place the gearshift
in 1 (first) or R (Reverse).
2. Turn off the engine and remove
the key.
3. Block the wheels to prevent the
vehicle from moving unexpectedly.
Working with engine off
(automatic transaxle)
1. Set the parking brake fully and
ensure the gearshift is securely
latched in P (Park).
2. Turn off the engine and remove
the key.
3. Block the wheels to prevent the
vehicle from moving unexpectedly.
31MMCen 4/13/99 2:17 PM Page 160

Maintenance and care
161
Working with engine on
(automatic transaxle)
1. Set the parking brake fully and
ensure the gearshift is securely
latched in P (Park).
2. Block the wheels to prevent the
vehicle from moving unexpectedly.
Working with engine on
(manual transaxle)
1. Set the parking brake, depress
the clutch and place the gearshift
in neutral.
2. Block the wheels to prevent the
vehicle from moving unexpectedly.
Do not start your engine
with the air cleaner removed
and do not remove it while the
engine is running.
31MMCen 4/13/99 2:17 PM Page 161

Maintenance and care
168
Brake/clutch fluid reservoir
Brake and clutch fluid systems are
supplied from the same reservoir.
The level of the fluid must lie
between the MIN and MAX marks
on the side of the reservoir. If the
level falls below the MIN mark, the
brake fluid level warning light on
the instrument cluster will
illuminate. Add only DOT 3, DOT 4
or Super DOT 4 brake fluid that
meets the Ford specification (see
the chapter
Capacities and
specifications
).
If you use brake fluid that is not
DOT 3, DOT 4 or Super DOT 4 you
will cause permanent damage to
your brakes.
MAX
MIN
Brake fluid is toxic.
BRAKE
BRAKE
Do not let the reservoir for
the master cylinder run dry.
This may cause the brakes to fail.
Windshield washer system
If necessary, add enough washer
fluid to fill the reservoir. Follow the
instructions on the washer fluid
label.
Do not put engine coolant in
the container for the
windshield washer fluid.
Alternative design
31MMCen 4/13/99 2:17 PM Page 168

237
Index
CPage
Child safety restraints
built-in child seat . . . . . . . . . . .93
child safety seats . . . . . . . . . . . .99
children and safety belts . . .89, 91
Child safety seats
and air bags . . . . . . . . . . . . . . . .84
attaching with tether straps . .102
automatic locking mode . . . . . .77
Childproof safety locks . . . . . . . .63
Chimes . . . . . . . . . . . . . . . . . . . . .17
Circuit breakers . . . . . . . . . . . . .139
Cleaning your vehicle
engine compartment . . . . . . . .213
exterior lamps . . . . . . . . . . . . .214
fabric . . . . . . . . . . . . . . . . . . . .215
instrument panel . . . . . . . . . . .215
plastic exterior parts . . . . . . . .214
safety belts . . . . . . . . . . . . . . .216
wheels . . . . . . . . . . . . . . . . . . .212
wiper blades . . . . . . . . . . . . . .214
Climate control system
air conditioning . . . . . . . . . . . . .27
controlling airflow . . . . . . . . . . .24
defrosting . . . . . . . . . . . . . . . . . .30
temperature . . . . . . . . . . . . . . . .25
vents . . . . . . . . . . . . . . . . . . . . . .24
Clock . . . . . . . . . . . . . . . . . . . . . .43
Clutch
operation . . . . . . . . . . . . . . . . .123
recommended shift speeds . . .124
Cold engine starting . . . . . . . . .110
Controls
instrument panel . . . . . . . . . . . .18
power seats . . . . . . . . . . . . . . . .73
steering column . . . . . . . . . . . . .53
Customer assistance . . . . . . . . .223DPage
Daytime running lights . . . . . . . .21
Defects, reporting . . . . . . . . . . .235
Defrost
rear window . . . . . . . . . . . . . . . .22
windshield . . . . . . . . . . . . . . . . .30
Dipstick, engine oil . . . . . . . . . .163
Door mounted controls . . . . . . . .62
Driving under special conditions
heavy load . . . . . . . . . . . . . . . .129
towing a trailer . . . . . . . . . . . .130
E
Electrical system
fuses . . . . . . . . . . . . . . . . . . . . .139
Emergencies, roadside
fuel pump shut-off switch . . . .137
jump starting . . . . . . . . . . . . . .150
towing . . . . . . . . . . . . . . . . . . .156
Emergency brake (see Parking
brake)
Emission control system . . . . . .196
Engine
check engine warning light . . . .10
fuel pump shut-off switch . . . .137
lubricant specifications . . . . . .219
preparing to start . . . . . . . . . .107
refill capacities . . . . . . . . . . . .218
starting . . . . . . . . . . . . . . . . . . .110
Engine block heater . . . . . . . . .111
Engine coolant
checking and adding . . . . . . . .167
disposal . . . . . . . . . . . . . . . . . .171
low coolant warning light . . . . . .9
refilll capacities . . . . . . . . . . . .218
specifications . . . . . . . . . . . . . .219
Engine fan . . . . . . . . . . . . . . . . .159
4MInden 04/14/1999 9:51 AM Page 237

Index
240
MPage
Maintenance (see Servicing)
Manual transaxle
backing up (reverse) . . . . . . . .125
clutch . . . . . . . . . . . . . . . . . . . .123
fluid, capacity . . . . . . . . . . . . .218
shift speeds . . . . . . . . . . . . . . .124
Mileage, calculating fuel
economy . . . . . . . . . . . . . . . . . . .195
Mirrors
side view mirrors (power) . . . .23
Motorcraft parts . . . . . . . . . . . .217
N
National Highway Traffic Safety
Administration . . . . . . . . . . . . . .235
O
Octane rating . . . . . . . . . . . . . . .193
Odometer . . . . . . . . . . . . . . . . . . .19
Oil (see Engine oil)
Oil filter . . . . . . . . . . . . . . .165, 217
On-board diagnostic (OBD II)
system . . . . . . . . . . . . . . . . . . . .198
Overdrive . . . . . . . . . . . . . . . .9, 120
Overhead controls . . . . . . . . . . . .61
P
Panel dimmer control . . . . . . . . .23
Panic alarm, remote entry sytem 67
Parking brake . . . . . . . . . . . . . .114
Parts (see Motorcraft parts) . . .217
Passenger compartment
air filter (see Cabin air filter) . .181
Passive Anti-Theft
System (PATS) . . . . . . . . . . . . . .69
PPage
Power distribution box
(see Fuses)
Power door locks . . . . . . . . . . . . .62
Power features
mirrors . . . . . . . . . . . . . . . . . . . .23
seats . . . . . . . . . . . . . . . . . . . . . .73
sunroof . . . . . . . . . . . . . . . . . . . .61
windows . . . . . . . . . . . . . . . . . . .62
Power steering
fluid, checking and adding . . .173
fluid, refill capacity . . . . . . . . .218
fluid, specification . . . . . . . . . .219
R
Radio (see Audio system) . . . . . .32
Rear window defroster . . . . . . . .22
Refill capacities for fluids . . . . .218
Relays . . . . . . . . . . . . . . . . . . . . .139
Remote control
luggage compartment . . . . . . . .64
Remote entry system
locking/unlocking doors . . . . . .66
opening the trunk . . . . . . . . . . .67
panic alarm . . . . . . . . . . . . . . . .67
replacing the batteries . . . . . . .67
replacement/additional
transmitters . . . . . . . . . . . . . . . .68
Repairing paint chips . . . . . . . .212
Reporting safety defects . . . . . .235
Restraints, safety . . . . . . . . . . . . .75
Rotating the tires . . . . . . . . . . . .185
4MInden 04/14/1999 9:51 AM Page 240
