AM/FM STEREO CASSETTE/MACHAUDIO SYSTEM WITH AM/FM
STEREO CASSETTE (IF EQUIPPED)
1.Tape:Insert the cassette with the
opening to the right. If a tape is
already inserted into the system,
press TAPE to begin tape play.
2.Clock:To set the hour, press and
hold the H control. When the
desired hour appears, release the
control.
To set the minute, press and hold
the M control. When the desired
minute appears, release the control.
3.CD:Press to play the CD (if
equipped).
Note:This system is CDDJ
compatible, but CDDJ is an option with limited availability as defined in
the order guide.
4.Bass:Press
/to
decrease/increase the bass output.
5.Treble:Press
/to
decrease/increase the treble output.
BASS
TREB
2004 Sable(sab)
Owners Guide (post-2002-fmt)
USA English(fus)
Entertainment Systems
Entertainment Systems
15

AUDIOSYSTEM WITH AM/FM STEREO/SINGLE CD PLAYER
(IF EQUIPPED)
1.Clock:To set the hour, press and
hold the H control. When the
desired hour appears, release the
control.
To set the minute, press and hold
the M control. When the desired
minute appears, release the control.
2.Bass:Press
/to
decrease/increase the bass output.
3.Treble:Press
/to
decrease/increase the treble output.
4.Balance:Press
/to shift
sound to the left/right speakers.
5.Fade:Press
/to shift
sound to the rear/front speakers.
12111098
1612317
5
4
15
14
13
76
BASS
TREB
BAL
FADE
2004 Sable(sab)
Owners Guide (post-2002-fmt)
USA English(fus)
Entertainment Systems
18

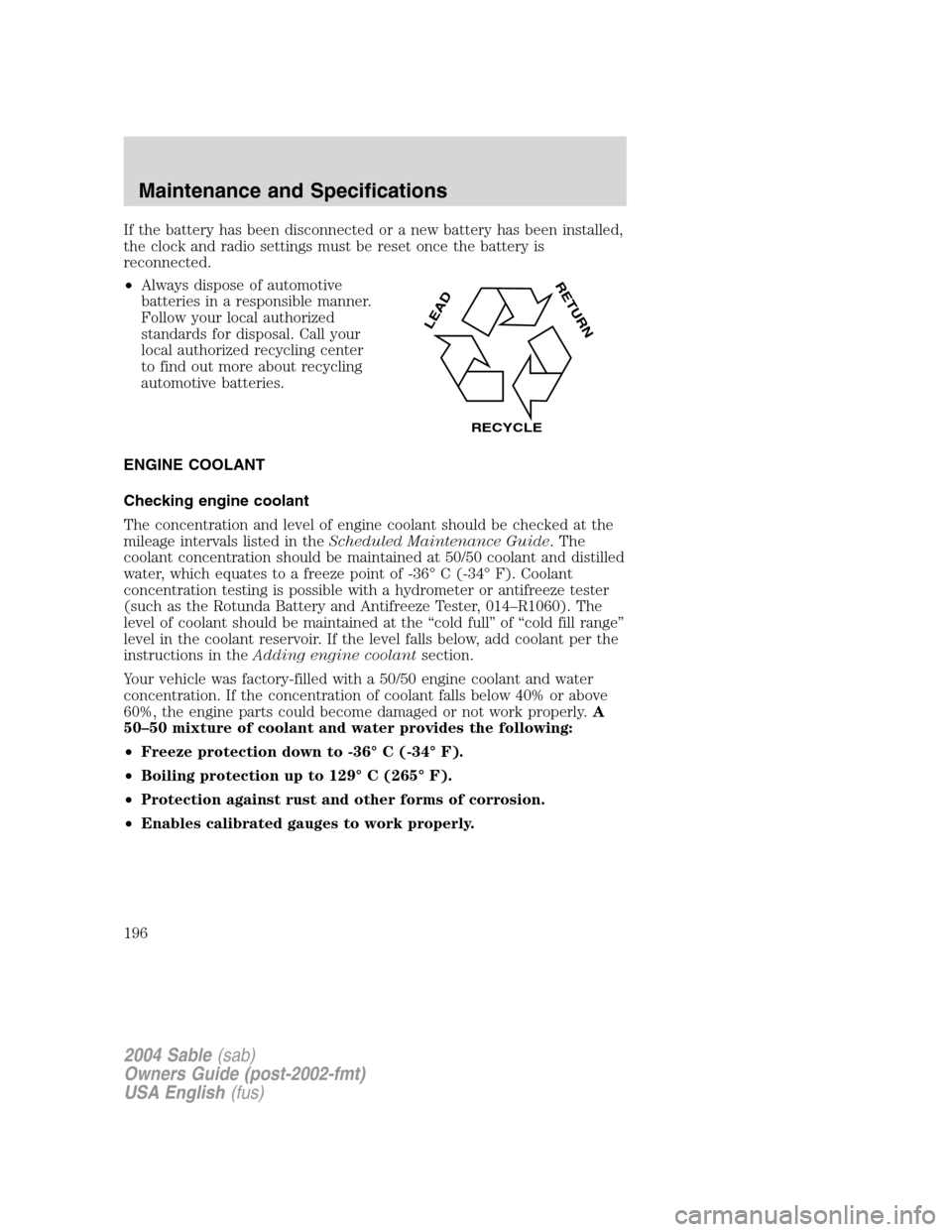

If the battery has been disconnected or a new battery has been installed,
the clock and radio settings must be reset once the battery is
reconnected.
•Always dispose of automotive
batteries in a responsible manner.
Follow your local authorized
standards for disposal. Call your
local authorized recycling center
to find out more about recycling
automotive batteries.
ENGINE COOLANT
Checking engine coolant
The concentration and level of engine coolant should be checked at the
mileage intervals listed in theScheduled Maintenance Guide. The
coolant concentration should be maintained at 50/50 coolant and distilled
water, which equates to a freeze point of -36°C (-34°F). Coolant
concentration testing is possible with a hydrometer or antifreeze tester
(such as the Rotunda Battery and Antifreeze Tester, 014–R1060). The
level of coolant should be maintained at the“cold full”of“cold fill range”
level in the coolant reservoir. If the level falls below, add coolant per the
instructions in theAdding engine coolantsection.
Your vehicle was factory-filled with a 50/50 engine coolant and water
concentration. If the concentration of coolant falls below 40% or above
60%, the engine parts could become damaged or not work properly.A
50–50 mixture of coolant and water provides the following:
•Freeze protection down to -36°C (-34°F).
•Boiling protection up to 129°C (265°F).
•Protection against rust and other forms of corrosion.
•Enables calibrated gauges to work properly.
LEAD
RETURN
RECYCLE
2004 Sable(sab)
Owners Guide (post-2002-fmt)
USA English(fus)
Maintenance and Specifications
196

Cleaning your vehicle
engine compartment ..............180
instrument panel ....................182
interior .....................................182
interior trim ............................183
plastic parts ............................181
washing ....................................179
waxing .....................................179
wheels ......................................180
wiper blades ............................182
Climate control (see Air
conditioning or Heating) ............25
Clock adjust
AM/FM/CD .................................18
AM/FM/Tape ..............................15
Compass, electronic
set zone adjustment .................60
Console ........................................66
Controls
power seat .................................89
Coolant
checking and adding ..............196
refill capacities ................200, 230
specifications ..................231, 233
Cruise control
(see Speed control) ....................50
Customer Assistance ................148
Ford accessories for your
vehicle .....................................184
Ford Extended Service
Plan ..........................................172
Getting assistance outside
the U.S. and Canada ..............176
Getting roadside assistance ...148
Getting the service you
need .........................................170
Ordering additional owner’s
literature .................................177
The Dispute Settlement
Board .......................................172Utilizing the
Mediation/Arbitration
Program ...................................175
D
Daytime running lamps
(see Lamps) ................................29
Defrost
rear window ..............................27
Dipstick
automatic transmission
fluid ..........................................214
engine oil .................................190
Doors
lubricant specifications ..........231
Driving under special
conditions ..................................140
through water .........................140
E
Electronic message center .........57
Emergencies, roadside
jump-starting ..........................162
Emergency Flashers .................149
Emission control system ..........210
Engine ........................................233
cleaning ...................................180
coolant .....................................196
idle speed control ...................194
lubrication
specifications ..................231, 233
refill capacities ........................230
service points ..................187–188
starting after a collision .........149
Engine block heater .................132
Engine oil ..................................190
checking and adding ..............190
2004 Sable(sab)
Owners Guide (post-2002-fmt)
USA English(fus)
Index
242

Power door locks ........................72
Power Point
Cigar lighter ..............................47
Power steering ..........................135
fluid, checking and adding ....212
fluid, refill capacity ................230
fluid, specifications .........231, 233
Power Windows ...........................48
R
Radio ......................................15, 18
Rear window defroster ...............27
Relays ........................................156
Remote entry system
illuminated entry ......................78
locking/unlocking doors ...........72
opening the trunk .....................76
Roadside assistance ..................148
Roof rack .....................................71
S
Safety Belt Maintenance ..........106
Safety belts (see Safety
restraints) ..................91, 94–97, 99
Safety defects, reporting ..........178
Safety restraints ............91, 94–100
belt minder .............................102
extension assembly ................106
for adults .............................95–97
for children .....................115–116
lap belt ......................................99
Occupant Classification
Sensor ........................................92
safety belt maintenance .........106
warning light and
chime ...............................101–102Safety seats for children ..........118
Seat belts
(see Safety restraints) ...............91
Seats ............................................87
child safety seats ....................118
front seats .................................88
Servicing your vehicle ..............185
Setting the clock
AM/FM/CD .................................18
AM/FM/Tape ..............................15
Spare tire
(see Changing the Tire) ...........157
Spark plugs,
specifications .....................229, 233
Specification chart,
lubricants ...........................231, 233
Speed control ..............................50
Starting a flex fuel vehicle .......131
Starting your
vehicle ........................128–129, 131
jump starting ..........................162
Steering wheel
tilting .........................................46
T
Tilt steering wheel ......................46
Tires ...........................157, 216–217
alignment ................................224
care ..........................................222
changing ..................157, 159, 162
checking the pressure ............222
label .........................................222
replacing ..................................227
rotating ....................................224
safety practices .......................227
sidewall information ...............218
snow tires and chains ............228
2004 Sable(sab)
Owners Guide (post-2002-fmt)
USA English(fus)
Index
245
