Instrument Panel Controls
105
[IP10360(ALL)06/95]
The display window and the function selector buttons indicate
how the system is operating. The display window shows the
selected temperature and displays AUTO if you are operating in
the AUTOMATIC mode. If you override the automatic mode by
selecting any of the function selector buttons, AUTO no longer
appears in the display window and the appropriate function
selector button(s) illuminate. The display window also indicates
manual (thumbwheel) control of the fan speed when a
His
shown.
[IP10370(ALL)06/95]
Automatic Operation
[IP10380(ALL)06/95]
Push the AUTOMATIC button and select the desired
temperature. The selected temperature and AUTO appear in the
display window. The ATC heats or cools to achieve the set
temperature. It is important to note that if the ATC engages
your vehicle's air-conditioning, it will do so automatically
without illuminating the A/C button.
[IP10390(ALL)06/95]
When in AUTOMATIC and weather conditions require heat, air
is sent to the floor. However, a feature is included in the ATC
to prevent blowing cold air to the floor if the engine coolant is
not warm enough to provide heating. Within three or four
minutes (of determining the engine coolant is not warm enough)
the fan speed gradually increases and airflow changes to the
floor.
[IP10400(ALL)06/95]
If specific conditions exist (such as window fogging) the five
override buttons allow specific airflow selection. The
thumbwheel allows you to adjust the fan speed to suit your
needs.
File:06vxipn.ex
Update:Mon Jun 3 14:33:05 1996

106
[IP10410(ALL)06/95]
Temperature Selection
[IP10420(ALL)06/95]
TheNTEMPMbutton on the left side of the control panel is
for temperature selection. TheNside lowers the set
temperature, and theMside raises the set temperature. Press
and hold either side of the button to rapidly change the
temperature setting in one degree increments to either65ÊF
(18ÊC) or 85ÊF (29ÊC).Then, the set temperature jumps 5ÊF and
stops at either60ÊF (16ÊC),which is maximum cooling, or90ÊF
(32ÊC),which is maximum heating.
[IP10423(ALL)05/96]
Changing the Display Mode (English/Metric)
[IP10425(ALL)05/96]
To switch between the English and Metric display mode, press
the DEFROST and A/C buttons simultaneously while rotating
the fan speed dial upward until it stops moving. After one
second, the display will begin to toggle between English and
Metric.
[IP10430(ALL)06/95]
Fan Speed and Thumbwheel
[IP10440(ALL)06/95]
The ATC automatically adjusts the fan speed to the existing
conditions. To control the fan speed yourself, use the
thumbwheel located at the extreme right side of the ATC
control panel. Using the thumbwheel cancels the automatic fan
speed control, and causes a
Hto appear in the display window.
Rotate the thumbwheel up for HI speeds and down for LO
speeds.
[IP10450(ALL)06/95]
To return to auto fan control, press the AUTOMATIC button.
[IP10460(ALL)06/95]
Airflow Function Selector Buttons
[IP10470(ALL)06/95]
Your ATC has five buttons which allow you to make special
selections for airflow. The buttons are grouped in the middle of
the ATC panel and allow you to determine airflow location.
Pressing any of the function selector buttons illuminates the
button pushed and directs airflow to the appropriate location.
The temperature of the airflow will still be automatically
controlled. Return to fully automatic operation by pushing the
AUTOMATIC button.
File:06vxipn.ex
Update:Mon Jun 3 14:33:05 1996

123
Steering Column Controls
*
[SC00900(ALL)01/95]
The controls on the steering column and wheel are designed to
give you easy access to the controls while you are driving.
*
[SC01000(ALL)01/93]
Turn Signal Lever
*
[SC01100(ALL)01/95]
You can use the turn signal lever on the left side of the steering
column to:
*
[SC01200(ALL)01/93]
n
operate the turn signals.
*
[SC01300(ALL)01/93]
n
turn the headlamps to high beam.
*
[SC01400(ALL)01/93]
n
flash the headlamps.
*
[SC01500(ALL)01/93]
n
turn the windshield wipers and washer on/off.
*
[SC01600(ALL)01/95]
Turn Signals
[SC01700(ALL)02/95]
Move the lever up to signal a right turn. Move it down to
signal a left turn. The corresponding indicator light in the
instrument cluster will flash.
*
[SC01900(ALL)11/93]
7-1/2 pica art:0040085-D
The turn signal lever
[SC02000(ALL)02/95]
If the turn signal stays on after you turn, move the lever back
to the center (off) position.
[SC02100(ALL)02/95]
For lane changes, move the lever far enough to signal but not to
latch. The lever will return to the off position when you release
it.
File:07vxscn.ex
Update:Mon Jun 3 14:47:35 1996

Steering Column Controls
127
[SC04700(ALL)05/95]
Tilt Steering
[SC04850(ALL)02/95]
RWARNING
Never adjust the steering wheel when the vehicle is
moving. You could lose control of the vehicle and injure
someone.
[SC04900(ALL)02/95]

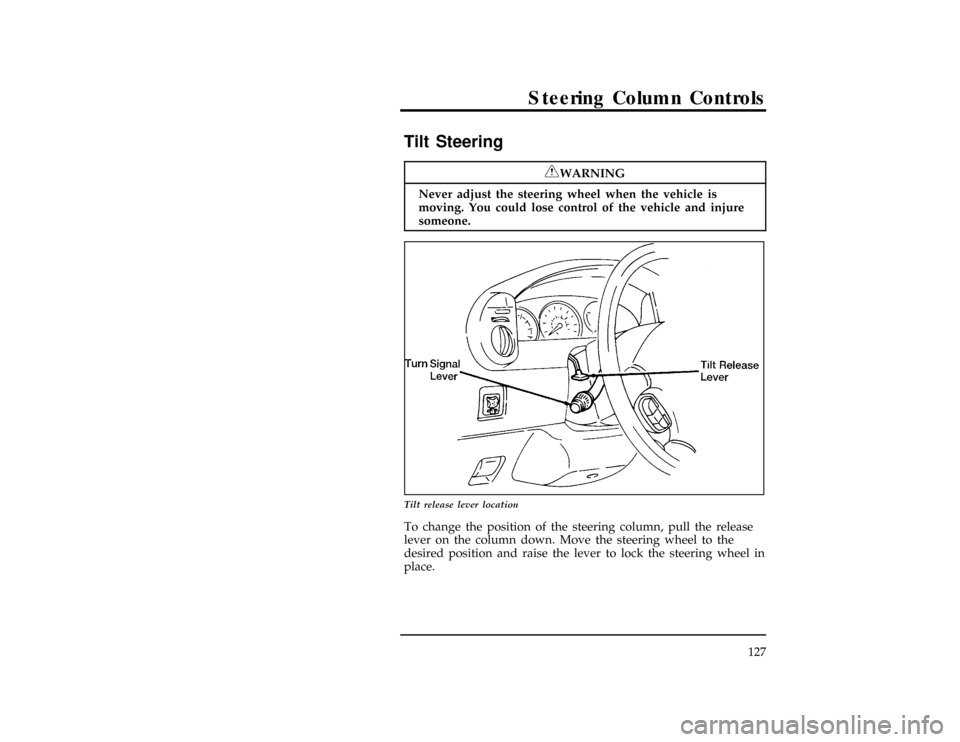

17-1/2 pica art:0040089-E
Tilt release lever location
[SC05000(ALL)06/95]
To change the position of the steering column, pull the release
lever on the column down. Move the steering wheel to the
desired position and raise the lever to lock the steering wheel in
place.
File:07vxscn.ex
Update:Mon Jun 3 14:47:35 1996

234
*
[DR05700(ALL)01/95]
Steering Your Vehicle
*
[DR05800(ALL)01/93]
Your vehicle has power steering. Power steering uses energy
from the engine to help steer your vehicle.
%*
[DR05850(ALL)04/95]
If the amount of effort needed to steer your vehicle changes at a
constant vehicle speed, have the power steering system checked.
If the power steering system breaks down (or if the engine is
turned off), you can steer the vehicle manually but it takes more
effort.
*
[DR05900(ALL)01/93]
Never hold the steering wheel in the extreme right or left
position for more than five seconds if the engine is running.
This can damage the power steering pump.
*
[DR06100(ALL)01/93]
NOTE: After any severe impact such as striking large
potholes, sliding into curbs on icy roads, or a collision
involving the front end, have the front suspension
and steering checked for possible damage.
*
[DR06200(ALL)03/95]
Brakes
*
[DR06300(ALL)01/93]
When the foot (service) brake pedal is depressed, the
high-mount brake lamp should illuminate.
*
[DR06400(ALL)01/93]
Front Disc Brakes
[DR06500(ALL)01/93]
The front disc brakes are self-adjusting. They do not require
service other than periodic lubrication of the caliper slide rails
and inspection for pad wear.
*
[DR06600(ALL)10/94]
Rear Drum Brakes
*
[DR06700(ALL)01/93]
The rear drum brakes are self-adjusting. Automatic adjustment
occurs through normal use of the brakes.
File:11vxdrn.ex
Update:Tue Jun 4 11:42:50 1996

Driving Your Villager
239
*
[DR09000(ALL)02/94]
The parking brake is not designed to stop a moving vehicle, but
you can use the parking brake to stop your vehicle in an
emergency if the service brakes fail. However, since the parking
brake does not stop your vehicle as quickly as the normal
brakes, the stopping distance will increase greatly.
%*
[DR09100(ALL)01/95]
Driving Under Special Conditions
*
[DR09200(ALL)01/95]
Tips for Safe Driving
*
[DR09300(ALL)01/93]
As with any new vehicle, yours may drive and handle
differently from your previous vehicle. Use greater care until
you become accustomed to its features and driving
characteristics.
*
[DR09400(ALL)01/93]
Always operate your vehicle within reasonable limits. Abrupt
changes in acceleration, deceleration, turning, or combinations of
these maneuvers can cause a vehicle to behave differently than
anticipated, especially when road conditions vary.
*
[DR09500(ALL)07/93]
For example, even with anti-lock brakes, extreme braking can
make it difficult to control the direction of the vehicle. Use a
ªsqueezeº technique. Push on the brake pedal with steadily
increasing force. This allows the wheels to brake, yet continue to
roll so that you may steer in the direction you want to travel.
*
[DR09600(ALL)01/93]
If you release the accelerator abruptly or brake hard while
going too fast around a severe curve, your vehicle may change
its direction of travel. Avoid applying the brakes, if possible. If
you must apply the brakes, use the ªsqueezeº technique
described earlier.
[DR09650(ALL)07/93]
If you run off the road, do not turn the steering wheel sharply
to return to the road. Instead, slow the vehicle sufficiently and
gradually steer the vehicle back onto the road.
File:11vxdrn.ex
Update:Tue Jun 4 11:42:50 1996

Roadside Emergencies
263
*
[RE06300(ALL)01/93]
Stowing the spare tire
[RE06400(ALL)04/95]1.
To raise the tire to the stowed position, lay the tire on the
ground with the inboard side facing up. Install the retainer
through the wheel center and slide the tire under the vehicle.
Fit the hex-shaped end of the wheel lug wrench over the hex
nut in the floor of the cargo area. Turn the wheel lug
wrench clockwise until the tire is raised to its original
position underneath the vehicle.
[RE06500(ALL)01/93]
NOTE: The lug wrench ratchets when the tire is raised to the
stowed position. It will not allow you to over-tighten.
*
[RE06600(ALL)01/93]2.
Check for proper seating against the underbody supports
and retighten if necessary.
*
[RE06700(ALL)05/95]
RWARNING
Make sure spare tires and jacking equipment are stowed
and secured in the proper storage location.
*
[RE06800(ALL)03/95]
Preparing to Change the Tire
*
[RE06900(ALL)05/94]
You should only raise your vehicle with a jack properly placed
at the front or rear jacking points.
*
[RE07000(ALL)06/95]1.
Make sure that your vehicle will not move or roll. Put the
gearshift lever in P (Park). Set the parking brake and block
the wheel Ð in both directions Ð that is diagonally opposite
the tire that you are changing.
*
[RE07100(ALL)06/95]
RWARNING
When one of the front wheels is off the ground, the
transaxle alone will not prevent the vehicle from moving
or slipping off the jack, even if the vehicle is in P (Park).
File:12vxren.ex
Update:Tue Jun 4 11:42:14 1996

264
*
[RE07200(ALL)01/93]
RWARNING
To prevent the vehicle from moving when you change a
tire, be sure the parking brake is set, then block (in both
directions) the wheel that is diagonally opposite (other
side and end of the vehicle) to the tire being changed.
*
[RE07300(ALL)01/93]
RWARNING
If the vehicle slips off the jack, you or someone else
could be seriously injured.
[RE07400(ALL)01/93]2.
Get out the spare tire and jack. See previous section for
instructions on spare tire removal. The jack is located in the
rear storage compartment in the right door panel of the
cargo area. You will have to unfasten the jack before
removing it as shown in the illustration.
[RE07450(ALL)09/93]
NOTE: All occupants should be out of the vehicle while it is
on the jack.
File:12vxren.ex
Update:Tue Jun 4 11:42:14 1996

Roadside Emergencies
265
[RE07500(ALL)09/93]

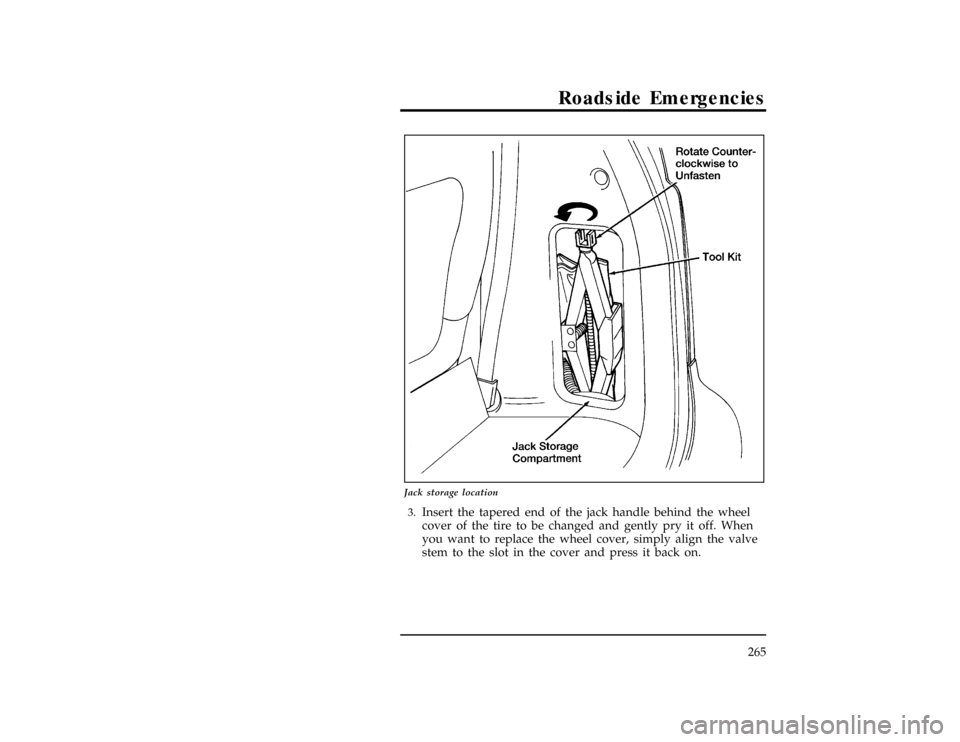

24 pica art:0040170-C
Jack storage location
*
[RE07600(ALL)01/93]3.
Insert the tapered end of the jack handle behind the wheel
cover of the tire to be changed and gently pry it off. When
you want to replace the wheel cover, simply align the valve
stem to the slot in the cover and press it back on.
File:12vxren.ex
Update:Tue Jun 4 11:42:14 1996

272
[RE10400(ALL)09/93]
24 pica art:0040178-C
Storing the jack
[RE10500(ALL)01/93]16.
Make sure the lug wrench is secured back into the tool kit
and store it next to the jack.
[RE10600(ALL)01/93]17.
Unblock the wheels.
*
[RE10700(ALL)01/93]
Retighten the lug nuts to the specified torque at 500 miles
(800 km) of operation, after any wheel change, or any time the
lug nuts are loosened.
File:12vxren.ex
Update:Tue Jun 4 11:42:14 1996
