Page 120 of 396
120
*
[IP16000(ALL)04/95]
Illuminated Entry System (If equipped)
[IP16100(ALL)06/95]
If your vehicle is equipped with this option, the interior
courtesy lamps (footwell, stepwell, and dome lamps) will light
when either of the front doors or the sliding door is opened. If
you have the optional Keyless Entry System the lamps will also
light whenever any keypad or remote keyless entry transmitter
button is pressed. One of the stepwell lamps is located near the
sliding door entrance and there is one on each front door. The
footwell lamps are located below the instrument panel near the
driver's and front passenger's feet. When the liftgate is opened,
the optional liftgate lamp, rear dome lamp and sliding door
stepwell lamp are illuminated.
[IP16200(ALL)01/93]
The lamps that have the time delay feature will automatically
dim until they turn completely off approximately 15 seconds
after the doors are closed. When the key is placed in the
ignition and turned to the ON position, the lamps will turn off.
[IP16300(ALL)09/93]
Overhead Map Lamps (If equipped)
[IP16400(ALL)01/93]
The power sunroof overhead console also contains the overhead
map lamps.
[IP16500(ALL)09/93]
10-1/2 pica
art:0040082-A

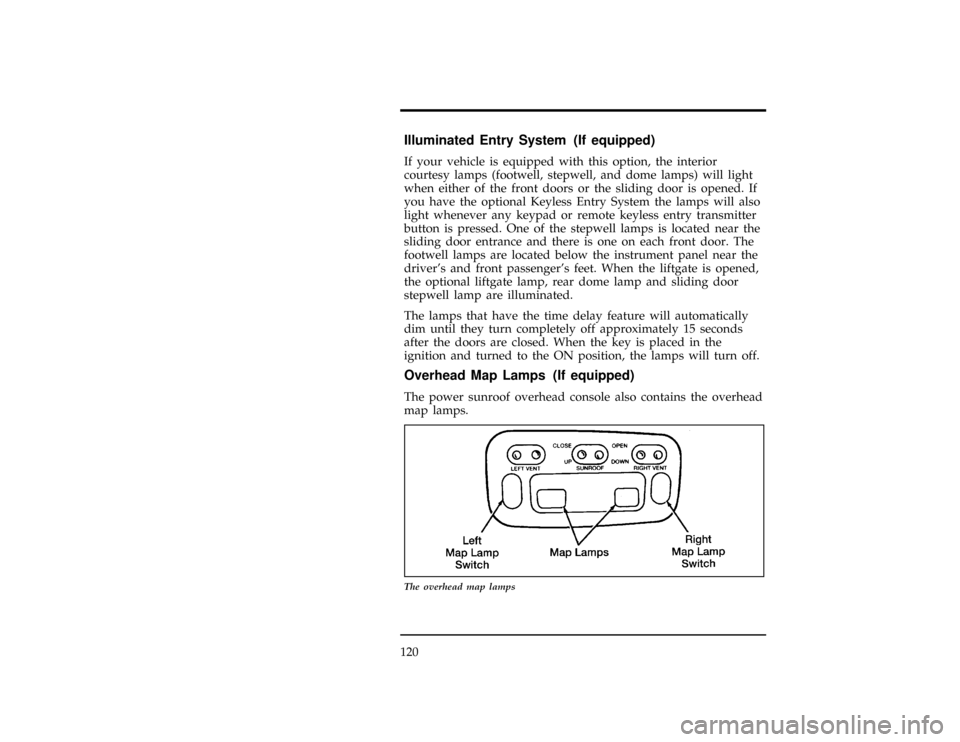

The overhead map lamps
File:06vxipn.ex
Update:Mon Jun 3 14:33:05 1996
Page 134 of 396
136
[FV02200(ALL)01/93]
Automatic Door Lock
[FV02300(ALL)01/93]
If your vehicle is equipped with the optional power door locks,
locking the driver's door with the key or with the manual
rocker switch will also lock all other doors. However, when the
driver's door is unlocked, with the key or with the manual
rocker switch, other doors remain locked.
[FV02325(ALL)06/95]
Anti-Lockout
[FV02350(ALL)06/95]
Your vehicle is equipped with an anti-lockout feature which
prevents the driver's side door from being locked while the key
is in the ignition. To lock the driver's side door, remove the key
from the ignition and then use either the manual rocker switch
or the door lock cylinder.
[FV02360(ALL)06/95]
Accessory Delay (If equipped)
[FV02370(ALL)06/95]
Accessory Delay is a feature that allows vehicles equipped with
power windows and the power sunroof to operate all power
windows and the power sunroof for 15 minutes after the
ignition is turned to OFF or until the driver's door is opened
(after ignition is turned to OFF).
File:08vxfvn.ex
Update:Mon Jun 3 14:49:33 1996
Page 156 of 396
158
*
[FV11600(ALL)09/93]
Power Quarter Windows (If equipped)
[FV11700(ALL)04/95]
The power quarter windows operate with the ignition in the
ON position. The power-operated quarter windows in the third
seat position are controlled by the RIGHT VENT and LEFT
VENT switches on the overhead console. Press the indented side
of the switch to open the windows; press the raised side of the
switch to close the windows.
[FV11800(ALL)09/93]
10-1/2 pica
art:0040123-B

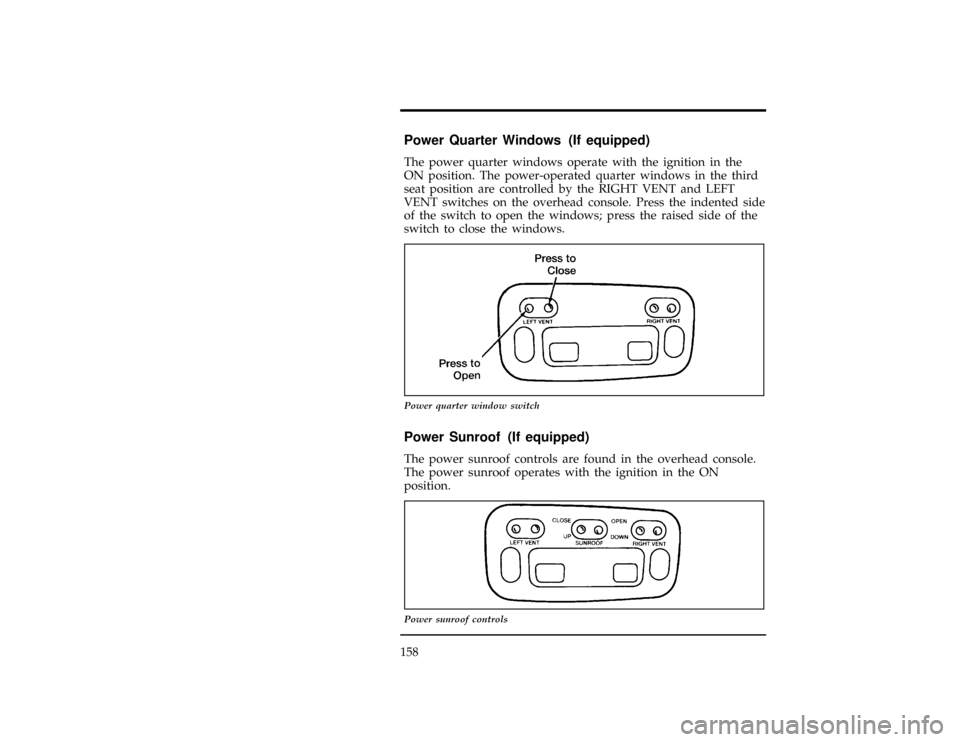

Power quarter window switch
[FV11900(ALL)09/93]
Power Sunroof (If equipped)
[FV12000(ALL)01/93]
The power sunroof controls are found in the overhead console.
The power sunroof operates with the ignition in the ON
position.
[FV12100(ALL)09/93]
7-1/2 pica art:0040103-A
Power sunroof controls
File:08vxfvn.ex
Update:Mon Jun 3 14:49:33 1996
Page 157 of 396
Features
159
[FV12200(ALL)05/95]
To open the sunroof, press and hold the OPEN side of the
switch. Release the switch when the sunroof reaches the desired
position. To close the sunroof, press the CLOSE side of the
switch.
[FV12500(ALL)01/93]
When the sunroof panel is closed, you can raise the sunroof to
the vent position by pressing the UP side of the switch. To
lower the sunroof from the vent position, press the DOWN side
of the switch.
[FV12600(ALL)01/93]
RWARNING
Do not let children play with the sunroof. They may
seriously hurt themselves.
[FV12700(ALL)04/95]
Remove any snow, water or other foreign matter from the
sunroof before you open it.
*
[FV12800(ALL)01/95]
Sliding Shade
[FV12900(ALL)04/95]
The sunroof has a sliding shade you can manually open or close
to block the sun when the glass panel is shut. To close the
sliding shade, pull the shade toward the front of the vehicle.
The shade automatically opens when the sunroof is opened.
*
[FV13000(ALL)01/95]
Seats
*
[FV13020(ALL)04/95]
Head Restraints
*
[FV13030(ALL)04/95]
If you use them properly, head restraints will help protect your
head and neck in a collision.
[FV13040(ALL)09/93]
The head restraints can be adjusted in four positions: fully
raised, fully lowered and two intermediate positions. Press
down on the head restraint adjustment button and move the
restraint to the position that places the restraint directly behind
your head.
*
[FV13060(ALL)05/95]
A head restraint helps protect you best if you position it behind
your head and not behind your neck.
