260
%*
[ER00645(ALL)03/96]
Preparing to Change the Tire
*
[ER00650(ALL)01/96]
You should only raise your vehicle with a jack properly placed
at the front or rear jacking points.
*
[ER00655(ALL)05/96]1.
Make sure that your vehicle will not move or roll and that
the tires and jack are on a level, solid surface. Put the
gearshift lever in P (Park). Set the parking brake and block
the wheel Ð in both directions Ð that is diagonally opposite
the tire that you are changing.
*
[ER00660(ALL)01/96]
RWARNING
When one of the front wheels is off the ground, the
transaxle alone will not prevent the vehicle from moving
or slipping off the jack, even if the vehicle is in P (Park).
*
[ER00665(ALL)01/96]
RWARNING
To prevent the vehicle from moving when you change a
tire, be sure the parking brake is set, then block (in both
directions) the wheel that is diagonally opposite (other
side and end of the vehicle) to the tire being changed.
*
[ER00670(ALL)03/96]
RWARNING
If the vehicle slips off the jack, you or someone else
could be seriously injured.
[ER00675(ALL)05/96]2.
Get out the spare tire and jack. See previous section for
instructions on spare tire removal. The jack is located in the
rear storage compartment in the right door panel of the
cargo area. You will have to unfasten the jack before
removing it as shown in the illustration. The jack handle is
in the tool kit located behind the jack.
File:10vxern.ex
Update:Thu May 30 09:55:50 1996

Roadside Emergencies
265
[ER00735(ALL)01/96]
17-1/2 pica
art:0040174-B

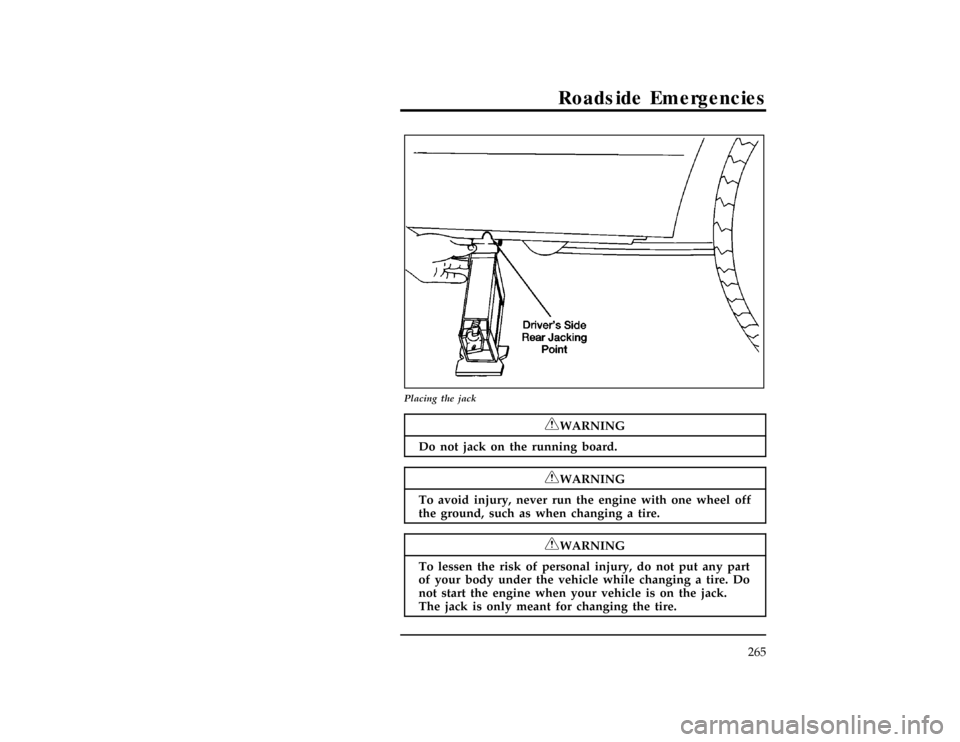

Placing the jack
[ER00740(ALL)01/96]
RWARNING
Do not jack on the running board.
*
[ER00745(ALL)05/96]
RWARNING
To avoid injury, never run the engine with one wheel off
the ground, such as when changing a tire.
*
[ER00750(ALL)01/96]
RWARNING
To lessen the risk of personal injury, do not put any part
of your body under the vehicle while changing a tire. Do
not start the engine when your vehicle is on the jack.
The jack is only meant for changing the tire.
File:10vxern.ex
Update:Thu May 30 09:55:50 1996

266
*
[ER00755(ALL)01/96]
RWARNING
Never raise your vehicle by using a bumper jack. The
bumper could be damaged or the jack could slip and you
could be injured.
[ER00760(ALL)01/96]6.

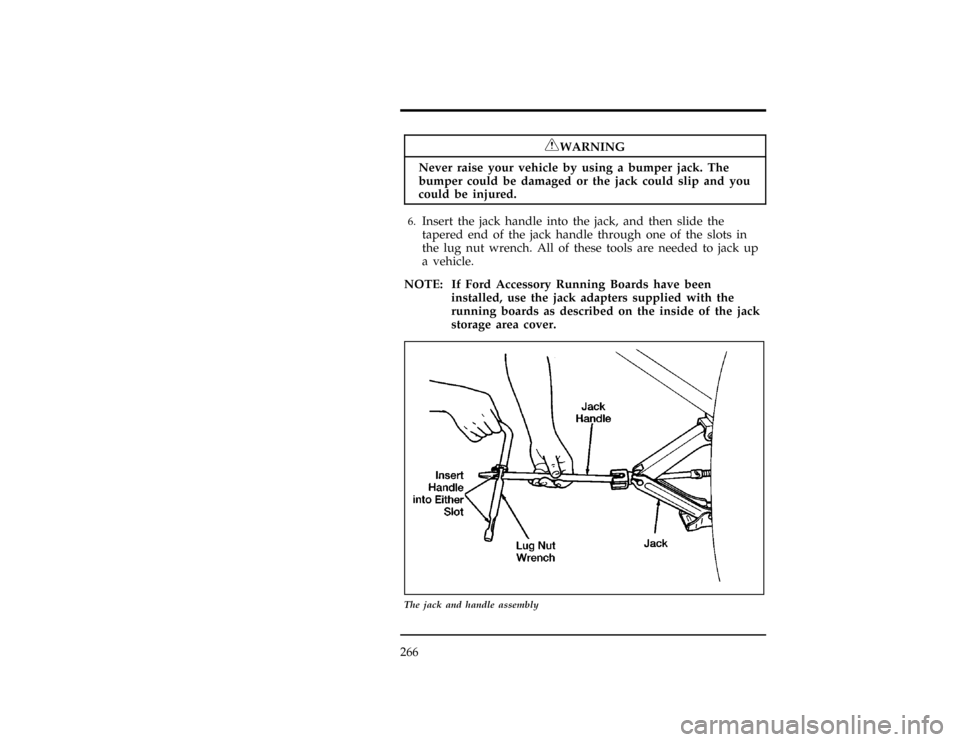

Insert the jack handle into the jack, and then slide the
tapered end of the jack handle through one of the slots in
the lug nut wrench. All of these tools are needed to jack up
a vehicle.
[ER00765(ALL)01/96]
NOTE: If Ford Accessory Running Boards have been
installed, use the jack adapters supplied with the
running boards as described on the inside of the jack
storage area cover.
[ER00770(ALL)01/96]
17-1/2 pica
art:0040175-B
The jack and handle assembly
File:10vxern.ex
Update:Thu May 30 09:55:50 1996

268
*
[ER00815(ALL)01/96]
RWARNING
Never use wheels or lug nuts different than the original
equipment as this could damage the wheel or mounting
system. This damage could allow the wheels to come off
while the vehicle is being driven.
*
[ER00820(ALL)01/96]13.
Replace the wheel cover by pressing it into place. If you
have the standard wheel covers, you must align the notch in
the wheel cover with the tire's valve stem and align the
recess in the back of the wheel cover with one of the lug
nuts. If you have the optional aluminum wheel, press the
center wheel cap into place after matching up the design of
the wheel cap to the wheel.
[ER00825(ALL)01/96]14.
Make sure the jack is securely fastened. When you replace
the jack in the jack storage compartment, place the base
against the square-shaped fastening bracket and open the
jack slightly so that the jack is snug against the fastening
brackets.
*
[ER00830(ALL)01/96]15.
Store the flat tire under the vehicle just as you would store
the spare tire. Refer to the section onStowing the Spare Tire
in this chapter.
File:10vxern.ex
Update:Thu May 30 09:55:50 1996

270
[ER00870(ALL)01/96]
Jump-Starting Your Battery
*
[ER00875(ALL)01/96]
Your vehicle's battery may discharge if you leave the lights or
any electrical equipment on after you turn the engine off. If this
happens, you may be able to jump-start from a booster battery
to start your vehicle.
*
[ER00900(ALL)02/96]
RWARNING
The gases around the battery can explode if exposed to
flames, sparks, or lit cigarettes. An explosion could result
in injury or vehicle damage.
*
[ER01000(ALL)02/96]
RWARNING
To protect yourself when charging a battery, always
shield your face and eyes. Make sure that you can
breathe fresh air.
%*
[ER01100(ALL)02/96]
RWARNING
Applying too much pressure on the ends when lifting a
battery could cause acid to spill. Lift the battery with a
carrier or with your hands on the opposite corners.
%*
[ER01200(ALL)05/96]
RWARNING
Batteries contain sulfuric acid which burns skin, eyes,
and clothing.
*
[ER01210(ALL)02/96]
If the acid touches someone's skin, eyes, or clothing,
immediately flush the area with water for at least 15 minutes. If
someone swallows the acid, have him or her drink lots of milk
or water first, then Milk of Magnesia, a beaten egg, or vegetable
oil. Call a doctor immediately.
File:10vxern.ex
Update:Thu May 30 09:55:50 1996

272
%*
[ER02100(ALL)02/96]
Connecting the jumper cables
*
[ER02200(ALL)02/96]1.
Connect one end of the first jumper cable to the positive (+)
terminal of the discharged battery. (You can connect either
jumper cable to the positive (+) terminal, as long as you use
the same cable for both positive terminals.) Most jumper
cables have a red cable and a black cable. The red cable is
generally used for the positive terminals and the black for
the negative ones.
*
[ER02300(ALL)02/96]2.
Connect the other end of the first cable to the positive (+)
terminal of the booster battery.
*
[ER02400(ALL)02/96]3.
Connect one end of the second cable to the negative (s)
terminal of the booster battery Ð NOT to the discharged
battery.
*
[ER02500(ALL)01/96]4.
Connect the other end of the second cable to a good metallic
surface on the engine or frame of the disabled vehicle.
*
[ER02600(ALL)02/96]
RWARNING
Do not connect the end of the second cable to the
negative (s) terminal of the battery to be jumped. A
spark may cause an explosion of the gases that surround
the battery.
File:10vxern.ex
Update:Thu May 30 09:55:50 1996

278
%*
[MC02260(ALL)05/96
]
NOTE: Always dispose of used automotive fluids in a
responsible manner. Follow your community's
standards for disposing of these types of fluids. Call
your local recycling center to find out about recycling
automotive fluids.
%*
[MC02300(ALL)01/96]
Precautions When Servicing Your Vehicle
*
[MC02400(ALL)01/96]
Be especially careful when inspecting or servicing your vehicle.
Here are some general precautions for your safety:
[MC02450(ALL)01/96]
n
Your vehicle is equipped with an automatic cooling fan. It
may come on at any time without warning. To avoid injury,
always disconnect the negative (-) terminal of the battery
before working near the fan.
*
[MC02600(ALL)01/96]
n
Do not work on a vehicle in an enclosed space with the
engine running, unless you are sure you have enough
ventilation.
*
[MC02700(ALL)01/96]
n
Never get under a vehicle while it is supported only by a
jack. If you must work under a vehicle, use safety stands.
*
[MC02800(ALL)01/96]
n
Keep all lit cigarettes and other smoking materials away
from the battery and all fuel-related parts.
*
[MC03100(ALL)01/96]
If you plan to work under the hood while the engine is
off:
*
[MC03200(ALL)05/96]
RWARNING
Always set the parking brake fully and make sure the
gearshift is latched in P (Park). Turn off the ignition
whenever you leave your vehicle.
*
[MC03300(ALL)01/96]
RWARNING
Always remove the key from the ignition after you turn
off the engine.
File:11vxmcn.ex
Update:Mon Jun 10 15:17:05 1996

Maintenance and Care
279
*
[MC03400(ALL)01/96]
If you must work under the hood while the engine is
on:
[MC03450(ALL)01/96]
Set the parking brake fully and make sure that the gearshift is
securely latched in P (Park). This will prevent your vehicle from
moving unexpectedly.
*
[MC03700(ALL)01/96]
RWARNING
Do not start your engine with the air cleaner removed
and do not remove it while the engine is running.
*
[MC03750(ALL)01/96]
n
If you must work with the engine running, avoid wearing
loose clothing or jewelry that could get caught in moving
parts. Take appropriate precautions with long hair.
%*
[MC03800(ALL)02/96
]
Opening the Hood
[MC03900(ALL)01/96]1.
Pull the hood release handle, located below the fuse panel
door.
[MC04000(ALL)01/96]
13-1/2 pica
art:0040189-C
Hood release handle location
File:11vxmcn.ex
Update:Mon Jun 10 15:17:05 1996

Maintenance and Care
285
*
[MC17900(ALL)03/96]
NOTE: SeeRefill Capacities, Motorcraft Parts and Lubrication
Specificationsin theCapacities and Specificationschapter
for the appropriate oil filter and engine oil refill
quantity.
[MC18000(ALL)04/96]6.
Remove the engine oil dipstick (highlighted in yellow) to
prevent oil contamination of the engine ventilating system
while refilling.
[MC18100(ALL)04/96]7.
Refill the engine with a CERTIFIED engine oil of the
preferred viscosity. Start the engine and check for leaks.
Follow directions inChecking and adding engine oilto be sure
the engine is filled to the proper level.
*
[MC18150(ALL)01/96]
RWARNING
Continuous contact with USED motor oil has caused
cancer in laboratory mice.
*
[MC18200(ALL)01/96]
Protect your skin by washing with soap and water.
%*
[MC18220(ALL)05/96]
Brake Fluid
*
[MC18240(ALL)01/96]
Your vehicle is equipped with a brake fluid level indicator in
the master cylinder which lights the BRAKE warning light on
the instrument panel when the brake fluid level is low.
*
[MC18260(ALL)01/96]
Under normal circumstances, your vehicle should not use up
brake fluid rapidly. However, expect the level of the brake fluid
to slowly fall as you put more mileage on your vehicle and the
brake pads wear.
*
[MC18280(ALL)01/96]
Check the brake fluid at least once a year. You can do this by
looking at the fluid level in the plastic brake fluid reservoir on
the master cylinder. The fluid level should be at or near the
MAX mark.
*
[MC18300(ALL)01/96]
RWARNING
Brake fluid is toxic.
File:11vxmcn.ex
Update:Mon Jun 10 15:17:05 1996

286
*
[MC18320(ALL)01/96]
If brake fluid contacts eyes, flush eyes with running water for
15 minutes. Get medical attention if irritation persists. If taken
internally, drink water and induce vomiting. Get medical
attention immediately.
%*
[MC18340(ALL)03/96
]
If the fluid is low, carefully clean and remove the filler cap
from the reservoir. Fill the reservoir to the MAX line with Ford
High Performance DOT 3 Brake Fluid C6AZ-19542-AB or DOT 3
equivalent fluid meeting Ford specification ESA-M6C25-A.
*
[MC18360(ALL)01/96]
RWARNING
If you use a brake fluid that is not DOT 3, you will
cause permanent damage to your brakes.
*
[MC18380(ALL)01/96]
Do not fill the reservoir above the MAX line.
*
[MC18400(ALL)01/96]
If you find that the fluid level is excessively low Ð below the
seam or ridge on the outside of the plastic reservoir Ð have the
brake system inspected.
*
[MC18420(ALL)01/96]
RWARNING
Do not let the reservoir for the master cylinder run dry.
This may cause the brakes to fail.
File:11vxmcn.ex
Update:Mon Jun 10 15:17:05 1996
