Page 9 of 233

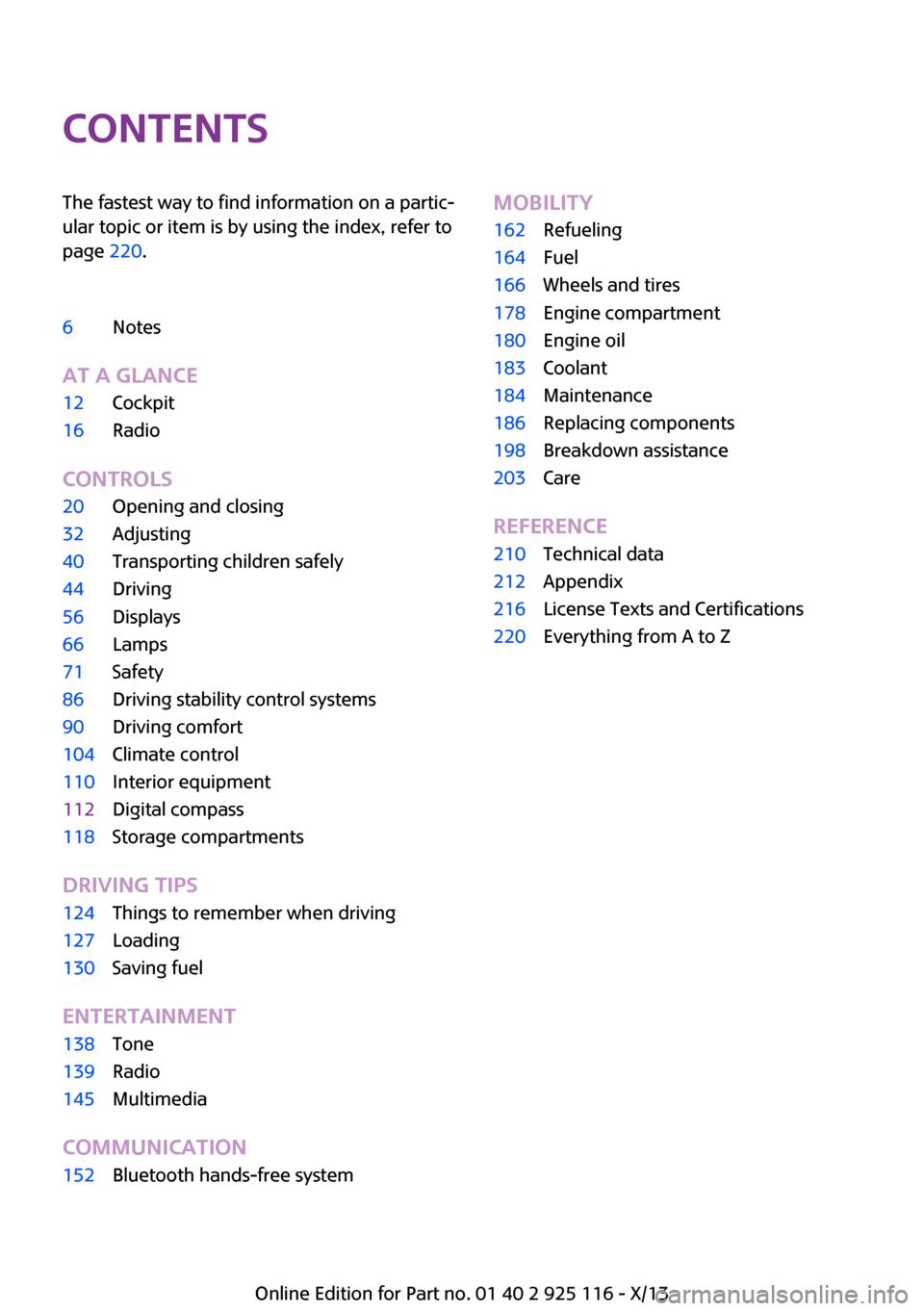

ContentsThe fastest way to find information on a partic‐
ular topic or item is by using the index, refer to
page 220.6Notes
At a glance
12Cockpit16Radio
Controls
20Opening and closing32Adjusting40Transporting children safely44Driving56Displays66Lamps71Safety86Driving stability control systems90Driving comfort104Climate control110Interior equipment112Digital compass118Storage compartments
Driving tips
124Things to remember when driving127Loading130Saving fuel
Entertainment
138Tone139Radio145Multimedia
Communication
152Bluetooth hands-free systemMobility162Refueling164Fuel166Wheels and tires178Engine compartment180Engine oil183Coolant184Maintenance186Replacing components198Breakdown assistance203Care
Reference
210Technical data212Appendix216License Texts and Certifications220Everything from A to Z
Online Edition for Part no. 01 40 2 925 116 - X/13
Page 12 of 233

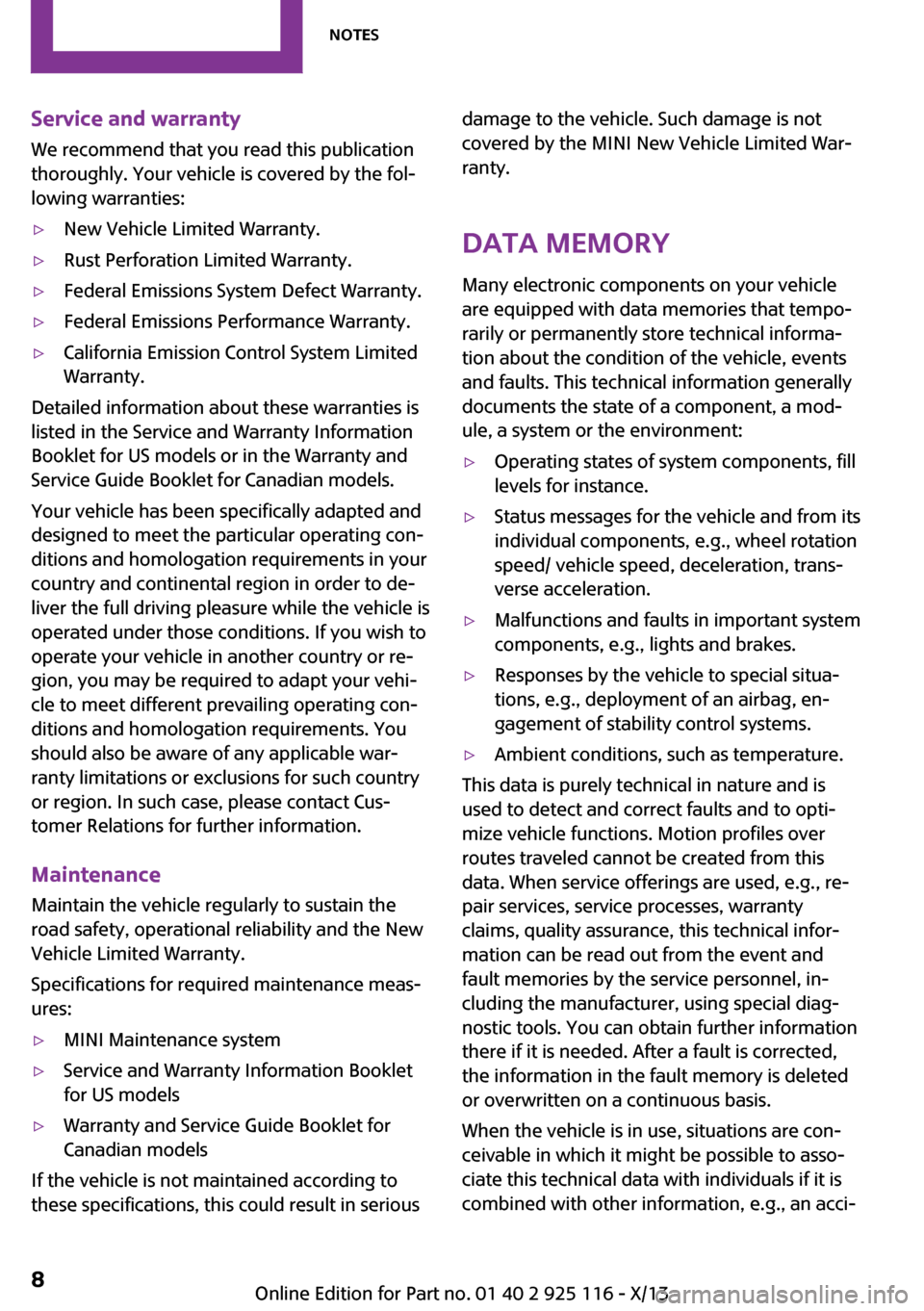

Service and warranty
We recommend that you read this publication
thoroughly. Your vehicle is covered by the fol‐
lowing warranties:▷New Vehicle Limited Warranty.▷Rust Perforation Limited Warranty.▷Federal Emissions System Defect Warranty.▷Federal Emissions Performance Warranty.▷California Emission Control System Limited
Warranty.
Detailed information about these warranties is
listed in the Service and Warranty Information
Booklet for US models or in the Warranty and
Service Guide Booklet for Canadian models.
Your vehicle has been specifically adapted and
designed to meet the particular operating con‐
ditions and homologation requirements in your
country and continental region in order to de‐
liver the full driving pleasure while the vehicle is
operated under those conditions. If you wish to
operate your vehicle in another country or re‐
gion, you may be required to adapt your vehi‐
cle to meet different prevailing operating con‐
ditions and homologation requirements. You
should also be aware of any applicable war‐
ranty limitations or exclusions for such country
or region. In such case, please contact Cus‐
tomer Relations for further information.
Maintenance
Maintain the vehicle regularly to sustain the
road safety, operational reliability and the New
Vehicle Limited Warranty.
Specifications for required maintenance meas‐
ures:
▷MINI Maintenance system▷Service and Warranty Information Booklet
for US models▷Warranty and Service Guide Booklet for
Canadian models
If the vehicle is not maintained according to
these specifications, this could result in serious
damage to the vehicle. Such damage is not
covered by the MINI New Vehicle Limited War‐
ranty.
Data memory
Many electronic components on your vehicle
are equipped with data memories that tempo‐
rarily or permanently store technical informa‐
tion about the condition of the vehicle, events
and faults. This technical information generally
documents the state of a component, a mod‐
ule, a system or the environment:▷Operating states of system components, fill
levels for instance.▷Status messages for the vehicle and from its
individual components, e.g., wheel rotation
speed/ vehicle speed, deceleration, trans‐
verse acceleration.▷Malfunctions and faults in important system
components, e.g., lights and brakes.▷Responses by the vehicle to special situa‐
tions, e.g., deployment of an airbag, en‐
gagement of stability control systems.▷Ambient conditions, such as temperature.
This data is purely technical in nature and is
used to detect and correct faults and to opti‐
mize vehicle functions. Motion profiles over
routes traveled cannot be created from this
data. When service offerings are used, e.g., re‐
pair services, service processes, warranty
claims, quality assurance, this technical infor‐
mation can be read out from the event and
fault memories by the service personnel, in‐
cluding the manufacturer, using special diag‐
nostic tools. You can obtain further information
there if it is needed. After a fault is corrected,
the information in the fault memory is deleted
or overwritten on a continuous basis.
When the vehicle is in use, situations are con‐
ceivable in which it might be possible to asso‐
ciate this technical data with individuals if it is
combined with other information, e.g., an acci‐
Seite 8Notes8
Online Edition for Part no. 01 40 2 925 116 - X/13
Page 214 of 233
Seite 210ReferenceTechnical data210
Online Edition for Part no. 01 40 2 925 116 - X/13
Technical data
Vehicle equipment
All standard, country-specific and optional
equipment that is offered in the model series is
described in this chapter. Therefore, equipment
is also described that is not available in a vehi‐
cle, e. g., because of the selected optional
equipment or country variant. This also applies
for safety-related functions and systems.
Dimensions
MINI
Width with mirrorsinches/mm 76.1/1,932
Width without mirrorsinches/mm 68.0/1,727
Height with roof antennainches/mm 55.7/1,414
Lengthinches/mm 151.1/3,837
Cooper S: lengthinches/mm 151.9/3,858
Wheelbaseinches/mm 98.2/2,495
Smallest turning circle diam.ft/m35/10.8
Weights
The values preceding the slash apply to vehicles
with manual transmission; the values following
the slash apply to vehicles with automatic
transmission.
MINI Cooper
Curb weight, road ready, with 75 kg load, with fuel
tank 90 % full, without special equipment
lbs
kg
2,605/2,675
1,182/1,213
Approved gross vehicle weightlbs
kg
3,455/3,520
1,567/1,597
Loadlbs
kg
680
305
Approved front axle loadlbs
kg
1,905/1,975
864/896
Page 215 of 233
Seite 211Technical dataReference211
Online Edition for Part no. 01 40 2 925 116 - X/13

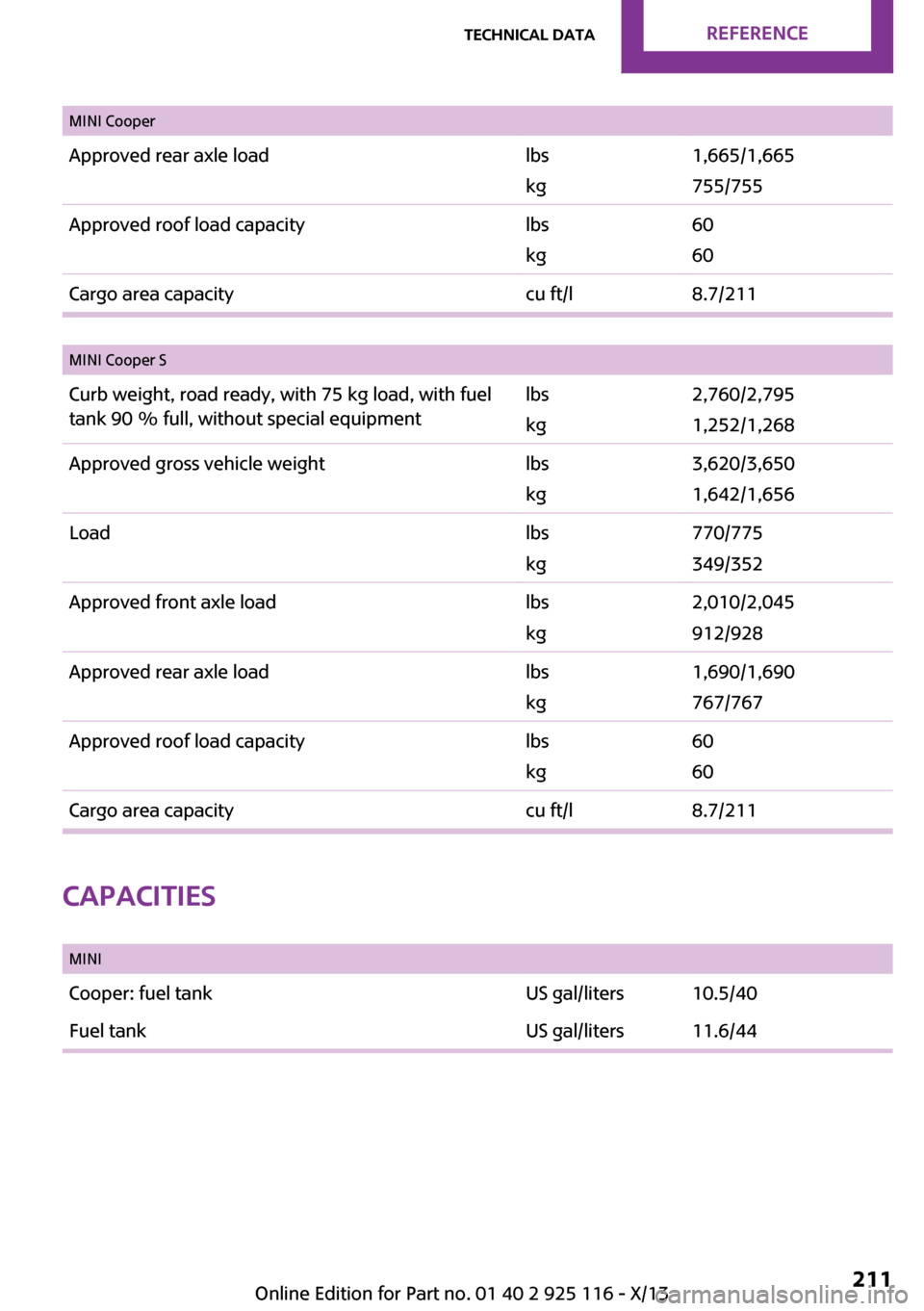

MINI Cooper
Approved rear axle loadlbs
kg
1,665/1,665
755/755
Approved roof load capacitylbs
kg
60
60
Cargo area capacitycu ft/l8.7/211
MINI Cooper S
Curb weight, road ready, with 75 kg load, with fuel
tank 90 % full, without special equipment
lbs
kg
2,760/2,795
1,252/1,268
Approved gross vehicle weightlbs
kg
3,620/3,650
1,642/1,656
Loadlbs
kg
770/775
349/352
Approved front axle loadlbs
kg
2,010/2,045
912/928
Approved rear axle loadlbs
kg
1,690/1,690
767/767
Approved roof load capacitylbs
kg
60
60
Cargo area capacitycu ft/l8.7/211
Capacities
MINI
Cooper: fuel tankUS gal/liters 10.5/40
Fuel tankUS gal/liters 11.6/44
Page 225 of 233

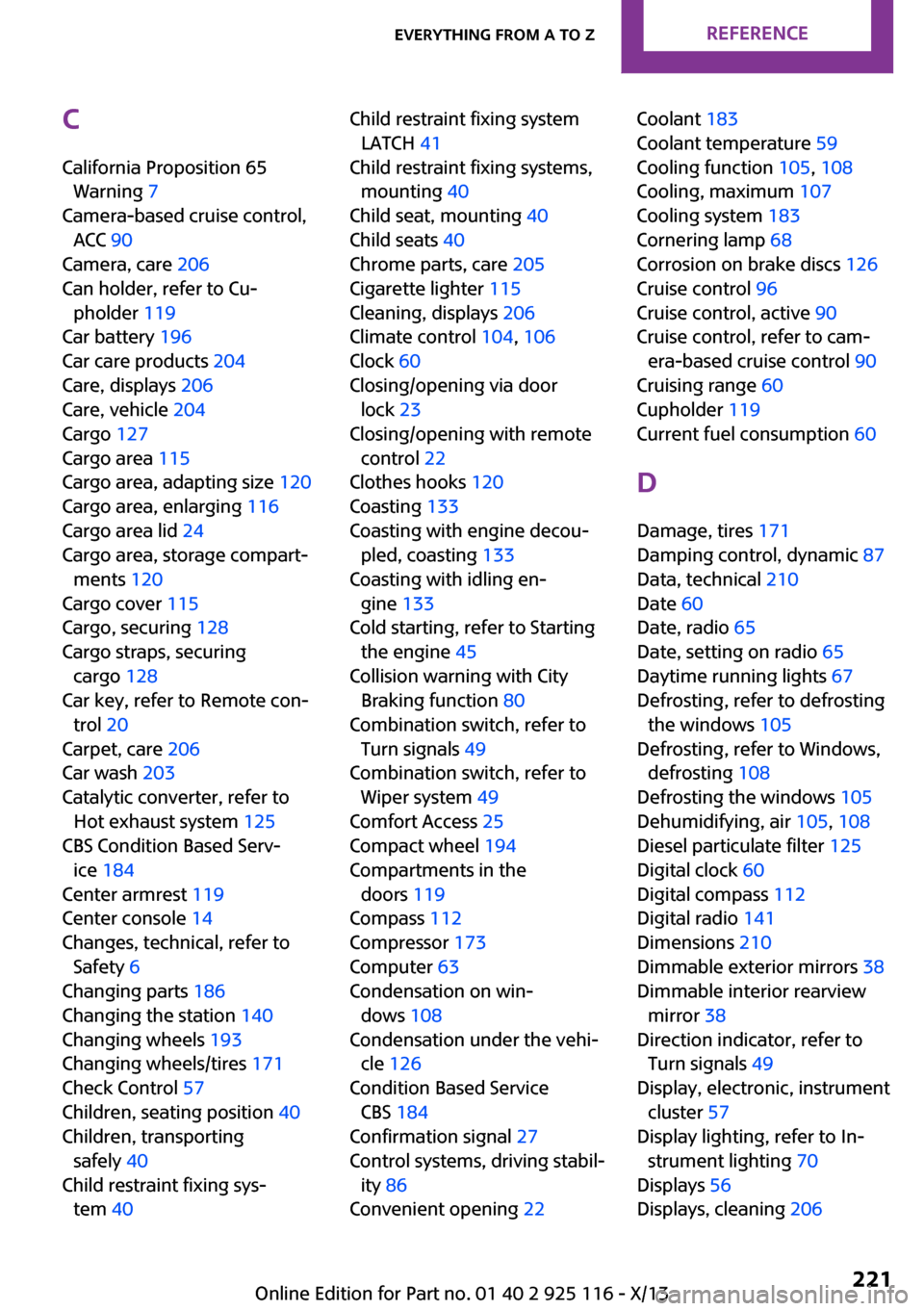

C
California Proposition 65 Warning 7
Camera-based cruise control, ACC 90
Camera, care 206
Can holder, refer to Cu‐ pholder 119
Car battery 196
Car care products 204
Care, displays 206
Care, vehicle 204
Cargo 127
Cargo area 115
Cargo area, adapting size 120
Cargo area, enlarging 116
Cargo area lid 24
Cargo area, storage compart‐ ments 120
Cargo cover 115
Cargo, securing 128
Cargo straps, securing cargo 128
Car key, refer to Remote con‐ trol 20
Carpet, care 206
Car wash 203
Catalytic converter, refer to Hot exhaust system 125
CBS Condition Based Serv‐ ice 184
Center armrest 119
Center console 14
Changes, technical, refer to Safety 6
Changing parts 186
Changing the station 140
Changing wheels 193
Changing wheels/tires 171
Check Control 57
Children, seating position 40
Children, transporting safely 40
Child restraint fixing sys‐ tem 40 Child restraint fixing system
LATCH 41
Child restraint fixing systems, mounting 40
Child seat, mounting 40
Child seats 40
Chrome parts, care 205
Cigarette lighter 115
Cleaning, displays 206
Climate control 104, 106
Clock 60
Closing/opening via door lock 23
Closing/opening with remote control 22
Clothes hooks 120
Coasting 133
Coasting with engine decou‐ pled, coasting 133
Coasting with idling en‐ gine 133
Cold starting, refer to Starting the engine 45
Collision warning with City Braking function 80
Combination switch, refer to Turn signals 49
Combination switch, refer to Wiper system 49
Comfort Access 25
Compact wheel 194
Compartments in the doors 119
Compass 112
Compressor 173
Computer 63
Condensation on win‐ dows 108
Condensation under the vehi‐ cle 126
Condition Based Service CBS 184
Confirmation signal 27
Control systems, driving stabil‐ ity 86
Convenient opening 22 Coolant 183
Coolant temperature 59
Cooling function 105, 108
Cooling, maximum 107
Cooling system 183
Cornering lamp 68
Corrosion on brake discs 126
Cruise control 96
Cruise control, active 90
Cruise control, refer to cam‐ era-based cruise control 90
Cruising range 60
Cupholder 119
Current fuel consumption 60
D
Damage, tires 171
Damping control, dynamic 87
Data, technical 210
Date 60
Date, radio 65
Date, setting on radio 65
Daytime running lights 67
Defrosting, refer to defrosting the windows 105
Defrosting, refer to Windows, defrosting 108
Defrosting the windows 105
Dehumidifying, air 105, 108
Diesel particulate filter 125
Digital clock 60
Digital compass 112
Digital radio 141
Dimensions 210
Dimmable exterior mirrors 38
Dimmable interior rearview mirror 38
Direction indicator, refer to Turn signals 49
Display, electronic, instrument cluster 57
Display lighting, refer to In‐ strument lighting 70
Displays 56
Displays, cleaning 206 Seite 221Everything from A to ZReference221
Online Edition for Part no. 01 40 2 925 116 - X/13
Page 230 of 233
Safety belt reminder for driv‐
er's seat and front passenger
seat 35
Safety belts 34
Safety belts, care 205
Safety systems, airbags 71
Satellite radio 143
Saving fuel 130
Screwdriver 186
Screw thread for tow fit‐
ting 202
Sealant 173
Seat belts, refer to Safety
belts 34
Seat heating, front 34
Seating position for chil‐
dren 40
Seats 32
Select a station 139
Selecting a station man‐
ually 140
Selection list in instrument
cluster 63
Sensors, care 206
Service and warranty 8
Service requirements, Condi‐
tion Based Service CBS 184
Service requirements, dis‐
play 60
Service, Roadside Assis‐
tance 198
Settings and information 65
Settings, locking/unlocking 26
Settings, mirrors 37
Shifting, automatic transmis‐
sion 52
Shifting, manual transmis‐
sion 52
Shift paddles on steering
wheel 54
Side airbags 71
Signaling, horn 12
Signals when unlocking 27
Sitting safely 32
Size 210
Slide/tilt glass roof 30
Snow chains 176
Socket 114
Socket, OBD Onboard Diag‐
nostics 184
Soot particulate filter 125
Spare fuse 197
Specified engine oil types 182
Speed, average 64
Speed limit detection, on‐
board computer 64
Speed limiter, display 61
Speed Limit Information 61
Speed limit in the com‐
puter 64
Sport automatic transmis‐
sion 54
SPORT program, Dynamic
Driving Control 88
Sport program, transmis‐
sion 53
Stability control systems 86
Start/stop, automatic func‐
tion 46
Start/Stop button 44
Start function during malfunc‐
tion 21
Starting the engine 45
Station, storing 140
Status of Owner's Manual 6
Steering wheel, adjusting 39
Steptronic, automatic trans‐
mission 52
Stopping the engine 45
Storage compartments 118
Storage, tires 172
Storing the vehicle 206
Summer tires, tread 170
Supplementary text mes‐
sages 58
Switch for Dynamic Driving 88
Switch, refer to Cockpit 12
Symbols 6
T
Tachometer 59
Tailgate 24
Tailgate via remote control 23
Tail lamps 190
Technical changes, refer to
Safety 6
Technical data 210
Temperature, air condi‐
tioner 105
Temperature, automatic cli‐
mate control 107
Temperature display, external
temperature 59
Temperature display, setting
units 65
Temperature, engine oil 59
Terminal, starting aid 199
Text messages, supplemen‐
tary 58
Theft alarm system, refer to
Alarm system 27
Theft protection, lug
bolts 196
Thigh support 33
Tilt alarm sensor 28
Time, radio, setting time on
the radio 65
Tire damage 171
Tire identification marks 169
Tire inflation pressure 166
Tire inflation pressure moni‐
tor, refer to FTM 77
Tire Pressure Monitor TPM 74
Tires, changing 171
Tire sealant 173
Tires, everything on wheels
and tires 166
Tires, run-flat tires 173
Tire tread 170
Tone settings 138
Tools 186
Total vehicle weight 210
Seite 226ReferenceEverything from A to Z226
Online Edition for Part no. 01 40 2 925 116 - X/13
