MINI Clubman 2008 User Guide
Manufacturer: MINI, Model Year: 2008, Model line: Clubman, Model: MINI Clubman 2008Pages: 164, PDF Size: 2.74 MB
Page 11 of 164
At a glance
Controls
Driving tips
Mobility
Reference At a glance
Page 12 of 164
Cockpit
10
Cockpit
Around the steering wheel: Controls and displays
1Adjusting the exterior mirrors, folding them
in and out
*33
2
Parking lamps66
Low beams66
Automatic headlamp control
*66
Turn signals43
High beams68
Headlamp flasher43
Roadside parking lamps
*68
Computer
*49
Page 13 of 164
Reference
At a glance Controls Driving tips Mobility
11
6Ignition lock39
7Buttons
* on steering wheel
8Horn: the entire surface
9Adjusting the steering wheel34
10Releasing the bonnet106 3Tachometer12
Instrument lighting69
Resetting the trip odometer48
4
Wiper system44
5Switching the ignition on/off and
starting/stopping the engine39
Continuing cruise control
*46
Right:
Storing speed and accelerating or
decelerating
Left:
Volume
Activating/deactivating cruise
control
*47
Telephone
*:
Accepting and ending a call, start-
ing dialing
* of selected phone
number and redialing if no phone
number is selected
Activating/deactivating voice com-
mand system
*
Changing radio station
Selecting music track
Scrolling through phone book and
lists with stored phone numbers
Page 14 of 164
Cockpit
12
Displays
1Tachometer48
with indicator and warning lamps13
2Display for
>Clock48
>Outside temperature48
>Current vehicle speed48
>Indicator and warning lamps13
3Resetting the trip odometer484Display for
>Position of automatic transmission
*41
>Computer
*49
>Date of next scheduled service, and
remaining distance to be driven53
>Odometer and trip odometer48
>Initializing the Flat Tire Monitor
*60
>Resetting the Tire Pressure Monitor
*61
>Settings and information50
>Personal Profile settings18
5Instrument lighting69
6Speedometer
with indicator and warning lamps13
7Fuel gauge49
8Radio display, refer to separate Owner's
Manual
9Radio, refer to separate Owner's Manual
Page 15 of 164
Reference
At a glance Controls Driving tips Mobility
13
Indicator and warning
lamps
The concept
Indicator and warning lamps can light up in var-
ious combinations and colors in indicator area 1
or2.
Some lamps are checked for proper functioning
and thus come on briefly when the engine is
started or the ignition is switched on.
What to do in case of a malfunction
A list of all indicator and warning lamps, as well
as notes on possible causes of malfunctions and
on how to respond, can be found starting on
page131.
Page 16 of 164
Cockpit
14

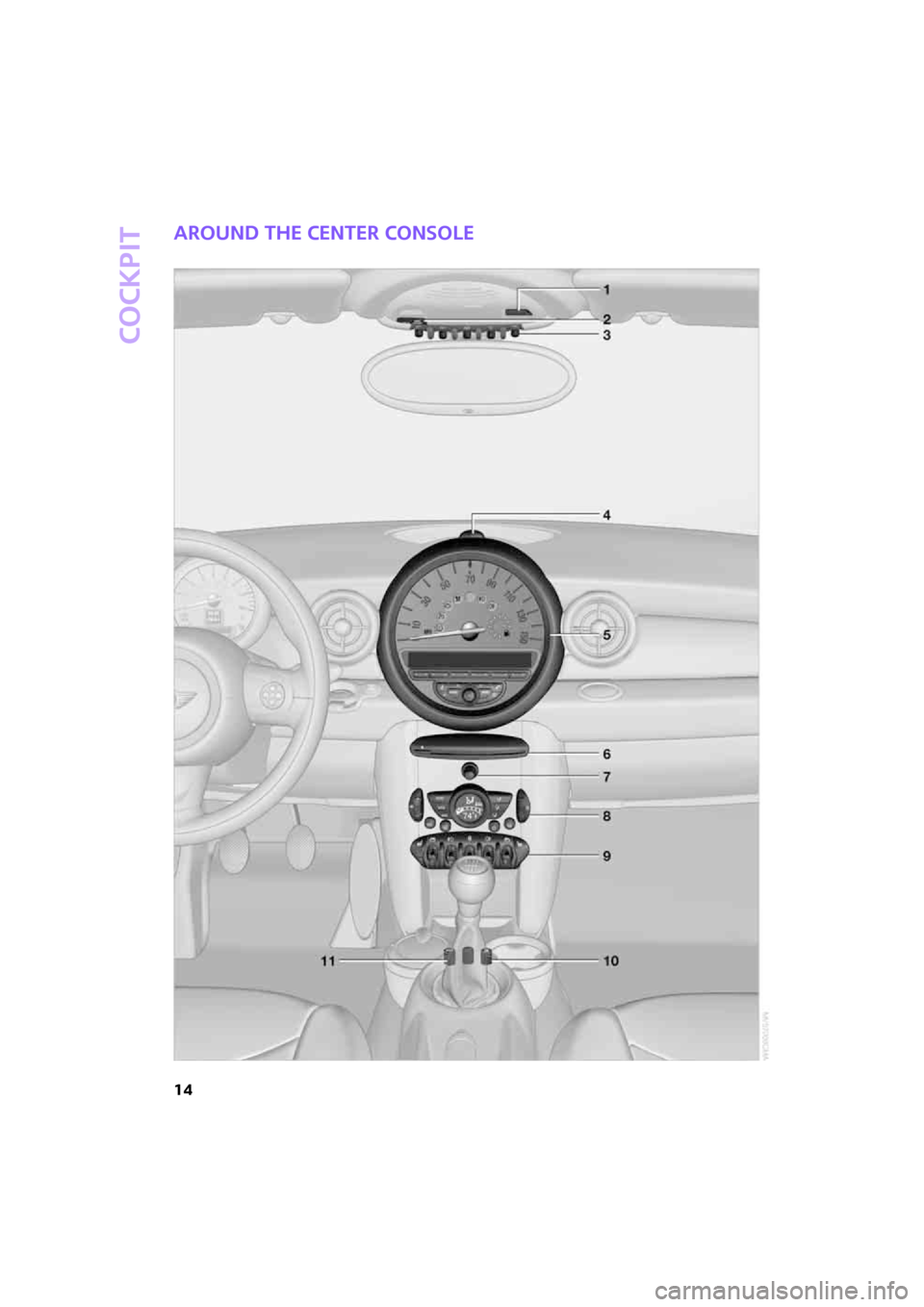

Around the center console
Page 17 of 164
Reference
At a glance Controls Driving tips Mobility
15
1Microphone for voice command system*
and for telephone in hands-free mode*
2Indicator/warning lamp* for front passen-
ger airbags65
4Hazard warning flashers
5Speedometer12
6Drive for audio CDs
7Switching audio sources on/off and adjust-
ing volume
8Air conditioner or automatic climate con-
trol
*
9Switches in center console
10Driving stability control systems
>All-Season Traction Control ASC
*58
>Dynamic Stability Control DSC
*58
11Sport button
*59 3
Reading lamps
*70
Color of ambient lighting
*70
Glass sunroof, electric
*27
Interior lamps69
Temperature72, 74
Recirculated-air mode72, 74
Automatic recirculated-air control
AUC
* and recirculated-air
mode74
Air distribution for air
conditioner73
Air distribution to the
windshield
*74
Air distribution to the upper body
area
*74
Air distribution to the footwell
*74
Automatic air distribution and flow
rate
*74
Maximum cooling
*74
Cooling function72, 75
Defrosting windows
*73, 75
Rear window defroster72, 74
Windshield heating
*73, 75
Air flow rate72, 73
Seat heating
*33
Power windows28
Rear fog lamp
*69
Central locking system, inside22
Fog lamps
*69
Page 18 of 164
Page 19 of 164
Controls At a glance
Driving tips
Mobility
Reference Controls
Page 20 of 164
Opening and closing
18
Opening and closing
Keys/remote controls
Remote control
Each remote control contains a rechargeable
battery that is recharged when it is in the igni-
tion lock while the car is being driven. You
should therefore use each remote control at
least twice a year to maintain the charge status.
In vehicles equipped with convenient access
*,
the remote control contains a replaceable bat-
tery, page27.
If more than one remote control is used, the set-
tings called up and implemented depend on
which remote control is recognized when the
car is unlocked, refer to Personal Profile,
page18.
In addition, information about service require-
ments is stored in the remote control, refer to
Service data in the remote control, page110.
New remote controls
Your MINI Dealer can supply new remote con-
trols as additional units or as replacements in the
event of loss.
Integrated key
Press button1 to release the key.
The integrated key fits the following locks:
>Driver's door, page22
Personal Profile
The concept
The functions of your MINI can be set individu-
ally. By means of Personal Profiles, most of these
settings are stored for the remote control cur-
rently in use. When you unlock the car, the
remote control is recognized and the settings
stored for it are called up and implemented.
This means that your settings will be activated
for you, even if in the meantime your car was
used by someone else with another remote con-
trol and the corresponding settings.
At most three remote controls can be set for
three different people. A prerequisite is that
each person uses a separate remote control.
Personal Profile settings
For more information on specific settings, refer
to the specified pages.
>Response of the central locking system
when the car is being unlocked19
>Automatic locking of the vehicle22
>Triple turn signal activation43
