Cockpit
12
Displays
1Tachometer48
with indicator and warning lamps13
2Display for
>Clock48
>Outside temperature48
>Current vehicle speed48
>Indicator and warning lamps13
3Resetting the trip odometer484Display for
>Position of automatic transmission
*41
>Computer
*49
>Date of next scheduled service, and
remaining distance to be driven53
>Odometer and trip odometer48
>Initializing the Flat Tire Monitor
*60
>Resetting the Tire Pressure Monitor
*61
>Settings and information50
>Personal Profile settings18
5Instrument lighting69
6Speedometer
with indicator and warning lamps13
7Fuel gauge49
8Radio display, refer to separate Owner's
Manual
9Radio, refer to separate Owner's Manual
Page 57 of 164

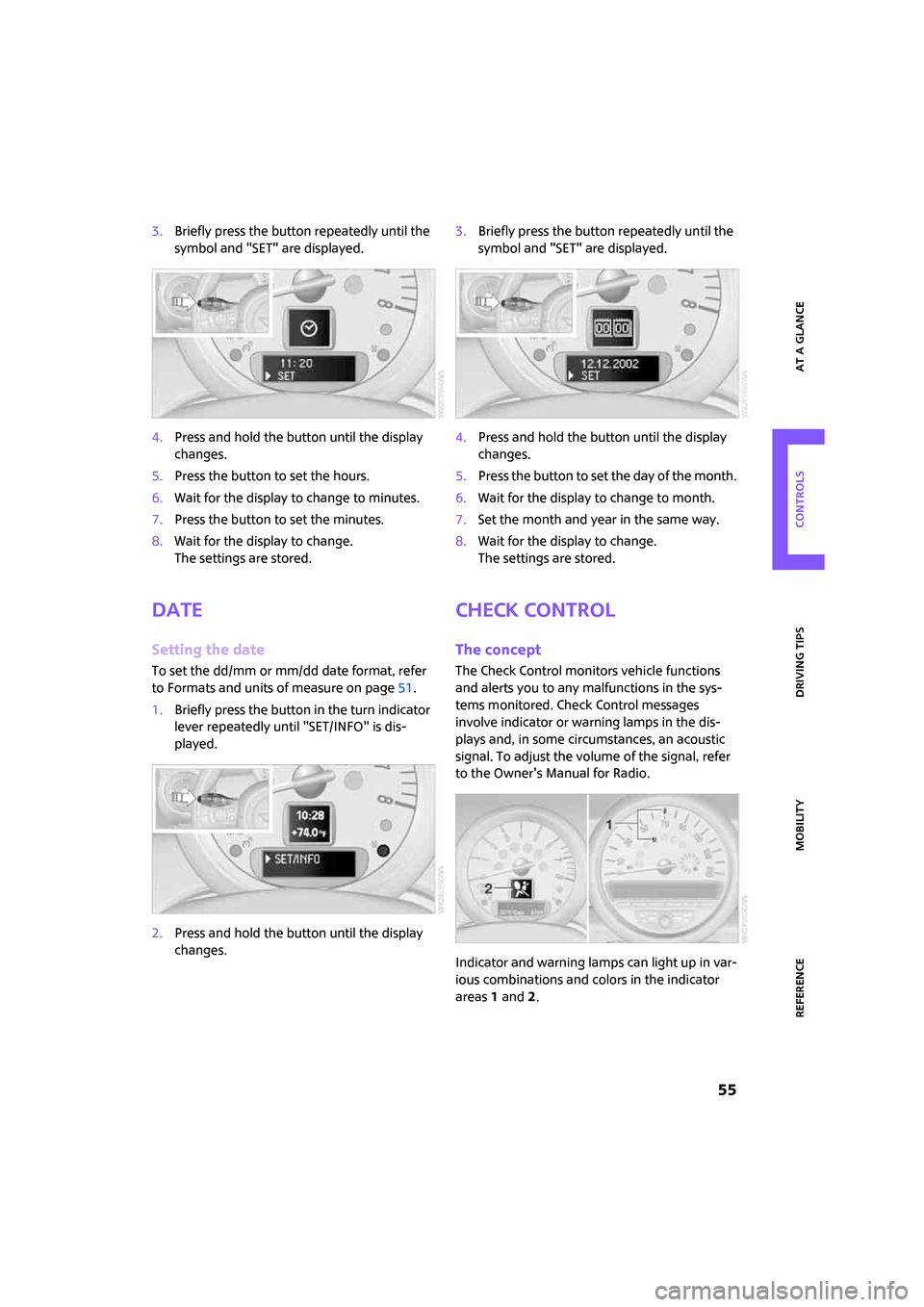

ReferenceAt a glance Controls Driving tips Mobility
55
3.Briefly press the button repeatedly until the
symbol and "SET" are displayed.
4.Press and hold the button until the display
changes.
5.Press the button to set the hours.
6.Wait for the display to change to minutes.
7.Press the button to set the minutes.
8.Wait for the display to change.
The settings are stored.
Date
Setting the date
To set the dd/mm or mm/dd date format, refer
to Formats and units of measure on page51.
1.Briefly press the button in the turn indicator
lever repeatedly until "SET/INFO" is dis-
played.
2.Press and hold the button until the display
changes.3.Briefly press the button repeatedly until the
symbol and "SET" are displayed.
4.Press and hold the button until the display
changes.
5.Press the button to set the day of the month.
6.Wait for the display to change to month.
7.Set the month and year in the same way.
8.Wait for the display to change.
The settings are stored.
Check Control
The concept
The Check Control monitors vehicle functions
and alerts you to any malfunctions in the sys-
tems monitored. Check Control messages
involve indicator or warning lamps in the dis-
plays and, in some circumstances, an acoustic
signal. To adjust the volume of the signal, refer
to the Owner's Manual for Radio.
Indicator and warning lamps can light up in var-
ious combinations and colors in the indicator
areas 1 and2.
Page 65 of 164
ReferenceAt a glance Controls Driving tips Mobility
63
cause accidents. Do not continue driving and
contact your MINI Dealer.<
Malfunction
The small warning lamp flashes in yel-
low and then lights up continuously; the
larger warning lamp comes on in yel-
low.
No punctures can be detected.
This type of message is shown in the following
situations:
>If there is a malfunction
Have the system checked.
>If a wheel without TPM electronics has been
mounted
>If TPM is temporarily malfunctioning due to
other systems or devices using the same
radio frequency.
Message for unsuccessful system reset
Both warning lamps come on in yellow.
The system is not reset after a tire has
been changed, for example.
Check the tire inflation pressure and
reset the system, refer to the Owner's Manual
for Vehicle.
Declaration according to NHTSA/
FMVSS 138 Tire Pressure Monitoring
Systems
Each tire, including the spare, should be
checked monthly when cold and inflated to the
inflation pressure recommended by the vehicle
manufacturer on the vehicle placard or tire infla-
tion pressure label. If your vehicle has tires of a
different size than the size indicated on the vehi-
cle placard or tire inflation pressure label, you
should determine the proper tire inflation pres-
sure for those tires. As an added safety feature,
your vehicle has been equipped with a tire pres-
sure monitoring system TPMS that illuminates a
low tire pressure telltale when one or more of
your tires are significantly under-inflated.
Accordingly, when the low tire pressure telltale
illuminates, you should stop and check your tires
as soon as possible, and inflate them to the
proper pressure. Driving on a significantly under-inflated tire causes the tire to overheat
and can lead to tire failure. Underinflation also
reduces fuel efficiency and tire tread life, and
may affect the vehicle's handling and stopping
ability. Please note that the TPMS is not a substi-
tute for proper tire maintenance, and it is the
driver's responsibility to maintain correct tire
pressure, even if underinflation has not reached
the level at which the TPMS low tire pressure tell-
tale illuminates.
The TPMS malfunction indicator is combined
with the low tire pressure telltale. When the sys-
tem detects a malfunction, the telltale will flash
for approximately one minute and then remain
continuously lit. This sequence will continue
upon subsequent vehicle startups as long as the
malfunction exists. When the malfunction indi-
cator is illuminated, the system may not be able
to detect or signal low tire pressure as intended.
TPMS malfunctions may occur for a variety of
reasons, including the installation of replace-
ment or alternate tires or wheels on the vehicle
that prevent the TPMS from functioning prop-
erly. Always check the TPMS malfunction telltale
after replacing one or more tires or wheels on
your vehicle to ensure that the replacement or
alternate tires and wheels allow the TPMS to
continue to function properly.
Page 80 of 164
Practical interior accessories
78
Closing
Fold cover up.
To prevent injury in the event of an acci-
dent, close the glove compartment after
use while the vehicle is being driven.<
Ventilation*
Depending on your vehicle's equipment, it may
be possible to ventilate the glove compartment.
Opening
Turn the switch to the horizontal position, arrow.
Closing
Turn the switch to the vertical position.
Depending on the temperature setting of the air
conditioning or the automatic climate control,
high temperatures may result in the glove com-
partment.
Center armrest*
Storage compartment
The center armrest between the front seats con-
tains either a compartment or the cover for the
mobile phone base plate
* or the snap-in
adapter
*.
Opening
The cover slides along guide rails and can be
opened fully by pushing it back and lifting it.
Closing
Push the cover forwards.
Connection for external
audio device
You can connect an external audio device such
as a CD or MP3 player and play audio recordings
over the vehicle loudspeakers. The volume and
tone settings can be adjusted via the car radio,
refer to the Owner's Manual for Radio.
Connecting
1Connection for audio playback:
TRS connector 1/8 in/3.5 mm
2USB interface
*
iPod
To connect the iPod, use the cable adapter for
the Apple iPod.
For additional information, contact your MINI
Dealer or visit the Internet at www.MINI.com
Page 127 of 164
ReferenceAt a glance Controls Driving tips Mobility
125
4.Screw at least two lug bolts finger-tight into
opposite bolt holes.
5.Screw in the remaining bolts.
6.Tighten all the lug bolts firmly in a diagonal
pattern.
7.Lower the vehicle.
8.Remove the jack.
Tightening the lug bolts
Tighten the lug bolts in a diagonal pattern.
Immediately have the wheels checked
with a calibrated torque wrench to ensure
that the lug bolts are firmly seated. Otherwise,
incorrectly tightened lug bolts can present a
safety hazard.<
Tightening torque: 103.3 lb ft or 140 Nm.
Replace the defective tire as soon as possible
and have the new wheel/tire assembly bal-
anced.
Vehicle battery
Have any work on the battery, including
battery replacement, carried out only by a
MINI Dealer or a workshop that has specially
trained personnel working in accordance with
the specifications of the MINI manufacturer.<
Battery care
The battery is 100 % maintenance-free, the
electrolyte will last for the life of the battery
when the vehicle is operated in a temperate cli-
mate.
Charging the battery
Only charge the battery in the vehicle when the
engine is off. Connections, refer to Jump starting
on page128.
Disposal
After replacing old batteries, return the
used batteries to your MINI Dealer or to a
recycling point. Maintain the battery in an
upright position for transport and storage. Always secure the battery against tipping over
during transport.<
Power failure
After a temporary power loss, some equipment
may not be fully functional and may require ini-
tialization. Individual settings are also lost and
must be reprogrammed:
>Time and date
These values must be updated, page54.
>Radio
Stations must be stored again, refer to the
separate Owner's Manual for Radio.
>Glass sunroof, electric
It may only be possible to raise the sunroof,
if applicable. The system must be initialized.
Contact your nearest MINI Dealer.
Fuses
Do not attempt to repair a blown fuse or
replace it with a fuse of a different color or
Ampere rating. To do this could cause a fire in
the vehicle resulting from a circuit overload.
Have the fuse changed only by a MINI Dealer or
a workshop that has specially trained personnel
working in accordance with the specifications of
the MINI manufacturer.<
A fuse allocation diagram is located on the inside
of the fuse box cover panels.
In the engine compartment
Opening the cover
Press the latch.
Page 156 of 164
From A to Z
154
Gearshift lever
– automatic transmission with
Steptronic41
– manual transmission41
General driving notes84
Glass sunroof, electric27
– convenient operation20,22
– opening, closing28
– raising28
– remote control20
Glove compartment77
Grills, refer to Air vents71
Gross vehicle weight, refer to
Weights146,147
H
Halogen lamps
– replacing bulb115
Handbrake, refer to Parking
brake40
Hands-free system14
Hazard warning flashers14
Head airbags64
Headlamp control,
automatic66
Headlamp flasher43
– indicator lamp11,131
Headlamps
– replacing bulb115
Headlamps, care112
Head restraints32
– sitting safely30
Heated
– mirrors34
– rear window72,74
– seats33
Heating71
– mirrors34
– rear window72,74
– seats33
Heavy loads, refer to Stowing
cargo88
Height, refer to
Dimensions145
Height adjustment
– seats31
– steering wheel34High beams68
– headlamp flasher68
– indicator lamp131
– replacing bulb115
High water, refer to Driving
through water85
Hills85
Hill Start Assist59
Holders for cups80
Homepage4
Horn10
Hot exhaust system84
Hydroplaning84
I
Ice warning48
Icy roads, refer to Outside
temperature warning48
Ignition39
– switched off39
– switched on39
Ignition key, refer to
Integrated key/remote
control18
Ignition key position 1, refer to
Radio readiness39
Ignition key position 2, refer to
Ignition on39
Ignition lock39
Imprint2
Indicator and warning
lamps13,131
– Tire Pressure Monitor TPM62
Indicator lighting, refer to
Instrument lighting69
Individual air distribution73
Individual settings, refer to
Personal Profile18
Inflation pressure monitoring,
refer to Tire Pressure Monitor
TPM61
Initializing
– Flat Tire Monitor FTM60
– glass sunroof, electric28
Instrument cluster, refer to
Displays12
Instrument lighting69Instrument panel, refer to
Cockpit10
Instrument panel, refer to
Displays12
Integrated key18
Integrated universal remove
control76
Interior lamps69
– remote control21
Interior rearview mirror34
– automatic dimming
feature34
Interlock41
Intermittent mode of the
wipers44
Internet page4
J
Jacking points124
Jets, refer to Window washer
nozzles46
Jumpering, refer to Jump
starting128
Jump starting128
K
Key, refer to Keys/remote
controls18
Keyless go, refer to Convenient
access26
Keyless opening and closing,
refer to Convenient
access26
Key Memory, refer to Personal
Profile18
Kick-down42
– automatic transmission with
Steptronic42
Knock control95
L
Lamps, refer to Parking lamps/
Low beams66
Lamps and bulbs, replacing
bulbs115
