Replacing components
120
of any kind. To do so could cause accidents and
personal injury.<
1.Place the jack at the jacking point closest to
the wheel.
The jack base must be perpendicular to the
surface beneath the jacking point.
2.During jacking up, insert the jack head in the
square recess of the jacking point.
3.Jack the vehicle up until the wheel you are
changing is raised off the ground.
Mounting the space-saver spare tire
1.Unscrew the lug bolts and remove
the wheel.
2.Remove accumulations of mud or dirt from
the mounting surfaces of the wheel and
hub. Clean the lug bolts.
3.Lift the new wheel into place.
4.Screw at least two lug bolts finger-tight into
opposite bolt holes.
5.Screw in the remaining bolts.
6.Tighten all the lug bolts firmly in a diagonal
pattern.
7.Lower the vehicle.
8.Remove the jack.
Tightening the lug bolts
Tighten the lug bolts in a diagonal pattern.
Immediately have the wheels checked
with a calibrated torque wrench to ensure
that the lug bolts are firmly seated. Otherwise,
incorrectly tightened lug bolts can present a
safety hazard.<
Tightening torque: 103.3 lb ft or 140 Nm.Replace the defective tire as soon as possible
and have the new wheel/tire assembly bal-
anced.
Vehicle battery
Have any work on the battery, including
battery replacement, carried out only by a
MINI Dealer or a workshop that has specially
trained personnel working in accordance with
the specifications of the MINI manufacturer.<
Battery care
The battery is 100 % maintenance-free, the
electrolyte will last for the life of the battery
when the vehicle is operated in a temperate
climate.
Charging the battery
Only charge the battery in the vehicle when the
engine is off. Connections, refer to Jump starting
on page122.
Disposal
After replacing old batteries, return the
used batteries to your MINI Dealer or to a
recycling point. Maintain the battery in an
upright position for transport and storage.
Always secure the battery against tipping over
during transport.<
Power failure
After a temporary power loss, some equipment
may not be fully functional and may require ini-
tialization. Individual settings are also lost and
must be reprogrammed:
>Time and date
These values must be updated, page52.
>Radio
Stations must be stored again, refer to the
separate Owner's Manual for Radio.
>Glass sunroof, electric
It may only be possible to raise the sunroof,
if applicable. The system must be initialized.
Contact your nearest MINI Dealer.

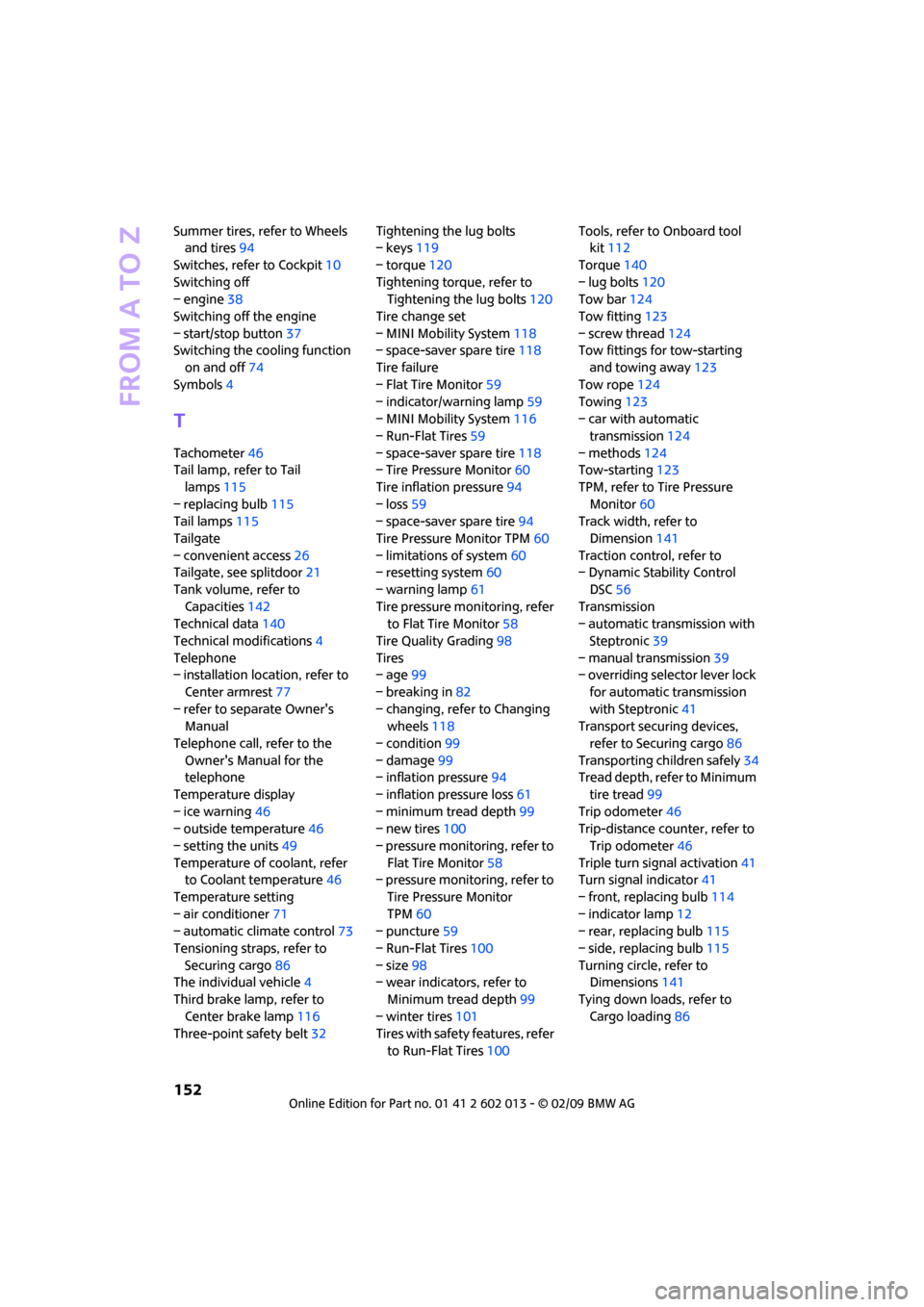

From A to Z
152
Summer tires, refer to Wheels
and tires94
Switches, refer to Cockpit10
Switching off
– engine38
Switching off the engine
– start/stop button37
Switching the cooling function
on and off74
Symbols4
T
Tachometer46
Tail lamp, refer to Tail
lamps115
– replacing bulb115
Tail lamps115
Tailgate
– convenient access26
Tailgate, see splitdoor21
Tank volume, refer to
Capacities142
Technical data140
Technical modifications4
Telephone
– installation location, refer to
Center armrest77
– refer to separate Owner's
Manual
Telephone call, refer to the
Owner's Manual for the
telephone
Temperature display
– ice warning46
– outside temperature46
– setting the units49
Temperature of coolant, refer
to Coolant temperature46
Temperature setting
– air conditioner71
– automatic climate control73
Tensioning straps, refer to
Securing cargo86
The individual vehicle4
Third brake lamp, refer to
Center brake lamp116
Three-point safety belt32Tightening the lug bolts
– keys119
– torque120
Tightening torque, refer to
Tightening the lug bolts120
Tire change set
– MINI Mobility System118
– space-saver spare tire118
Tire failure
– Flat Tire Monitor59
– indicator/warning lamp59
– MINI Mobility System116
– Run-Flat Tires59
– space-saver spare tire118
– Tire Pressure Monitor60
Tire inflation pressure94
– loss59
– space-saver spare tire94
Tire Pressure Monitor TPM60
– limitations of system60
– resetting system60
– warning lamp61
Tire pressure monitoring, refer
to Flat Tire Monitor58
Tire Quality Grading98
Tires
– age99
– breaking in82
– changing, refer to Changing
wheels118
– condition99
– damage99
– inflation pressure94
– inflation pressure loss61
– minimum tread depth99
– new tires100
– pressure monitoring, refer to
Flat Tire Monitor58
– pressure monitoring, refer to
Tire Pressure Monitor
TPM60
– puncture59
– Run-Flat Tires100
– size98
– wear indicators, refer to
Minimum tread depth99
– winter tires101
Tires with safety features, refer
to Run-Flat Tires100Tools, refer to Onboard tool
kit112
Torque140
– lug bolts120
Tow bar124
Tow fitting123
– screw thread124
Tow fittings for tow-starting
and towing away123
Tow rope124
Towing123
– car with automatic
transmission124
– methods124
Tow-starting123
TPM, refer to Tire Pressure
Monitor60
Track width, refer to
Dimension141
Traction control, refer to
– Dynamic Stability Control
DSC56
Transmission
– automatic transmission with
Steptronic39
– manual transmission39
– overriding selector lever lock
for automatic transmission
with Steptronic41
Transport securing devices,
refer to Securing cargo86
Transporting children safely34
Tread depth, refer to Minimum
tire tread99
Trip odometer
46
Trip-distance counter, refer to
Trip odometer46
Triple turn signal activation41
Turn signal indicator41
– front, replacing bulb114
– indicator lamp12
– rear, replacing bulb115
– side, replacing bulb115
Turning circle, refer to
Dimensions141
Tying down loads, refer to
Cargo loading86
