MINI Clubman 2011 Owner's Manual

Indicator and warning lampsMOBILITY
169
Vehicles with Tire Pressure Monitor*
Light up in yellow and red:
There is a flat tire or substantial loss
in tire pressure Carefully bring the car to a stop.
Observe the information starting on
page
65.
Vehicles with Tire Pressure Monitor
*
Light up in yellow:
Tire Pressure Monitor not initialized Check the inflation pressure and reset
the system, page
66.
The small lamp flashes yellow and
then stays on, the large lamp lights
up in yellow:
> Tire Pressure Monitor failed.
Punctures are not indicated Have the system checked.
> Wheel mounted without TPM
electronics Have the system checked.
> The TPM is temporarily malfunc-
tioning due to other systems or
devices using the same radio fre-
quency.
Vehicles with Tire Pressure Monitor
*
The small lamp flashes yellow and
then stays on, the large lamp lights
up in yellow:
>Tire Pressure Monitor failed.
Punctures are not indicated Have the system checked.
> Wheel mounted without TPM
electronics Have the system checked.
12Cause What to do

MOBILITYIndicator and warning lamps
170
Lights up in red:
>Transmission limp-home pro-
gram active with restricted range
of gears, possibly with reduced
acceleration You can continue your journey, but
moderate your speed and exercise
due caution. Have the system
checked without delay.
> Gears can be engaged without
depressing the brake Always depress the brake to engage a
gear.
> Automatic selector lever locked Manually releasing the selector lever
lock, page45.
Lights up in yellow: Have the system checked as soon as
possible.
> Automatic selector lever locked:
Selector lever locked in position P
with engine running and brake
depressed or Manually releasing the selector lever
lock, page
45.
> Brake signal malfunctioning: gear
can be engaged without depress-
ing the brake To engage a gear while the vehicle is
at a standstill, always depress the
brake. Before leaving the vehicle,
move the selector lever to position P
and switch off the engine.
Lights up in red:
Transmission overheating Bring the car to a stop and move the
selector lever to po sition P. Allow the
transmission to co ol down. You can
continue your journey, but moderate
your speed and exercise due caution.
Have the system checked if the situa-
tion reoccurs.
Lights up in yellow:
Transmission too hot Avoid high engine loads. You can con-
tinue your journey, but moderate
your speed and exer cise due caution.
Selector lever position P not engaged.
Vehicle not prevented from rolling
12Cause What to do

Indicator and warning lampsMOBILITY
171
Selector lever position P not engaged.
Ignition cannot be switched offEngage selector lever position P when
you wish to switch off the ignition,
page
41.
Cruise control system fail edHave the system checked.
Park Distance Control fail edHave the system checked.
Bulb of exterior lighting system failed Have the exterior lighting checked as
soon as possible.
Low-beam headlamp or fog lamp
failed Have the lamps checked as soon as
possible.
High-beam headlamp failed Have the high-beam headlamps
checked.
Rear fog lamp failed Have the rear fog lamp checked.
Headlamp beam th row adjustment
system failed Have the headlamp beam throw
adjustment system checked.
Coolant level too low Add coolant immediately, page 139.
Engine oil pressure too low Stop immediately and switch off the
engine. You cannot continue your
journey. Contact your MINI dealer.
Lights up in red:
Service appointment overdue Arrange a service appointment.
Check service requirements, page 56.
Lights up in yellow:
Service due Arrange a service appointment.
Check service requirements, page 56.
12Cause What to do

MOBILITYIndicator and warning lamps
172
No service due
Set speed limit
exceeded
Time and date no longer correct Set the time and date, page 57.
12Cause What to do

Indicator and warning lampsMOBILITY
173

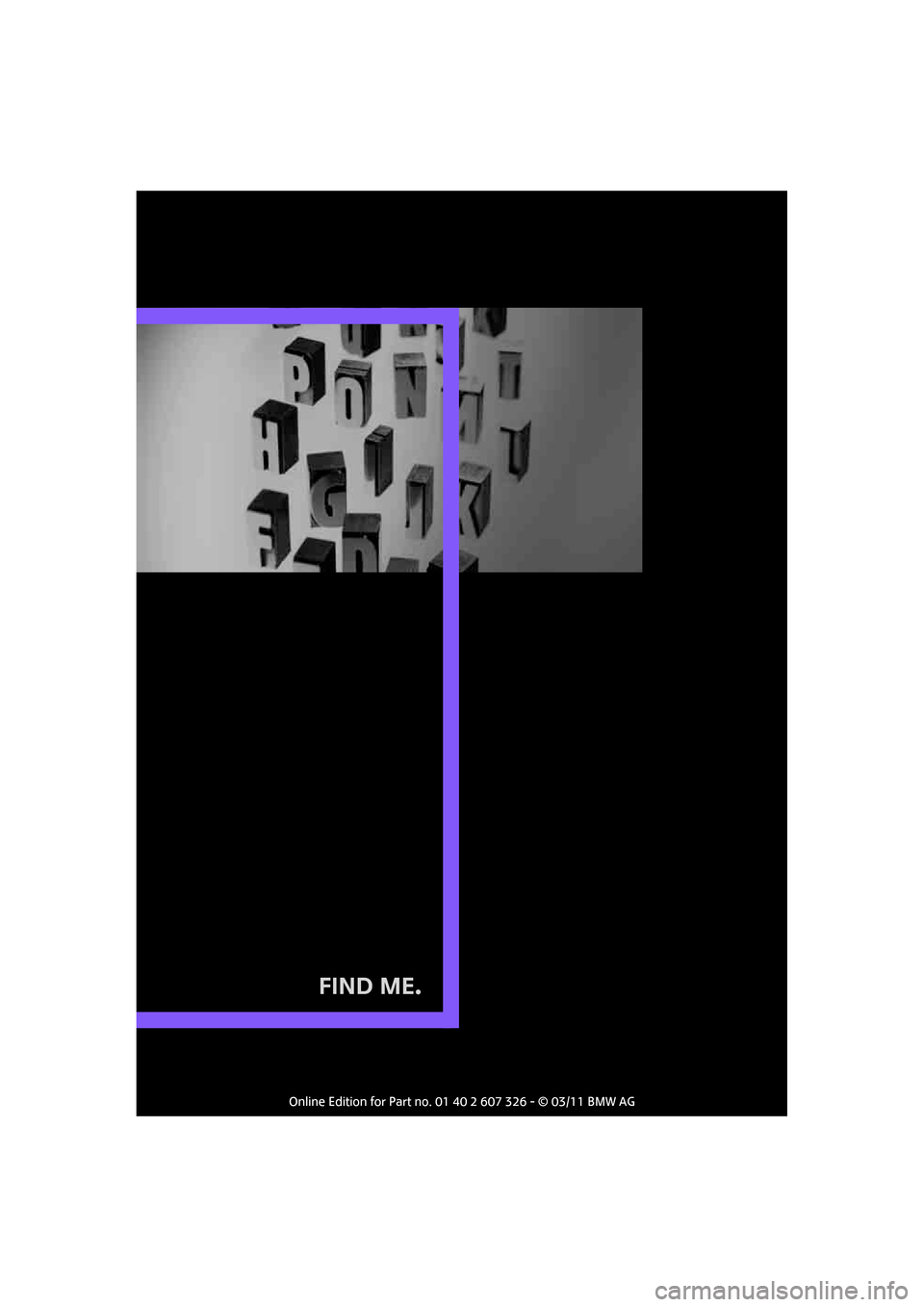

Find Me.

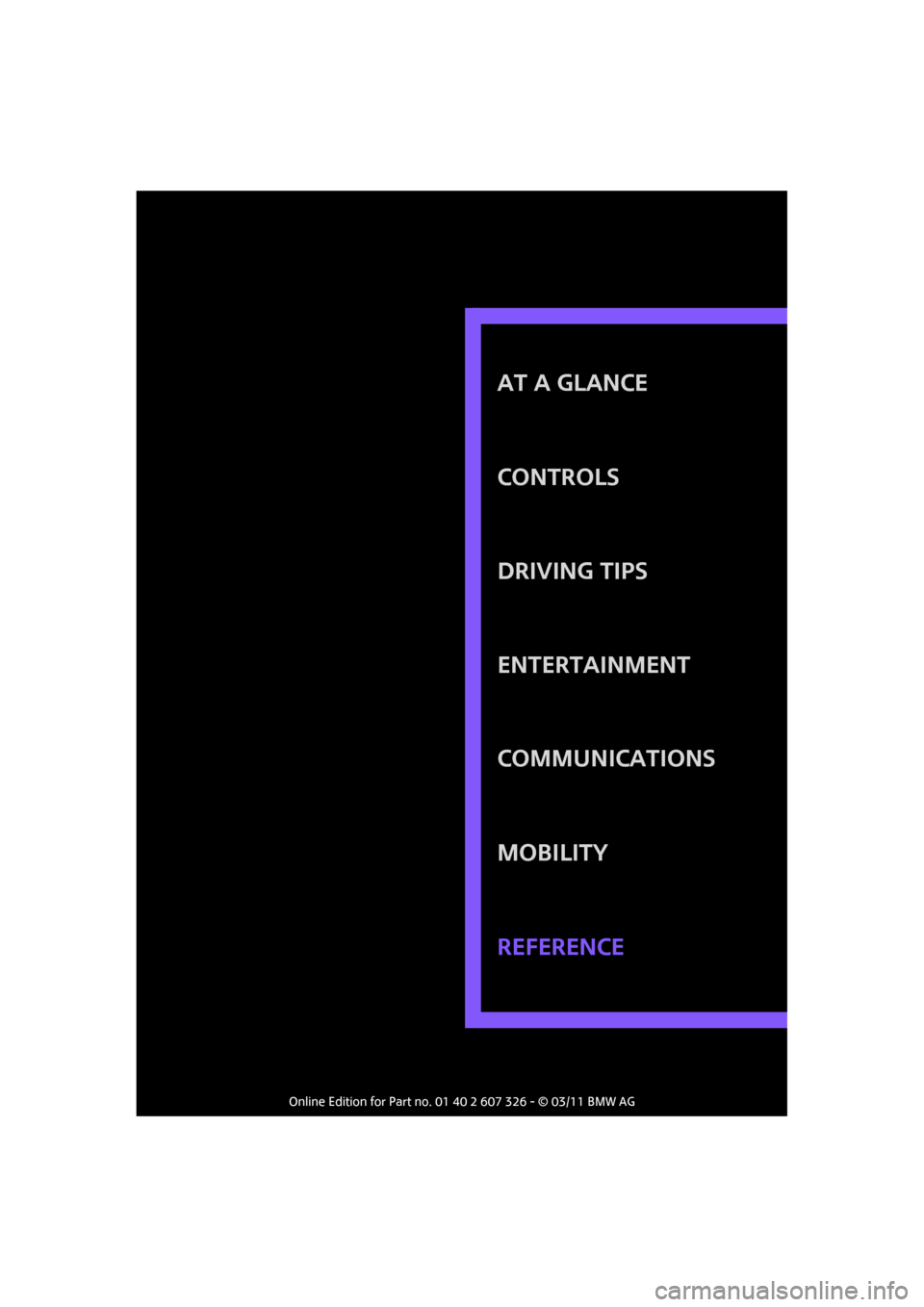

AT A GLANCE
CONTROLS
DRIVING TIPS
ENTERTAINMENT
COMMUNICATIONS
MOBILITY
REFERENCE

REFERENCETechnical data
176
Technical data
Engine data
In the technical data, only the values that differ from the Cooper S are shown for the
John Cooper Works.
Cooper Cooper SJohn Cooper Works
Displacementcu in/
cm μ 97.5/
1,598 97.5/
1,598 97.5/
1,598
Number of cylinders 44 4
Maximum power
output hp
121181 208
At engine speed rpm 6,0005,500 6,000
Maximum torque
with overboost lb ft/
Nm114/155
– 177/240
192/260 192/260
207/280
At engine speed
with overboost rpm
4,250
– 1,600-5,000
1,730-4,500 1,850-5,600
2,000-5,100
Overboost briefly raises the maximum torque at high rates of acceleration, e. g. when passing.

Technical dataREFERENCE
177
Dimensions
All dimensions in inches/mm. Minimum turning radius dia.: 36 ft in/11.0 m.
Information after the semicolon: different values for MINI Cooper S.

REFERENCETechnical data
178
Weights
Never exceed either the approved axle loads or the gross vehicle weight.
CooperCooper SJohn Cooper Works
Curb weight, ready for travel, with all optional extras
> Manual transmission lbs./kg 2,7 12/1,230 2,833/1,285 2,833/1,285
> Automatic transmis-
sion lbs./kg 2,789/1,265 2,877/1,305 –
Approved gross weight
> Manual transmission lbs./kg 3,5 49/1,610 3,671/1,665 3,704/1,680
> Automatic transmis-
sion lbs./kg 3,627/1,645 3,726/1,690 –
Approved front axle load
> Manual transmission lbs./k g 1,830/830 1,918/870 1,929/875
> Automatic transmis-
sion lbs./kg 1,907/865 1,962/890
–
Approved rear axle load lb s./kg 1,830/830 1,841/835 1,863/845
Approved roof load
capacity lbs./kg
165/75165/75 165/75
Cargo area capacity cu ft/
liters 9.2 - 32.8/
260 - 930 9.2 - 32.8/
260 - 930 9.2 - 32.8/
260 - 930
