steering MINI Clubman 2011 Owner's Guide

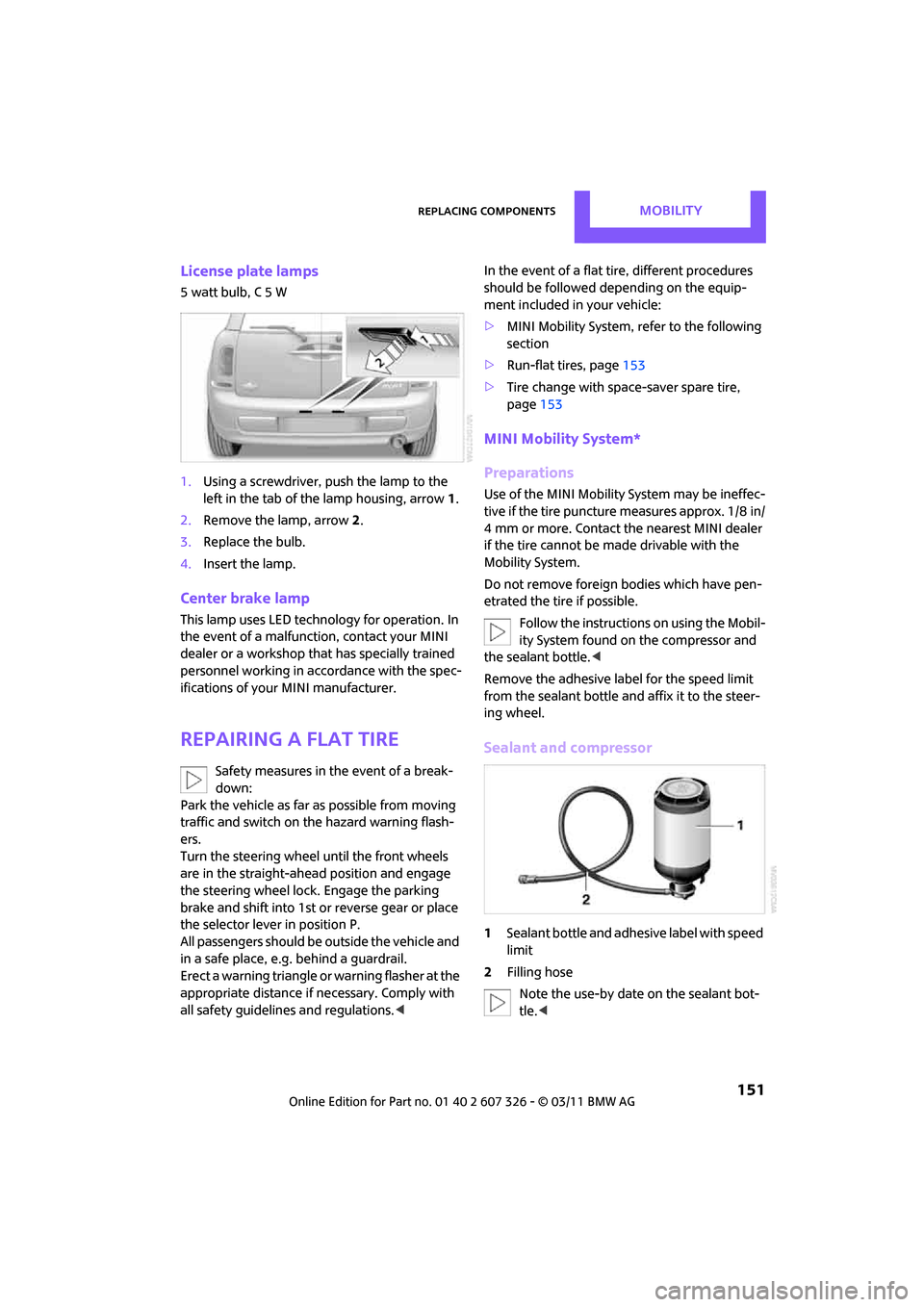

Replacing componentsMOBILITY
151
License plate lamps
5watt bulb, C5W
1.Using a screwdriver, push the lamp to the
left in the tab of the lamp housing, arrow 1.
2. Remove the lamp, arrow 2 .
3. Replace the bulb.
4. Insert the lamp.
Center brake lamp
This lamp uses LED technology for operation. In
the event of a malfunction, contact your MINI
dealer or a workshop that has specially trained
personnel working in acco rdance with the spec-
ifications of your MINI manufacturer.
Repairing a flat tire
Safety measures in the event of a break-
down:
Park the vehicle as far as possible from moving
traffic and switch on th e hazard warning flash-
ers.
Turn the steering wheel until the front wheels
are in the straight-ahead position and engage
the steering wheel lock. Engage the parking
brake and shift into 1st or reverse gear or place
the selector lever in position P.
All passengers should be outside the vehicle and
in a safe place, e.g. behind a guardrail.
Erect a warning triangle or warning flasher at the
appropriate distance if necessary. Comply with
all safety guidelines and regulations. should be followed depending on the equip-
ment included in your vehicle:
>
MINI Mobility System, refer to the following
section
> Run-flat tires, page 153
> Tire change with space-saver spare tire,
page 153
MINI Mobility System*
Preparations
Use of the MINI Mobility System may be ineffec-
tive if the tire puncture measures approx. 1/8 in/
4 mm or more. Contact the nearest MINI dealer
if the tire cannot be made drivable with the
Mobility System.
Do not remove foreign bodies which have pen-
etrated the tire if possible.
Follow the instructions on using the Mobil-
ity System found on the compressor and
the sealant bottle. <
Remove the adhesive label for the speed limit
from the sealant bottle and affix it to the steer-
ing wheel.
Sealant and compressor
1 Sealant bottle and adhesi ve label with speed
limit
2 Filling hose
Note the use-by date on the sealant bot-
tle. <

MOBILITYReplacing components
154
Removing the space-saver spare tire
The space-saver spare tire is located under the
tire change set in the cargo area.
1.Fold up the floor mat.
2. Unscrew the nut, arrow, and remove the
space-saver spare tire.
Driving with the space-saver spare tire
Drive cautiously and do not exceed a
speed of 50 mph/80 km/h. Changes may
occur in vehicle handling such as lower track sta-
bility during br aking, longer braking distances
and changes in self-steering properties when
close to the handling limit. These properties are
more noticeable with winter tires. <
Only one space-saver spare tire may be
mounted at one time. Mount a wheel and
tire of the original size as soon as possible, to
avoid any safety risks. <
Check the tire inflation pressure at the ear-
liest opportunity and correct it if neces-
sary. Replace the defective tire as soon as possi-
ble and have the new wheel/tire assembly
balanced. <
Preparing for a tire change
Observe the safety precautions regarding
flat tires on page 151.< Additional safety measures when chang-
ing tires:
Only change the tire wh en parked on a surface
that is level, firm and not slippery.
The vehicle or the jack could slip sideways on
soft or slippery support surfaces, such as snow,
ice, flagstones, etc.
Do not use a wooden block or similar object as a
support base for the jack, as this would prevent
it from extending to its full support height and
reduce its load-carrying capacity.
Do not lie under the vehicle or start the engine
when the vehicle is supported by the jack; other-
wise, there is a risk of fatal injury. <
1. Place the foldable chock
* behind the front
wheel on the other side of the vehicle or in
front of the wheel if the vehicle is on an
incline. If the wheel is changed on a surface
with a more severe sl ope, take additional
precautions to secure the vehicle from roll-
ing.
2. Uncover the lug bolts if necessary.
3. Loosen the lug bolts by a half turn.
Jacking up the vehicle
The vehicle jack is designed for changing
wheels only. Do not attempt to raise
another vehicle model with it or to raise any load
of any kind. To do so could cause accidents and
personal injury. <

Giving and receiving assistanceMOBILITY
159
Using a tow fitting
The screw-in tow fitting must always be carried
in the car. It can be screwed in at the front or
rear of the MINI.
It is stored in the onboard vehicle toolkit in the
cargo area underneath the cover on the right-
hand side, page 146.
Use only the tow fitting provided with the
vehicle and screw it all the way in. Use the
tow fitting for towing on paved roads only. Avoid
lateral loading of the tow fitting, e.g. do not lift
the vehicle by the tow fitting. Otherwise, the tow
fitting and the vehicle could be damaged. <
Access to screw thread
Push out the cover of the towing eye out of the
recess in the bumper.
Front
Rear
Being towed
M a k e s u r e t h a t t h e i g n i t i o n i s s w i t c h e d o n ,
refer to page41; otherwise, the low
beams, tail lamps, turn signals, and windshield
wipers may be unavailable. Do not tow the vehi- cle with just the rear ax
le raised, as this would
allow the steering to turn. <
There is no power assist while the engine is off.
Thus, braking and steering will require increased
effort.
Switch on the hazard warning flashers, depend-
ing on local regulations.
Manual transmission
Gearshift lever in neutral position.
Automatic transmission
Tow vehicles with automatic transmission
only with a tow truck or with the front
wheels lifted; otherwise, the transmission can be
damaged. <
Towing with a tow bar
The towing vehicle must not be lighter
than the towed vehicle; otherwise, it may
be impossible to maintain control. <
The tow fittings used should be on the same side
on both vehicles. Should it prove impossible to
avoid mounting the tow bar at an angle, please
observe the following:
> Clearance and maneuvering capability will
be sharply limited during cornering.
> The tow bar will generate lateral forces if it is
attached offset.
Only attach the tow bar to the tow fittings,
as attachment to ot her vehicle parts can
lead to damage. <
Towing with a tow rope
When starting off in the towing vehicle, make
sure that the tow rope is taut.
To avoid jerking and the associated
stresses on vehicle components when
towing, always use nylon ropes or nylon straps.
Attach the tow rope to the tow fittings only, as
attaching it to other parts of the vehicle could
result in damage. <

Indicator and warning lampsMOBILITY
163
Window washer fluid level too low Add washer fluid as soon as possible,
page 49.
Lights up in red:
Service due Arrange a service appointment.
Check service requirements,
page 140.
Lights up in yellow:
The next time that the Start/Stop but-
ton is pressed, the engine starts, pos-
sibly even without a foot on the
brakes or without depressing the
clutch
Remote control malfunctioning or, in
cars with Comfort Access, not
detected The engine cannot be started. Have
the remote control checked, if neces-
sary.
Remote control battery is discharged Use the remote control for a longer journey or, in cars with Comfort
Access, replace the battery.
Belt tensioners and/ or airbag system
failed Have the system checked immedi-
ately. Fasten the safety belts anyway.
Power steering failed You can continue your journey, but
moderate your speed and exercise
due caution. Steering response will be
markedly different. Have the system
checked without delay.
12Cause What to do

Everything from A to ZREFERENCE
181
Being towed159
Bell
– volume 100
Belt tensioner, refer to Safety
belts 35
Belts, refer to Safety belts 35
Beverage holders, refer to
Cupholders 87
Black ice, refer to External temperature warning 52
Blower, refer to Air flow rate 79,81
Bluetooth, activating/
deactivating 114
Bottle holders, refer to Cupholders 87
Brake Assist 61
Brake fluid, refer to Service requirements 56
Brake lamps
– replacing bulbs 150
Brake pads, breaking in 90
Brake rotors 91
– brakes 90
– breaking in 90
Brake system 90
– breaking in 90
– disc brakes 91
– MINI Maintenance System 140
Brakes
– ABS 61
– breaking in 90
– MINI Maintenance System 140
– parking brake 43
– service requirements 56
Brakes, refer to Braking safely 91
Breakdown service, refer to Roadside Assistance 157
Break-in period 90
Breaking in the clutch 90
Bulb changing, refer to Lamps and bulbs 147
Button for starting the engine 41 Buttons on the steering
wheel 11
C
California Proposition 65
warning 5
Call
– accepting 117
– ending 118
– rejecting 118
Calling, refer to Phone numbers, dialing 118
Can holders, refer to Cupholders 87
Capacities 179
Car battery, refer to Vehicle battery 155
Car care 142
Car key, refer to Keys/remote controls 20
Car phone
– installation location, refer to Center armrest 85
– refer to separate Owner's
Manual
Car phone, refer to Telephone 112
Car wash, care 142
Car washes 142
Care 142
– car washes 142
– car-care products 142
– CD/DVD drives 145
– external 142
– high-pressure washers 143
– internal 144
– leather 144
– manual washing 143
– upholstery and fabrics 144
– windows 143
– wiper blades 143 Cargo area
92
– capacity 178
– Comfort Access 29
– doors, refer to Split Rear Barn
Doors 26
– lamp 76
– opening from outside 26
– trunk lid, refer to Split Rear Barn Doors 26
Cargo area doors, refer to Split
Rear Barn Doors 26
Cargo area, expanding 92
Cargo area lamp 76
Cargo area partition net, refer to Cargo net 93
Cargo loading 94
– securing cargo 95
– stowing cargo 95
– vehicle 92
Cargo net 93
Cargo, securing 95
Carpets, care 144
Cataly
tic converter, refer to
Hot exhaust system 90
CD player 105
– changing the track 106
– fast forward/reverse 106
– playing a track 106
– random order 106
– starting 105
– volume 100
Center armrest 85
Center brake lamp 151
Center console, refer to Around the center
console 14
Central locking system 21
– Comfort Access 28
– from inside 24
– from outside 21
Changing bulbs 147
Changing wheels 153
Chassis number, refer to Engine compartment 137
Check Control 58
Child restraint fixing system LATCH 39

REFERENCEEverything from A to Z
184
Footbrake, refer to Braking safely 91
Footwell lamps 76
For your own safety 5
Front airbags 69
Front fog lamps 75
– indicator lamp 161
– replacing bulb 149
Front seat adjustment 33
Frost on windows, refer to
Defrosting windows 80,82
FTM, refer to Flat Tire Monitor 63
Fuel 127
– gauge 51
– high-quality brands 127
– quality 127
– specifications 127
– tank volume 179
Fuel clock, refer to Fuel gauge 51
Fuel consumption display
– average fuel consumption 52
Fuel display, refer to Fuel gauge 51
Fuel filler flap 126
– releasing in the event of electrical malfunction 126
Fuses 156
G
Garage door opener, refer to
Integrated universal remote
control 83
Gasoline
– refer to Average fuel consumption 52
Gasoline display, refer to Fuel
gauge 51
Gasoline, refer to Required fuel 127
Gear indicator
– automatic transmission with Steptronic 44 Gear shifting
– automatic transmission
44
– manual transmission 43
Gearshift lever
– automatic transmission with Steptronic 44
– manual transmission 43
General driving notes 90
Glass roof, electric 30
– convenient operation 22,24
– opening, closing 30
– remote control 22
– tilting 30
Glove compartment 85
Grills, refer to Air vents 78
Gross vehicle weight, refer to
Weights 178
H
Halogen lamps
– replacing bulb 148
Handbrake, refe r to Parking
brake 43
Hands-free system 14,120
Hazard warning flashers 14
HD Radio 103
Head airbags 69
Head Light, refer to Adaptive Light Control 74
Head restraints 34
– sitting safely 32
Headlamp control,
automatic 72
Headlamp flasher 46
– indicator lamp 11,161
Headlamp glass lens 147
Headlamps
– replacing bulb 148
Headlamps, care 143
Heated
– mirrors 36
– rear window 79,81
– seats 35 Heating
78
– mirrors 36
– rear window 79,81
– seats 35
Heavy loads, refer to Stowing cargo 95
Height adjustment
– seats 33
– steering wheel 37
Height, refer to
Dimensions 177
High beams 75
– headlamp flasher 75
– indicator lamp 161
– replacing bulb 148
High water, refer to Driving
through water 91
Hill Assist 63
Hills 91
Holders for cups 87
Homepage 4
Hood 136
Horn 10
Hot exhaust system 90
Hydroplaning 91
I
IBOC, refer to HD Radio 103
Ignition 41
– switched off 42
– switched on 41
Ignition key position 1, refer to
Radio readiness 41
Ignition key position 2, refer to Ignition on 41
Ignition key, refer to Integrated key/remote
control 20
Ignition lock 41
Imprint 2
Incoming call 117
Indicator and warning lamps 13,161
– Tire Pressure Monitor TPM 66
Indicator lighting, refer to Instrument lighting 76

REFERENCEEverything from A to Z
186
Manual operation
– door lock24
– fuel filler flap 126
– transmission lock, automatic
transmission 45
Manual station search 102
Manual transmission 43
Manual washing 143
Master key, refer to Integrated key/remote control 20
Maximum cooling 81
Maximum speed
– with winter tires 135
Medical assistance, refer to First aid pouch 157
Microfilter
– for air conditioner 80
– for automatic climate control 82
– MINI Maintenance System 140
Microfilter/activated-charcoal
filter
– MINI Maintenance System 140
Microphone for telephone 14
MINI Internet page 4
MINI Maintenance System 140
Mirror dimming feature 36
Mirrors 36
– exterior mirrors 36
– heating 36
– interior rearview mirror 36
Mobile phone
– adjusting volume 117
– connecting, refer to Mobile
phone, pairing 114
– installation location, refer to Center armrest 85
– pairing 114
– refer to separate Owner's Manual
– What to do if… 116
Mobile phone, installation
location, refer to Center
armrest 85 Mobile phone, refer to
separate Owner's Manual
Mobility System 151
Modifications, technical, refer
to For your own safety 5
Monitoring syst em for tire
pressures, refer to Flat Tire
Monitor 63
MP3 105
Multifunction switch
– refer to Turn signals/ headlamp flasher 46
– refer to Wiper system 47
Multifunctional steering wheel, refer to Buttons on
the steering wheel 11
Music tracks
– playing a track 106
– random order 106
N
Neck support, refer to Head
restraints 34
Nets, refer to Storage
compartments 86
New tires 134
Number of cylinders, refer to
Engine data 176
Number of safety belts 32
Nylon rope, refer to Tow rope 159
O
OBD socket, refer to Socket for
On-Board Diagnosis 141
Octane ratings, refer to Fuel specifications 127
Odometer 51
Oil consumption 137
Oil level 137
Oil, refer to Engine oil 137
Oil types 138
Old batteries, refer to
Disposal 155
Onboard vehicle toolkit 146Opening and closing
– Comfort Access
28
– from inside 24
– from outside 21
– using the door lock 24
– using the remote control 21
Opening and unlocking
– from inside 25
Opening/closing the Split Rear Barn Doors 26
Outlets
– refer to Ventilation 82
Outlets, refer to Air vents 78
Output, refer to Engine data 176
Outside-air mode
– automatic climate control 81
Overheated engine, refer to Coolant temperature 139
P
Paintwork, care143
Park Distance Control PDC 60
Parking
– vehicle 42
Parking aid, refer to Park Distance Control PDC 60
Parking brake 43
Parking lamps, replacing
bulb 149
Parking lamps/low beams 72
Parts and accessories, refer to
Your individual vehicle 4
Pathway lighting 73
PDC
– volume 100
Personal Profile 20
Phone numbers
– dialing 118
Pinch protection system
– windows 31
Plastic parts, care 144
Playing a track scan
– CD 106

Everything from A to ZREFERENCE
189
Steering wheel37
– adjustment 37
– buttons on steering wheel 11
– lock 41
– shift paddles 45
Steptronic, refer to Automatic transmission with
Steptronic 43
Storage area
– cargo area 92
Storage compartment, front passenger side 86
Storage compartments 86
Storage space
– storage compartments 86
Storing the vehicle 145
Storing tires 135
Stowage, refer to Storage compartments 86
Summer tires, re fer to Wheels
and tires 128
Switches, refer to Cockpit 10
Switching off
– engine 42
Switching off the engine
– Start/Stop button 41
Switching on
– CD player 100,105
– Radio MINI Boost CD 100
Switching the cooling function
on and off 82
Symbols 4
T
Tachometer 51
Tail lamp, refer to Tail lamps 150
– replacing bulb 150
Tail lamps 150
Tank volume, refer to Capacities 179
Technical data 176
Technical modifications 5Telephone
112
– hands-free system 120
– installation location, refer to Center armrest 85
– refer to separate Owner's Manual
– voice commands 120
Telephone call, refer to the Owner's Manual for the
telephone
Temperature display
– setting the units 55
Temperature of coolant, refer
to Coolant temperature 139
Temperature setting
– air conditioner 79
– automatic climate control 81
Tempomat, refer to Cruise control 49
Tensioning straps, refer to Securing cargo 95
The individual vehicle 4
Third brake lamp, refer to Center brake lamp 151
Three-point safety belt 35
Tightening the lug bolts
– keys 146
– torque 155
Tightening torque, refer to Tightening lug bolts 155
Time
– setting 101
Tire change set
– space-saver spare tire 146
Tire failure
– Flat Tire Monitor 64
– indicator/warning lamp 64
– MINI Mobility System 151
– run-flat tires 65
– space-saver spare tire 153
– Tire Pressure Monitor 65
Tire inflation pressure 128
– loss 64
– space-saver spare tire 128Tire Pressure Monitor TPM
65
– limitations of system 66
– resetting system 66
– warning lamp 66
Tire pressure monitoring, refer to Flat Tire Monitor 63
Tire Quality Grading 132
Tires
– age 133
– breaking in 90
– changi

ng, refe r to Changing
wheels 153
– condition 133
– damage 133
– inflation pressure 128
– inflation pressure loss 66
– minimum tread depth 133
– new tires 134
– pressure monitoring, refer to
Flat Tire Monitor 63
– pressure monitoring, refer to Tire Pressure Monitor
TPM 65
– puncture 64
– size 131
– wear indicators, refer to Minimum tread depth 133
– winter tires 135
– with emergency operation properties 134
Tires with emergency operation properties, refer to
Run-flat tires 134
Tires with safety features, refer
to Run-flat tires 134
Tone
– middle setting 101
Tone control 101
Tools, refer to Onboard vehicle
toolkit 146
Torque 176
– lug bolts 155
Tow bar 159
Tow fitting 159
– screw thread 159
Tow fittings for tow-starting and towing away 159
