MINI Clubman 2012 Owner's Manual

MOBILITYIndicator and warning lamps
180
Vehicles with Tire Pressure Monitor
Light up in yellow and red:
There is a flat tire or substantial loss
in tire pressure Carefully bring the car to a stop.
Observe the information starting on
page
69.
Vehicles with Tire Pressure Monitor
Light up in yellow:
Tire Pressure Monitor not initialized Check the inflation pressure and reset
the system, page
70.
The small lamp flashes yellow and
then stays on, the large lamp lights
up in yellow:
> Tire Pressure Monitor failed.
Punctures are not indicated Have the system checked.
> Wheel mounted without TPM
electronics Have the system checked.
> The TPM is temporarily malfunc-
tioning due to other systems or
devices using the same radio
frequency.
Vehicles with Tire Pressure Monitor
The small lamp flashes yellow and
then stays on, the large lamp lights
up in yellow:
> Tire Pressure Monitor failed.
Punctures are not indicated Have the system checked.
> Wheel mounted without TPM
electronics Have the system checked.
12Cause What to do
Online Edition for Part no. 01 40 2 914 744 - \251 07/12 BMW AG

Indicator and warning lampsMOBILITY
181
Lights up in red:
>Transmission limp-home pro-
gram active with restricted range
of gears, possibly with reduced
acceleration You can continue your journey, but
moderate your speed and exercise
due caution. Have the system
checked without delay.
> Gears can be engaged without
depressing the brake Always depress the brake to engage a
gear.
> Automatic selector lever locked Manually releasing the selector lever
lock, page48.
Lights up in yellow: Have the system checked as soon as
possible.
> Automatic selector lever locked:
Selector lever locked in position P
with engine running and brake
depressed or Manually releasing the selector lever
lock, page
48.
> Brake signal malfunctioning: gear
can be engaged without
depressing the brake To engage a gear while the vehicle is
at a standstill, always depress the
brake. Before leaving the vehicle,
move the selector lever to position P
and switch off the engine.
Lights up in red:
Transmission overheating Bring the car to a stop and move the
selector lever to position P. Allow the
transmission to cool down. You can
continue your journey, but moderate
your speed and exercise due caution.
Have the system checked if the situa-
tion reoccurs.
Lights up in yellow:
Transmission too hot Avoid high engine loads. You can
continue your journey, but moderate
your speed and exercise due caution.
Selector lever position P not engaged.
Vehicle not prevented from rolling
12Cause What to do
Online Edition for Part no. 01 40 2 914 744 - \251 07/12 BMW AG

MOBILITYIndicator and warning lamps
182
Selector lever position P not engaged.
Ignition cannot be switched offEngage selector lever position P when
you wish to switch off the ignition,
page
44.
Cruise control system fail edHave the system checked.
Park Distance Control fail edHave the system checked.
Bulb of exterior lighting system failed Have the exterior lighting checked as
soon as possible.
Low-beam headlamp or fog lamp
failed Have the lamps checked as soon as
possible.
High-beam headlamp failed Have the high-beam headlamps
checked.
Rear fog lamp failed Have the rear fog lamp checked.
Headlamp beam throw adjustment
system failed Have the headlamp beam throw
adjustment system checked.
Coolant level too low Add coolant immediately, page146.
Engine oil pressure too low Stop immediately and switch off the
engine. You cannot continue your
journey. Contact your MINI dealer.
Lights up in red:
Service appointment overdue Arrange a service appointment.
Check service requirements, page 59.
Lights up in yellow:
Service due Arrange a service appointment.
Check service requirements, page 59.
12Cause What to do
Online Edition for Part no. 01 40 2 914 744 - \251 07/12 BMW AG

Indicator and warning lampsMOBILITY
183

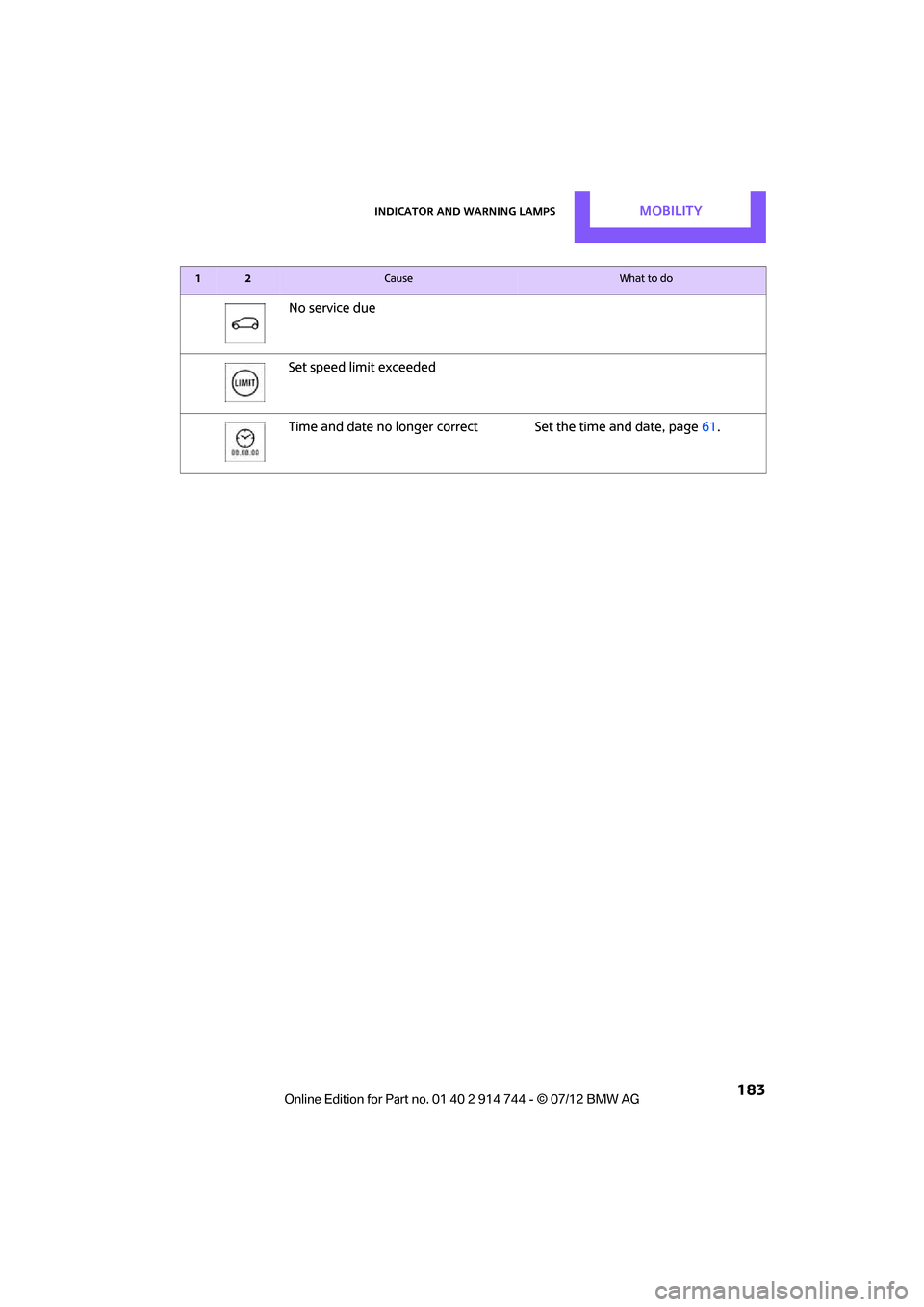

No service due
Set speed limit exceeded
Time and date no longer correct Set the time and date, page61.
12Cause What to do
Online Edition for Part no. 01 40 2 914 744 - \251 07/12 BMW AG

Find Me.

Online Edition for Part no. 01 40 2 914 744 - © 07/12 BMW AG

AT A GLANCE
CONTROLS
DRIVING TIPS
ENTERTAINMENT
COMMUNICATIONS
MOBILITY
REFERENCE

Online Edition for Part no. 01 40 2 914 744 - © 07/12 BMW AG

REFERENCETechnical data
186
Technical data
Vehicle equipment
In this chapter, all production, country, and
optional equipment that is offered in the model
range is described. Equipment is also described
that is not available, for example due to the selected options or national-market version.
This also applies to safety related functions and
systems.
Engine data
CooperCooper SJohn Cooper Works
Displacement
cu in/
cm μ 97.5/
1,598 97.5/
1,598 97.5/
1,598
Number of cylinders 44 4
Maximum power
output hp
121181 208
At engine speed rpm 6,0005,500 6,000
Maximum torque
with overboost lb ft/
Nm
114/155
– 177/240
192/260 192/260
207/280
At engine speed
with overboost rpm
4,250
– 1,600-5,000
1,730-4,500 1,750-5,500
2,000-5,100
Overboost briefly raises the maximum torque at high rates of acceleration, e. g. when passing.
Online Edition for Part no. 01 40 2 914 744 - \251 07/12 BMW AG

Technical dataREFERENCE
187

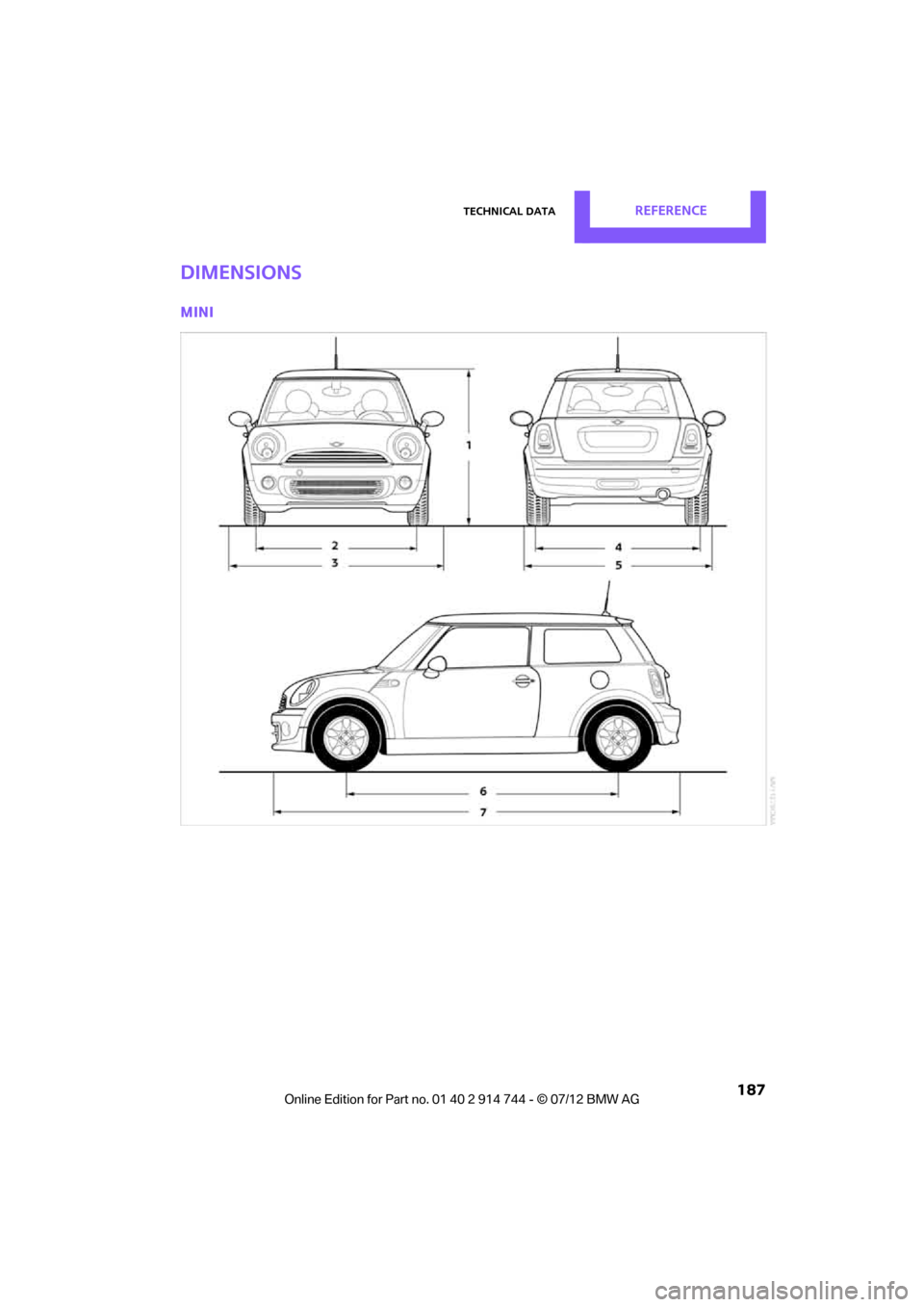

Dimensions
MINI
Online Edition for Part no. 01 40 2 914 744 - \251 07/12 BMW AG

REFERENCETechnical data
188
CooperCooper S, John Cooper Works
1Vehicle height without roof
antenna 55.4/1,407 55.4/1,407
2 Track, front
57.4/1,45957.2/1,453
3 Vehicle width, with outside mirror
75.3/1,91375.3/1,913
4 Track, rear
57.8/1,46757.5/1,461
5 Vehicle width, without outside
mirror 66.3/1,683
66.3/1,683
6 Wheelbase
97.1/2,46797.1/2,467
7 Vehicle length
with aerodynamic bumpers 146.6/3,723
146.8/3,729
148/3,758
All dimensions in inches/mm. Minimum turning radius dia.: 35 ft 10 in/10.7 m.
Online Edition for Part no. 01 40 2 914 744 - \251 07/12 BMW AG

Technical dataREFERENCE
189

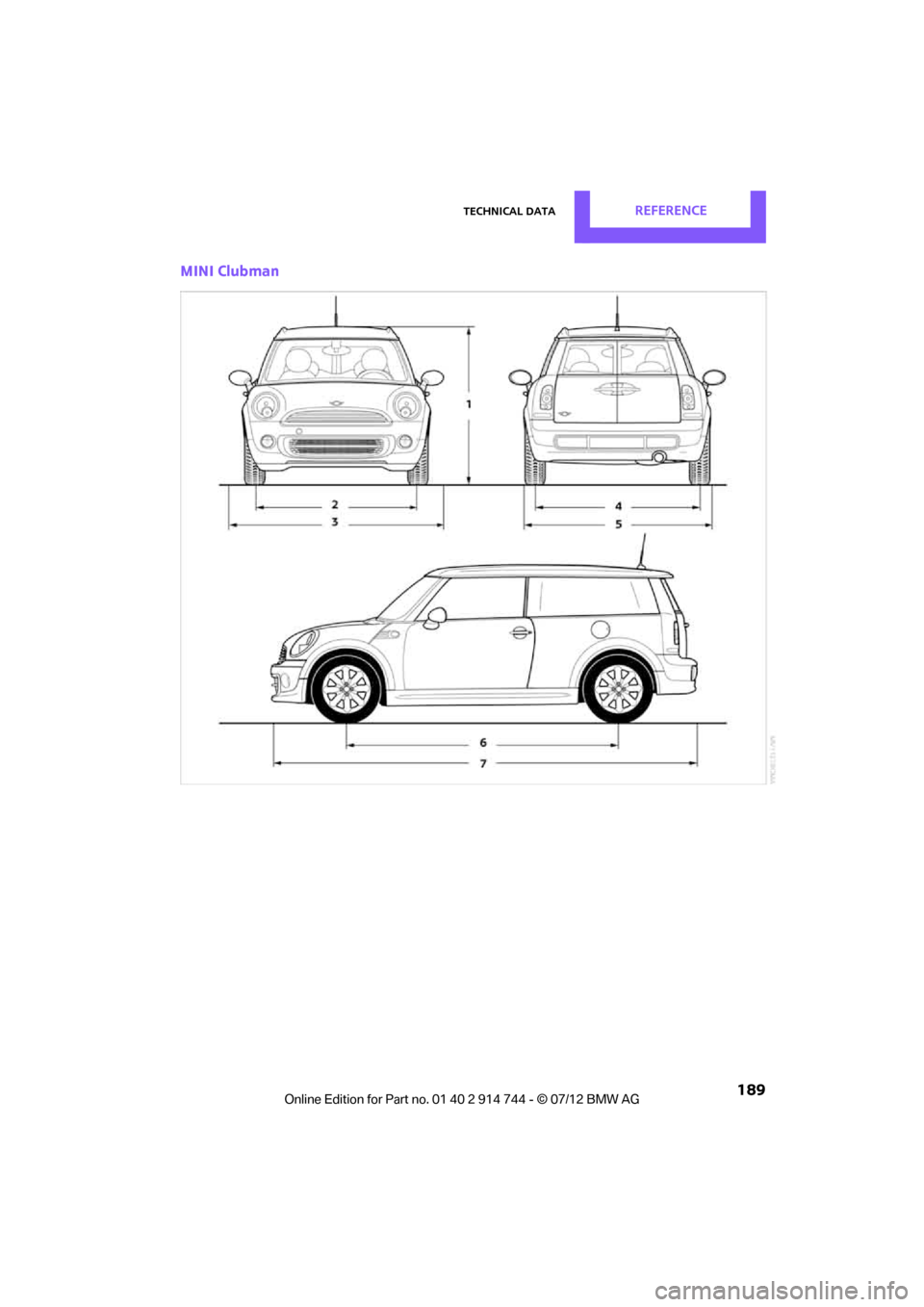

MINI Clubman
Online Edition for Part no. 01 40 2 914 744 - \251 07/12 BMW AG
