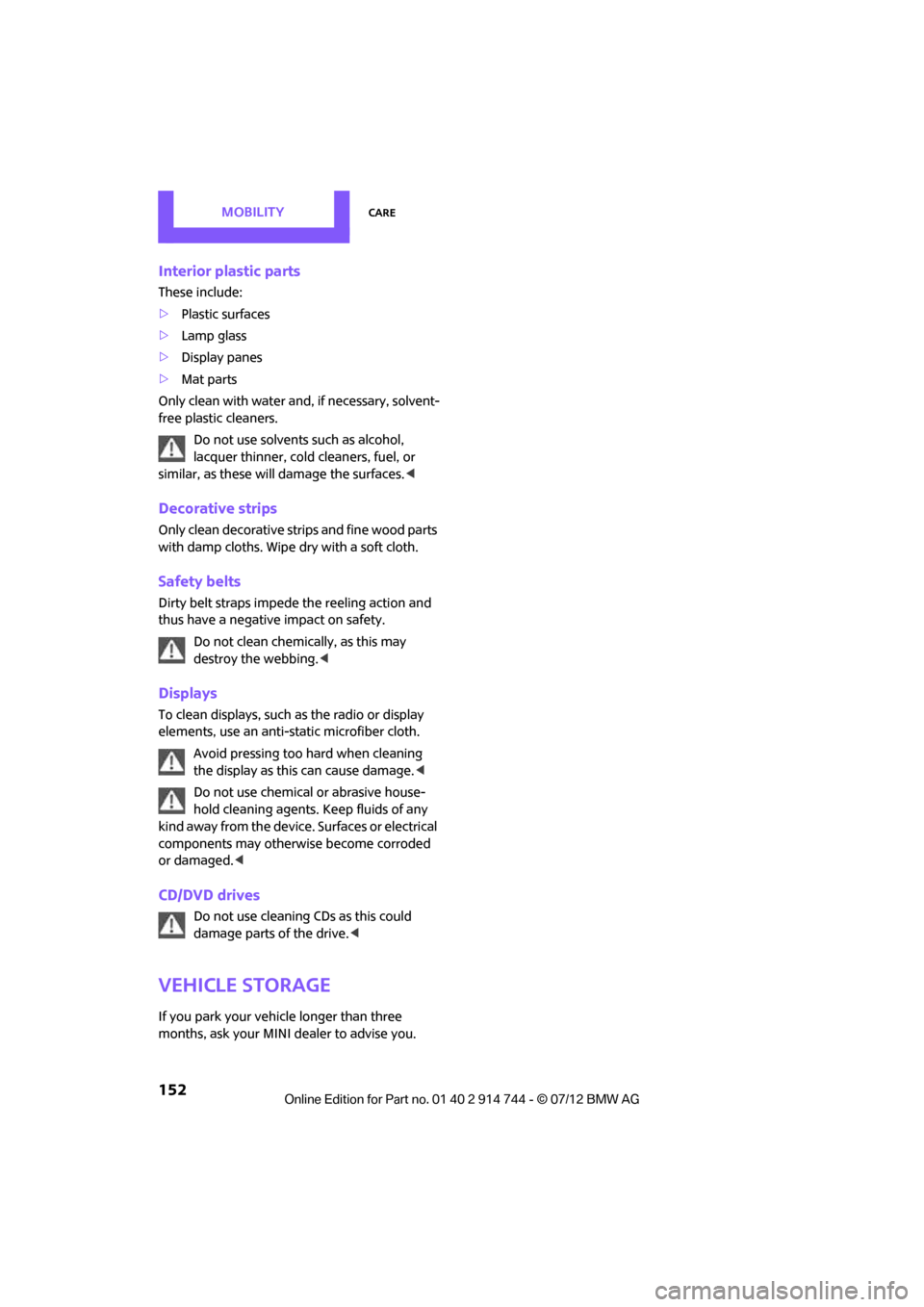

Interior plastic parts
These include:
>Plastic surfaces
> Lamp glass
> Display panes
> Mat parts
Only clean with water an d, if necessary, solvent-
free plastic cleaners.
Do not use solvents such as alcohol,
lacquer thinner, cold cleaners, fuel, or
similar, as these will damage the surfaces. <
Decorative strips
Only clean decorative strips and fine wood parts
with damp cloths. Wipe dry with a soft cloth.
Safety belts
Dirty belt straps impede the reeling action and
thus have a negative impact on safety.
Do not clean chemically, as this may
destroy the webbing. <
Displays
To clean displays, such as the radio or display
elements, use an anti-static microfiber cloth.
Avoid pressing too hard when cleaning
the display as this can cause damage. <
Do not use chemical or abrasive house-
hold cleaning agents. Keep fluids of any
kind away from th e device. Surfaces or electrical
components may otherw ise become corroded
or damaged. <
CD/DVD drives
Do not use cleaning CDs as this could
damage parts of the drive. <
Vehicle storage
If you park your vehicle longer than three
months, ask your MINI dealer to advise you.
Online Edition for Part no. 01 40 2 914 744 - \251 07/12 BMW AG

Replacing componentsMOBILITY
155
MINI Clubman: changing the rear wiper
blade
1.Fold out the wiper arm and hold it.
2. Press together the locking spring, arrow 1,
and fold out the wiper blade.
3. Pull the wiper blade away from and out of
the catch mechanism, arrow 2.
4. Press the new wiper blade into the fixture
until it engages audibly.
Lamps and bulbs
Lamps and bulbs make an essential contribution
to vehicle safety. They should, therefore, be
handled carefully. The manufacturer of your
MINI recommends having your MINI dealer per-
form any work that you do not feel competent to
perform yourself or that is not described here.
Never touch the glass of new bulbs with
your bare fingers, as even minute
amounts of contaminatio n will burn into the
bulb's surface and reduce its service life. Use a
clean tissue, cloth or some thing similar, or hold
the bulb by its base. <
You can obtain a selection of replacement bulbs
at your MINI dealer.
Only replace bulbs after they have cooled
down; otherwise, you may burn your
fingers.<
When working on electrical systems,
always begin by switching off the con-
sumer in question; otherwise, short circuits
could result. To avoid possible injury or equip- ment damage when replacing bulbs, observe
any instructions provided
by the bulb manufac-
turer. <
Caring for headlamps, refer to page 150.
For any bulb replacement not described
below, contact a MINI dealer or a work-
shop that has specially trained personnel
working in accordance wi th the specifications
of the MINI manufacturer. <
For checking and adjusting headlamp aim,
please contact your MINI dealer. <
Light-emitting diodes LEDs
Light-emitting diodes installed behind translu-
cent lenses serve as the light sources for many of
the controls and displays in your vehicle. These
light-emitting diodes are related to conven-
tional laser diodes, and legislation defines them
as Class 1 light-emitting diodes.
Do not remove the covers or expose the
eyes directly to the unfiltered light source
for several hours; otherwise, this could cause
irritation of the retina. <
Headlamp glass lens
In cool or humid weather, condensation may
occur on the interiors of the headlamps. The
condensation disappears a short time after the
light is switched on. The headlamps do not need
to be changed.
Do not remove the condensation from head-
lamps, despite driving with lights on, and if
condensation increases, e.g., because of water
droplets, have this checked by your MINI dealer.
Xenon lamps
The service life of these bulbs is very long and
the probability of failure very low, provided that
they are not switched on and off an excessive
number of times. If a xenon lamp fails neverthe-
less, switch on the fog lamps and continue the
journey with great care, provided that local
legislation does no t prohibit this.
Online Edition for Part no. 01 40 2 914 744 - \251 07/12 BMW AG

MOBILITYIndicator and warning lamps
176
Lights up in red:
Battery is no longer being charged.
Alternator malfunctionSwitch off all unnecessary electrical
consumers. Have the battery checked
without delay.
Lights up in yellow:
Battery charge level very low, battery
aged or not securely connected C h a r g e i t b y t a k i n g a longer drive or by
using an external charger. Possibly
automatic switch-o
ff of power con-
suming devices. Have the battery
checked as soon as possible.
Display in US models
Parking brake applied
Display in Canadian models
Parking brake applied
Display in US models
Parking brake applied while driv ing Release the parking brake.
Display in Canadian models
Parking brake applied while driv ing Release the parking brake.
Display in US models
Lights up in red:
Brake fluid level too low Braking action is reduced, stop with
care. Contact your nearest MINI
dealer.
12Cause What to do
Online Edition for Part no. 01 40 2 914 744 - \251 07/12 BMW AG

Indicator and warning lampsMOBILITY
177

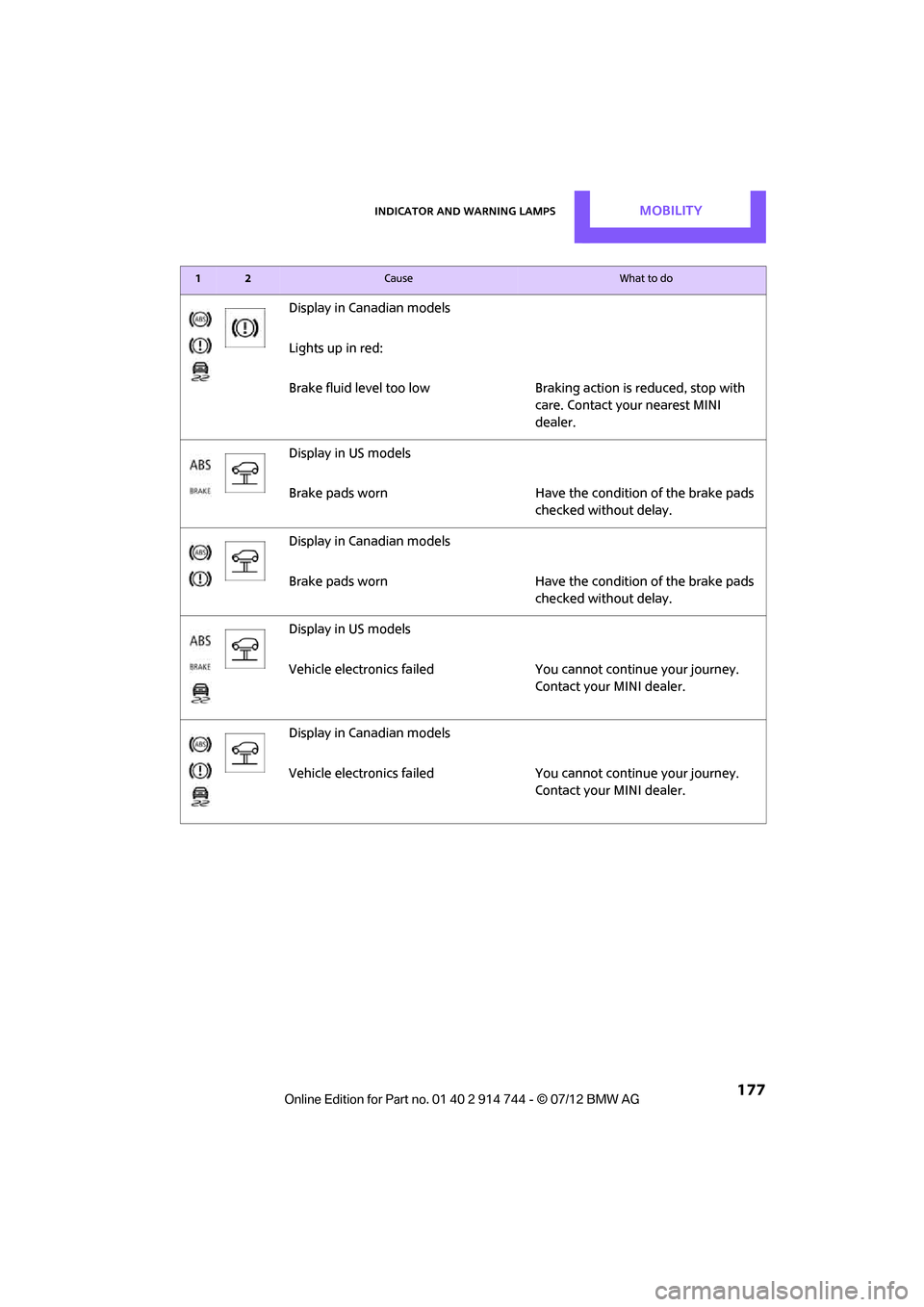

Display in Canadian models
Lights up in red:
Brake fluid level too lowBraking action is reduced, stop with
care. Contact your nearest MINI
dealer.
Display in US models
Brake pads worn Have the condition of the brake pads
checked without delay.
Display in Canadian models
Brake pads worn Have the condition of the brake pads
checked without delay.
Display in US models
Vehicle electronics failed You cannot continue your journey.
Contact your MINI dealer.
Display in Canadian models
Vehicle electronics failed You cannot continue your journey.
Contact your MINI dealer.
12Cause What to do
Online Edition for Part no. 01 40 2 914 744 - \251 07/12 BMW AG

Indicator and warning lampsMOBILITY
179
The Dynamic Stability Control DSC
and Dynamic Traction Control DTC
systems have failedDriving stability limited during
acceleration and cornering.
You can continue your journey, but
moderate your speed and exercise
due caution. Have the system
checked as soon as possible.
Display in US models
The driving stabili ty control systems,
including ABS and the Tire Pressure
Monitor, have failed, refer also to
page 64 Reduced braking and driving stability.
Drive cautiously and think well ahead.
Avoid braking with full force, driving
on rough tracks, and depressing the
accelerator pedal to full throttle or
kickdown position. Have the system
checked immediately.
Display in Canadian models
The driving stabili ty control systems,
including ABS and th e Flat Tire Moni-
tor or the Tire Pre ssure Monitor, have
failed, refer also to page 64Reduced braking and driving stability.
Drive cautiously and think well ahead.
Avoid braking with full force, driving
on rough tracks, and depressing the
accelerator pedal to full throttle or
kickdown position. Have the system
checked immediately.
Vehicles with Flat Tire Monitor
Light up in yellow and red:
> Tire damage Carefully bring the car to a stop.
Observe the information starting on
page
66.
> Flat Tire Monitor not initialized Initialize Flat Tire Monitor, page
67.
Light up in yellow:
Flat Tire Monitor failed. Punctures are
not indicated Have the system checked.
12Cause What to do
Online Edition for Part no. 01 40 2 914 744 - \251 07/12 BMW AG
