Page 4 of 148

CONTENTS
2
© 2002 Bayerische Motoren Werke
Aktiengesellschaft
Munich, Germany
Reprinting, including excerpts, only with the
written consent of BMW AG, Munich.
Order No. 01 41 0 156 890
US English VIII/02
Printed in Germany
Printed on environmentally friendly paper –
bleached without chlorine, suitable for recycling.
Notes
About this Owner's Manual6
Symbols used6
Your individual vehicle6
Editorial notice7
For your own safety7
Symbol on vehicle parts8
Service and warranty8
Reporting safety defects8
At a glance
Cockpit12
Display elements13
Display elements with navigation
system14
Indicator and warning lamps15
Multifunction steering wheel19
Controls and features
Opening and closing:
Keys22
Central locking system23
Opening and closing – from outside23
Opening and closing – from inside26
Tailgate27
Electric power windows28
Sliding/tilt sunroof29
Roller sun blind30
Alarm system31
Adjustments:
Safe seating position33
Seat adjustment34
Entry to the rear35
Heated seats36
Head restraints37
Safety belts38
Steering wheel38
Mirrors39
Airbags40
Transporting children safely41
Vehicle Memory44
ba.book Seite 2 Montag, 5. August 2002 8:09 20
ProCarManuals.com
Page 27 of 148

25
OVERVIEW REPAIRS OPERATIONCONTROLS DATA INDEX
OPENING AND CLOSING – FROM OUTSIDETo turn off tilt alarm sensor* and
interior protection* Press button 2 again directly after locking.
For more on the tilt alarm sensor and inte-
rior protection, see page 32.Non-MINI systemsExternal systems or devices may cause local
interference in the functions of the remote
control.
In this case, use the master key to unlock
the door lock.
Via the door lock
Do not lock the vehicle if there are
passengers still inside, because they
cannot unlock the doors.<
1. One turn of the key in the driver's
door lock unlocks the driver's door only
2. Turning the key a second time unlocks
the other door, the tailgate and the fuel
filler door.
You can have this function activated/
deactivated by your MINI Dealer.<
If the vehicle has been properly locked, the
hazard warning system flashes once.
When the vehicle is unlocked, the hazard
warning system does not react.
Manual operation – in the event of electrical malfunction –
Turn the key to the extreme left or right to
unlock/lock the door.Convenience operationYou can also open the power windows and
the sliding/tilt sunroof via the door lock.
With the door closed, hold the key in the
unlock position.
You can have this function activated/
deactivated by your MINI Dealer.<
ba.book Seite 25 Montag, 5. August 2002 8:09 20
ProCarManuals.com
Page 28 of 148

26
OPENING AND CLOSING – FROM INSIDE With this switch, you operate the central
locking system when the doors are closed.
The doors and tailgate are unlocked or
locked only. The anti-theft system is not
activated.
Also, the fuel filler door remains unlocked
to allow refueling.
If the remote control has been used
to unlock only the driver's door, see
page 24, and you touch the switch when
the driver's door is open, the other door, the
tailgate, and the fuel filler door are
unlocked.
If the driver's door is closed, touching the
switch locks it.<
To unlock and open the doors1. Touch the switch for the central locking
system
2. Pull the door handle above the armrest
or
pull the door handle for each door twice: to
unlock first and then open.Convenience opening modeFrom ignition key position 1:
Hold the switch in the Unlock position.
The windows and sliding/tilt sunroof open.
Convenience opening mode is simul-
taneously deactivated via the Vehicle
Memory when convenience opening mode
is deactivated via the door lock; refer to
page 25.<
Convenience closing is not possible
by means of this switch. You should
therefore close all the windows and the
sliding/tilt sunroof individually.<
To lockTouch the switch for the central locking
system
or
press the individual safety lock buttons
down.
The central locking automatically
secures your MINI as soon as you
start to drive.<
You can have this function activated/
deactivated by your MINI Dealer.<
Children might be able to lock the
doors from the inside. Always take
the vehicle's keys with you so that you can
open the vehicle again from the outside at
any time.<
ba.book Seite 26 Montag, 5. August 2002 8:09 20
ProCarManuals.com
Page 29 of 148

27
OVERVIEW REPAIRS OPERATIONCONTROLS DATA INDEX
TAILGATE To open from the outsidePress the button in the handle.
The tailgate opens slightly.
Opening with the remote control, see
page 24.
Manual operationIn the event of an electrical malfunction,
you can also operate the tailgate manually.
1. Fold the rear seat bench upwards
2. Pull the ring.
The tailgate is unlocked.
To closeThe handle recesses in the interior trim
panel of the tailgate make it easier to pull
the lid down.
To avoid injuries, be sure that the
travel path of the tailgate is clear
when it is closed, as with all closing proce-
dures.
Operate the vehicle only when the tailgate
is closed. Otherwise, exhaust fumes could
penetrate the interior of the vehicle.
Should it be absolutely necessary to oper-
ate the vehicle with the tailgate open:
1. Close all windows. Shut the sliding/tilt
sunroof
2. Sharply increase the air supply for the air
conditioning or automatic climate con-
trol, see pages 67 or 70.<
ba.book Seite 27 Montag, 5. August 2002 8:09 20
ProCarManuals.com
Page 30 of 148

28
ELECTRIC POWER WINDOWSTo open and close windowsFrom ignition key position 1:
To open:
Press the switch downwards.
The window opens until you release the
switch
or
briefly press the switch downwards.
The window opens automatically.
Pressing the switch again stops the opera-
tion.
To close:
Press the switch upwards.
The window closes until you release the
switch.
The window on the front passenger
side cannot be closed automati-
cally.<
Watch during the closing process to
be sure that no one is injured.<
After the ignition has been switched off:
You can use the electric power windows as
long as no one opens any of the doors.
If a door is opened during operation, the
opening/closing process stops immedi-
ately.
When leaving the vehicle, always
remove the ignition key from the lock
and remember to close the doors, e.g. to
prevent children from operating the power
windows and injuring themselves.<
For the convenience mode via the door
lock, refer to page 25.
To initialize power windows
If the battery is disconnected, e.g. for
changing batteries or vehicle storage,
re-initialize the power windows. Other-
wise the windows will not be lowered
when the door is opened.<
1. Close the doors
2. Close both windows
3. Hold both switches of the power win-
dows up for approx. one second.
In the event of a system malfunction,
please contact your MINI Dealer.<
ba.book Seite 28 Montag, 5. August 2002 8:09 20
ProCarManuals.com
Page 34 of 148

32
ALARM SYSTEM
*
>Indicator lamp goes out when the sys-
tem is disarmed:
No tampering with your vehicle has been
detected
>Indicator lamp continues to flash at a
slow rate after the system is disarmed:
Your vehicle has been tampered with.
The indicator lamp will not go out until
the ignition key is turned in the ignition
lock or the alarm system is re-armed.
Interior motion sensor:
>Indicator lamp does not react:
Doors or tailgate are not properly closed
>Indicator lamp flashes constantly:
Only driver/passenger window and slid-
ing/tilt sunroof is open.
Interior motion sensor is not activated.
Alarm system is armed
>Indicator lamp is lit somewhat longer
and then flashes constantly:
Window and/or sliding/tilt sunroof were
closed after the system was armed:
interior motion sensor is not activated.
Avoiding unwanted alarm The tilt alarm and interior motion sensors
may be turned off at the same time. This
will prevent unwanted alarms, e.g. in
duplex garages or when on car transport
trains:
Lock the vehicle twice – activating:
Press button 2 of the remote control twice
in succession, see page 25
or
lock with the key twice, see page 25.
The indicator lamp goes from fast blinking
to regular blinking. After approx. ten sec-
onds the indicator lamp changes to con-
stant flashing. The tilt alarm and interior
motion sensors are deactivated until the
system is disarmed.
Interior motion sensorTransmitter and receiver of the interior
motion sensor system are found under a
cover in the vehicle roof.
For the interior motion sensor to function
properly, the windows, sliding/tilt sunroof
and doors must be closed.
Turn off the interior motion sensor – see
previous column – if
>children or animals remain in the vehicle
>windows or the sliding/tilt sunroof
remain open.
The tilt alarm and interior motion
sensors are inadvertently turned off if
the convenience closing of windows and
sliding/tilt sunroof is interrupted in the
first 10 seconds and then restarted. The
alarm must then be disarmed and reacti-
vated.<
ba.book Seite 32 Montag, 5. August 2002 8:09 20
ProCarManuals.com
Page 57 of 148

55
OVERVIEW REPAIRS OPERATIONCONTROLS DATA INDEX
WASHER/WIPER SYSTEMNormal wiper speedThe wiper speed is automatically set to
interval operation when the car is stopped.
Not on vehicles with rain sensor.
You can have this function activated/
deactivated by your MINI Dealer.
speed.
Not on vehicles with rain sensor.
You can have this function activated/
deactivated by your MINI Dealer.<
Cleaning windshield and headlamps*The system sprays washer fluid against the
windshield. The wipers are automatically
activated for a brief period.
When the vehicle lighting is on, the head-
lamps are also cleaned at appropriate inter-
vals.
Do not use the washers if there is any
danger that the fluid will freeze on
the windshield. If you do so, your vision
could be obscured. For this reason, use an
antifreeze agent, see page 94.
Do not use the washers when the reservoir
is empty, since this could cause damage to
the washing pump.
position 2.
Rear window wiper6Intermittent operation:
Turn the cap to position 6.
The rear window wiper moves across the
window a number of times before
switching to intermittent operationCleaning the rear window7Intermittent operation:
Turn the cap to position 7 and hold in
place
8In lever position 0:
Turn the cap to position 8 and hold in
place
ba.book Seite 55 Montag, 5. August 2002 8:09 20
ProCarManuals.com
Page 69 of 148

67
OVERVIEW REPAIRS OPERATIONCONTROLS DATA INDEX

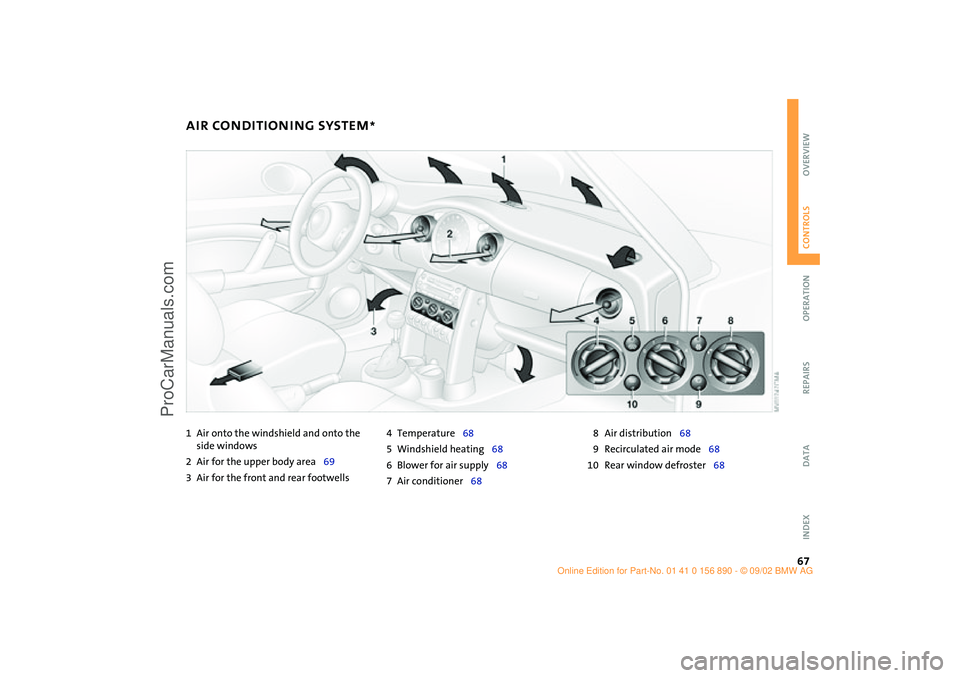

AIR CONDITIONING SYSTEM
*
1Air onto the windshield and onto the
side windows
2Air for the upper body area69
3Air for the front and rear footwells4Temperature68
5Windshield heating68
6Blower for air supply68
7Air conditioner688Air distribution68
9Recirculated air mode68
10 Rear window defroster68
ba.book Seite 67 Montag, 5. August 2002 8:09 20
ProCarManuals.com
Page 70 of 148

68
AIR CONDITIONING SYSTEM
*
Air supply
You can select blower speeds
from 1 to 4. Position 0: fan is
turned off. The button for recir-
culated air mode fully blocks the
supply of air from outside.
Heating and ventilation operate as of
position 1.
Temperature
Turn to the right – red – to
increase the temperature of the
passenger compartment.
Rapid heating: turn to the
extreme right. Then select a pleasant inte-
rior temperature.
Air distribution
Air distribution in upper body
region , upper body region
and footwell , footwell ,
footwell and windows , and
windows .
All intermediate positions are possible, see
illustration and overview on page 67.
Rear window defroster
Rear window defroster switched
on:
Indicator lamp lights up.
As long as the indicator lamp is lit, the
heating operates at high power output –
rapid defrosting.
Indicator lamp goes out.
The heating continues to run with reduced
power output and then switches itself off
automatically.
Windshield heating*
Windshield heating switched on:
Indicator lamp lights up.
As long as the indicator lamp is
lit, the heating operates at high power out-
put – rapid defrosting.
Indicator lamp goes out.
The heating continues to run with reduced
power output and then switches itself off
automatically.
Air conditioning
Air conditioner switched on:
Indicator lamp lights up.
The air is cooled and dehumidi-
fied and – depending on the temperature
setting – rewarmed.
After the engine start, the windshield may
fog over briefly.
When the air conditioner is operat-
ing, condensation is formed which
then exits under the vehicle. Traces of con-
densed water on the ground are therefore
normal.<
Recirculated air mode
Supply of outside air into the
vehicle is blocked:
Indicator lamp lights up.
The air within the vehicle is recirculated.
Do not run the recirculated air mode
for longer than approx. 30 minutes,
as otherwise the air quality in the interior
will deteriorate.<
If the windows fog up in the recircu-
lated air mode, turn the recirculated
air mode off and if necessary increase the
air supply.<
ba.book Seite 68 Montag, 5. August 2002 8:09 20
ProCarManuals.com
Page 71 of 148

69
OVERVIEW REPAIRS OPERATIONCONTROLS DATA INDEX

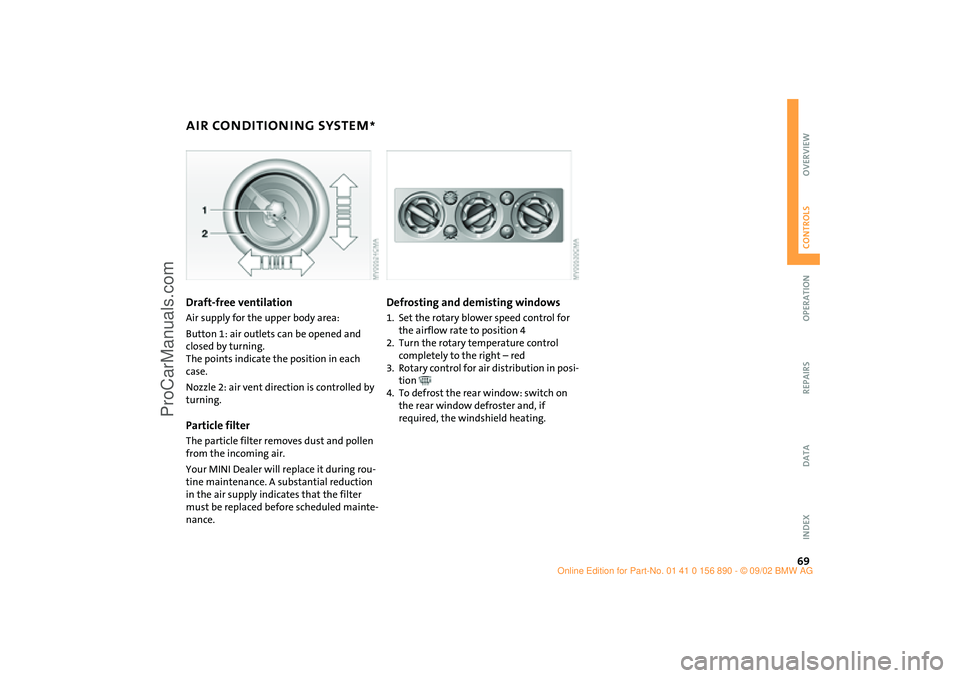

AIR CONDITIONING SYSTEM
*
Draft-free ventilation
Air supply for the upper body area:
Button 1: air outlets can be opened and
closed by turning.
The points indicate the position in each
case.
Nozzle 2: air vent direction is controlled by
turning.Particle filter The particle filter removes dust and pollen
from the incoming air.
Your MINI Dealer will replace it during rou-
tine maintenance. A substantial reduction
in the air supply indicates that the filter
must be replaced before scheduled mainte-
nance.
Defrosting and demisting windows 1. Set the rotary blower speed control for
the airflow rate to position 4
2. Turn the rotary temperature control
completely to the right – red
3. Rotary control for air distribution in posi-
tion
4. To defrost the rear window: switch on
the rear window defroster and, if
required, the windshield heating.
ba.book Seite 69 Montag, 5. August 2002 8:09 20
ProCarManuals.com
