traction control MINI COOPER 2009 Owners Manual

REFERENCE
AT A GLANCE CONTROLS DRIVING TIPS MOBILITY
15
1Microphone for voice command system*
and for telephone in hands-free mode*
2Indicator/warning lamp* for front passen-
ger airbags65
4Hazard warning flashers
5Speedometer12
6Drive for audio CDs
7Switching audio sources on/off and adjust-
ing volume
8Air conditioner or automatic climate con-
trol
*
9Switches in center console
10AUX-In port, USB-audio interface
*79
11Driving stability control systems
>Dynamic Stability Control DSC57
>Dynamic Traction Control
DTC* 58
12Sport button
*59 3
Reading lamps
*70
Color of ambient lighting
*71
Glass sunroof, electric
*27
Interior lamps70
Temperature73, 75
Recirculated-air mode73, 75
Automatic recirculated-air control
AUC
* and recirculated-air
mode75
Air distribution for air
conditioner74
Air distribution to the
windshield
*75
Air distribution to the upper body
area
*75
Air distribution to the footwell
*75
Automatic air distribution and flow
rate
*75
Maximum cooling
*75
Cooling function73, 76
Defrosting windows
*74, 76
Rear window defroster73, 76
Windshield heating
*74, 76
Air flow rate73, 75
Seat heating
*32
Power windows28
Rear fog lamp
*70
Central locking system, inside22
Fog lamps
*70
ProCarManuals.com

REFERENCEAT A GLANCE CONTROLS DRIVING TIPS MOBILITY
39
Automatic transmission
1.With the car at a standstill, move the selector
lever to position P.
2.Press the start/stop button.
3.Forcefully apply the parking brake.
Parking brake
The parking brake is primarily intended to pre-
vent the vehicle from rolling while parked; it
brakes the rear wheels.
Applying
The lever locks in position automatically.
Releasing
Pull slightly upwards, press the button and lower
the lever.
In exceptional cases, if the parking brake
has to be used to slow or stop the car, do
not pull the lever up too hard. In doing so, con-
tinuously press the button of the parking brake
lever.
Otherwise, excessive force could lead to over-
braking and loss of traction, i.e. fishtailing, at the
rear axle.<
Manual transmission
When shifting into 5th or 6th gear, press
the gearshift lever to the right. Otherwise
the engine could be damaged if you inadvert-
ently shift into 3rd or 4th gear.<
Reverse gear
Select this only when the vehicle is stationary.
When the gearshift lever is pressed to the left, a
slight resistance has to be overcome.
Automatic transmission*
with Steptronic
In addition to the fully automatic mode, you can
shift gears manually using Steptronic, page40.
Parking the vehicle
To prevent the vehicle from rolling, always
select position P and apply the parking
brake before leaving the vehicle with the engine
running.<
Removing the key
1.Move the selector lever to position P.
2.Switch off the engine.
3.Remove the key.
Selector lever positions
P R N D M/S + –
ProCarManuals.com

REFERENCEAT A GLANCE CONTROLS DRIVING TIPS MOBILITY
57
Antilock Brake System ABS
ABS prevents locking of the wheels during brak-
ing. Safe steering response is maintained even
during full braking. Active safety is thus
increased.
Braking safely, refer to page85.
Among others, ABS includes the following func-
tions:
>Cornering Brake Control CBC
>Electronic brake-force distribution EBV
>Brake Assist
Cornering Brake Control CBC
Driving stability and steering characteristics are
further enhanced while braking in turns or dur-
ing a lane change.
Electronic brake-force distribution EBV
The system controls the brake pressure in the
rear wheels to ensure stable braking behavior.
Brake Assist
Rapidly depressing the brake causes this system
to automatically develop maximum braking
force. Thus, the system helps keep braking dis-
tance to a minimum. At the same time, all the
benefits provided by ABS are exploited.
Do not reduce the pressure on the brake for the
duration of the full braking application.
Dynamic Stability Control DSC
DSC prevents the driving wheels from losing
traction when you pull away from rest or accel-
erate. The system also recognizes unstable driv-
ing conditions, for example if the rear of the car
is about to swerve or if momentum is acting at
an angle past the front wheels. In these cases,
DSC helps the vehicle maintain a safe course
within physical limits by reducing engine output
and through braking actions at the individual
wheels.DSC also encompasses the following functions:
>Antilock Brake System ABS
>Electronic brake-force distribution EBV
>Brake Assist
>Cornering Brake Control CBC
>Hill Start Assist
Deactivating DSC
Press the button repeatedly until the DSC indica-
tor lamps come on. DSC is deactivated. Stabiliz-
ing and propulsion promoting actions are no
longer executed.
When driving with snow chains or to 'rock free'
in snow, it can be helpful to switch off DSC for a
brief period.
To increase vehicle stability, activate DSC again
as soon as possible.
Activating DSC
Press the button again: the DSC indicator lamps
go out.
For better control
If the indicator lamp flashes:
The DSC controls the driving and
breaking forces.
If the indicator lamps are on:
DSC is deactivated.
ProCarManuals.com

Technology for driving comfort and safety
58
Dynamic Traction Control DTC*
DTC is a type of DSC that is propulsion optimized
for special road conditions such as uncleared
snowy roads. The system ensures maximum
propulsion though with restricted driving stabil-
ity. You therefore need to drive with suitable
caution.
In the following exceptional situations, it can be
useful to briefly activate DTC:
>when driving on snow-covered inclines, in
slush, or on uncleared snowy roads
>when rocking the vehicle free, driving out of
deep snow or on loose surfaces
>when driving with snow chains
Activating DTC
Press the button: the DTC indicator lamps come
on.
For better control
If the indicator lamp flashes:
DTC controls the driving and breaking
forces.
If the indicator lamps are on:
DTC is activated.
Deactivating DTC
Press the button again: the DSC indicator lamps
go out.
Deactivating both DTC and DSC
Press the button for at least 3 seconds: the DSC
indicator lamps come on. The dynamic traction
control (DTC) and dynamic stability control (DSC)
are both deactivated. There will be no more sta-
bilizing interventions.
Interventions (differential lock) in braking occur
to improve propulsion when drive wheels are
rotating unevenly, even when the DSC is deacti-
vated.
Activating DSC
Press the button again: the indicator lamps go
out.
Hill Start Assist*
Hill Start Assist aids you in comfortably driving
off on inclines. It is not necessary to use the
parking brake for this.
1.Hold the MINI with the brake.
2.Release the brake and immediately drive
off.
Hill Start Assist holds the car in place for approx.
2 seconds after the brake is released.
Depending on the load and gradient, the
vehicle can roll backward slightly during
this period. After you release the brake, immedi-
ately start driving since the hill start assist only
holds the vehicle for about 2 seconds, and it will
start to roll backwards.<
ProCarManuals.com

REFERENCEAT A GLANCE CONTROLS DRIVING TIPS MOBILITY
99
Tire coding
Knowledge of the labeling on the side of the tire
makes it easier to identify and choose the right
tires.
Tire size
Speed code letter
Q = up to 100 mph or 160 km/h
T = up to 118 mph or 190 km/h
H = up to 131 mph or 210 km/h
V = up to 150 mph or 240 km/h
W = up to 167 mph or 270 km/h
Y = up to 186 mph or 300 km/h
Tire Identification Number
Tires with DOT codes meet the guidelines of the
US Department of Transportation.
DOT code:
Uniform Tire Quality Grading
Quality grades can be found where applicable
on the tire sidewall between tread shoulder and
maximum section width. For example:
Tread wear 200 Traction AA
Temperature A
DOT Quality Grades
Tread wear
Traction AA A B C
Temperature A B C
All passenger car tires must conform to
Federal Safety Requirements in addition
to these grades.<
Tread wear
The tread wear grade is a comparative rating
based on the wear rate of the tire when tested
under controlled conditions on a specified gov-
ernment test course. For example, a tire graded
150 would wear one and one-half (1γ) times as
well on the government course as a tire graded
100. The relative performance of tires depends
upon the actual conditions of their use, how-
ever, and may depart significantly from the
norm due to variations in driving habits, service
practices and differences in road characteristics
and climate.
Traction
The traction grades, from highest to lowest, are
AA, A, B, and C.
Those grades represent the tire's ability to stop
on wet pavement as measured under controlled
conditions on specified government test sur-
faces of asphalt and concrete. A tire marked C
may have poor traction performance.
The traction grade assigned to this tire is
based on straight-ahead braking traction
tests, and does not include acceleration, corner-
ing, hydroplaning, or peak traction characteris-
tics.<
Temperature
The temperature grades are A, the highest, B,
and C, representing the tire's resistance to the
generation of heat and its ability to dissipate
heat when tested under controlled conditions
on a specified indoor laboratory test wheel. Sus-
tained high temperature can cause the material
of the tire to degenerate and reduce tire life, and
excessive temperature can lead to sudden tire
failure. The grade C corresponds to a level of
performance which all passenger car tires must e.g.
Nominal width in mm
Aspect ratio in Ξ
Radial belt construction
Rim diameter in inches
Load rating,
not on ZR tires
Speed code letter, in
front of the R on ZR tires
225/45 R 17 91 V
e.g.
Manufacturer's
code for tire make
Tire size and
tire design
Tire ageDOT xxxx xxx 3408
ProCarManuals.com

REFERENCEAT A GLANCE CONTROLS DRIVING TIPS MOBILITY

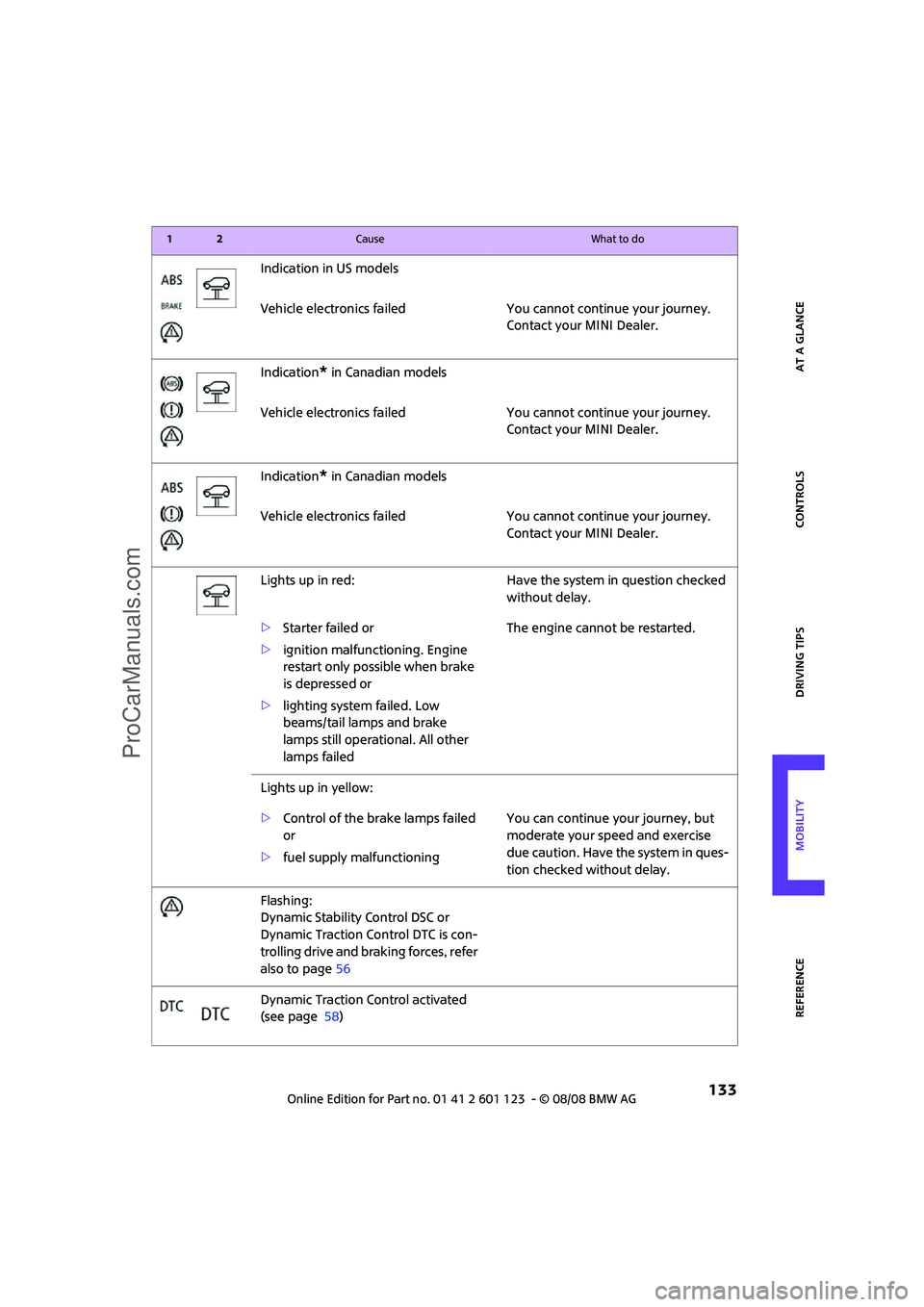

133
Indication in US models
Vehicle electronics failed You cannot continue your journey.
Contact your MINI Dealer.
Indication
* in Canadian models
Vehicle electronics failed You cannot continue your journey.
Contact your MINI Dealer.
Indication
* in Canadian models
Vehicle electronics failed You cannot continue your journey.
Contact your MINI Dealer.
Lights up in red: Have the system in question checked
without delay.
>Starter failed or
>ignition malfunctioning. Engine
restart only possible when brake
is depressed or
>lighting system failed. Low
beams/tail lamps and brake
lamps still operational. All other
lamps failedThe engine cannot be restarted.
Lights up in yellow:
>Control of the brake lamps failed
or
>fuel supply malfunctioningYou can continue your journey, but
moderate your speed and exercise
due caution. Have the system in ques-
tion checked without delay.
Flashing:
Dynamic Stability Control DSC or
Dynamic Traction Control DTC is con-
trolling drive and braking forces, refer
also to page56
Dynamic Traction Control activated
(see page 58)
12Cause What to do
ProCarManuals.com

Indicator and warning lamps
134
The dynamic stability control (DSC)
and dynamic traction control (DTC)
are deactivated (see page56)Driving stability limited during accel-
eration and cornering.
Driving style must be adjusted.
The Dynamic Stability Control DSC
and Dynamic Traction Control DTC
have failed.Driving stability limited during accel-
eration and cornering.
You can continue your journey, but
moderate your speed and exercise
due caution. Have the system
checked as soon as possible.
Indication in US models
The driving stability control systems,
including ABS and the Tire Pressure
Monitor, have failed, refer also to
page56Reduced braking and driving stability.
Drive cautiously and think well ahead.
Avoid braking with full force, driving
on rough tracks, and depressing the
accelerator pedal to full throttle or
kick-down position. Have the system
checked immediately.
Indication
* in Canadian models
The driving stability control systems,
including ABS and the Flat Tire Moni-
tor or the Tire Pressure Monitor
*,
have failed, refer also to page56Reduced braking and driving stability.
Drive cautiously and think well ahead.
Avoid braking with full force, driving
on rough tracks, and depressing the
accelerator pedal to full throttle or
kick-down position. Have the system
checked immediately.
Indication
* in Canadian models
The driving stability control systems,
including ABS and the Flat Tire Moni-
tor or the Tire Pressure Monitor
*,
have failed, refer also to page56Drive cautiously and think well ahead.
Avoid braking with full force, driving
on rough tracks, and depressing the
accelerator pedal to full throttle or
kick-down position. Have the system
checked immediately.
12Cause What to do
ProCarManuals.com

From A to Z
148
Consumption indicator
– average fuel consumption48
Consumption, refer to Average
fuel consumption48
Control Display
– settings49
Controls and displays10
Convenience start, refer to
Starting the engine38
Convenient access25
– replacing the battery27
Convenient operation
– windows20
Coolant105
– checking level105
– filling105
Coolant temperature47
Cooling fluid, refer to
Coolant105
Cooling, maximum75
Copyright2
Cruising range48
Cup holders81
Curb weight, refer to
Weights144
Current fuel consumption49
D
Dashboard instruments, refer
to Displays12
Dashboard lighting, refer to
Instrument lighting70
Dashboard, refer to Cockpit10
Data142
– capacities144
– dimensions143
– engine142
– weights144
Date
– setting54
Daytime running lamps68
DBC Dynamic Brake Control,
refer to Brake assist57
Deactivating front passenger
airbags65
Deadlocking, refer to
Locking20Defect
– door lock22
– fuel filler door92
Defogging windows74,76
Defrost position, refer to
Defrosting windows74,76
Defrosting windows74,76
Defrosting windows and
removing condensation
– air conditioner74
– automatic climate control76
Differential, breaking in84
Digital clock47
Dimensions143
Dipstick, engine oil104
Directional indicators, refer to
Turn signals41
Displacement, refer to Engine
data142
Display lighting, refer to
Instrument lighting70
Displays12
– instrument combination12
Displays and controls10
Displays, care111
Disposal
– of coolant105
– remote control battery27
– vehicle battery122
Distance remaining to service,
refer to Service
requirements52
Distance warning, refer to Park
Distance Control PDC56
Diving stability control
systems56
Door key, refer to Integrated
key/remote control18
Door lock
22
Door lock, confirmation
signals20
Doors, manual operation22
DOT Quality Grades99
Drinks holders, refer to Cup
holders81
Drive-off assistant, refer to Hill
Start Assist58
Driving dynamics control, refer
to Sport button59Driving lamps, refer to Parking
lamps/low beams67
Driving notes84
Driving off on inclines, refer to
Hill Start Assist58
Driving through water85
Driving tips, refer to Driving
notes84
Dry air, refer to Cooling
function76
DTC Dynamic Traction Control
DTC58
Dynamic Brake Control DBC,
refer to Brake assist57
Dynamic Stability Control
DSC57
Dynamic Traction Control58
E
Electrical malfunction
– door lock22
– fuel filler door92
Electronic brake-force
distribution57
Electronic Stability Program
ESP, refer to Dynamic
Stability Control DSC57
Emergency operation, refer to
Manual operation
– door lock22
– fuel filler door92
– transmission lock, automatic
transmission41
Emergency services, refer to
Roadside Assistance123
Engine
– breaking in84
– data142
– overheated, refer to Coolant
temperature47
– speed142
– starting38
– starting, convenient
access25
– switching off38
Engine compartment104
Engine coolant, refer to
Coolant105
ProCarManuals.com

From A to Z
154
Telephone
– installation location, refer to
Center armrest79
– refer to separate Owner's
Manual
Telephone call, refer to the
Owner's Manual for the
telephone
Temperature display
– ice warning47
– outside temperature47
– setting the units50
Temperature of coolant, refer
to Coolant temperature47
Temperature setting
– air conditioner73
– automatic climate control75
Tensioning straps, refer to
Securing cargo88
The individual vehicle4
Third brake lamp, refer to
Center brake lamp117
Three-point safety belt32
Tightening the lug bolts
– keys119
– torque121
Tightening torque, refer to
Tightening the lug bolts121
Tire change set
– MINI Mobility System119
– space-saver spare tire119
Tire failure
– Flat Tire Monitor60
– indicator/warning lamp60
– MINI Mobility System117
– Run-Flat Tires60
– space-saver spare tire119
– Tire Pressure Monitor61
Tire inflation pressure94
– loss60
– space-saver spare tire94
Tire Pressure Monitor TPM61
– limitations of system61
– resetting system61
– warning lamp62
Tire pressure monitoring, refer
to Flat Tire Monitor59
Tire Quality Grading99Tires
– age100
– breaking in84
– changing, refer to Changing
wheels119
– condition100
– damage100
– inflation pressure94
– inflation pressure loss62
– minimum tread depth100
– new tires101
– pressure monitoring, refer to
Flat Tire Monitor59
– pressure monitoring, refer to
Tire Pressure Monitor
TPM61
– puncture60
– Run-Flat Tires101
– size99
– wear indicators, refer to
Minimum tread depth100
– winter tires102
Tires with safety features, refer
to Run-Flat Tires101
Tools, refer to Onboard tool
kit113
Torque142
– lug bolts121
Tow bar126
Tow fitting125
– screw thread125
Tow fittings for tow-starting
and towing away125
Tow rope126
Towing124
– car with automatic
transmission126
– methods126
Tow-starting124
TPM, refer to Tire Pressure
Monitor61
Track width, refer to
Dimensions143
Traction control, refer to
– Dynamic Stability Control
DSC57
Trailer operation
– Trailer loads and gross
vehicle weight144Transmission
– automatic transmission with
Steptronic39
– manual transmission39
– overriding selector lever lock
for automatic transmission
with Steptronic41
Transport securing devices,
refer to Securing cargo88
Transporting children safely35
Tread depth, refer to Minimum
tire tread100
Trip odometer47
Trip-distance counter, refer to
Trip odometer47
Triple turn signal activation42
Turn signal indicator41
– front, replacing bulb115
– indicator lamp12
– rear, replacing bulb116
– side, replacing bulb116
Turning circle, refer to
Dimensions143
Tying down loads, refer to
Cargo loading88
U
Uniform Tire Quality Grading
UTQR99
Units
– average fuel consumption50
– temperature50
Universal garage door opener,
refer to Integrated universal
remote control77
Universal remove control77
Unlatching, refer to
Unlocking26
Unlocking
– from inside22
– from outside19
– tailgate26
– without remote control, refer
to Convenient access25
Upholstery, care110
USB-audio interface80
ProCarManuals.com
