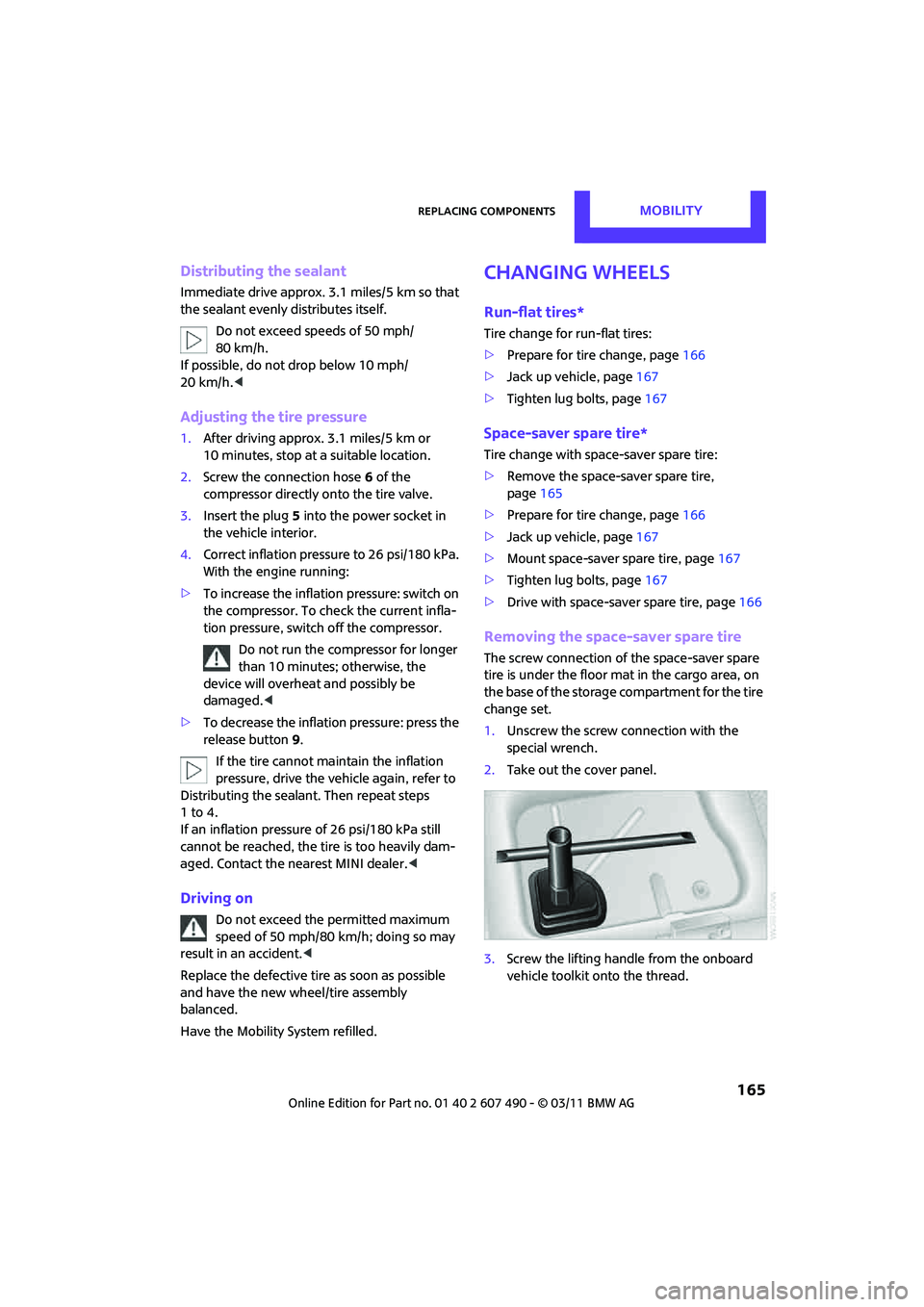

Replacing componentsMOBILITY
165
Distributing the sealant
Immediate drive approx. 3.1 miles/5 km so that
the sealant evenly distributes itself.Do not exceed speeds of 50 mph/
80 km/h.
If possible, do not drop below 10 mph/
20 km/h.<
Adjusting the tire pressure
1. After driving approx. 3.1 miles/5 km or
10 minutes, stop at a suitable location.
2. Screw the connection hose 6 of the
compressor directly onto the tire valve.
3. Insert the plug 5 into the power socket in
the vehicle interior.
4. Correct inflation pressu re to 26 psi/180 kPa.
With the engine running:
> To increase the inflatio n pressure: switch on
the compressor. To check the current infla-
tion pressure, switch off the compressor.
Do not run the compressor for longer
than 10 minutes; otherwise, the
device will overheat and possibly be
damaged. <
> To decrease the inflation pressure: press the
release button 9.
If the tire cannot ma intain the inflation
pressure, drive the vehicle again, refer to
Distributing the sealan t. Then repeat steps
1to4.
If an inflation pressure of 26 psi/180 kPa still
cannot be reached, the tire is too heavily dam-
aged. Contact the nearest MINI dealer. <
Driving on
Do not exceed the permitted maximum
speed of 50 mph/80 km/h; doing so may
result in an accident. <
Replace the defective tire as soon as possible
and have the new wheel/tire assembly
balanced.
Have the Mobility System refilled.
Changing wheels
Run-flat tires*
Tire change for run-flat tires:
> Prepare for tire change, page 166
> Jack up vehicle, page 167
> Tighten lug bolts, page 167
Space-saver spare tire*
Tire change with space-saver spare tire:
>Remove the space-saver spare tire,
page 165
> Prepare for tire change, page 166
> Jack up vehicle, page 167
> Mount space-saver spare tire, page 167
> Tighten lug bolts, page 167
> Drive with space-saver spare tire, page 166
Removing the space-saver spare tire
The screw connection of the space-saver spare
tire is under the floor mat in the cargo area, on
the base of the storage compartment for the tire
change set.
1. Unscrew the screw connection with the
special wrench.
2. Take out the cover panel.
3. Screw the lifting handle from the onboard
vehicle toolkit onto the thread.

Giving and receiving assistanceMOBILITY
169
Giving and receiving assistance
Roadside Assistance
Roadside Assistance is available by phone
24 hours a day in many countries. You can
receive assistance there in the event of an
emergency.
First aid pouch*
Some of the articles co ntained in the first aid
pouch have a limited se rvice life. Therefore,
check the expiration dates of the contents
regularly and replace any items in good time, if
necessary.
By way of example, the illustration shows the
cargo area in the MINI.
The first aid pouch is located on the rear cargo
well by the left side trim panel.
Warning triangle*
MINI
On the inside of the liftgate.
Press the tab to take it out.
MINI Convertible
The warning triangle is located at the bottom of
the luggage compartment floor.
Jump-starting
If the car's own battery is flat, your MINI's engine
can be started by connecting two jumper cables
to another vehicle's battery. You can also use
the same method to help start another vehicle.
Only use jumper cables with fully-insulated
clamp handles.
Do not touch any electrically live parts
w hen the e ngin e is run ning, or a fatal acci-
dent may occur. Carefully adhere to the follow-
ing sequence, both to prevent damage to one or
both vehicles, and to guard against possible
personal injuries. <

Everything from A to ZREFERENCE
197
Drinks holders, refer to Cupholders 93
Drive-off assistan t, refer to Hill
Assist 69
Driving dynamics control, refer to Sport button 69
Driving lamps, refer to Parking
lamps/low beams 78
Driving notes 96
Driving off on inclines, refer to
Hill Assist 69
Driving stability control systems 67
Driving through water 97
Driving tips, refer to Driving notes 96
Dry air, refer to Cooling function 88
DSC Dynamic Stability
Control 67
DTC Dynamic Traction Control 68
Dynamic Brake Control DBC, refer to Brake Assist 67
Dynamic Stability Control
DSC 67
Dynamic Traction Control DTC 68
E
Eject button 112
Electrical malfunction
– convertible top 34
– door lock 25
– fuel filler flap 132
– liftgate 26
Electric power windows
– initializing 31
Electronic brake-force distribution 67
Electronic Stability Program
ESP, refer to Dynamic
Stability Control DSC 67Emergency operation, refer to
Manual operation
– convertible top 34
– door lock 25
– fuel filler flap 132
– liftgate 26
– transmission lock, automatic
transmission 50
Emergency services, refer to Roadside Assistance 169
Engine
– breaking in 96
– data 188
– overheated, refer to Coolant temperature 149
– speed 188
– starting 47
– starting, Comfort Access 28
– switching off 47
Engine compartment 147
Engine coolant, refer to Coolant 149
Engine oil
– adding 148
– additives, refer to Approved
engine oils 149
– alternative oil types 149
– approved engine oils 149
– capacity 148
– checking level 147
– dipstick 147
– intervals between changes, refer to Service
requirements 62
– MINI Maintenance System 151
Engine oil level, checking 147
Engine output, refer to Engine data 188
Engine starting, refer to Starting the engine 47
ESP Electronic Stability
Program, refer to Dynamic
Stability Control DSC 67
Exhaust system, refer to Hot
exhaust system 96 Exterior mirrors
41
– adjusting 41
– automatic heating 41
– folding in and out 41
External audio
device91,106
External temperature display
– change units of measure 61
– in the on-board computer 61
Eyes
– for tow-starting and towing
away 171
– for tying down loads 101
F
Failure messages, refer to
Check Control 64
Failure of an electrical consumer 168
Fastening safety be lts, refer to
Safety belts 40
Fast forward
– CD 112
Fault messages, refer to Check
Control 64
Filter
– microfilter/activated- charcoal filter for automatic
climate control 88
– microfilter for air
conditioner 86
Fine wood, care 156
First aid pouch 169
Fixture for remote control, refer to Ignition lock 46
Flash when locking/
unlocking 23
Flat tire
– run-flat tires 144
– Tire Pressure Monitor TPM 72
Flat Tire Monitor FTM 69
– indicating a flat tire 71
– initializing the system 70
– snow chains 70
– system limits 70
Flat tires, refer to Tire condition 143

Everything from A to ZREFERENCE
201
Parking lamps, replacing bulb 160
Parking lamps/low beams 78
Parts and accessories, refer to
Your individual vehicle 4
Pathway lighting 79
PDC
– volume 106
Personal Profile 20
Phone numbers
– dialing 124
Pinch protection system
– windows 32
Plastic parts, care 156
Playing a track scan
– CD 112
Pollen
– refer to Microfilter/activated- charcoal filter for automatic
climate control 88
– refer to Microfilter for air conditioner 86
Power convertible top 32
Power failure 168
Power windows 31
Power windows, refer to Windows 31
Pressure, tires 134
Pressure monitoring, tires 69
– Flat Tire Monitor 69
Pressure monitoring of tires, refer to Tire Pressure Monitor
TPM 72
Protective function, refer to Pinch protection system
– windows 32
PTY 109
Puncture
– Flat Tire Monitor 69
R
Radio
– HD Radio109
Radio key, refer to Integrated
key/remote control 20Radio MINI Boost CD
– playing stations
108
– recalling stations 108
– satellite radio 110
– searching stations 107
– storing stations 108
– switching on/off 106
– tone control 107
– volume 106
Radio position, refer to Radio
readiness 46
Radio readiness 46
– switched off 47
– switched on 46
Rain sensor 52
Range, refer to Cruising
range 57
RDS 108
Reading lamps 82
Rear fog lamp 82
– indicator lamp 173
– replacing bulb 162
Rear lamps
– bulb replacement 162
Rear lamps, refer to Tail
lamps 161
Rear-mounted luggage rack 102
Rear seat backrest, folding 98
Rear seats
– folding down the backrests 98
Rearview mirror, refer to
Mirrors 41
Rear window defroster 85,88
Reception
– quality 108
– radio station 107
Recirculated-air mode 85,87
Recirculation of air, refer to Recirculated-air
mode 85,87
Reclining seat, refer to Backrest 38
Refueling 132
Releasing
– hood 146 Remote control
20
– battery renewal 30
– Comfort Access 28
– garage door opener 89
– liftgate 24
– malfunct
ions 24,30
– service data 151
Replacement remote control 20
Replacing bulbs, refer to
Lamps and bulbs 158
Replacing tires, refer to New wheels and tires 144
Reporting safety defects 6
Reserve warning, refer to Fuel gauge 56
Reservoir for washer systems 54
Reset, resetting tone
settings 107
Restraint systems
– for children 43
– refer to Safety belts 40
Reverse
– CD 112
Reverse gear
– automatic transmission with Steptronic 49
– manual transmission 48
Roadside Assistance 169
Roadside parking lamps 81
– replacing bulb 160
Roadworthiness te st, refer to
Service requirements 62
Roof load capacity 191
Roof-mounted luggage
rack 102
Rope, refer to Tow-starting, towing away 172
RSC Run-flat System Component, refer to Run-flat
tires 144
Rubber parts, care 155
Run-flat System Component RSC, refer to Run-flat
tires 144

REFERENCEEverything from A to Z
202
Run-flat tires144
– flat tire 71
– tire inflation pressure 134
– tire replacement 144
– winter tires 145
S
Safety belt
– number37
Safety Belt Reminder 41
Safety belts 40
– damage 41
– indicator lamp 41
– reminder 41
– sitting safely 37
Safety belts, care 156
Safety systems
– airbags 75
– Antilock Brake System ABS 67
– Dynamic Stability Control
DSC 67
– safety belts 40
Safety tires, refer to Run-flat
tires 144
Satellite radio 110
– enabling 110
Scan, listening to test
– Radio MINI Boost CD 108
Screw thread for tow fitting 171
Searching
– CD player 112
– radio 107
Searching for a music track
– CD 112
Seat adjustment
– mechanical 38
Seats 38
– adjusting the seats 38
– heating 40
– sitting safely 37
Securing the vehicle
– from inside 25
– from outside 21 Selector lever
– automatic transmission with
Steptronic 49
Selector lever lock
– automatic transmission with Steptronic, refer to
Shiftlock 49
– overriding manually 50
Selector lever positions
– automatic transmission with
Steptronic 49
Service, refer to Roadside Assistance 169
Service car, refe r to Roadside
Assistance 169
Service data in the remote
control 151
Service Interval Display, refer to Condition Based Service
CBS 151
Service requirement display, refer to Condition Based
Service CBS 151
Service requirements 62
Settings
– clock, 12 h/24 h mode 61
Setting the time format 107
Shifting gears
– automatic transmission with Steptr
onic49
– manual transmission 48
Shiftlock
– automatic transmission, refer
to Changing selector lever
positions 49
Side airbags 75
Side turn signal
– replacing bulb 161
Side windows, refer to
Windows 31
Signal horn, refer to Horn 10
Sitting safely 37
– airbags 37
– safety belts 37
– with head restraint 37
Size, refer to Dimensions 189Sliding/tilt sunroof
– refer to Glass roof, electric
30
Slipstream deflector, refer to Wind deflector 36
Slot for remote control 46
Smokers' package, refer to Ashtray 93
Snap-in adapter
– inserting/removing 129
– use 118
Snap-in adapter, refer to Center armrest storage
compartment 92
Snow chains 145
Socket, refer to Connecting electrical appliances 93
Socket for On-Board Diagnosis OBD 152
Space-saver spare tire
– changing tires 165
– inflation pressure 134
Spare wheel, refer to Space-
saver spare tire 165
Special oils, refer to Approved engine oils 149
Speed 188
– with winter tires 145
Speed-dependent volume 106
Speedo, refer to Speedometer 12
Speedometer 12
Split-folding rear seats 100
Split rear backrest, refer to
Split-folding rear seats 100
Split rear seat backrest, refer to Expanding the cargo area 98
Sport button 69
Stability control, refer to Driving stability control
systems 67
Start/Stop button 46
– starting the engine 47
– switching off the engine 47
Starting, refer to Starting the engine 47

Everything from A to ZREFERENCE
203
Starting assistance, refer to Jump-starting 169
Starting the engine
– Start/Stop button 46
Start-off assistance, refer to
– DSC 67
– Hill Assist 69
Stations, refer to Radio MINI Boost CD 108
Status of this Owner's Manual
at time of printing 4
Steering wheel 42
– adjustment 42
– buttons on steering wheel 11
– lock 46
– shift paddles 50
Steptronic, refer to Automatic transmission with
Steptronic 48
Storage area
– cargo area 98
Storage compartment, front
passenger side 92
Storage compartments 92
Storage space
– storage compartments 92
Storage space, refer to
– Luggage compartment in the
MINI Convertible 99
Storing the vehicle 156
Storing tires 145
Stowage, refer to Storage compartments 92
Summer tires, re fer to Wheels
and tires 134
Switches, refer to Cockpit 10
Switching off
– engine 47
Switching off the engine
– Start/Stop button 46
Switching on
– CD player 106,111
– Radio MINI Boost CD 106
Switching the cooling function on and off 88
Symbols 4T
Tachometer 56
Tail lamp, refer to Tail
lamps 161
– replacing bulb 161
Tail lamps 161
Tank volume, refer to Capacities 193
Technical data 188
Technical modifications 5
Telephone 118
– hands-free system 126
– installation location, refer to Center armrest 92
– refer to separate Owner's
Manual
– voice commands 127
Telephone call, refer to the
Owner's Manual for the
telephone
Temperature display
– setting the units 61
Temperature of coolant, refer to Coolant temperature 149
Temperature setting
– air conditioner 85
– automatic climate control 87
Tempomat, refer to Cruise control 54
Tensioning straps, refer to Securing cargo 101
The individual vehicle 4
Third brake lamp, refer to Center brake lamp 163
Three-point safety belt 40
Tightening the lug bolts
– keys 157
– torque 167,168
Tightening torque, refer to Tightening lug bolts 167
Time
– setting 107
Tire change set
– space-saver spare tire 157Tire failure
– Flat Tire Monitor
71
– indicator/warning lamp 71
– MINI Mobility System 163
– run-flat tires 71
– space-saver spare tire 165
– Tire Pressure Monitor 72
Tire inflation pressure 134
– loss 71
– space-saver spare tire 134
Tire pressure monitoring, refer to Flat Tire Monitor 69
Tire Pressure Monitor TPM 72
– limitations of system 72
– resetting system 72
– warning lamp 73
Tire Quality Grading 142
Tires
– age 14

3
– breaking in 96
– changing, refe r to Changing
wheels 165
– condition 143
– damage 143
– inflation pressure 134
– inflation pressure loss 73
– minimum tread depth 143
– new tires 144
– pressure monitoring, refer to Flat Tire Monitor 69
– pressure monitoring, refer to Tire Pressure Monitor
TPM 72
– puncture 71
– size 141
– wear indicators, refer to
Minimum tread depth 143
– winter tires 145
– with emergency operation
properties 144
Tires with emergency operation properties, refer to
Run-flat tires 144
Tires with safety features, refer
to Run-flat tires 144
