3OVERVIEW REPAIRS OPERATION CONTROLS DATA INDEX
Driving:
Ignition lock 53
Starting the engine 53
Switching off the engine 54
Parking brake 54
Manual transmission 55
Automatic transmission with
Steptronic56
Parking lamps/Low beams 60
Turn signal indicator/Headlamp
flasher 61
Instrument lighting 62
Fog lamps 62
Interior lamps 62
Washer/wiper system 63
Washer fluid64
Cruise control65
Everything under control:
Odometer 67
Clock 67
Fuel gauge 67
Coolant temperature gauge 68
Tachometer 69
Service interval display 69
Onboard computer70Technology for safety and driving
convenience:
Driving stability control systems72
Flat Tire Monitor 74
Tire Pressure Monitor76
Airbags 79
Park Distance Control (PDC)81
Controlling the climate for pleasant
driving:
Air conditioning system82
Automatic climate control85
Interior conveniences:
Glove compartment 88
Center armrest89
Drinks holders, ashtray 89
Cigarette lighter, 12 V power supply 90
Integrated universal remote control91
Loading and transporting cargo:
Luggage compartment in the MINI 93
Luggage compartment in the MINI
Convertible 94
Loading cargo 95
Roof-mounted luggage rack98
OPERATION, CARE, MAINTENANCESpecial operating instructions:
Break-in procedures 102
General driving notes 102
Refueling105
Wheels and tires:
Tire inflation pressure 108
Tire coding 112
Tire condition 113
Run-Flat Tires115
New wheels and tires 116
Snow chains117

60
PARKING LAMPS/LOW BEAMS1Parking lamps
2Low beams
3 Automatic headlamp control
*
Parking lamps
Turn the light switch to position 1.
The front, rear and side vehicle
lighting is switched on.
For the additional option of activating the
lights on one side of the vehicle for parking,
refer to Switching on the standing lamps,
page60.
The parking lamps discharge the bat-
tery.
Avoid using them for longer periods of
time; otherwise, you may not be able to
start the engine.<


Low beams
Turn the light switch to position 2.
With the low beams on and with
the ignition switched off, only the
parking lamps will remain on.
Automatic headlamp control*
In switch position 3, the system
automatically activates and can-
cels the low beams in response to
changes in ambient light, for example in
tunnels, at dusk, and when there is precipi-
tation.
When driving into a tunnel with bright
overhead lights, there may be a delay
before the low beams come on.
The low beams may also come on when the
sun is sitting low on a blue sky.
When you switch on the fog lamps,
the low-beam headlamps remain on
regardless of the ambient light. When the
daytime running lamps are activated, refer
to page61, the low beams come on and
remain lit when the switch is in position 1
and the ignition is switched on.<
Automatic headlamp control cannot
serve as a substitute for the driver's
judgement in determining when the vehi-
cle lights should be switched on. For exam-
ple, the sensors are not able to detect fog or
hazy weather. To avoid safety risks, you
should respond to these kinds of low-visi-
bility situations by switching the head-
lamps on manually.<
You can have the sensitivity of your
vehicle's automatic headlamp con-
trol adjusted. having switched off the engine and the
lights, the low beams will stay lit for a pre-
set period of time.
You can have this function pro-
grammed. side of the vehicle. Observe local laws.
In ignition key position 0:
Move the lever to the adequate turn signal
indicator position.
The standing lamps discharge the
battery. Avoid using them for longer

62
INSTRUMENT LIGHTING FOG LAMPS INTERIOR LAMPSTo control the instrument lighting, press
the button.Brighter displayPress the button until the desired bright-
ness is achieved.Dimmer displayPress the button briefly.
With each brief pressing of the button, the
illumination is dimmed step by step.
With the parking lamps/low beams
switched on:
Briefly press the switch upward or down-
ward.
Tap it again to switch off.Fog lamps*
The parking lamps or low beams
must be on. The green LED in the
switch lights up.
The fog lamps are on.
Rear fog lamp*
The low beams must be on. The
yellow LED in the switch lights up.
The rear fog lamp is on.
Observe all legal regulations concerning
the use of fog lamps.
Switching the interior light in the MINI
on and off manuallyPress button 1 briefly.
Permanently turn off interior light:
Press button 1 until the interior light comes
on for a short while.
Press button 1 to revert to normal opera-
tion.

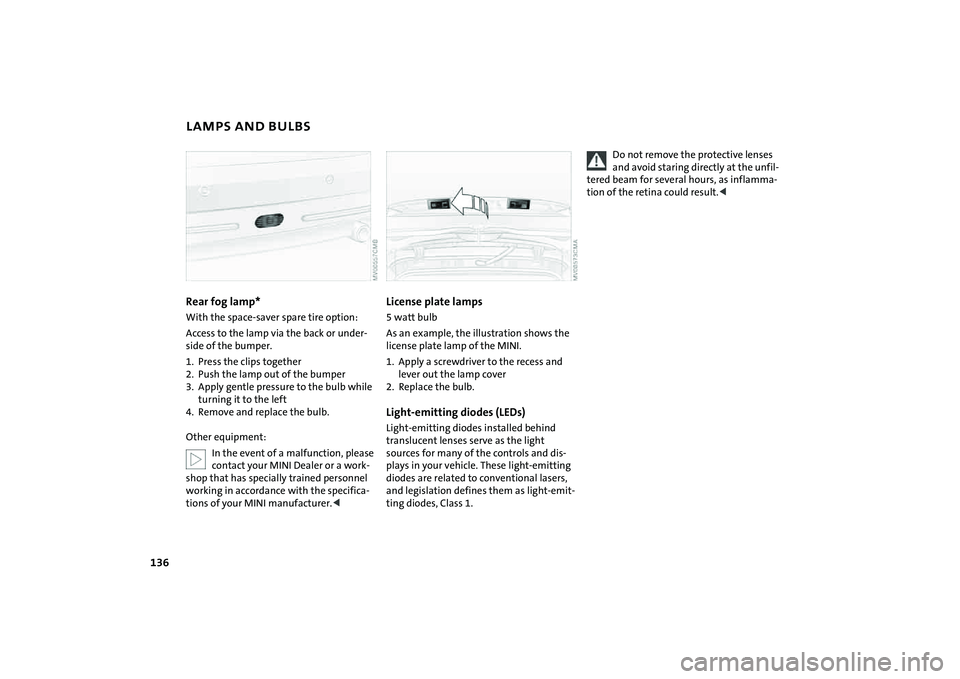

136
LAMPS AND BULBSRear fog lamp*With the space-saver spare tire option:
Access to the lamp via the back or under-
side of the bumper.
1. Press the clips together
2. Push the lamp out of the bumper
3. Apply gentle pressure to the bulb while
turning it to the left
4. Remove and replace the bulb.
Other equipment:
In the event of a malfunction, please
contact your MINI Dealer or a work-
shop that has specially trained personnel
working in accordance with the specifica-
tions of your MINI manufacturer.<
License plate lamps 5 watt bulb
As an example, the illustration shows the
license plate lamp of the MINI.
1. Apply a screwdriver to the recess and
lever out the lamp cover
2. Replace the bulb.Light-emitting diodes (LEDs)Light-emitting diodes installed behind
translucent lenses serve as the light
sources for many of the controls and dis-
plays in your vehicle. These light-emitting
diodes are related to conventional lasers,
and legislation defines them as light-emit-
ting diodes, Class 1.
Do not remove the protective lenses
and avoid staring directly at the unfil-
tered beam for several hours, as inflamma-
tion of the retina could result.<

EVERYTHING FROM A TO Z
165
OVERVIEW REPAIRS OPERATION CONTROLS DATA INDEX
I
Ice warning, refer to Outside
temperature warning70
Ignition53
Ignition key24
Ignition key positions, refer to
Ignition lock53
Ignition lock53
Illuminated vanity mirror48
Imitation leather127
Imprint2
Index160
Indicator/warning lamp
airbags80
ASC73
brakes124
coolant temperature68
DSC73
fasten safety belts46
Flat Tire Monitor75
fog lamps62
reserve fuel capacity67
,68
Indicator and warning lamps
Tire Pressure Monitor
TPM77
Indicator and warning lamps,
overview16
Individual air distribution87
Individual settings, refer to
Vehicle Memory49Inflation pressure, refer to Tire
inflation pressure108
Inflation pressure monitor,
refer to Flat Tire Monitor74
Inflation pressure monitoring,
refer to Tire Pressure Monitor
TPM76
Inspection69
Instrument cluster, refer to
Display elements13
Instrument lighting62
Instrument panel, refer to
Cockpit12
Integrated universal remote
control91
Interior lamp, remote
control26
Interior lamps62
Interior rearview mirror48
automatic dimming102
Interlock, refer to Steering
locked53
Intermittent operation of the
wipers63
Interval
display, service125
J
Jack137
,141
points140Jack, refer to Tire change set
MINI Mobility System141
Run-Flat Tires115
space-saver spare tire137
Jacking points140
Jets, refer to Ventilation84
,87
Jets, refer to Windshield
washer jets64
John Cooper Works Kit152
Jump-starting146
K
Keys24
Kickdown57
Knock control105
L
Lamp defect133
Lamp replacement, refer to
Lamps and bulbs133
Lamps, refer to Parking lamps/
Low beams60
Lamps and bulbs133
Lashing eyelets, refer to
Securing the load97
LATCH child-restraint fixing
system52
Leather care128
LEDs light-emitting diodes136
Length, refer to
Dimensions153
,154License plate lamp, bulb
replacement136
Lifting handle, space-saver
spare tire137
Light-alloy wheels, care127
Light-emitting diodes
(LEDs)136
Lighter90
Lighting
lamps and bulbs133
Lighting of the instruments62
Lights on warning61
Light switch60
Loading
securing cargo97
stowing cargo97
Loading the vehicle95
Loads, refer to Loading cargo95
Load securing devices, refer to
Securing the load97
Locking
from inside28
from outside26
Locking/unlocking the vehicle,
acknowledgment
signals26
,27
Low beams60
bulb replacement134
Lower back support, refer to
Lumbar support44

EVERYTHING FROM A TO Z
167
OVERVIEW REPAIRS OPERATION CONTROLS DATA INDEX
Oil change intervals, refer to
Service and Warranty
Information Booklet for US
models, Warranty and
Service Guide Booklet for
Canadian models
Oil consumption121
Oil level121
indicator lamp16
Oil pressure, indicator lamp16
Oil service69
Onboard computer70
Onboard tool kit132
MINI Mobility System141
Run-Flat Tires132
space-saver spare tire137
Opening and closing
from inside28
from outside25
via remote control26
via the door lock27
Outlets, refer to
Ventilation82
,85
Outside air83
air conditioning system83
Outside air mode, automatic
climate control86
Outside temperature
display70
changing units70
in the onboard computer70Outside temperature
warning70
Overriding the selector lever
lock59
P
Paintwork care, refer to Vehicle
paintwork127
Park Distance Control (PDC)81
Parking
the vehicle104
Parking aid, refer to Park
Distance Control (PDC)81
Parking brake54
warning lamp17
Parking lamps60
bulb replacement134
Parking lamps/Low beams60
Parking lock, refer to
PParking56
Parts and accessories, refer to
Your individual vehicle6
Pathway lighting60
PDC Park Distance Control81
Pinch protection system,
glass sunroof, electric34
Plastic127
Pollen, refer to
Microfilter84
Microfilter/Activated-
charcoal filter87Power convertible top35
Power failure144
Power output, refer to Engine
data152
Power supply, refer to Cigarette
lighter socket90
Power windows31
Pressure, tires108
reinflation using MINI
Mobility System142
Pressure monitoring of tires,
refer to Tire Pressure Monitor
TPM76
Protective function, electric
glass sunroof34
Pumping in liquid sealant142
Q
Quality grades, refer to
Uniform Tire Quality
Grading112
R
Radiator, refer to Coolant122
Radio, refer to separate
Owner's Manual
Rain sensor
63
Range70
Reading lamps63
Rear backrest, foldable93
,94Rear fog lamp62
bulb replacement136
indicator lamp62
Rear lamps, bulb
replacement135
Rear lamps, refer to Tail
lamps135
Rear seats, adjusting head
restraints44
Rear shelf, refer to Luggage
compartment cover93
Rear turn signal indicators, bulb
replacement135
Rearview mirror48
Rear window wiper64
,65
replacement133
Recirculated air mode
air conditioning system83
automatic climate control86
Reclining seat, refer to Backrest
tilt44
Refueling105
fuel filler door105
Remaining distance, refer to
Range70
Remaining distance for
service69
Remote control25
,26
garage door opener91
malfunction27
