If have difficulties removing the cover, per‐
form step 3 first.3.Pull sensor from the cover, arrow, and place
it on the side trim.4.Loosen and remove the second screw, ar‐
row, using the hexagonal wrench.5.Slightly lift the side frame, arrow 1, and pull
sensor with cable forward out from the
guide, arrow 2.Swivel the cable out sidewards so it cannot
be jammed.6.Unlock the second side frame. The sensor is
located on the left side of the vehicle.
Closing the convertible top
1.Grasp the convertible top with two people,
with both hands on the two side frames.2.Lift out the convertible top evenly on both
sides and swivel forward onto the wind‐
shield panel.
To lift out the convertible top, pull firmly on
the side frame, if necessary.3.In the vehicle, lift the cover in the center of
the roof using the screwdriver.4.For this purpose, insert the hexagon
wrench into the designated receptacle in
the center of the roof and press push up‐
ward, arrow 1.Seite 51Opening and closingCONTROLS51
Online Edition for Part no. 01 40 2 969 276 - II/16

Turn the hexagon wrench counterclockwise
to open the side frame lock.5.Pull of the locking elements from the pins
on the left and right side of the side frames,
arrow.6.Insert the pins on the side frames into the
receptacles on the windshield frame.7.Turn the hexagon wrench clockwise to
close the side frame lock.8.Continue turning the hexagon wrench
clockwise to close the sliding sun roof.Wind deflector

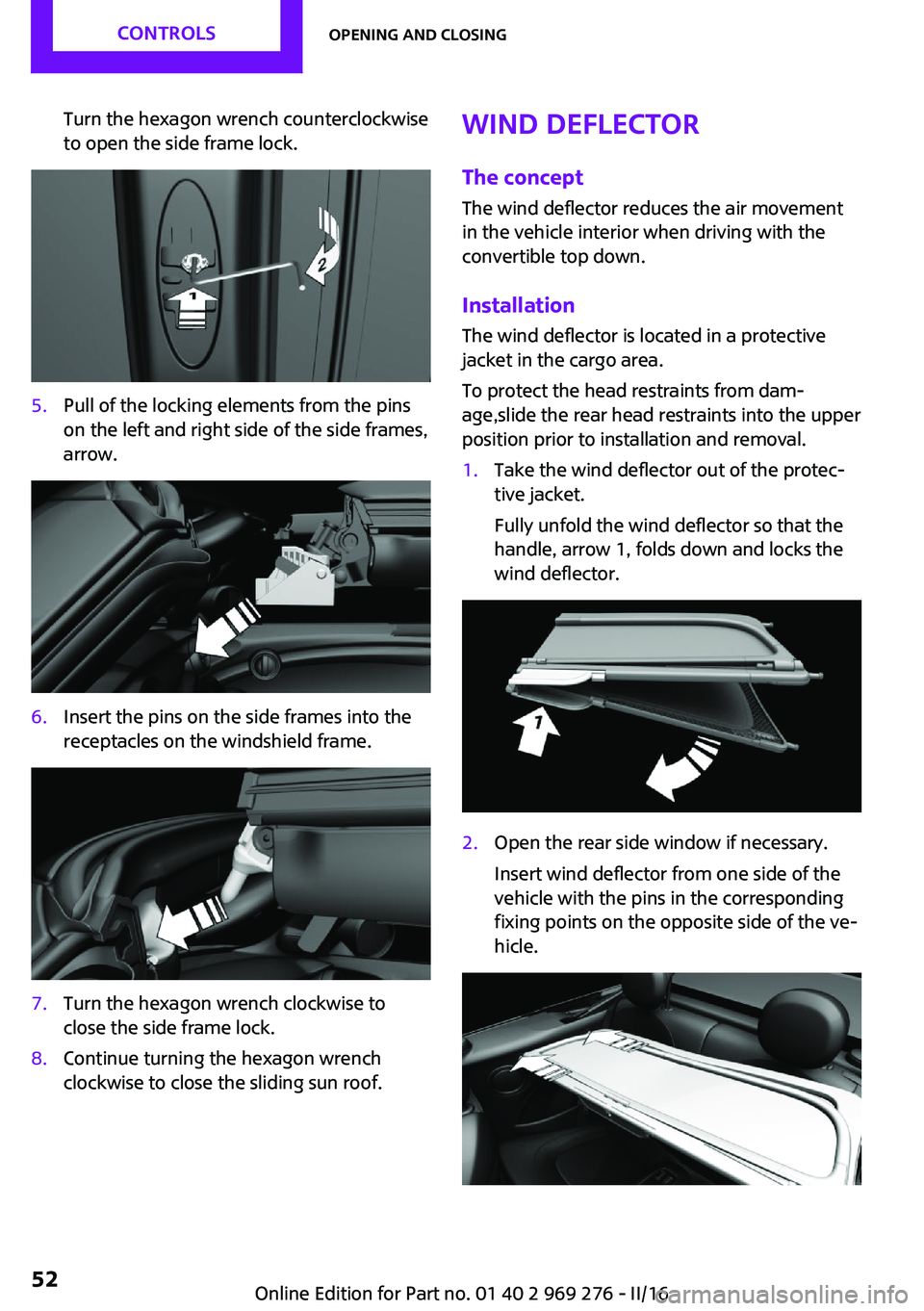

The concept The wind deflector reduces the air movement
in the vehicle interior when driving with the
convertible top down.
Installation The wind deflector is located in a protective
jacket in the cargo area.
To protect the head restraints from dam‐
age,slide the rear head restraints into the upper
position prior to installation and removal.1.Take the wind deflector out of the protec‐
tive jacket.
Fully unfold the wind deflector so that the
handle, arrow 1, folds down and locks the
wind deflector.2.Open the rear side window if necessary.
Insert wind deflector from one side of the
vehicle with the pins in the corresponding
fixing points on the opposite side of the ve‐
hicle.Seite 52CONTROLSOpening and closing52
Online Edition for Part no. 01 40 2 969 276 - II/16

3.To release the lock, fold the handle up and
hold it.4.Press the wind deflector inwardly and up,
arrow 1, to the extent that the wind deflec‐
tor can be positioned in front of the fixing
points on the installation side.
Release the handle.
Press the wind deflector downward, while
inserting the pins in the corresponding fix‐
ing points, arrows 2.5.Press the wind deflector downward in the
middle, until the handle engages, arrows 1.
Grasp the inner framework of the wind de‐
flector and fold it up, arrow 2.CAUTION
When moving the front seats back, the
wind deflector can be damaged. There is a risk
of property damage. Make sure that the area of
movement is clear prior to moving the front
seats back. ◀
Removing
Proceed in reverse sequence.
WARNING
Body parts can be jammed on operating
the wind deflector. There is a risk of injuries.
Make sure that the area of movement around
the wind deflector is clear when installing and
removing it and folding it up. ◀Seite 53Opening and closingCONTROLS53
Online Edition for Part no. 01 40 2 969 276 - II/16

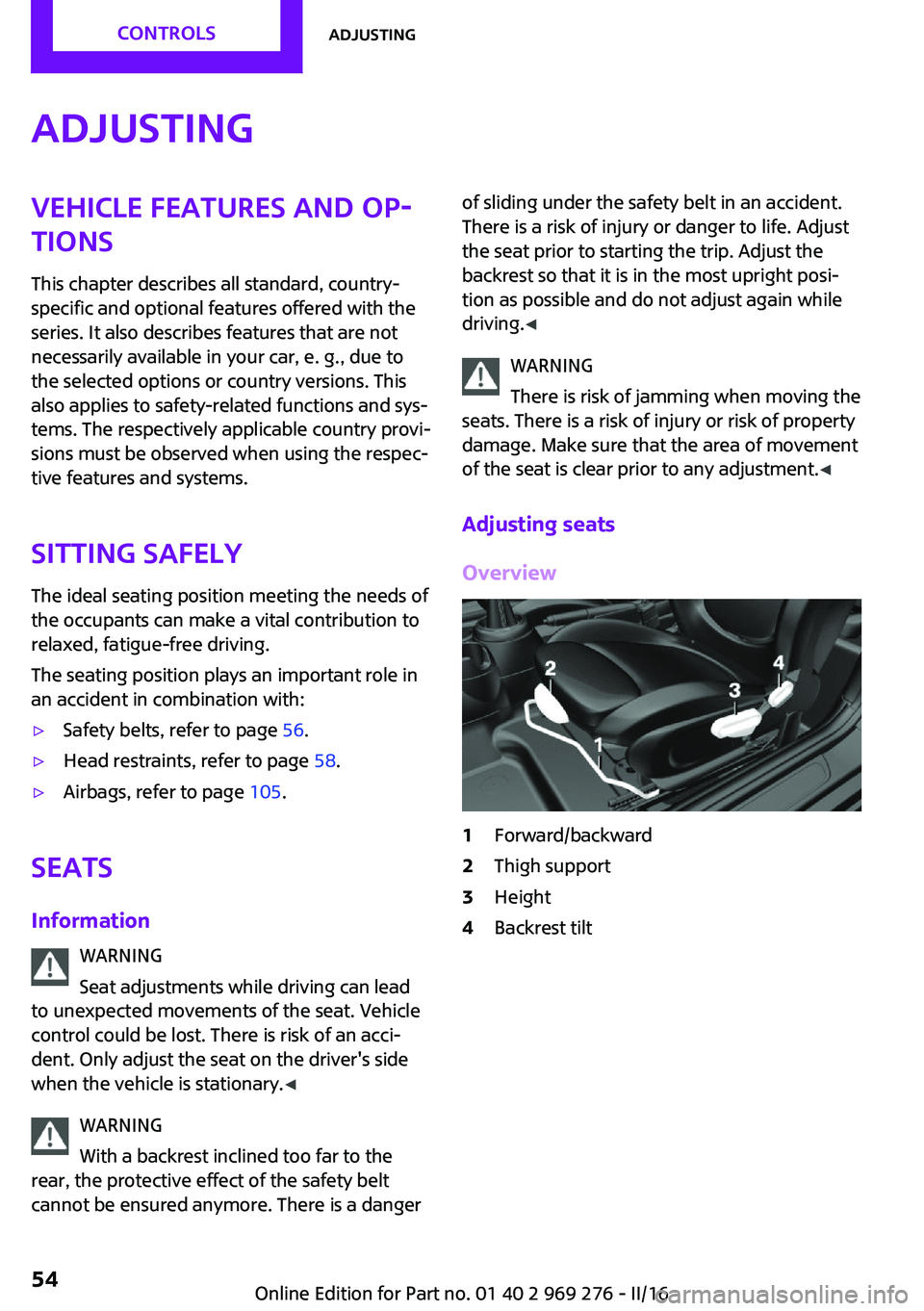

AdjustingVehicle features and op‐
tions
This chapter describes all standard, country-
specific and optional features offered with the
series. It also describes features that are not
necessarily available in your car, e. g., due to
the selected options or country versions. This
also applies to safety-related functions and sys‐
tems. The respectively applicable country provi‐
sions must be observed when using the respec‐
tive features and systems.
Sitting safely The ideal seating position meeting the needs of
the occupants can make a vital contribution to
relaxed, fatigue-free driving.
The seating position plays an important role in
an accident in combination with:▷Safety belts, refer to page 56.▷Head restraints, refer to page 58.▷Airbags, refer to page 105.
Seats
Information WARNING
Seat adjustments while driving can lead
to unexpected movements of the seat. Vehicle
control could be lost. There is risk of an acci‐
dent. Only adjust the seat on the driver's side
when the vehicle is stationary. ◀
WARNING
With a backrest inclined too far to the
rear, the protective effect of the safety belt
cannot be ensured anymore. There is a danger
of sliding under the safety belt in an accident.
There is a risk of injury or danger to life. Adjust
the seat prior to starting the trip. Adjust the
backrest so that it is in the most upright posi‐
tion as possible and do not adjust again while
driving. ◀
WARNING
There is risk of jamming when moving the
seats. There is a risk of injury or risk of property
damage. Make sure that the area of movement
of the seat is clear prior to any adjustment. ◀
Adjusting seats
Overview1Forward/backward2Thigh support3Height4Backrest tiltSeite 54CONTROLSAdjusting54
Online Edition for Part no. 01 40 2 969 276 - II/16

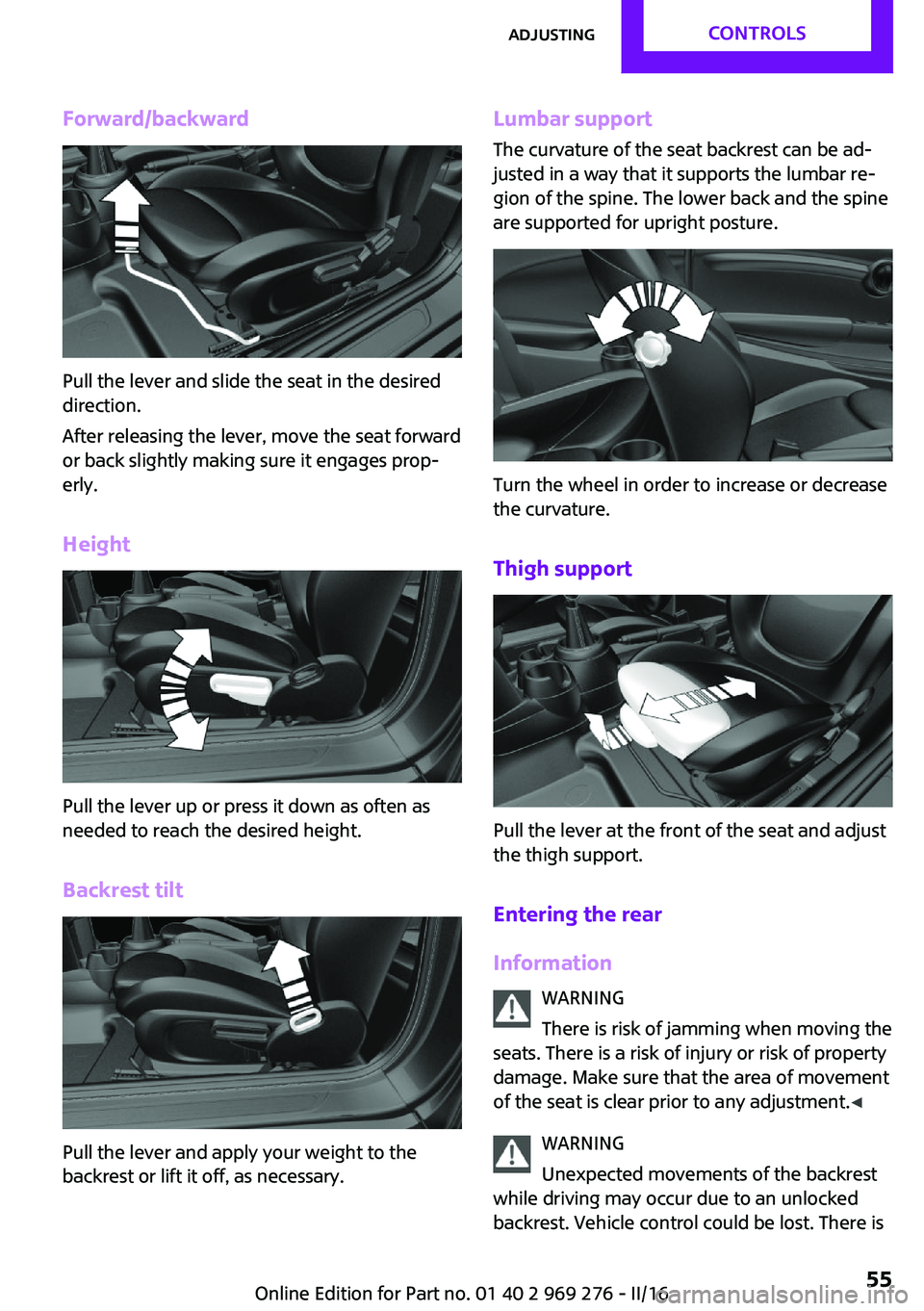

Forward/backward
Pull the lever and slide the seat in the desired
direction.
After releasing the lever, move the seat forward
or back slightly making sure it engages prop‐
erly.
Height
Pull the lever up or press it down as often as
needed to reach the desired height.
Backrest tilt
Pull the lever and apply your weight to the
backrest or lift it off, as necessary.
Lumbar support
The curvature of the seat backrest can be ad‐
justed in a way that it supports the lumbar re‐
gion of the spine. The lower back and the spine
are supported for upright posture.
Turn the wheel in order to increase or decrease
the curvature.
Thigh support
Pull the lever at the front of the seat and adjust
the thigh support.
Entering the rear
Information WARNING
There is risk of jamming when moving the
seats. There is a risk of injury or risk of property
damage. Make sure that the area of movement
of the seat is clear prior to any adjustment. ◀
WARNING
Unexpected movements of the backrest
while driving may occur due to an unlocked
backrest. Vehicle control could be lost. There is
Seite 55AdjustingCONTROLS55
Online Edition for Part no. 01 40 2 969 276 - II/16

a risk of injuries. Fold back and lock the backr‐
ests before driving. ◀

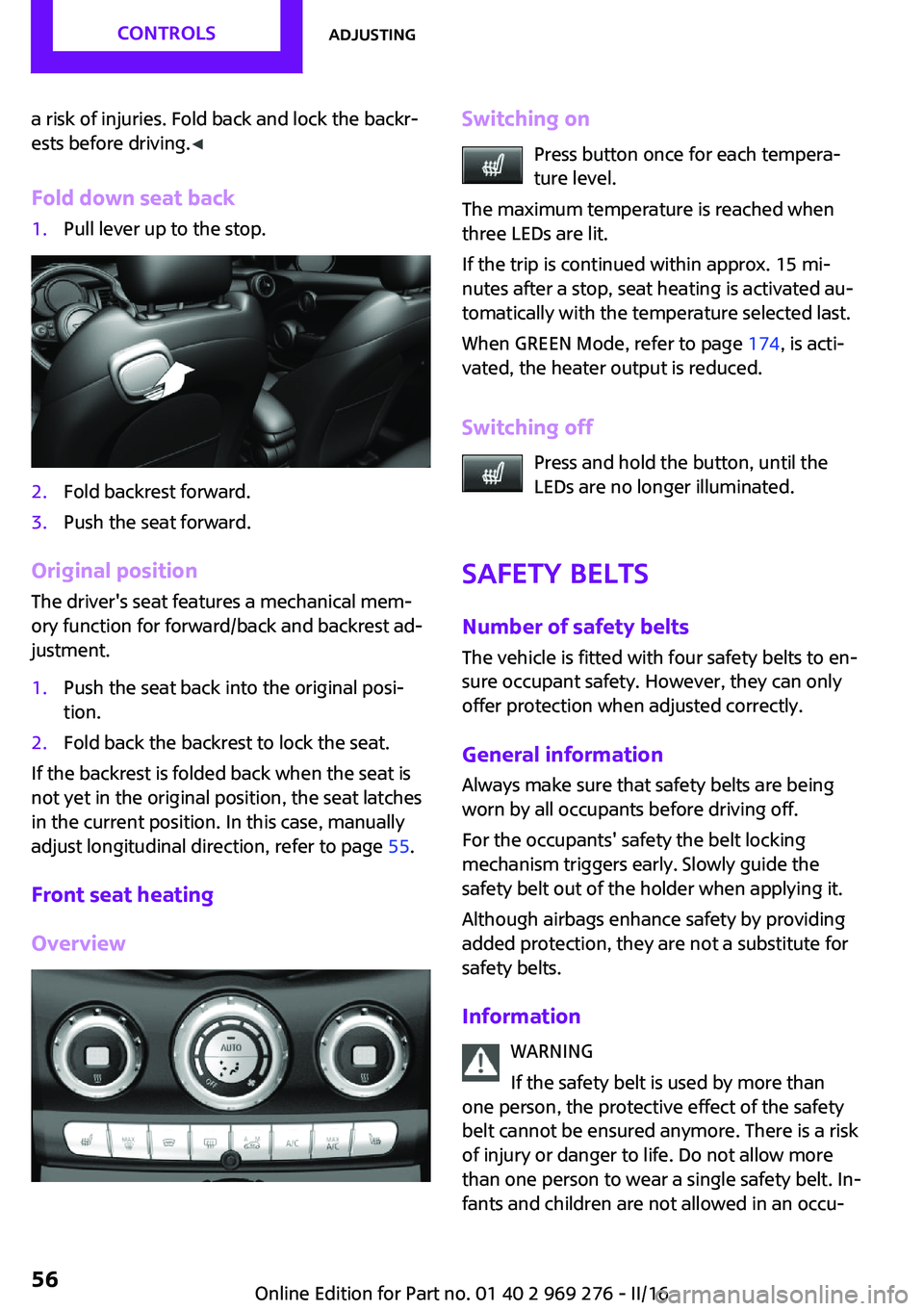

Fold down seat back1.Pull lever up to the stop.2.Fold backrest forward.3.Push the seat forward.
Original position The driver's seat features a mechanical mem‐
ory function for forward/back and backrest ad‐
justment.
1.Push the seat back into the original posi‐
tion.2.Fold back the backrest to lock the seat.
If the backrest is folded back when the seat is
not yet in the original position, the seat latches
in the current position. In this case, manually
adjust longitudinal direction, refer to page 55.
Front seat heating
Overview
Switching on Press button once for each tempera‐
ture level.
The maximum temperature is reached when
three LEDs are lit.
If the trip is continued within approx. 15 mi‐
nutes after a stop, seat heating is activated au‐
tomatically with the temperature selected last.
When GREEN Mode, refer to page 174, is acti‐
vated, the heater output is reduced.
Switching off Press and hold the button, until the
LEDs are no longer illuminated.
Safety belts Number of safety beltsThe vehicle is fitted with four safety belts to en‐
sure occupant safety. However, they can only
offer protection when adjusted correctly.
General information Always make sure that safety belts are beingworn by all occupants before driving off.
For the occupants' safety the belt locking
mechanism triggers early. Slowly guide the
safety belt out of the holder when applying it.
Although airbags enhance safety by providing
added protection, they are not a substitute for
safety belts.
Information WARNING
If the safety belt is used by more than
one person, the protective effect of the safety
belt cannot be ensured anymore. There is a risk
of injury or danger to life. Do not allow more
than one person to wear a single safety belt. In‐
fants and children are not allowed in an occu‐Seite 56CONTROLSAdjusting56
Online Edition for Part no. 01 40 2 969 276 - II/16

pant's lap, but must be transported and respec‐
tively secured in designated child restraint
systems. ◀
WARNING
The protective effect of the safety belts
can be limited or lost when safety belts are fas‐
tened incorrectly. An incorrectly fastened safety
belt can cause additional injuries, e.g., in the
event of an accident or during braking and eva‐
sive maneuvers. There is a risk of injury or dan‐
ger to life. Make sure that all occupants are
wearing safety belts correctly. ◀

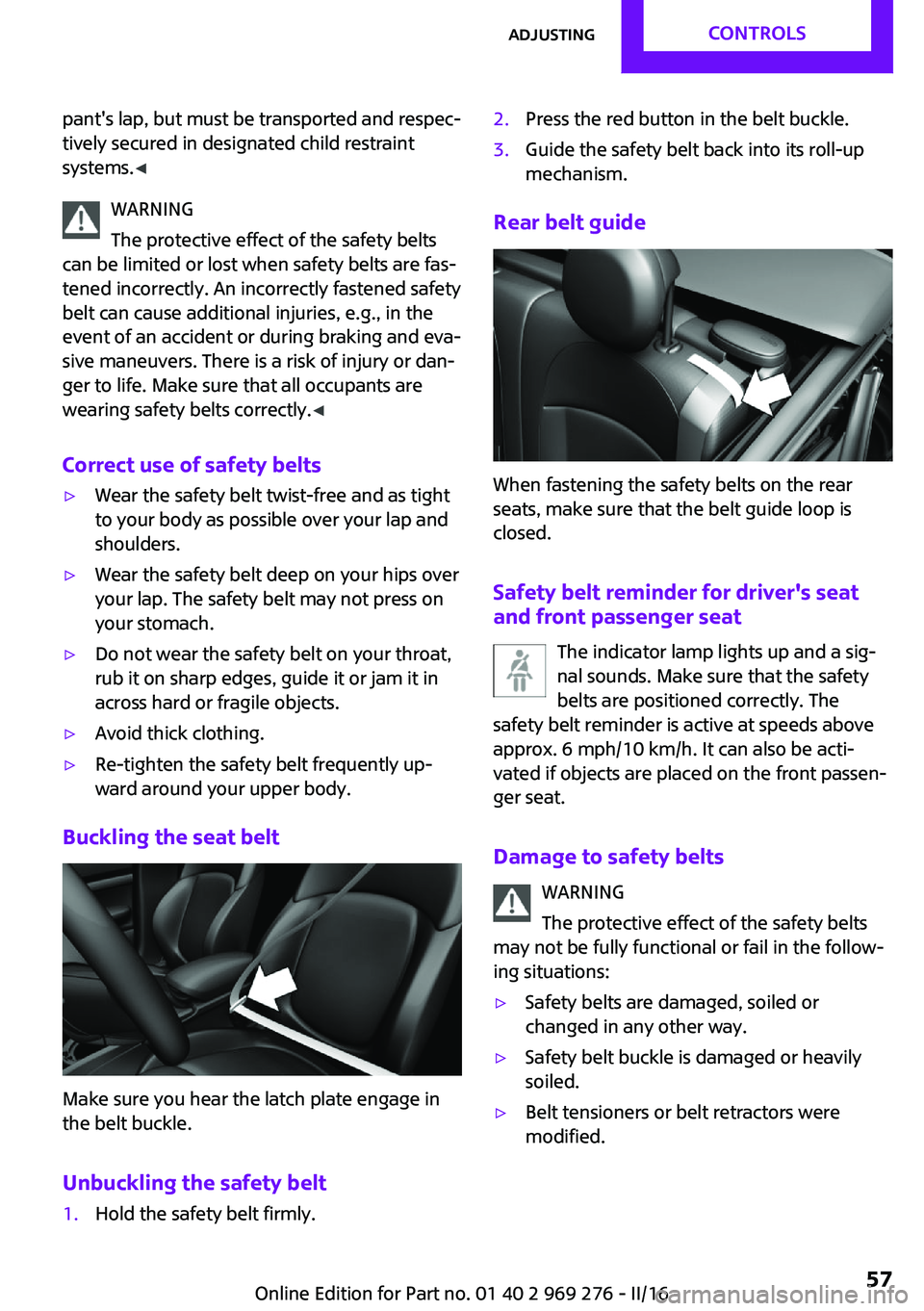

Correct use of safety belts▷Wear the safety belt twist-free and as tight
to your body as possible over your lap and
shoulders.▷Wear the safety belt deep on your hips over
your lap. The safety belt may not press on
your stomach.▷Do not wear the safety belt on your throat,
rub it on sharp edges, guide it or jam it in
across hard or fragile objects.▷Avoid thick clothing.▷Re-tighten the safety belt frequently up‐
ward around your upper body.
Buckling the seat belt
Make sure you hear the latch plate engage in
the belt buckle.
Unbuckling the safety belt
1.Hold the safety belt firmly.2.Press the red button in the belt buckle.3.Guide the safety belt back into its roll-up
mechanism.
Rear belt guide
When fastening the safety belts on the rear
seats, make sure that the belt guide loop is
closed.
Safety belt reminder for driver's seat
and front passenger seat
The indicator lamp lights up and a sig‐
nal sounds. Make sure that the safety
belts are positioned correctly. The
safety belt reminder is active at speeds above
approx. 6 mph/10 km/h. It can also be acti‐
vated if objects are placed on the front passen‐
ger seat.
Damage to safety belts WARNING
The protective effect of the safety belts
may not be fully functional or fail in the follow‐
ing situations:
▷Safety belts are damaged, soiled or
changed in any other way.▷Safety belt buckle is damaged or heavily
soiled.▷Belt tensioners or belt retractors were
modified.Seite 57AdjustingCONTROLS57
Online Edition for Part no. 01 40 2 969 276 - II/16

Safety belts can be imperceptibly damaged in
the event of an accident. There is a risk of injury
or danger to life. Do not modify safety belts,
safety belt buckles, belt tensioners, belt retrac‐
tors or belt anchors and keep them clean. Have
the safety belts checked after an accident at
the dealer’s service center or another qualified
service center or repair shop. ◀

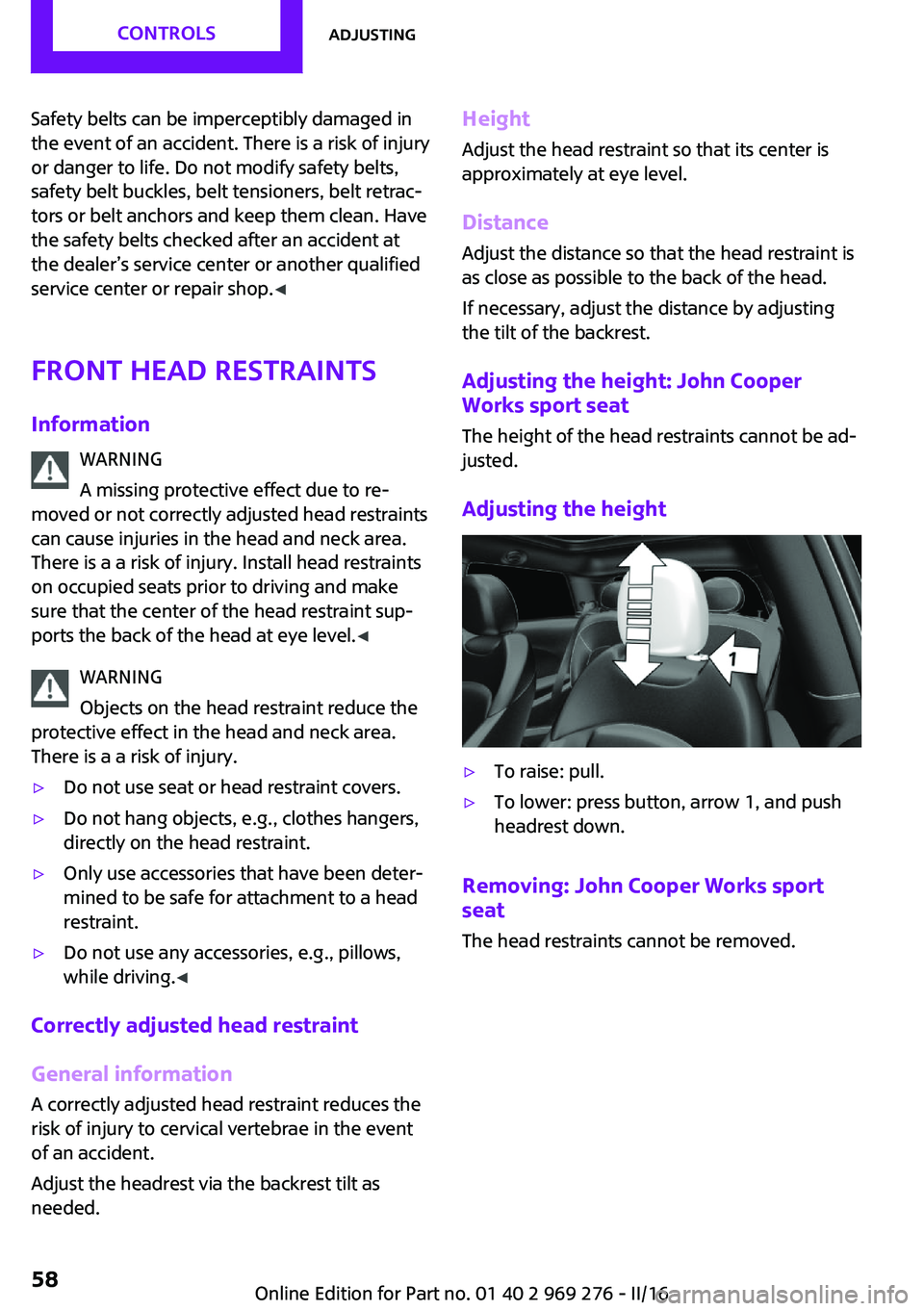

Front head restraints
Information WARNING
A missing protective effect due to re‐
moved or not correctly adjusted head restraints
can cause injuries in the head and neck area.
There is a a risk of injury. Install head restraints
on occupied seats prior to driving and make
sure that the center of the head restraint sup‐
ports the back of the head at eye level. ◀
WARNING
Objects on the head restraint reduce the
protective effect in the head and neck area.
There is a a risk of injury.▷Do not use seat or head restraint covers.▷Do not hang objects, e.g., clothes hangers,
directly on the head restraint.▷Only use accessories that have been deter‐
mined to be safe for attachment to a head
restraint.▷Do not use any accessories, e.g., pillows,
while driving. ◀
Correctly adjusted head restraint
General information
A correctly adjusted head restraint reduces the
risk of injury to cervical vertebrae in the event
of an accident.
Adjust the headrest via the backrest tilt as
needed.
Height
Adjust the head restraint so that its center is
approximately at eye level.
Distance Adjust the distance so that the head restraint is
as close as possible to the back of the head.
If necessary, adjust the distance by adjusting
the tilt of the backrest.
Adjusting the height: John Cooper
Works sport seat
The height of the head restraints cannot be ad‐
justed.
Adjusting the height▷To raise: pull.▷To lower: press button, arrow 1, and push
headrest down.
Removing: John Cooper Works sport
seat
The head restraints cannot be removed.
Seite 58CONTROLSAdjusting58
Online Edition for Part no. 01 40 2 969 276 - II/16

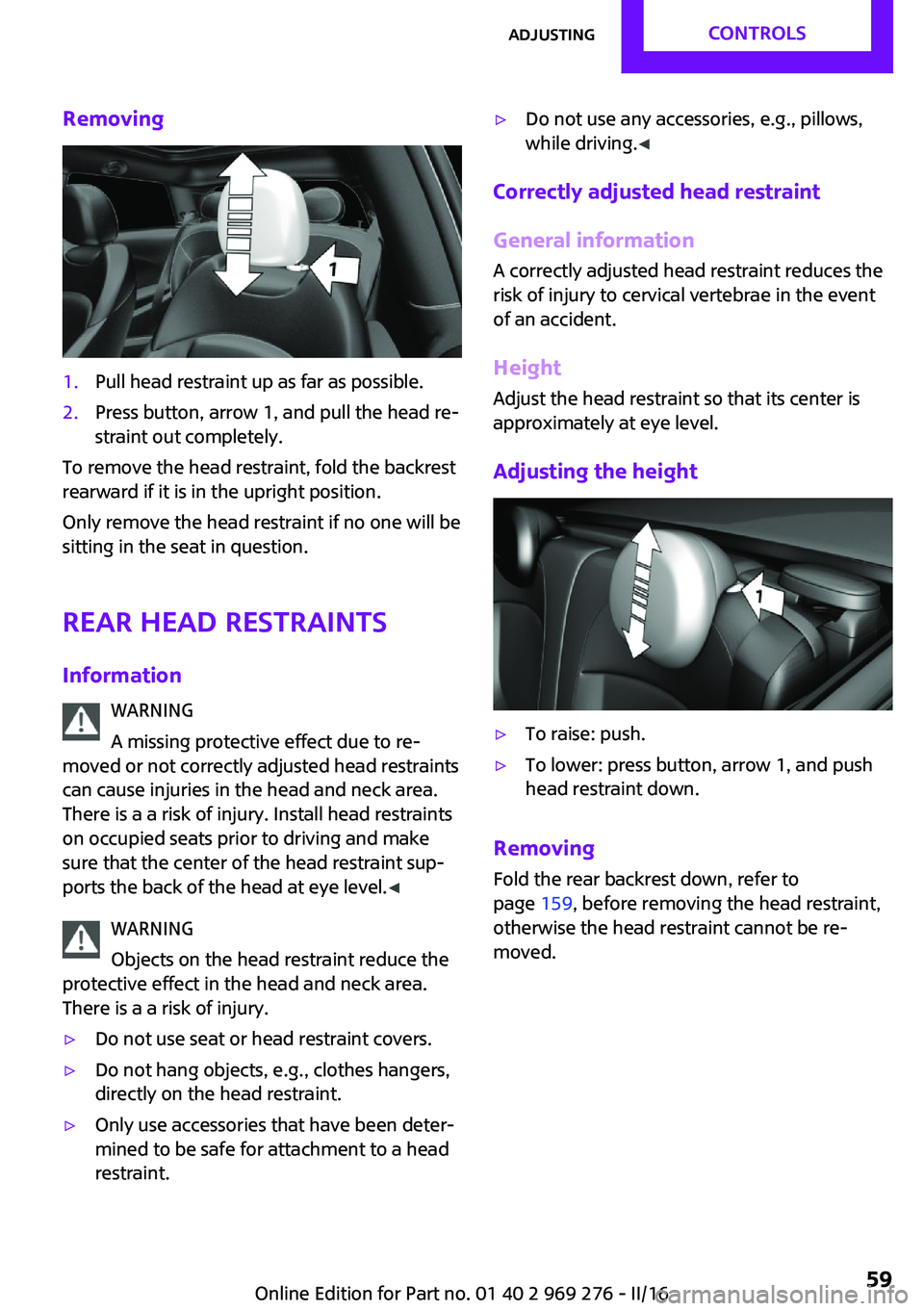

Removing1.Pull head restraint up as far as possible.2.Press button, arrow 1, and pull the head re‐
straint out completely.
To remove the head restraint, fold the backrest
rearward if it is in the upright position.
Only remove the head restraint if no one will be
sitting in the seat in question.
Rear head restraints
Information WARNING
A missing protective effect due to re‐
moved or not correctly adjusted head restraints
can cause injuries in the head and neck area.
There is a a risk of injury. Install head restraints
on occupied seats prior to driving and make
sure that the center of the head restraint sup‐
ports the back of the head at eye level. ◀
WARNING
Objects on the head restraint reduce the
protective effect in the head and neck area.
There is a a risk of injury.
▷Do not use seat or head restraint covers.▷Do not hang objects, e.g., clothes hangers,
directly on the head restraint.▷Only use accessories that have been deter‐
mined to be safe for attachment to a head
restraint.▷Do not use any accessories, e.g., pillows,
while driving. ◀
Correctly adjusted head restraint
General information
A correctly adjusted head restraint reduces the
risk of injury to cervical vertebrae in the event
of an accident.
Height
Adjust the head restraint so that its center is approximately at eye level.
Adjusting the height
▷To raise: push.▷To lower: press button, arrow 1, and push
head restraint down.
Removing
Fold the rear backrest down, refer to
page 159, before removing the head restraint,
otherwise the head restraint cannot be re‐
moved.
Seite 59AdjustingCONTROLS59
Online Edition for Part no. 01 40 2 969 276 - II/16

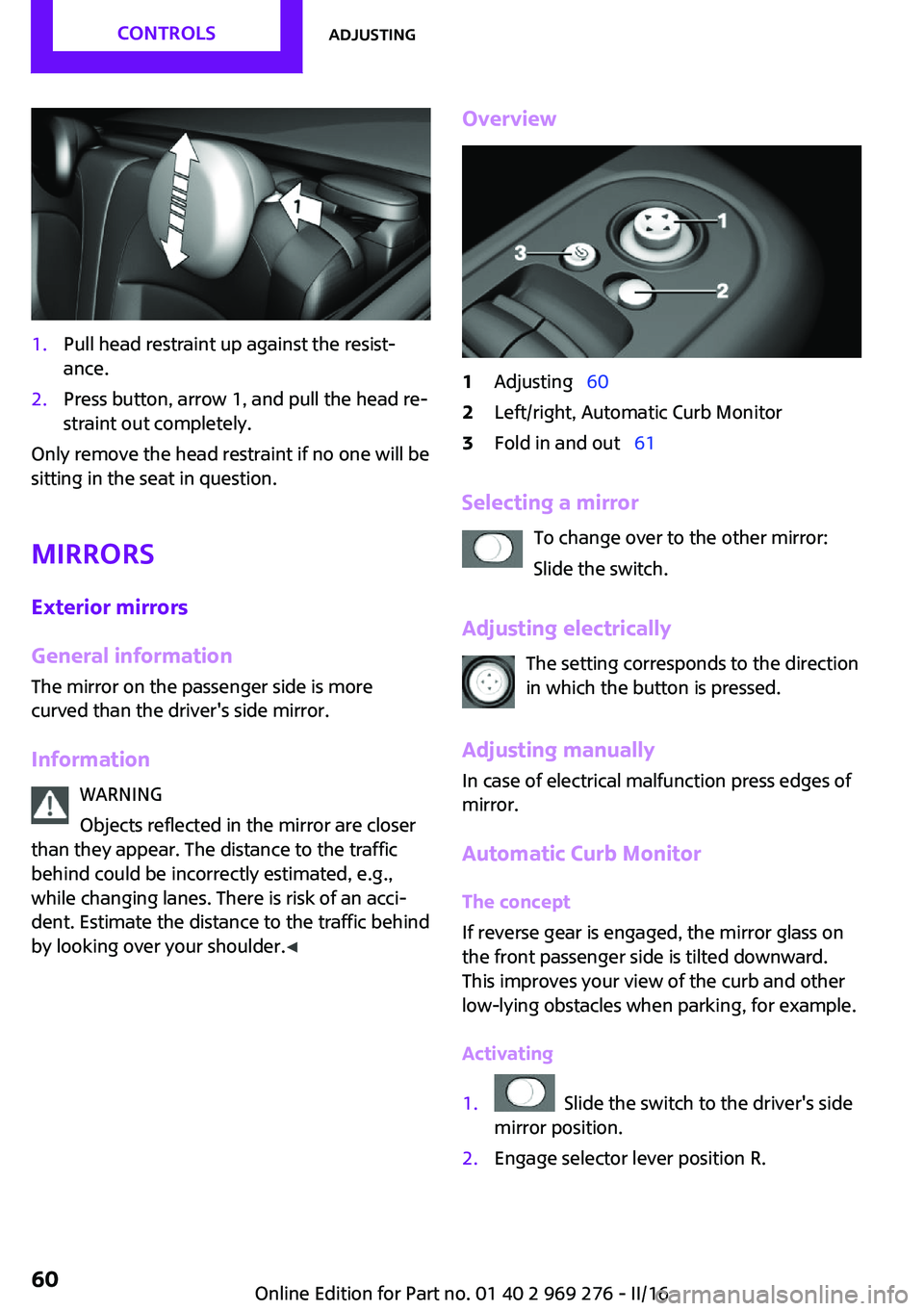

1.Pull head restraint up against the resist‐
ance.2.Press button, arrow 1, and pull the head re‐
straint out completely.
Only remove the head restraint if no one will be
sitting in the seat in question.
Mirrors
Exterior mirrors
General information The mirror on the passenger side is more
curved than the driver's side mirror.
Information WARNING
Objects reflected in the mirror are closer
than they appear. The distance to the traffic
behind could be incorrectly estimated, e.g.,
while changing lanes. There is risk of an acci‐
dent. Estimate the distance to the traffic behind
by looking over your shoulder. ◀
Overview1Adjusting  602Left/right, Automatic Curb Monitor3Fold in and out   61
Selecting a mirror
To change over to the other mirror:
Slide the switch.
Adjusting electrically The setting corresponds to the direction
in which the button is pressed.
Adjusting manually In case of electrical malfunction press edges of
mirror.
Automatic Curb MonitorThe concept
If reverse gear is engaged, the mirror glass on
the front passenger side is tilted downward.
This improves your view of the curb and other
low-lying obstacles when parking, for example.
Activating
1. Slide the switch to the driver's side
mirror position.2.Engage selector lever position R.Seite 60CONTROLSAdjusting60
Online Edition for Part no. 01 40 2 969 276 - II/16
