PARK DISTANCE CONTROL (PDC)*
The concept
The PDC assists you when you back into a
parking space. A signal tone tells you the
current distance to an object behind your
vehicle. To do this, four ultrasonic sensors
in the rear bumper measure the distance to
the nearest object.
The sensors on each side have a range of
approx. 2 ft/60 cm, the middle sensors one
of approx. 5ft/1.5m.
PDC is a parking aid that can identify
objects if they are approached slowly,
as is generally the case when parking.
Avoid driving towards objects rapidly; due
to underlying physical principles, the sys-
tem may otherwise alert you too late for
you to take evasive steps.<
Automatic function
With the ignition key in position 2, the sys-
tem starts to operate automatically about
one second after you select reverse gear or
place the selector lever in position R.
Wait for this one second before you
drive backwards.<
The system is deactivated when you shift
away from Reverse.
You can have a signal tone set as a
confirmation that PDC has been acti-
vated.<
Acoustical signals
The distance to an object is indicated by a
tone sounding at intervals. As the distance
between vehicle and object decreases, the
intervals between the tones become
shorter. A continuous tone indicates the
presence of an object less than 12 in/30 cm
away.
The warning signal is canceled after
approx. three seconds if the distance to the
object remains constant during this time,
for instance if you are moving parallel to a
wall.
Malfunction
A continuous high-pitched tone will sound
during initial activation. The system is mal-
functioning. Have the system checked.
Volume control
The volume of the Park Distance Control
signal can be adjusted from level 1, soft, to
level 6, loud.
You can have this function set.<
System limitations
Even with PDC, final responsibility for
estimating the distance between the
vehicle and any objects always remains
with the driver.
Even when sensors are involved, there is a
blind spot in which objects cannot be
detected. Recognition of some objects can
be beyond the limits of physical ultrasonic
measurement, for example with towing
bars or hitches or with thin or wedge-
shaped objects. It is also possible that low
objects already detected, such as a curb
edge, can disappear in the blind spot of the
sensors before a continuous tone is
sounded, or that protruding objects higher
above the ground, such as ledges, are not
detected.
Loud sources of sound outside and inside
your vehicle can drown the PDC signal
tone.<
Keep the sensors clean and free of ice
or snow in order to ensure that they
will continue to operate effectively.
Do not apply high pressure spray to the
sensors for a prolonged period of time.
Always maintain a distance which is
greater than 4 in/10 cm.<

142

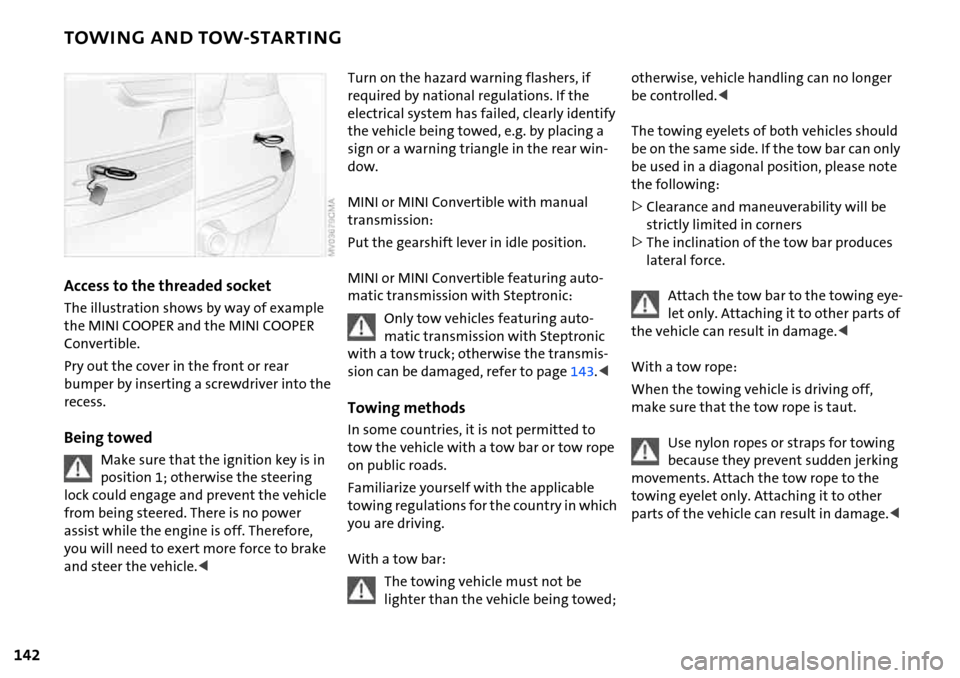

TOWING AND TOW-STARTING
Access to the threaded socket
The illustration shows by way of example
the MINI COOPER and the MINI COOPER
Convertible.
Pry out the cover in the front or rear
bumper by inserting a screwdriver into the
recess.
Being towed
Make sure that the ignition key is in
position 1; otherwise the steering
lock could engage and prevent the vehicle
from being steered. There is no power
assist while the engine is off. Therefore,
you will need to exert more force to brake
and steer the vehicle.<
Turn on the hazard warning flashers, if
required by national regulations. If the
electrical system has failed, clearly identify
the vehicle being towed, e.g. by placing a
sign or a warning triangle in the rear win-
dow.
MINI or MINI Convertible with manual
transmission:
Put the gearshift lever in idle position.
MINI or MINI Convertible featuring auto-
matic transmission with Steptronic:
Only tow vehicles featuring auto-
matic transmission with Steptronic
with a tow truck; otherwise the transmis-
sion can be damaged, refer to page143.<
Towing methods
In some countries, it is not permitted to
tow the vehicle with a tow bar or tow rope
on public roads.
Familiarize yourself with the applicable
towing regulations for the country in which
you are driving.
With a tow bar:
The towing vehicle must not be
lighter than the vehicle being towed;
otherwise, vehicle handling can no longer
be controlled.<
The towing eyelets of both vehicles should
be on the same side. If the tow bar can only
be used in a diagonal position, please note
the following:
>Clearance and maneuverability will be
strictly limited in corners
>The inclination of the tow bar produces
lateral force.
Attach the tow bar to the towing eye-
let only. Attaching it to other parts of
the vehicle can result in damage.<
With a tow rope:
When the towing vehicle is driving off,
make sure that the tow rope is taut.
Use nylon ropes or straps for towing
because they prevent sudden jerking
movements. Attach the tow rope to the
towing eyelet only. Attaching it to other
parts of the vehicle can result in damage.<

143
OVERVIEW REPAIRSOPERATION CONTROLS DATA INDEX
TOWING AND TOW-STARTING
With a tow truck:
Have the MINI or MINI Convertible trans-
ported by a tow truck with a lift sling, or on
a flatbed.
Only tow vehicles featuring auto-
matic transmission with Steptronic
with the front wheels raised or on a special
transport vehicle; otherwise the transmis-
sion can be damaged.
Do not lift the vehicle by the towing eyelet,
nor by parts of the body or chassis. Other-
wise damage could result.<
Tow-starting
Do not tow-start vehicles featuring
automatic transmission with Step-
tronic.
Jump-starting, refer to page140.<
Only tow-start vehicles with catalytic con-
verters if the engine is cold. It is better to
have the engine jump-started, refer to
page140.
1. Turn on the hazard warning flashers;
comply with national regulations
2. Turn the ignition key to position 2
3. Engage the 3rd gear
4. Have the vehicle towed with the clutch
completely depressed and then slowly
release the clutch. After the engine has
started, immediately depress the clutch
again completely
5. Pull over at a suitable location, remove
the tow bar or tow rope, and turn off the
hazard warning flashers
6. Have the vehicle checked.

EVERYTHING FROM A TO Z
154
A
ABS Antilock Brake System71
indicator lamp17,18
Accessories, refer to Your
individual vehicle6
Activated-charcoal filter83
Adjusting interior
temperature79,82
Air circulation, refer to
Recirculated air mode79,82
Air conditioning system78
Air distribution
air conditioning system79
automatic climate control82
Air outlets, refer to
Ventilation80,83
Air pressure, refer to Tire
inflation pressure101
Air volume
air conditioning system79
automatic climate control82
Airbags75
passenger airbag status
lamp76
safe seating position42
warning lamp18
AKI, refer to Fuel quality99
All Season traction Control
(ASC)71
indicator lamps17,18 All-season tires, refer to Winter
tires110
Antenna120
Antifreeze
coolant115
washer fluid63
Antilock Brake System (ABS)71
indicator lamp17,
18
Anti-theft system24
Approved axle load, refer to
Weights149,150
Approved engine oils115
Approved gross vehicle weight,
refer to Weights149,150
ASC All Season traction
Control71
indicator lamps17,18
Ashtray85
Assistant systems, refer to
All Season traction Control
(ASC)71
Dynamic Stability Control
(DSC)71
AUTO program, refer to
Automatic air distribution82
Automatic
air distribution82
air volume82
cruise control64
Automatic car washes119
Automatic climate control81 Automatic transmission with
Steptronic
ignition53
indicator lamp57
interlock53
selector lever lock56
shiftlock56
towing142
tow-starting143
Average consumption70
setting units70
Average speed70
setting units70
Axle loads, refer to
Weights149,150
B
Backrests, refer to
Adjusting seats44
Backup lamp
bulb replacement129
Bar, towing142
Base plate for telephone or
mobile phone84
Battery138
charging138
disposal138
indicator lamp16
jump-starting140
power failure138
Battery care68,118 Belts, refer to Safety belts46
Beverage holders85
Black ice, refer to Temperature
warning69
Blower
air conditioning system79
automatic climate control82
Blower, refer to Air volume79
Blowers, refer to Draft-free
ventilation80,83
Bonnet111
indicator lamp17
Bottle holders, refer to
Beverage holders85
Brake discs
brake system97
break-in procedures96
Brake fluid117
level117
warning lamp16
Brake lamps, bulb
replacement129
Brake pads117
break-in procedures96

warning lamp18
Brake system117
brake fluid117
brake pads117
break-in procedures96
disc brakes97
warning lamp17

EVERYTHING FROM A TO Z
163
OVERVIEW REPAIRS OPERATION CONTROLS DATA INDEX
Tail lamps, refer to Rear
lamps129
Tailgate29
emergency operation30
indicator lamp17
opening from the outside29
releasing manually30
remote control26
Tank capacity, refer to Fuel tank
capacity151
Tank gauge, refer to Fuel
gauge66,67
Technical data146
Technical modifications7
Technical modifications, refer
to For your own safety7
Telephone call, refer to the
Owner's Manual for the
telephone
Temperature
air conditioning system79
automatic climate control82
Temperature display
ice warning69
outside temperature69
setting units69
Temperature grades106
Temperature warning69
Tempomat, refer to Cruise
control64 Threaded hole for towing
eyelet142
Three-point safety belt46
Through-loading system88,89
Tightening the lug bolts
keys131,135
torque134
Tightening torque, refer to
Tightening the lug bolts134
Tire change set
MINI Mobility System137
Run Flat tires108
space-saver spare tire131
Tire failure131
MINI Mobility System135
space-saver spare tire131
Tire inflation pressure101
reinflation136
Tire pressure monitor, refer to
Flat Tire Monitor73
Tire pressure monitoring, Flat
Tire Monitor73
Tire puncture
Run Flat tires74 Tires
age105
break-in procedures96
changing133
condition106
damage107
flat tire108,131
inflation pressure101
replacement109
size, refer to New wheels and
tires109
storage110
tread106
wear indicator, refer to Tire
tread106
winter tires110
Tires with emergency
properties, refer to Run Flat
tires108
Tools, refer to Onboard tool
kit126
Torque
engine146
lug bolts134
Tow bar142
Tow rope142
Towing141
with automatic
transmission142,143
Towing eyelet141
Tow-starting143 Track width, refer to
Dimensions147,148
Traction grades106
Transmission
automatic transmission with
Steptronic56
manual transmission55
Transmission lock, refer to
Range selection56
Transmission malfunction,
refer to Malfunction58
Transporting children safely50
Transporting securely, refer to
Securing the load92
Trap protection,
glass sunroof, electric34
Trash container, refer to
Ashtray85
Tread depth, refer to Tire
tread106
Treadwear grade105
Trip odometer66
Trunk, refer to Luggage
compartment in the MINI
Convertible89
Turn signal indicators60
indicator lamp19
Turn signal indicators on the
side, bulb replacement129
Turning circle, refer to
Dimensions147,148
