Care
100
Care
Suitable car-care products
Use the cleaning and car-care products
available at your MINI Dealer.<
Cleaning agents may contain hazardous
or health-damaging substances. Follow
the warning and hazard instructions on the
packaging. For interior cleaning, always open
the doors or windows of the vehicle.
Do not use any products that are not intended
for cleaning the vehicle.<
Washing your vehicle
You can wash your new MINI in an automatic car
wash from the first day. Preference should be
given to cloth car washes. If, due to lack of avail-
ability, brush car washes must be used, modern
systems with soft brushes should be given pref-
erence.
When using steam jets or high-pressure
washers, ensure that you maintain a suffi-
cient distance to the vehicle. If the jet is too close
or the pressure is too high, this can lead to dam-
age or initial damage that can develop into more
serious damage. Water that enters vehicle com-
ponents can lead to damage over the long term.
After washing the vehicle, apply the brakes
briefly to dry them, otherwise water can reduce
braking efficiency over the short term and the
brake rotors can corrode.
Switch the rain sensor off when passing through
an automatic car wash, page40. Failure to do so
could result in damage caused by undesired
wiper activation.<
Rod antenna
If necessary, for example before entering a car
w a s h o r a g a r a g e w i t h a n e l e v a t o r r a m p , r e m o v e
the rod antenna.
Headlamps
Do not wipe dry and do not use abrasive or cor-
rosive cleaning agents. Remove dirt and con-
tamination, such as insects, by soaking with
shampoo and then rinsing with plenty of water. Always use a deicer spray to remove accumu-
lated ice and snow; never use a scraper. Use
window de-icers.
Vehicle paintwork
Regular care contributes greatly to driving safety
and value retention.
Environmental influences varying from one
region to the next can affect the vehicle paint-
work. Base the frequency and scope of car care
on these various influences.
Care of upholstery
Depressions that come about on the upholstery
material of the seats in daily use can be brushed
out using a slightly damp brush against the
grain.
The fact that velour lays down is not a quality
defect but rather is inevitable, as it is with home
textiles or clothing.
In the case of strong sunlight and longer parking
periods, cover the seats or all windows to pre-
vent discoloration.
Care of special parts
Light-alloy wheels*
Especially in the winter months, care for the
wheel rims with wheel rim cleaner. Do not use
acidic, strongly alkaline and abrasive cleaning
agents or steam jets. Follow the manufacturer's
instructions.
Chrome parts*
Carefully clean vehicle parts such as the radiator
grill and door handles with copious quantities of
water and, if necessary, a shampoo additive,
especially when contaminated with road salt.
For additional treatment, use chrome polish.
Rubber parts
Treat only with water or rubber care products.

ReferenceAt a glance Controls Driving tips Mobility
103
Caring for headlamps, refer to page100.
For any bulb replacement not described
below, contact a MINI Dealer or a work-
shop that has specially trained personnel work-
ing in accordance with the specifications of the
MINI manufacturer.<
For checking and adjusting headlamp aim,
please contact your MINI Dealer.<
Light-emitting diodes LEDs
Light-emitting diodes installed behind translu-
cent lenses serve as the light sources for many of
the controls and displays in your vehicle. These
light-emitting diodes are related to conven-
tional laser diodes, and legislation defines them
as Class 1 light-emitting diodes.
Do not remove the covers or expose the
eyes directly to the unfiltered light source
for several hours, otherwise this could cause irri-
tation to the retina.<
Bi-Xenon lamps*
The service life of these bulbs is very long and
the probability of failure very low, provided that
they are not switched on and off an excessive
number of times. If a xenon lamp fails neverthe-
less, switch on the fog lamps and continue the
journey with great care, provided that local leg-
islation does not prohibit this.
Have any work on the xenon lamp system,
including bulb replacement, carried out
only by a MINI Dealer or a workshop that has
specially trained personnel working in accor-
dance with the specifications of the MINI manu-
facturer. Due to high voltage, there is a risk of
fatal injury if work on the xenon lamps is carried
out improperly.<
Halogen low beams and high beams
H13 bulb, 60/55 watts
The H13 bulb is pressurized. Therefore,
wear safety glasses and protective gloves.
Otherwise there is a risk of injury if the bulb is
damaged. erwise leaks could occur and cause dam-
age to the headlamp system.<
Accessing the lamp from the engine
compartment
The low-beam/high-beam bulb can be changed
from the engine compartment.
Removing the cover:
1.Press the tab.
2.Flip open the cover and take it out of the
holder.
Follow the same steps in reverse order to reat-
tach the cover.
Be careful when installing the cover, oth-
erwise leaks could occur and cause dam-
age to the headlamp system.<
Replacing the bulb
1.Press the retaining clip forward and hold,
arrow1.
2.Guide the retaining clip downward, arrow2.

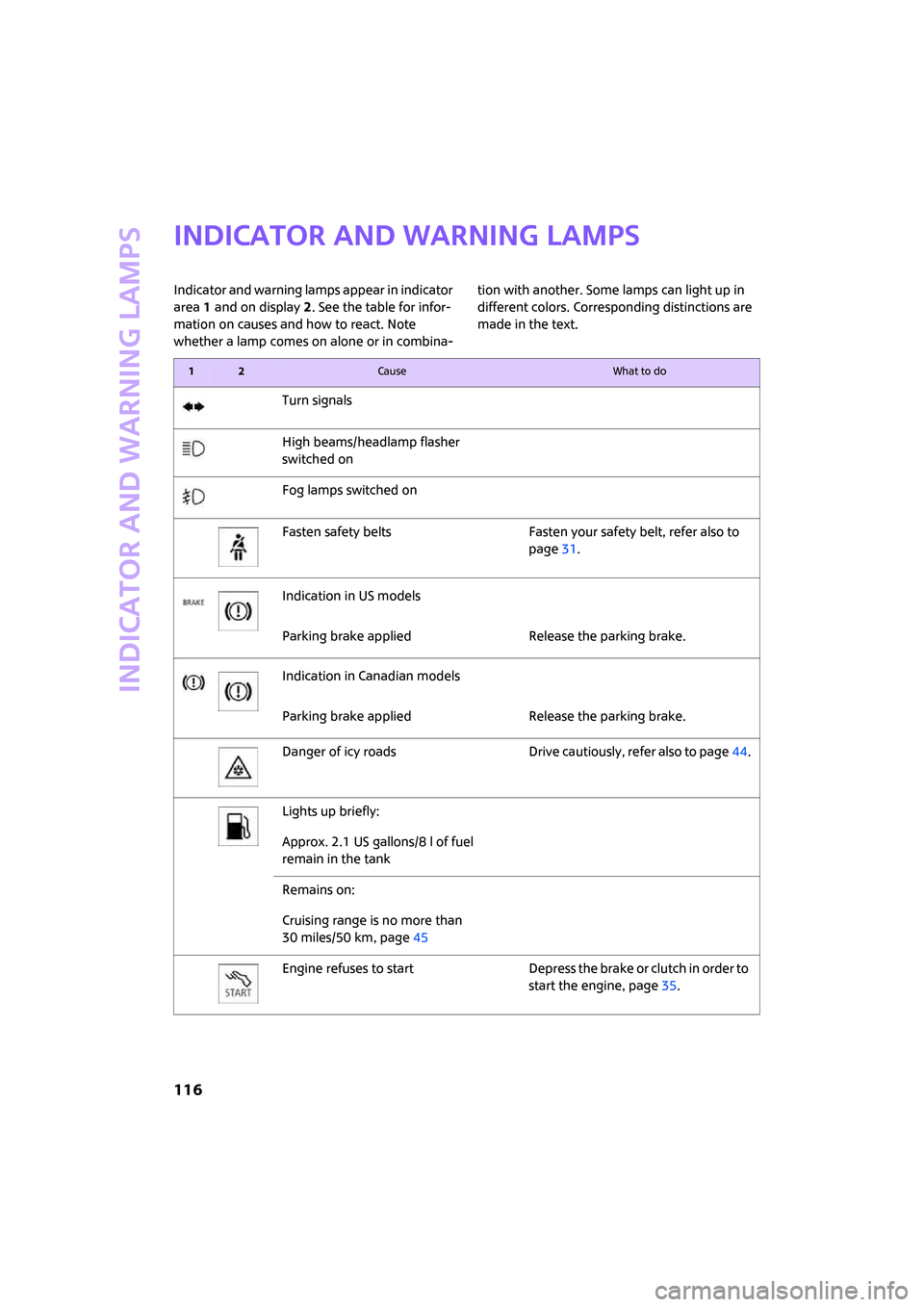

Indicator and warning lamps
116
Indicator and warning lamps
Indicator and warning lamps appear in indicator
area 1 and on display 2. See the table for infor-
mation on causes and how to react. Note
whether a lamp comes on alone or in combina-tion with another. Some lamps can light up in
different colors. Corresponding distinctions are
made in the text.
12Cause What to do
Turn signals
High beams/headlamp flasher
switched on
Fog lamps switched on
Fasten safety belts Fasten your safety belt, refer also to
page31.
Indication in US models
Parking brake applied Release the parking brake.
Indication in Canadian models
Parking brake applied Release the parking brake.
Danger of icy roads Drive cautiously, refer also to page44.
Lights up briefly:
Approx. 2.1 US gallons/8 l of fuel
remain in the tank
Remains on:
Cruising range is no more than
30 miles/50 km, page45
Engine refuses to start Depress the brake or clutch in order to
start the engine, page35.

ReferenceAt a glance Controls Driving tips Mobility
125
Selector lever position P not engaged.
Ignition cannot be switched offEngage selector lever position P when
you wish to switch off the ignition,
page35.
Lights up in red:
Electric steering wheel lock malfunc-
tioningThe engine can no longer be started. If
applicable, do not switch off the
engine. Contact your MINI Dealer.
Lights up in yellow:
Electric steering wheel lock engaged Move the steering wheel before start-
ing the engine.
Cruise control system failed Have the system checked.
Park Distance Control failed Have the system checked.
Bulb of exterior lighting system failed Have the exterior lighting checked as
soon as possible.
Low-beam headlamp or fog lamp
failedHave the lamps checked as soon as
possible.
High-beam headlamp failed Have the high-beam headlamps
checked.
Headlamp beam throw adjustment
system failedHave the headlamp beam throw
adjustment system checked.
Coolant level too low Add coolant immediately, page96.
Engine oil pressure too low Stop immediately and switch off the
engine. You cannot continue your
journey. Contact your MINI Dealer.
12Cause What to do

ReferenceAt a glance Controls Driving tips Mobility
133
Capacities
US gal/US quartsLitersNotes
Fuel tank Fuel grade: page85
>MINI Cooper 10.6/– approx. 40
>MINI Cooper S 13.2/– approx. 50
including reserve of 2.1/– approx. 8
Window washer system incl.
headlamp washer system –/4.8 approx. 4.5For more details:
page42

From A to Z
134
From A to Z
Index
A
ABS Antilock Brake System54
Accessories, refer to Your
individual vehicle5
Activated-charcoal filter for
automatic climate control68
Additives
– coolant96
– engine oil96
Adjusting temperature inside
the car, refer to Air
conditioner65
Adjusting temperature inside
the car, refer to Automatic
climate control66
Airbags57
– sitting safely28
– warning lamp58
Air conditioner64
Air conditioning mode
– air conditioner65
– automatic climate control66
– ventilation68
Air distribution
– automatic67
– individual65
– manual65
Air flow rate65,66
– air conditioning system65
– automatic climate control66
– heating, ventilation65
Airing, refer to Ventilation68
Air outlets, refer to Air vents64
Air pressure, checking, refer to
Tire inflation pressure86
Air recirculation, refer to
Recirculated-air
mode65,67
Air supply
– air conditioner65
– automatic climate control66
– ventilation68Air vents64
AKI, refer to Fuel
specifications85
Alarm system, preparation
package24
Alarm system preparation
package24
All-season tires, refer to Winter
tires93
All-Season Traction Control
ASC54
Ambient air, refer to
Recirculated-air
mode65,67
Âmbient lighting63
Antenna, care100
Antifreeze
– coolant96
– washer fluid
42
Anti-theft system19
Approved axle loads, refer to
Weights132
Approved engine oils96
Approved gross vehicle
weight, refer to Weights132
Armrest, refer to Center
armrest71
Arrival time
– computer46
ASC All-Season Traction
Control54
Ashtray72
Assistant systems, refer to
– All-Season Traction Control
ASC54
– Dynamic Stability Control
DSC54
AUC Automatic recirculated-
air control67
Audio device, external71Automatic
– air distribution67
– air flow rate67
– cruise control42
– headlamp control59
Automatic climate control64
– automatic air distribution67
Automatic recirculated-air
control AUC67
Automatic transmission with
Steptronic37
– interlock37
– overriding selector lever
lock39
– shiftlock38
– sport program38
AUTO program for automatic
climate control67
AUX-In, refer to External audio
device71
Average fuel consumption45
– setting the units47
Average speed46
Axle loads, refer to
Weights132
B
Background lighting, refer to
Ambient lighting63
Backrests, refer to Seats28
Backup lamps
– replacing bulb105
Backup lamps, refer to Tail
lamps105
Band-aids, refer to First aid
pouch112
Bar, refer to Tow-starting,
towing away114

ReferenceAt a glance Controls Driving tips Mobility
135
Battery111
– charging111
– disposal26,111
– jump starting112
– temporary power failure111
Battery renewal
– remote control26
Being towed114
Belts, refer to Safety belts30
Belt tensioner, refer to Safety
belts30
Beverage holders, refer to Cup
holders72
Blower, refer to Air flow
rate65,66
Bonnet94
Bottle holders, refer to Cup
holders72
Brake fluid, refer to Service
requirements49
Brake lamps
– replacing bulb105
Brake pads, breaking in76
Brake rotors77
– brakes76
– breaking in76
Brakes
– ABS54
– breaking in76
– MINI Maintenance System98
– parking brake37
– service requirements49
Brakes, refer to Braking
safely77
Brake system76
– breaking in76
– disc brakes77
– MINI Maintenance System98
Breakdown service, refer to
Roadside Assistance112
Breaking in the clutch76
Break-in period76
Bulb changing, refer to Lamps
and bulbs102
Button for starting the
engine35
Buttons on the steering
wheel11C
California Proposition 65
warning6
Can holders, refer to Cup
holders72
Capacities133
Car battery, refer to Vehicle
battery111
Car care100
Car-care products, refer to
Suitable car-care
products100
Care100
Cargo, securing80
Cargo area78
– capacity132
– convenient access24
– cover78
– lamp62
– lid, refer to Tailgate23
– opening from outside23
Cargo area, expanding78
Cargo loading
– securing cargo80
– stowing cargo79
– vehicle78
Car jack
– jacking points110
Car key, refer to Key/remote
control18
Carpets, care101
Car phone
– installation location, refer to
Center armrest71
– refer to separate Owner's
Manual
Car wash78
Car wash, refer to Care100
Catalytic converter, refer to
Hot exhaust system76
CBS Condition Based
Service98
CDs/DVDs, care101
Cell phones, use inside the car,
refer to Mobile phone in the
vehicle76
Center armrest71
Center brake lamp106Center console, refer to
Around the center
console14
Central locking system19
– convenient access24
– from inside22
– from outside19
Changing bulbs102
Changing wheels108
Chassis number, refer to
Engine compartment95
Check Control51
Child's seats33
Child-restraint fixing system
LATCH34
Child-restraint systems33
Chock, folding
– space-saver spare tire108
Chrome parts, care100
Chrome parts, refer to
Care100
Cigarette lighter72
Cleaning headlamps41
– washer fluid42
Clock44
– 12h/24h mode47
– setting time50
Closing
– from inside22
– from outside19
Clothes hooks72
Cockpit10
Cold start, refer to Starting the
engine36
Comfort access, refer to
Convenient access24
Comfort area, refer to Around
the center console14
Compartment for remote
control, refer to Ignition
lock35
Computer45
Condensation, refer to When
the vehicle is parked77
Configuring settings, refer to
Personal Profile18
Confirmation signals for
vehicle locking/unlocking20

From A to Z
138
Headlamp control,
automatic59
Headlamp flasher39
– indicator lamp11,116
Headlamps
– replacing bulb103
Headlamps, care100
Head restraints30
– sitting safely28
Heated
– mirrors31
– rear window65,67
– seats30
Heating64
– mirrors31
– rear window65,67
– seats30
Heavy loads, refer to Stowing
cargo80
Height, refer to
Dimensions131
Height adjustment
– seats29
– steering wheel32
High beams61
– headlamp flasher61
– indicator lamp116
– replacing bulb103
High water, refer to Driving
through water77
Hills77
Hill Start Assist55
Holders for cups72
Homepage4
Horn10
Hot exhaust system76
Hydroplaning77
I
Ice warning44
Icy roads, refer to Outside
temperature warning44
Ignition35
– switched off35
– switched on35
Ignition key, refer to
Integrated key/remote
control18Ignition key position 1, refer to
Radio readiness35
Ignition key position 2, refer to
Ignition on35
Ignition lock35
Indicator and warning
lamps13,116
Individual air distribution65
Individual settings, refer to
Personal Profile18
Initializing
– Flat Tire Monitor FTM55
– glass sunroof, electric27
Instrument cluster, refer to
Displays12
Instrument lighting62
Instrument panel, refer to
Cockpit10
Instrument panel, refer to
Displays12
Integrated key18
Integrated universal remote
control operation69
Interior lamps62
– remote control21
Interior rearview mirror32
– automatic dimming
feature32
Interlock37
Intermittent mode of the
wipers41
Internet page4
J
Jacking points110
Jets, refer to Window washer
nozzles41
Jumpering, refer to Jump
starting112
Jump starting112
K
Key, refer to Key/remote
control18
Keyless go, refer to Convenient
access24Keyless opening and closing,
refer to Convenient
access24
Key Memory, refer to Personal
Profile18
Kick-down38
– automatic transmission with
Steptronic38
Knock control85
L
Lamps, refer to Parking lamps/
Low beams59
Lamps and bulbs, replacing
bulbs102
Lashing eyes, refer to Securing
cargo80
LATCH child-restraint fixing
system34
LEDs light-emitting diodes103
Length, refer to
Dimensions131
License plate lamp
– replacing bulb106
Light-alloy wheels, care100
Light-emitting diodes
LEDs103
Lighter72
– socket72
Lighting
– lamps and bulbs102
– of the instruments62
– of vehicle, refer to Lamps59
Light switch59
Limit126
Load securing equipment,
refer to Securing cargo80
Lock buttons of doors, refer to
Locking22
Locking
– adjusting confirmation
signal20
– from inside22
– from outside20
– without remote control, refer
to Convenient access24

ReferenceAt a glance Controls Driving tips Mobility
139
Locking and unlocking doors
– confirmation signals20
– from inside22
– from outside19
Low beams59
– automatic59
– replacing bulb103
Lower back support, refer to
Lumbar support29
Luggage compartment, refer
to Cargo area23
Luggage compartment lid,
refer to Tailgate23
Luggage rack, refer to Roof-
mounted luggage rack80
Lumbar support29
M
M+S tires, refer to Winter
tires93
Maintenance, refer to Service
Booklet
Maintenance system98
Malfunction warnings, refer to
Check Control51
Manual air distribution65
Manual mode
– automatic transmission with
Steptronic38
Manual operation
– door lock21
– fuel filler door84
– tailgate23
– transmission lock, automatic
transmission39
Manual transmission37
Master key, refer to Integrated
key/remote control18
Maximum cooling67
Maximum speed
– with winter tires93
Medical assistance, refer to
First aid pouch112
Microfilter
– for air conditioner66
– for automatic climate
control68
– MINI Maintenance System98Microfilter/activated-charcoal
filter
– MINI Maintenance System98
Microphone for telephone14
MINI Internet page4
MINI Maintenance System98
Mirror dimming feature32
Mirrors31
– exterior mirrors31
– heating31
– interior rearview mirror32
Mobile phone
– installation location, refer to
Center armrest71
– refer to separate Owner's
Manual
Mobile phone, installation
location, refer to Center
armrest71
Mobile phone, refer to the
separate Owner's Manual
Mobile phones in the
vehicle76
Mobility System106
Modifications, technical, refer
to For your own safety5
Monitoring system for tire
pressures, refer to Flat Tire
Monitor55
Multifunctional steering
wheel, refer to Buttons on
the steering wheel11
Multifunction switch
– refer to Turn signals/
headlamp flasher39
– refer to Wiper system40
N
Neck support, refer to Head
restraints30
Nets, refer to Storage
compartments71
New tires92
Number of cylinders, refer to
Engine data130
Nylon rope, refer to Tow
rope114
O
OBD socket, refer to Socket for
Onboard Diagnosis98
Octane ratings, refer to Fuel
specifications85
Odometer44
Oil, refer to Engine oil95
Oil consumption95
Oil level95
Old batteries, refer to
Disposal111
Onboard tool kit102
Opening and closing
– convenient access24
– from inside22
– from outside19
– using the door lock21
– via the remote control19
Opening and unlocking
– from inside22
Outlets
– refer to Ventilation68
Outlets, refer to Air vents64
Output, refer to Engine
data130
Outside-air mode
– automatic climate control67
Outside temperature
display44
– changing the unit of
measure47
– on computer47
Overheated engine, refer to
Coolant temperature44
P
Paintwork, care100
Parking
– vehicle36
Parking aid, refer to PDC Park
Distance Control53
Parking brake37
Parking lamps, replacing
bulb104
Parking lamps/low beams59
Parts and accessories, refer to
Your individual vehicle5
