MINI Hardtop 2 Door 2010 User Guide
Manufacturer: MINI, Model Year: 2010, Model line: Hardtop 2 Door, Model: MINI Hardtop 2 Door 2010Pages: 174, PDF Size: 2.96 MB
Page 11 of 174
AT A GLANCE
CONTROLS
DRIVING TIPS
MOBILITY
REFERENCE AT A GLANCE
Page 12 of 174
Cockpit
10
Cockpit
Around the steering wheel: Controls and displays
1Adjusting the exterior mirrors, folding them
in and out
*39
2
Parking lamps74
Low beams74
Automatic
headlamp control
*74
Turn signals48
High beams76
Headlamp flasher48
Roadside parking lamps
*76
Computer
*54
Page 13 of 174
REFERENCE
AT A GLANCE CONTROLS DRIVING TIPS MOBILITY
11
3Always Open Timer55
7Ignition lock44
8Buttons
* on steering wheel
9Horn: the entire surface
10Adjusting the steering wheel40
11Releasing the hood116 4Tachometer12
Instrument lighting77
Resetting the trip odometer53
5
Wiper system49
6Switching the ignition on/off and
starting/stopping the engine44
Continuing cruise control
*51
Right:
Storing speed and accelerating or
decelerating
Left:
Increase or reduce volume
Activating/deactivating cruise
control
*52
Telephone
*:
Accepting and ending a call, start-
ing dialing
* of selected phone
number and redialing if no phone
number is selected
Activating/deactivating voice acti-
vation system
*
Changing radio station
Selecting music track
Scrolling through phone book and
lists with stored phone numbers
Page 14 of 174
Cockpit
12
Displays
1Tachometer53
with indicator and warning lamps13
2Display for
>Clock53
>Outside temperature53
>Current vehicle speed53
>Indicator and warning lamps13
3Resetting the trip odometer534Display for
>Position of automatic transmission
*46
>Computer
*54
>Date of next scheduled service, and
remaining distance to be driven58
>Odometer and trip odometer53
>Initializing the Flat Tire Monitor
*66
>Resetting the Tire Pressure Monitor
*68
>Settings and information56
>Personal Profile settings18
5Instrument lighting77
6Speedometer
with indicator and warning lamps13
7Fuel gauge54
8Radio display, refer to separate Owner's
Manual
9Radio, refer to separate Owner's Manual
Page 15 of 174
REFERENCE
AT A GLANCE CONTROLS DRIVING TIPS MOBILITY
13
Indicator and warning
lamps
The concept
Indicator and warning lamps can light up in var-
ious combinations and colors in indicator area 1
or2.
Some lamps are checked for proper functioning
and thus come on briefly when the engine is
started or the ignition is switched on.
What to do in case of a malfunction
A list of all indicator and warning lamps, as well
as notes on possible causes of malfunctions and
on how to respond, can be found starting on
page140.
Page 16 of 174
Cockpit
14

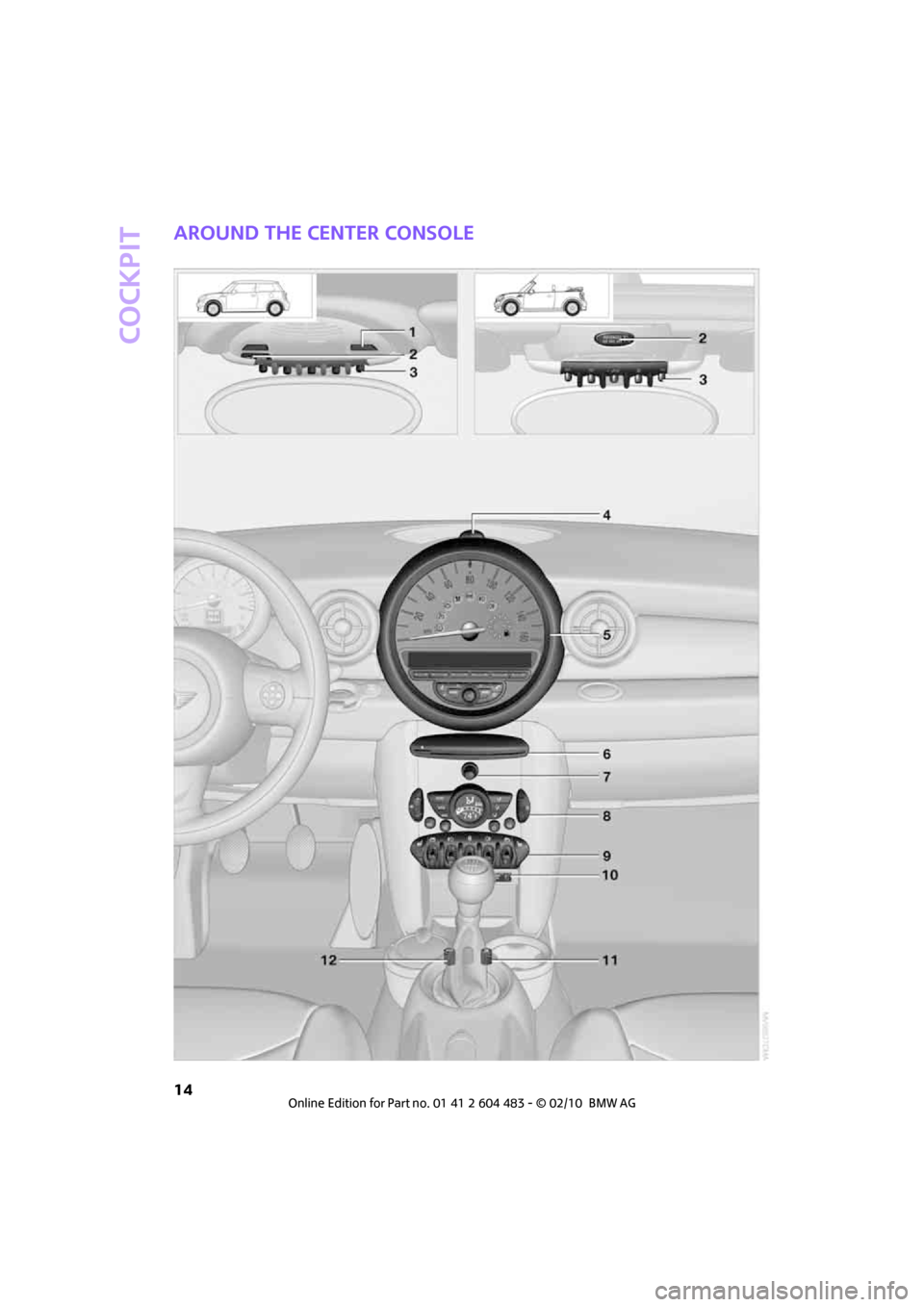

Around the center console
Page 17 of 174
REFERENCE
AT A GLANCE CONTROLS DRIVING TIPS MOBILITY
15
1MINI: microphone for voice processing sys-
tem
* and for hands-free telephone*
MINI Convertible: microphone in the steer-
ing column
2Indicator/warning lamp
* for front passen-
ger airbags72
4Hazard warning flashers
5Speedometer12
6Drive for audio CDs
7Switching audio sources on/off and adjust-
ing volume
8Air conditioner or automatic climate con-
trol
*
9Switches in center console
10AUX-IN port, USB audio interface
*86
11Driving stability control systems
>Dynamic Stability Control DSC64
>Dynamic Traction Control
DTC* 64
12Sport button
*65 3
Reading lamps
*78
Color of ambient lighting
*78
Glass sunroof, electric
*28
MINI Convertible: opening and clos-
ing the sliding/tilting roof30
Interior lamps77
Temperature80, 82
Recirculated-air mode80, 82
Air distribution for air
conditioner81
Air distribution to the
windshield
*82
Air distribution to the upper body
area
*82
Air distribution to the footwell
*82
Automatic air distribution and flow
rate
*82
Maximum cooling
*82
Cooling function80, 83
Defrosting windows
*81, 83
Rear window defroster80, 82
Windshield heating
*81, 83
Air flow rate80, 82
Seat heating
*38
Power windows29
MINI Convertible: central power
window unit29
Rear fog lamp
*77
Fog lamps
*77
Central locking system, inside23
Page 18 of 174
Page 19 of 174
CONTROLS AT A GLANCE
DRIVING TIPS
MOBILITY
REFERENCE CONTROLS
Page 20 of 174
Opening and closing
18
Opening and closing
Keys/remote controls
Remote control
Each remote control contains a rechargeable
battery that is recharged when it is in the igni-
tion lock while the car is being driven. You
should therefore use each remote control at
least twice a year to maintain the charge status.
In vehicles equipped with Comfort Access
*, the
remote control contains a replaceable battery,
page28.
If more than one remote control unit is used, the
settings called up and implemented depend on
which remote control is recognized when the
car is unlocked, refer to Personal Profile,
page18.
In addition, information about service require-
ments is stored in the remote control, refer to
Service data in the remote control, page119.
New remote controls
Your MINI dealer can supply new remote con-
trols as additional units or as replacements in the
event of loss.
Integrated key
Press button1 to release the key.
The integrated key fits the following locks:
>Driver's door, page22.
>MINI Convertible: glove compartment, refer
to page85.
>MINI Convertible: locking the rear seat
backrest95.
Personal Profile
The concept
The functions of your MINI can be set individu-
ally. By means of Personal Profiles, most of these
settings are stored for the remote control cur-
rently in use. When you unlock the car, the
remote control is recognized and the settings
stored for it are called up and implemented.
This means that your settings will be activated
for you, even if in the meantime your car was
used by someone else with another remote con-
trol and the corresponding settings.
At most three remote controls can be set for
three different people. A prerequisite is that
each person uses a separate remote control.
