MINI Roadster 2013 User Guide

At a glanceControlsDriving tipsNavigationEntertainmentCommunicationMobilityReferenceOnline Edition for Part no. 01 40 2 919 017 - II/13

CockpitVehicle equipment
This chapter describes all series equipment as
well as country-specific and special equipment
offered for this model series.Therefore, it alsodescribes equipment that may not be found in
your vehicle, for instance due to the selected
special equipment or the country version. This
also applies to safety-related functions and sys‐
tems.
All around the steering wheel
1Setting the exterior mirror, folding it in and
out   572Parking lamps   85Low beams  85Automatic headlamp con‐
trol   85
Adaptive Light Control   87Turn signal  67High beams   67
Headlamp flasher   67Roadside parking lamps   86Computer  753MINI Roadster, MINI Convertible: Always
Open Timer   774Tachometer   75Seite 12At a glanceCockpit12
Online Edition for Part no. 01 40 2 919 017 - II/13

Instrument lighting  88Trip odometer  745Windshield wipers   676Start/stop the engine and switch
the ignition on/off   647Ignition lock  648Steering wheel buttons, rightResuming cruise control   106Storing the speed and accelerat‐
ing or slowing down   106Activating/deactivating cruise
control   105
Steering wheel buttons, left
VolumeBluetooth hands-free sys‐
tem   182
Bluetooth mobile phone prepara‐
tion package   192Activate/deactivate the voice acti‐
vation system   24
Microphone on the steering col‐
umnChange the radio station
Select a music track
Scroll through the redial list9Horn, the entire surface10Adjust the steering wheel   5811Releasing the hood  237Seite 13CockpitAt a glance13
Online Edition for Part no. 01 40 2 919 017 - II/13

Displays1Tachometer  75
with indicator and warning lamps   152Display for▷Current speed  74▷Indicator/warning lamps   153Resetting the trip odometer   744Display for▷Automatic transmission position   71▷Computer  75▷Service requirements   81▷Odometer and trip odometer   74▷Flat Tire Monitor  93▷Tire Pressure Monitor   93▷Settings and information   77▷Personal Profile settings  315Instrument lighting  886Speedometer with indicator and warning
lamps   157Control Display   188Fuel gauge  75Seite 14At a glanceCockpit14
Online Edition for Part no. 01 40 2 919 017 - II/13

Indicator/warning lamps
The concept
The indicator and warning lamps can light up in
a variety of combinations and colors in display
area 1 or 2.
Several of the lamps are checked for proper
functioning when the engine is started or the
ignition is switched on, and light up briefly.
Text messages
Text messages at the upper edge of the Control
Display explain the meaning of the displayed
indicator and warning lamps.
Supplementary text messages
You can call up more information, e.g., on the
cause of a malfunction and on how to respond,
via Check Control, refer to page 82.
In urgent cases, this information will be shown
as soon as the corresponding lamp comes on.
Indicator lamps without text messages
The following indicator lamps notify you that
certain functions are active:SymbolFunction or systemTurn signal, refer to page 67High beams/headlamp flasher, refer
to page 67Front fog lamps, refer to page 87Rear fog lamp, refer to page 88DSC or DTC is regulating the propul‐
sive forces in order to maintain driv‐
ing stability, refer to page 101The handbrake is set, refer to
page 66Engine malfunction with adverse ef‐
fect on emissions, refer to page 242Cruise control, refer to page 105Seite 15CockpitAt a glance15
Online Edition for Part no. 01 40 2 919 017 - II/13

All around the center console1Hazard warning system2Speedometer with Control Display  143Radio  160
CD/multimedia   1604Air conditioning, automatic climate con‐
trol   1085Buttons on the center consoleSeat heating   55Power windows   41Rear fog lamp  88MINI Convertible: central power
window switch   42Front fog lamps   87Central locking, inside   35Seite 16At a glanceCockpit16
Online Edition for Part no. 01 40 2 919 017 - II/13

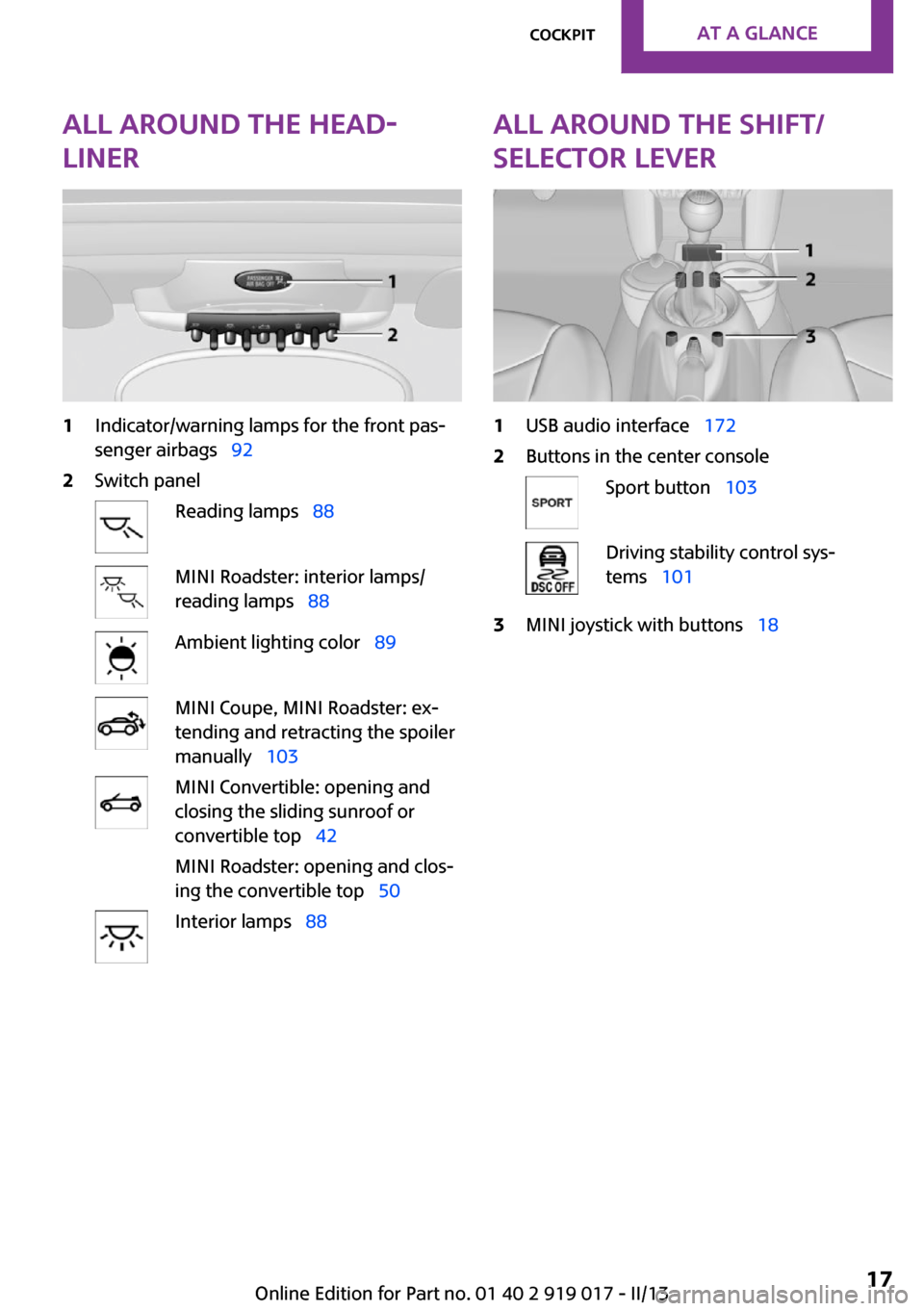

All around the head‐
liner1Indicator/warning lamps for the front pas‐
senger airbags   922Switch panelReading lamps   88MINI Roadster: interior lamps/
reading lamps   88Ambient lighting color   89MINI Coupe, MINI Roadster: ex‐
tending and retracting the spoiler
manually   103MINI Convertible: opening and
closing the sliding sunroof or
convertible top   42
MINI Roadster: opening and clos‐
ing the convertible top   50Interior lamps  88All around the shift/
selector lever1USB audio interface   1722Buttons in the center consoleSport button  103Driving stability control sys‐
tems   1013MINI joystick with buttons   18Seite 17CockpitAt a glance17
Online Edition for Part no. 01 40 2 919 017 - II/13

Onboard monitorVehicle equipmentThis chapter describes all series equipment as
well as country-specific and special equipment
offered for this model series.Therefore, it also
describes equipment that may not be found in
your vehicle, for instance due to the selected
special equipment or the country version. This
also applies to safety-related functions and sys‐
tems.
The concept The onboard monitor combines the functions
of a large number of different switches. Thus,
these functions can be operated from a central
location.
Using the onboard monitor during a trip
To avoid becoming distracted and posing
an unnecessary hazard to your vehicle's occu‐
pants and to other road users, never attempt to
use the controls or enter information unless
traffic and road conditions allow this. ◀
Controls at a glance Controls1Control Display2MINI joystick with buttonsThe buttons can be used to open the me‐
nus directly. The MINI joystick can be used
to select menu items and create settings.
Control Display
Notes
▷To clean the Control Display, follow the care
instructions, refer to page 263.▷Do not place objects close to the Control
Display; otherwise, the Control Display can
be damaged.
Switching off
1.Move the MINI joystick repeatedly to the
right until the "Options" menu appears.2."Switch off control display"
Switching on
Press the MINI joystick to switch on.
Seite 18At a glanceOnboard monitor18
Online Edition for Part no. 01 40 2 919 017 - II/13

MINI joystick with buttonsSelect menu items and create settings.1.Turn, arrow 1.2.Press, arrow 2.3.Move in four directions.
Buttons on the MINI joystick
Press the buttonFunction
Opens the main menu. Changes to another menu.
Operating concept
Start screen In the radio ready state and higher, the follow‐
ing message appears on the Control Display:
To hide the message: press the MINI joystick.
The main menu is displayed.
The message is automatically hidden after ap‐
prox. 10 seconds.
Opening the main menu
Press the button.
The main menu is displayed.
All onboard monitor functions can be called up
via the main menu.
Seite 19Onboard monitorAt a glance19
Online Edition for Part no. 01 40 2 919 017 - II/13

Selecting menu items
Menu items shown in white can be selected.1.Turn the MINI joystick until the desired
menu item is highlighted.2.Press the MINI joystick.
A new menu is displayed or the function is per‐
formed.
With the button on the MINI joystick:
Press the button.
The menu items of the main menu can be
opened consecutively by pressing the button
repeatedly.
Menu items in the Owner's Manual
In the Owner's Manual, menu items that can be
selected are set in quotation marks, e.g.,
"Settings".
Changing between panelsAfter a menu item is selected, e.g., "Radio", a
new panel is displayed. Panels can overlap.
▷Move the MINI joystick to the left.
The current panel is closed and the previ‐
ous panel is displayed.▷Move the MINI joystick to the right.
A new panel is opened on top of the previ‐
ous display.
Arrows pointing to the left or right indicate that
additional panels can be opened.
View of an opened menu
When a menu is opened, it generally opens
with the panel that was last selected in that
menu. To display the first panel of a menu:
Move the MINI joystick to the left repeatedly
until the first panel is displayed.
Opening the Options menu
Move the MINI joystick repeatedly to the right
until the "Options" menu appears.
Options menu
The "Options" menu consists of various areas:
▷Screen settings, e.g., "Switch off control
display".▷Control options for the selected main
menu, e.g., for "Radio".▷If applicable, further operating options for
the selected menu, for instance "Store
station".Seite 20At a glanceOnboard monitor20
