Ambient temperature sensor MITSUBISHI 380 2005 Workshop Manual

ENGINE COMPARTMENT
CONFIGURATION DIAGRAMS80-5
A-22 (2-B) FOG LAMP (LH)
A-23 (2-Y) FRONT IMPACT SENSOR (LH)
A-24 (3-B) RADIATOR AND CONDENSER FAN
CONTROLLER MODULE
A-25 (2-BR) AMBIENT TEMPERATURE SENSOR
A-26 (2-B) HOOD SECURITY SWITCH
A-27 (2-Y) FRONT IMPACT SENSOR (RH)
A-28 (2-B) FOG LAMP (RH)
A-29 (2) WINDSHIELD WASHER MOTORA-30 (3-B) A/C PRESSURE SENSOR
A-32 (6) HEADLAMP COMBINATION (RH)
A-34 (2) FRONT TURN SIGNAL LAMP (RH)
A-35 (2) SIDE TURN SIGNAL LAMP (RH)
A-36 (1-B) HORN (LOW)
A-37 (1-B) HORN (HIGH)
A-38 (2) CONDENSOR FAN CONNECTION
TO CONTROLLER MODULE

HEATER, AIR CONDITIONING AND VENTILATION55-2
AMBIENT TEMPERATURE
SENSOR. . . . . . . . . . . . . . . . . . . . . . .55-162
REMOVAL AND INSTALLATION . . . . . . . . 55-162
INSPECTION . . . . . . . . . . . . . . . . . . . . . . . 55-163
COMPRESSOR ASSEMBLY AND
DRIVE BELT . . . . . . . . . . . . . . . . . . .55-164
REMOVAL AND INSTALLATION . . . . . . . . 55-164
INSPECTION . . . . . . . . . . . . . . . . . . . . . . . 55-166
AIR GAP CHECK . . . . . . . . . . . . . . . . . . . . 55-166
CONDENSER AND CONDENSER
FAN . . . . . . . . . . . . . . . . . . . . . . . . . .55-167
REMOVAL AND INSTALLATION . . . . . . . . 55-167
INSPECTION . . . . . . . . . . . . . . . . . . . . . . . 55-168
DRYER REPLACEMENT . . . . . . . . . . . . . . 55-168
REFRIGERANT LINE . . . . . . . . . . . . .55-170
REMOVAL AND INSTALLATION . . . . . . . . 55-170
O-RING AND PIPE INSTALLATION . . . . . . 55-172
DUCTS . . . . . . . . . . . . . . . . . . . . . . . .55-175
REMOVAL AND INSTALLATION . . . . . . . . 55-175
VENTILATORS . . . . . . . . . . . . . . . . . .55-177
REMOVAL AND INSTALLATION . . . . . . . . 55-177
SPECIFICATIONS . . . . . . . . . . . . . . .55-178
FASTENER TIGHTENING
SPECIFICATIONS. . . . . . . . . . . . . . . . . . . . 55-178
GENERAL SPECIFICATIONS . . . . . . . . . . 55-178
SERVICE SPECIFICATIONS . . . . . . . . . . . 55-178
LUBRICANTS . . . . . . . . . . . . . . . . . . . . . . . 55-178

AUTO A/C DIAGNOSIS
HEATER, AIR CONDITIONING AND VENTILATION55-9
DIAGNOSTIC TROUBLE CODE CHART M1554004900214
During diagnosis, a DTC code associated with
other system may be set when the ignition switch
is turned on with connector(s) disconnected. On
completion of repairs, confirm all systems for
DTC code(s). If DTC code(s) are set, erase them
all.
DIAGNOSTIC
TROUBLE CODE
NO.DIAGNOSTIC ITEM REFERENCE
PA G E
B1001 Interior temperature sensor system (short circuit)
P.55-10
B1002 Interior temperature sensor system (open circuit)
P.55-10
B1011 Ambient air temperature sensor system (short circuit)
P.55-16
B1012 Ambient air temperature sensor system (open circuit)
P.55-16
B1021 Air thermo sensor system (short circuit)
P.55-22
B1022 Air thermo sensor system (open circuit)
P.55-22
B1041 Air mixing damper control motor and potentiometer (potentiometer
system shorted to its power supply)P.55-28
B1042 Air mixing damper control motor and potentiometer (potentiometer
system shorted to its ground)P.55-28
B1045 Air mixing damper control motor and potentiometer (activating
system failure)P.55-35
B1061 Mode selection damper control motor and potentiometer
(potentiometer system shorted to its power supply)P.55-41
B1062 Mode selection damper control motor and potentiometer
(potentiometer system shorted to its ground)P.55-41
B1065 Mode selection damper control motor and potentiometer (activating
system failure)P.55-48
U1073 Bus off
P.55-54
U1100
Electronic control unit time-out (related to engine)P.55-56
U 1111 M u l t i - c e n t e r d i s p l a y u n i t ( m i d d l e g r a d e t y p e ) t i m e - o u t
P.55-60
U1120 Failure information on Electronic control unit (related to engine)
P.55-64

AUTO A/C DIAGNOSIS
HEATER, AIR CONDITIONING AND VENTILATION55-16
DTC B1011, B1012: Ambient Air Temperature Sensor System
If DTC B1011 or B1012 has been set, multi-dis-
play related DTC U1130 is also set. After B1011 or
B1012 has been diagnosed, don't forget to erase
DTC U1130.
.
DTC SET CONDITION
DTC B1011 is set if there is a short circuit in the
ambient air temperature sensor input circuit.
DTC B1012 is set if there is a defective connector
connection, or if there is an open circuit in the
harness.
.
TECHNICAL DESCRIPTION (COMMENT)
Current trouble
The A/C-ECU, the ambient air temperature sen-
sor, or connector(s) or wiring between the two
may be defective.Past trouble
If DTC B1011 or B1012 is stored as a past trou-
ble, carry out diagnosis with particular emphasis
on wiring and connector(s) between the A/C-ECU
and the ambient air temperature sensor. If the
connectors and wiring are normal, and obviously
the ECU is the cause of the trouble, replace the
ECU. If in doubt, do not replace the ECU.
TROUBLESHOOTING HINT
Malfunction of connector.
Malfunction of the harness.
Malfunction of the ambient air temperature sen-
sor.
Malfunction of the A/C-ECU.
Refer to component locations GROUP-70
Refer to configuration diagrams GROUP-80
Refer to circuit diagrams GROUP-90

AUTO A/C DIAGNOSIS
HEATER, AIR CONDITIONING AND VENTILATION55-18
STEP 3. Using diagnostic tool , check data list item 58:
Outside air temperature sensor.
To prevent damage to diagnostic tool , always turn the
ignition switch to the "LOCK" (OFF) position before con-
necting or disconnecting diagnostic tool .
(1) Connect diagnostic tool to the data link connector.
(2) Start the engine.
(3) Set diagnostic tool to the data reading mode for item 58:
Outside air temperature sensor.
Check that the ambient temperature matches the dis-
played value on the diagnostic tool.
NOTE: When this DTC is set and the system is fail-safe sta-
tus, the value of service data displays 20
C.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the sensor within the specified range?
YES : Replace the A/C-ECU. Then go to Step 8.
NO : Go to Step 4.
STEP 4. Check ambient air temperature sensor connector
A-25 for loose, corroded or damaged terminals, or
terminals pushed back in the connector.
Q: Is ambient air temperature sensor connector A-25 in
good condition?
YES : Go to Step 5.
NO : Repair or replace the connector. Refer to GROUP
00E, Harness Connector Inspection P.00E-2. Then go
to Step 8.

AUTO A/C DIAGNOSIS
HEATER, AIR CONDITIONING AND VENTILATION55-19
STEP 5. Check the ambient air temperature sensor.
(1) Disconnect ambient air temperature sensor connector A-25.
(2) Measure the resistance between the sensor terminals
under at least two temperatures. The resistance values
should meet the values shown.
NOTE: The temperature should be within the shown range.
Q: Is the ambient air temperature sensor in good
condition?
YES : Go to Step 6.
NO : Replace the ambient air temperature sensor. Then go
to Step 8.
STEP 6. Check A/C-ECU connector C-15 and C-16 for
loose, corroded or damaged terminals, or terminals
pushed back in the connector.
Q: Are A/C-ECU connectors C-15 and C-16 in good
condition?
YES : Go to Step 7.
NO : Repair or replace the connector. Refer to GROUP
00E, Harness Connector Inspection P.00E-2. Then go
to Step 8.

AUTO A/C DIAGNOSIS
HEATER, AIR CONDITIONING AND VENTILATION55-20

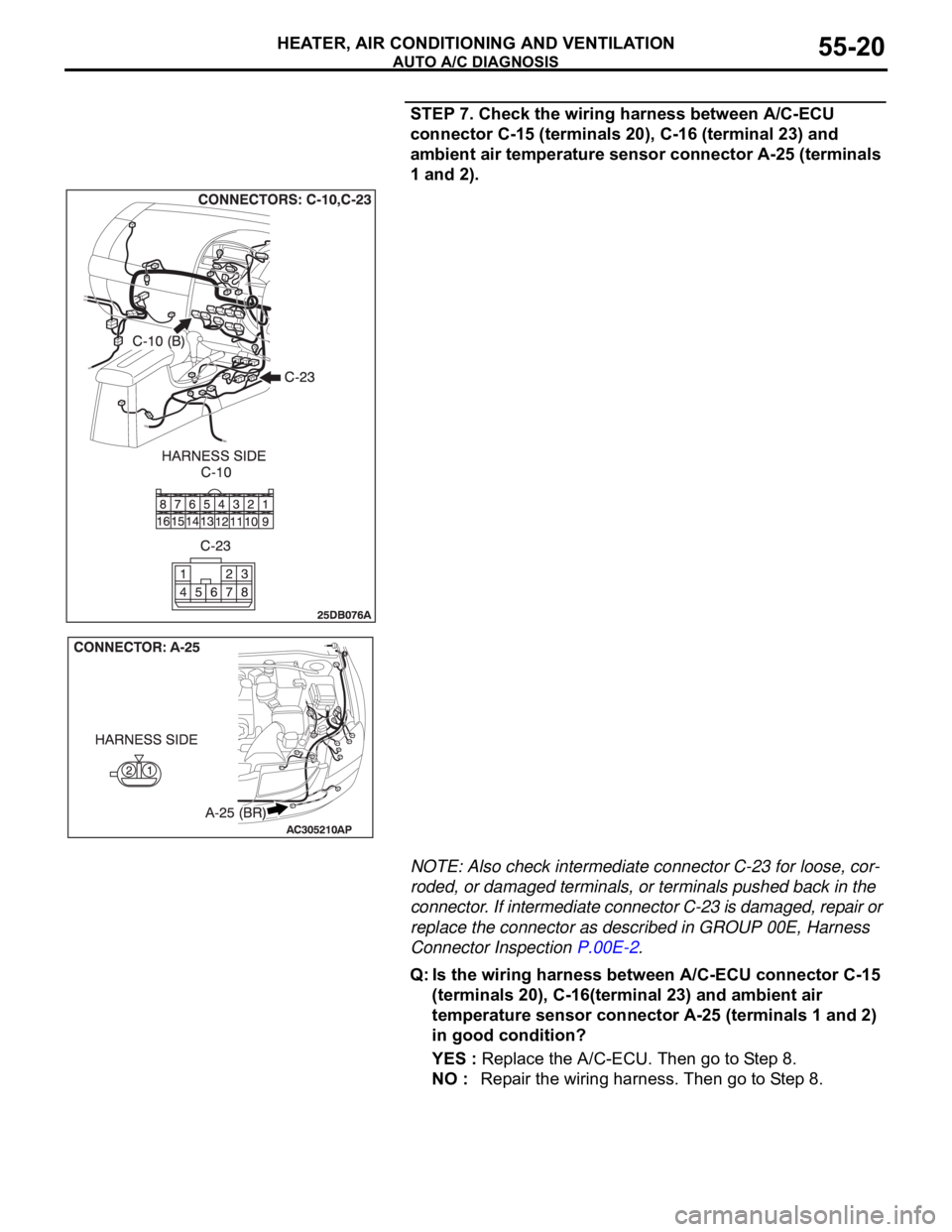

STEP 7. Check the wiring harness between A/C-ECU
connector C-15 (terminals 20), C-16 (terminal 23) and
ambient air temperature sensor connector A-25 (terminals
1 and 2).
NOTE: Also check intermediate connector C-23 for loose, cor-
roded, or damaged terminals, or terminals pushed back in the
connector. If intermediate connector C-23 is damaged, repair or
replace the connector as described in GROUP 00E, Harness
Connector Inspection P.00E-2.
Q: Is the wiring harness between A/C-ECU connector C-15
(terminals 20), C-16(terminal 23) and ambient air
temperature sensor connector A-25 (terminals 1 and 2)
in good condition?
YES : Replace the A/C-ECU. Then go to Step 8.
NO : Repair the wiring harness. Then go to Step 8.

AUTO A/C DIAGNOSIS
HEATER, AIR CONDITIONING AND VENTILATION55-75
INSPECTION PROCEDURE 4: When the A/C is Operating, Temperature Inside the Passenger
Compartment does not Decrease (Cool Air is not Emitted).
.
TECHNICAL DESCRIPTION (COMMENT)
If cool air is not distributed when the A/C switch is on,
the A/C compressor relay system may be defective.
.
TROUBLESHOOTING HINTS
Improper amount of refrigerant
Malfunction of the air thermo sensor
Malfunction of the ambient air temperature sen-
sor
Malfunction of the A/C pressure sensor
Malfunction of the A/C compressor relay
Malfunction of the A/C refrigerant temperature
switch
Malfunction of the air conditioning compressor
clutch
Malfunction of the A/C-ECU
Malfunction of the ECU
Damaged harness wires or connectors
Refer to component locations GROUP-70
Refer to configuration diagrams GROUP-80
Refer to circuit diagrams GROUP-90
DIAGNOSIS
Required Special Tools:
MB991223: Harness Set
: Scan Tool (MUT-III Sub Assembly)

AUTO A/C DIAGNOSIS
HEATER, AIR CONDITIONING AND VENTILATION55-87

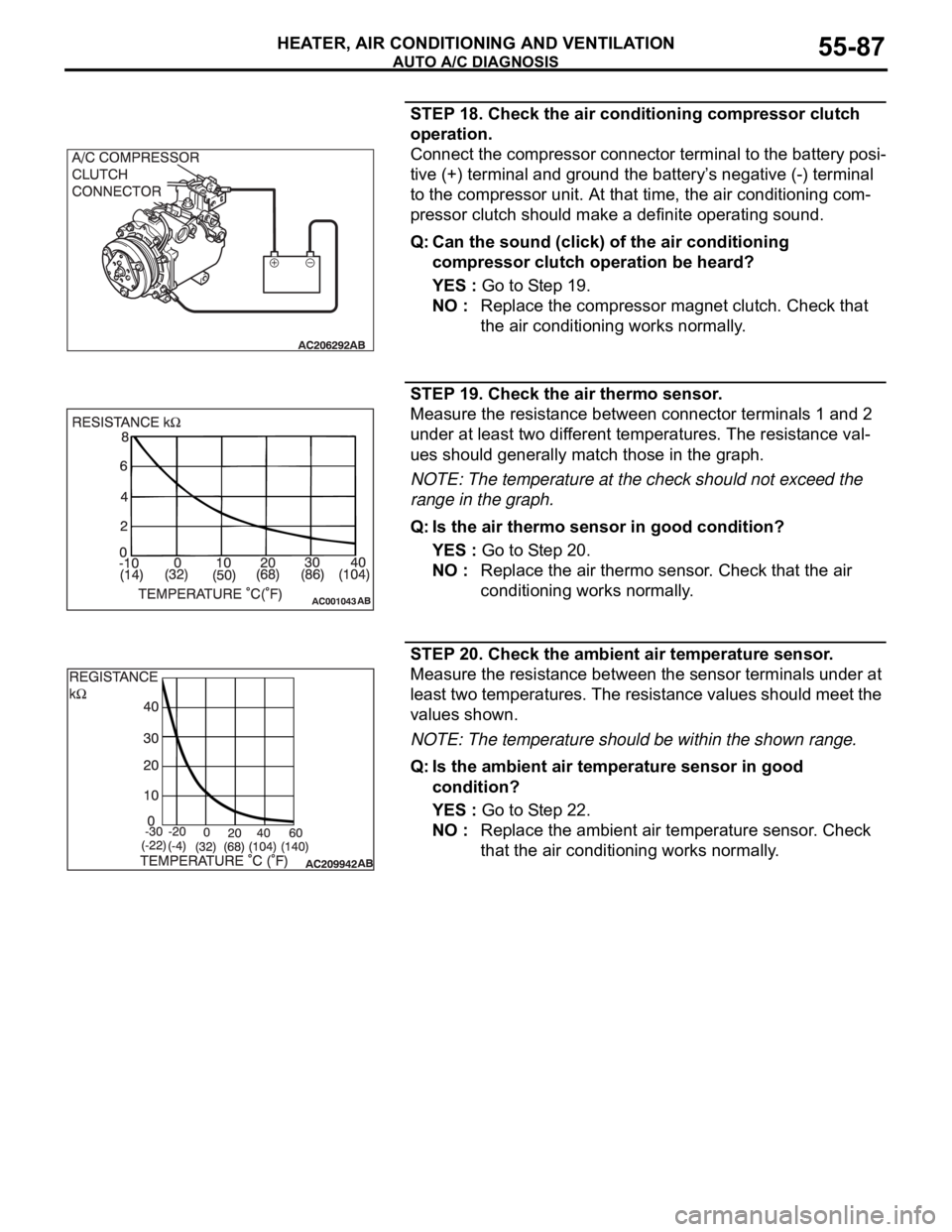

STEP 18. Check the air conditioning compressor clutch
operation.
Connect the compressor connector terminal to the battery posi-
tive (+) terminal and ground the battery’s negative (-) terminal
to the compressor unit. At that time, the air conditioning com-
pressor clutch should make a definite operating sound.
Q: Can the sound (click) of the air conditioning
compressor clutch operation be heard?
YES : Go to Step 19.
NO : Replace the compressor magnet clutch. Check that
the air conditioning works normally.
STEP 19. Check the air thermo sensor.
Measure the resistance between connector terminals 1 and 2
under at least two different temperatures. The resistance val-
ues should generally match those in the graph.
NOTE: The temperature at the check should not exceed the
range in the graph.
Q: Is the air thermo sensor in good condition?
YES : Go to Step 20.
NO : Replace the air thermo sensor. Check that the air
conditioning works normally.
STEP 20. Check the ambient air temperature sensor.
Measure the resistance between the sensor terminals under at
least two temperatures. The resistance values should meet the
values shown.
NOTE: The temperature should be within the shown range.
Q: Is the ambient air temperature sensor in good
condition?
YES : Go to Step 22.
NO : Replace the ambient air temperature sensor. Check
that the air conditioning works normally.

AUTO A/C DIAGNOSIS
HEATER, AIR CONDITIONING AND VENTILATION55-104
INSPECTION PROCEDURE 7: The A/C Indicator Flashes.
.
TECHNICAL DESCRIPTION (COMMENT)
If the A/C indicator flashes, inadequate refrigerant
quantity, the ambient air temperature sensor circuit
or the A/C pressure sensor circuit is suspected.
.
TROUBLESHOOTING HINTS
Malfunction of the A/C pressure sensor
Malfunction of the ambient air temperature sen-
sor
Malfunction of the A/C-ECU
Refer to component locations GROUP-70
Refer to configuration diagrams GROUP-80
Refer to circuit diagrams GROUP-90
DIAGNOSIS
Required Special Tools:
MB991223: Test Harness Set
: Scan Tool (MUT-III Sub Assembly)
MB991824: Vehicle Communication Interface (V.C.I.)
MB991827: MUT-III USB Cable
MB991910: MUT-III Main Harness A (Vehicles with CAN
communication system)
STEP 1. Using scan tool , read the diagnostic trouble code.
Check if an A/C-ECU DTC is set.
(1) Connect scan tool to the data link connector.
(2) Turn the ignition switch to the "ON" position.
(3) Check if the DTC is set.
(4) Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the check result satisfactory?
YES : Go to Step 2.
NO : Refer to DIAGNOSTIC TROUBLE CODE CHART
P.55-9.
