INSTRUMENT PANEL ASSEMBLY
INTERIOR52A-4
INSTRUMENT PANEL ASSEMBLY
REMOVAL AND INSTALLATIONM1521001700684
Refer to GROUP 52B, SRS Service Precautions P.52B-16 and Air bag Module and Clock Spring
P.52B-237 before removing the passenger side air bag module.
Do not subject the SRS-ECU to any shocks when removing or installing the instrument panel.
The following bolts and screws are used for installing the instrument panel. Bolts and screws are indicated as
marks shown in the illustration in the sections of "Removal and Installation" and "Disassembly and Assem-
bly."
NAME SYMBOL SIZE (D
L) mm COLOR SHAPE
TAPPING SCREW a 5
12 BLACK
b5
16 -
c5
20 -
d5
20 BLACK
e6
16 GREEN
f8
15 -
WASHER
ASSEMBLY BOLTg6
16 -
h6
25 -
i6
16 -

INSTRUMENT PANEL ASSEMBLY
INTERIOR52A-5
REMOVAL STEPS
1. GLOVEBOX ASSEMBLY
2. INSTRUMENT PANEL PARCEL
BOX
3. GLOVEBOX LOCKHOOD LOCK RELEASE HANDLE
(REFER TO GROUP 42, HOOD
P.42-8.)
4. INSTRUMEN LOWER PANEL
5. INSTURMENT CENTER PANEL
ASSEMBLY REMOVAL STEPS (Continued)

INSTRUMENT PANEL ASSEMBLY
INTERIOR52A-6
6. RADIO AND CD PLAYER,
ASSEMBLY
7. RADIO, CD PLAYER AND CD
CHANGER ASSEMBLY
8. CONSOLE METER HOOD
11. MULTI-CENTER DISPLAY
ASSEMBLY
12. INSTRUMENT DIGITAL CLOCK
ASSEMBLY
13. CENTER CONSOLE ASSEMBLY
14. INSTURMENT PANEL GARNISH
15. COMBINATION METER
ASSEMBLY
FRONT PILLAR TRIM (REFER TO
P.52A-11.)
16. FRONT SPEAKER GARNISH
17. TWEETER
18. INSTRUMENT PANEL SIDE
COVER
19. INSTRUMETN PANEL SIDE AIR
OUTLET
AIR BAG MODULE ASSEMBLY
(DRIVER’S SIDE) (REFER TO
GROUP 52B, AIR BAG MODULE
AND CLOCK SPRING P.52B-237.)
STEERING WHEEL ASSEMBLY
(REFER TO GROUP 37,
STEERING WHEEL P.37-23.)
20. STEERING COLUMN COVERREMOVAL STEPS (Continued)
<>CLOCK SPRING CONNECTOR
<>COLUMN SWITHC CONNECTOR
CLOCK SPRING AND COLUMN
SWITCH ASSEMBLY (REFER TO
GROUP 37, STEERING SHAFT
P.37-25.)
21. INTERIOR TEMPERATURE
SENSOR (GROUP 55B,
SENSORS 55-160.)
22. INSTRUMENT PANEL FRONT
END GARNISH
23. PHOTO SENSOR (GROUP 55B,
SENSORS 55-160.) AND
SECURITY LED.
FLOOR CONSOLE ASSEMBLY
(REFER TO P.52A-10.)
COWL SIDE TRIM (REFER TO
P.52A-11.)
<>AIR BAG MODULE CONNECTOR
(PASSENGER’S SIDE) (REFER
TO GROUP 52B, AIR BAG
MODULE AND CLOCK SPRING
P.52B-237.)
25. INSTRUMENT PANEL ASSEMBLYREMOVAL STEPS (Continued)

INSTRUMENT PANEL ASSEMBLY
INTERIOR52A-7

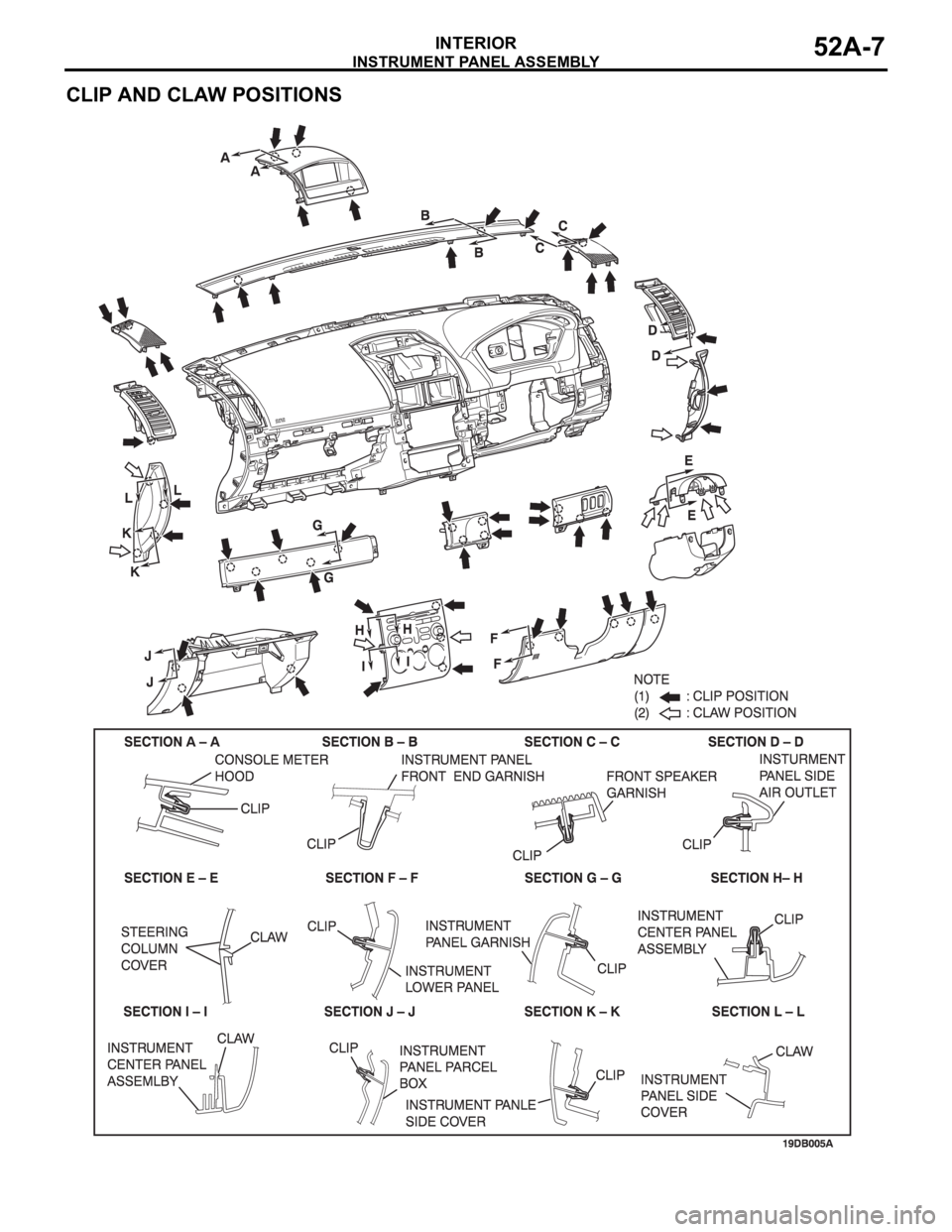

CLIP AND CLAW POSITIONS

INSTRUMENT PANEL ASSEMBLY
INTERIOR52A-8
REMOVAL SERVICE POINT
.
<> CONNECTOR DISCONNECTION
Disconnect the connectors shown in the illustration.
1. CLOCK SPRING CONNECTOR (6)
2. CLOCK SPRING CONNECTOR (4-Y)
3. COLUMN SWITCH CONNECTOR (10)
4. AIR BAG MODULE (FRONT PASSENGER’S SIDE)
CONNECTOR (4-Y)

INSTRUMENT PANEL ASSEMBLY
INTERIOR52A-9
DISASSEMBLY AND ASSEMBLYM1521001900376
DISASSEMBLY STEPS
1. DISTRIBUTION DUCT. REAR
CONSOLE DUCTS REFER TO
GROUP 55 HEATER ,AIR
CONDITIONING AN
VENTILATION P.55-175
2. BACKBONE BRACKET3. AIR BAG MODULE ASSEMBLY
(FRONT PASSENGER’S SIDE)
(REFER TO GROUP 52B, AIR
BAG MODULE(S) AND CLOCK
SPRING P.52B-237.)
4. SIDE DEFROSTER DUCT
5. DEFROSTER NOZZLE
6. COMBINATION METER BRACKET
7. GLOVEBOX STRIKER
8. INSTRUMENT PANELDISASSEMBLY STEPS

HEADLINING
INTERIOR52A-19
HEADLINING
REMOVAL AND INSTALLATIONM1521001400360
Pre-removal and Post-installation Operation
Front Seat Assembly (Refer to P.52A-21.)
Removal and Installation of Rear Seat Cushion Assembly
and Rear Seatback Assembly (Refer to P.52A-55.)
Removal and Installation of Front Pillar Trim, Center Pillar
Trim Upper and Rear Pillar Trim (Refer to P.52A-11.)
REMOVAL STEPS
1. SUN VISOR
2. SUN VISOR HOLDER
3. OVERHEAD CONSOLE
ASSEMBLY
4. DOME LIGHT ASSEMBLY (REFER
TO GROUP 54A, DOME LIGHT
P.54A-163.)
5. ASSIST GRIP PLUG
6. ROOF INSIDE ASSIST GRIP
ASSIST GRIP>
7. SUNROOF OPENING TRIM
8. ROOF HARNESS CLAMP
INSTRUMENT PANEL SIDE
COVER (REFER TO P.52A-4.)
9. ROOF HARNESS CONNECTOR
FLOOR CONSOLE ASSEMBLY
(REFER TO P.52A-10.)
PARKING BRAKE LEVER
ASSEMBLY MOUNTING BOLT
(REFER TO GROUP 36, PARKING
BRAKE LEVER P.36-6.)
<>10. HEADLINING ASSEMBLY
11. OVERHEAD CONSOLE BRACKET
12. FRONT HEADLINING PAD REMOVAL STEPS (Continued)

DASH PANEL
CONFIGURATION DIAGRAMS80-10
DASH PANELM1801000601147
C-02 (22) J/C (3)
C-04 (4) PHOTO SENSOR AND
SECURITY LED
C-05 (20-B) MULTI CENTRE DISPLAY UNIT
C-06 (4) CLOCK DISPLAY CENTRE DISPLAY>
C-07 (2) CLUTCH SWITCH (M/T)
C-08 (4) HAZARD WARNING LIGHT SWITCH
C-11 (2) INSTRUMENT PANEL WIRING
HARNESS AND FRONT WIRING
HARNESS COMBINATIONC-12 (22) INSTRUMENT PANEL WIRING
HARNESS AND FRONT DOOR
WIRING HARNESS (RH)
COMBINATION
C-13 (8) INSTRUMENT PANEL WIRING
HARNESS AND FLOOR WIRING
HARNESS COMBINATION
C-15 (20-B) A/C-ECU
C-16 (16-B) A/C-ECU
C-17 (2) ACCESSORY SOCKET (1)

DASH PANEL
CONFIGURATION DIAGRAMS80-11
C-21 (2) TRUNK OPEN SWITCH
C-24 (6-B) ACCELERATOR PEDAL POSITION
SENSOR
C-25 (16) FRONT WIRING HARNESS AND
FLOOR WIRING HARNESS
COMBINATION
C-26 (14) INSTRUMENT PANEL WIRING
HARNESS AND FRONT DOOR
WIRING HARNESS (LH)
COMBINATION
C-27 (4) INSTRUMENT PANEL WIRING
HARNESS AND ROOF WIRING
HARNESS COMBINATIONC-28 (43) INSTRUMENT PANEL WIRING
HARNESS AND FLOOR WIRING
HARNESS COMBINATION
C-29 (38) INSTRUMENT PANEL WIRING
HARNESS AND FRONT WIRING
HARNESS COMBINATION
C-30 (4) STOPLAMP SWITCH
C-32 (6) MODE SELECT SWITCH
