MITSUBISHI ASX 2014 Owner's Manual (in English)

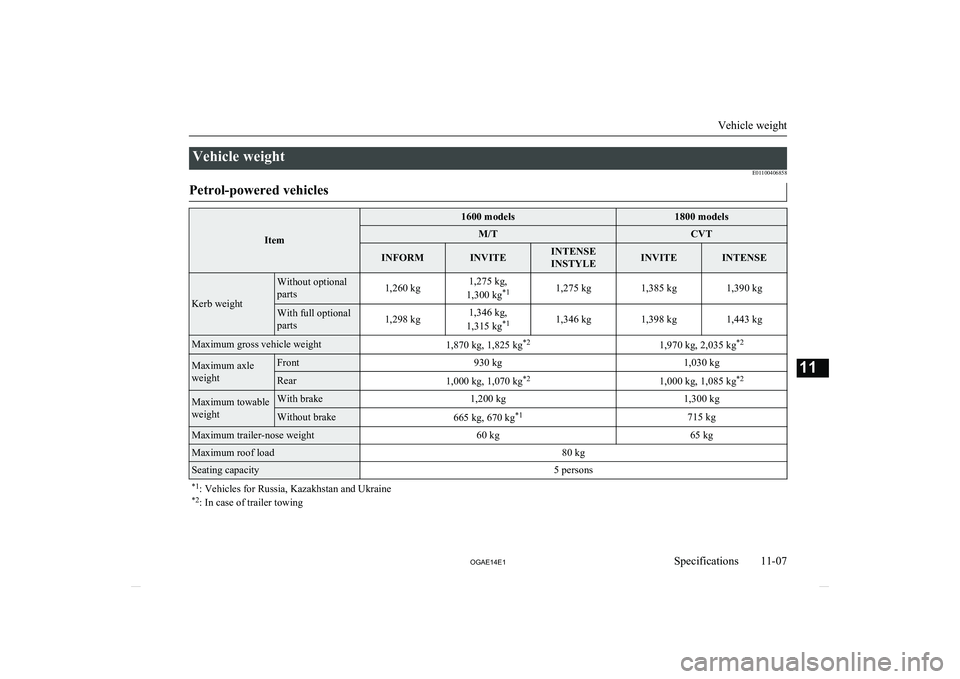

Vehicle weightE01100406858Petrol-powered vehicles
Item
1600 models1800 modelsM/TCVTINFORMINVITEINTENSE
INSTYLEINVITEINTENSE
Kerb weight
Without optional
parts1,260 kg1,275 kg,
1,300 kg *11,275 kg1,385 kg1,390 kgWith full optional
parts1,298 kg1,346 kg,
1,315 kg *11,346 kg1,398 kg1,443 kgMaximum gross vehicle weight1,870 kg, 1,825 kg *21,970 kg, 2,035 kg *2Maximum axle
weightFront930 kg1,030 kgRear1,000 kg, 1,070 kg *21,000 kg, 1,085 kg *2Maximum towable
weightWith brake1,200 kg1,300 kgWithout brake665 kg, 670 kg *1715 kgMaximum trailer-nose weight60 kg65 kgMaximum roof load80 kgSeating capacity5 persons*1
: Vehicles for Russia, Kazakhstan and Ukraine
*2 : In case of trailer towing
Vehicle weight
11-07
OGAE14E1Specifications11

NOTElTrailer specifications indicate the manufacturer’s recommendation.

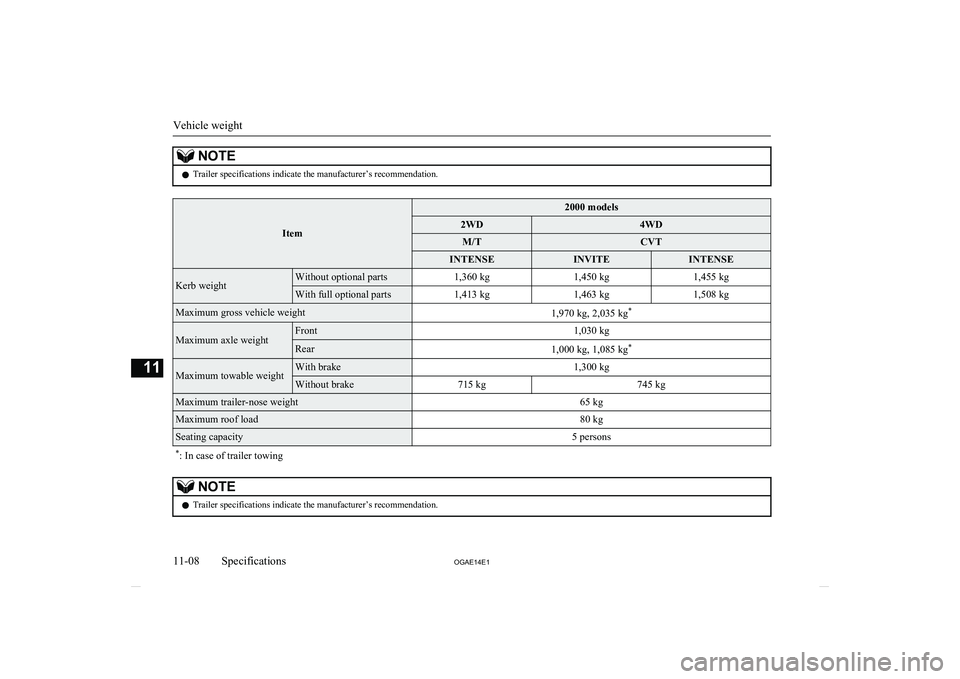

Item
2000 models2WD4WDM/TCVTINTENSEINVITEINTENSEKerb weightWithout optional parts1,360 kg1,450 kg1,455 kgWith full optional parts1,413 kg1,463 kg1,508 kgMaximum gross vehicle weight1,970 kg, 2,035 kg *Maximum axle weightFront1,030 kgRear1,000 kg, 1,085 kg*Maximum towable weightWith brake1,300 kgWithout brake715 kg745 kgMaximum trailer-nose weight65 kgMaximum roof load80 kgSeating capacity5 persons*
: In case of trailer towingNOTEl Trailer specifications indicate the manufacturer’s recommendation.
Vehicle weight
11-08
OGAE14E1Specifications11

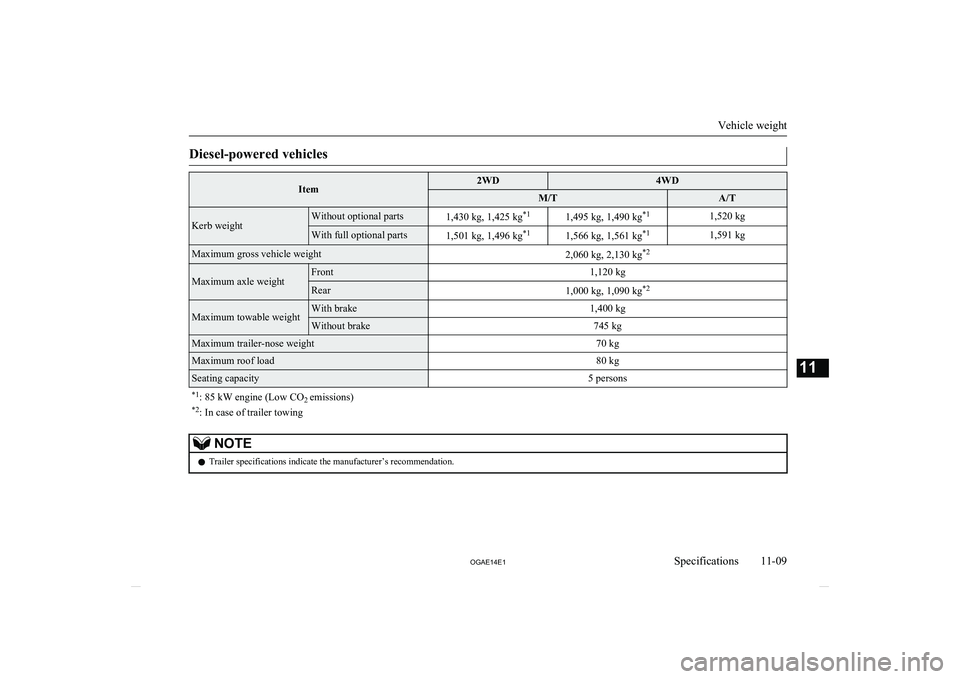

Diesel-powered vehiclesItem2WD4WDM/TA/TKerb weightWithout optional parts1,430 kg, 1,425 kg*11,495 kg, 1,490 kg*11,520 kgWith full optional parts1,501 kg, 1,496 kg*11,566 kg, 1,561 kg*11,591 kgMaximum gross vehicle weight2,060 kg, 2,130 kg*2Maximum axle weightFront1,120 kgRear1,000 kg, 1,090 kg*2Maximum towable weightWith brake1,400 kgWithout brake745 kgMaximum trailer-nose weight70 kgMaximum roof load80 kgSeating capacity5 persons*1
: 85 kW engine (Low CO 2 emissions)
*2 : In case of trailer towingNOTEl Trailer specifications indicate the manufacturer’s recommendation.

Vehicle weight
11-09
OGAE14E1Specifications11

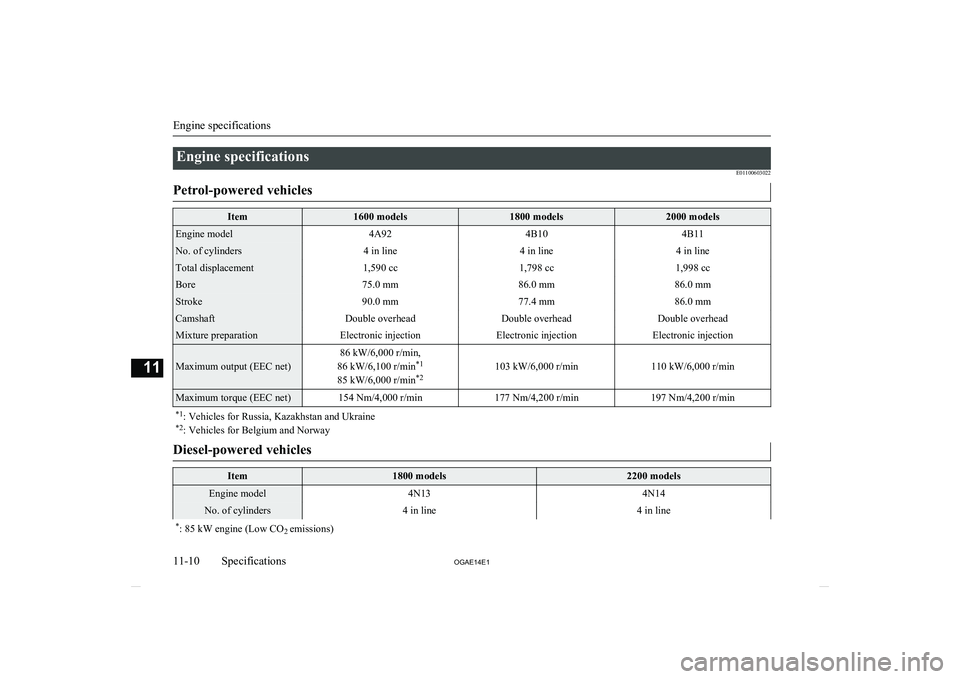

Engine specificationsE01100603022Petrol-powered vehiclesItem1600 models1800 models2000 modelsEngine model4A924B104B11No. of cylinders4 in line4 in line4 in lineTotal displacement1,590 cc1,798 cc1,998 ccBore75.0 mm86.0 mm86.0 mmStroke90.0 mm77.4 mm86.0 mmCamshaftDouble overheadDouble overheadDouble overheadMixture preparationElectronic injectionElectronic injectionElectronic injection
Maximum output (EEC net)
86 kW/6,000 r/min,
86 kW/6,100 r/min *1
85 kW/6,000 r/min *2
103 kW/6,000 r/min110 kW/6,000 r/min
Maximum torque (EEC net)154 Nm/4,000 r/min177 Nm/4,200 r/min197 Nm/4,200 r/min*1
: Vehicles for Russia, Kazakhstan and Ukraine
*2 : Vehicles for Belgium and NorwayDiesel-powered vehiclesItem1800 models2200 modelsEngine model4N134N14No. of cylinders4 in line4 in line*: 85 kW engine (Low CO 2 emissions)
Engine specifications
11-10
OGAE14E1Specifications11

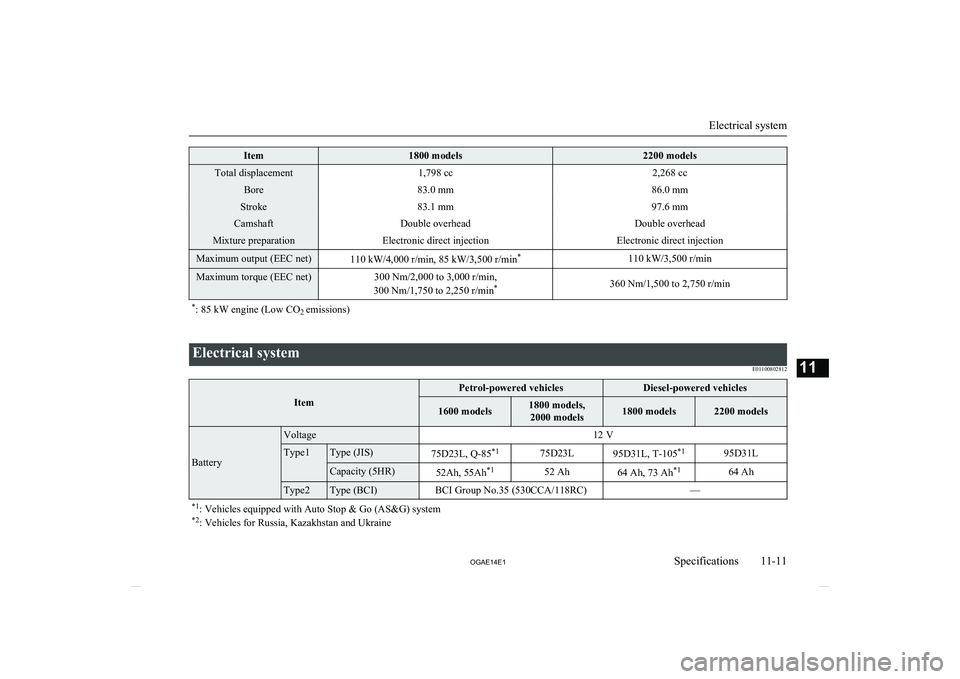

Item1800 models2200 modelsTotal displacement1,798 cc2,268 ccBore83.0 mm86.0 mmStroke83.1 mm97.6 mmCamshaftDouble overheadDouble overheadMixture preparationElectronic direct injectionElectronic direct injectionMaximum output (EEC net)110 kW/4,000 r/min, 85 kW/3,500 r/min*110 kW/3,500 r/minMaximum torque (EEC net)300 Nm/2,000 to 3,000 r/min,
300 Nm/1,750 to 2,250 r/min *360 Nm/1,500 to 2,750 r/min*
: 85 kW engine (Low CO 2 emissions)

Electrical system
E01100802812Item
Petrol-powered vehiclesDiesel-powered vehicles1600 models1800 models,2000 models1800 models2200 models
Battery
Voltage12 VType1Type (JIS)75D23L, Q-85 *175D23L95D31L, T-105 *195D31LCapacity (5HR)52Ah, 55Ah*152 Ah64 Ah, 73 Ah *164 AhType2Type (BCI)BCI Group No.35 (530CCA/118RC)—*1
: Vehicles equipped with Auto Stop & Go (AS&G) system
*2 : Vehicles for Russia, Kazakhstan and Ukraine
Electrical system
11-11
OGAE14E1Specifications11

Item

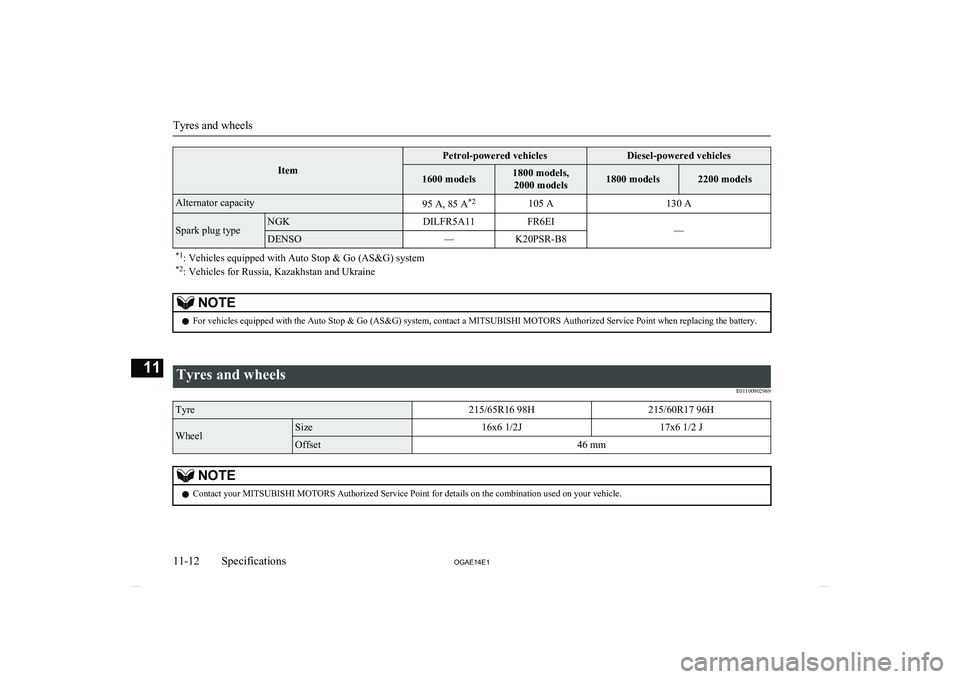

Petrol-powered vehiclesDiesel-powered vehicles1600 models1800 models,2000 models1800 models2200 modelsAlternator capacity95 A, 85 A *2105 A130 ASpark plug typeNGKDILFR5A11FR6EI—DENSO—K20PSR-B8*1
: Vehicles equipped with Auto Stop & Go (AS&G) system
*2 : Vehicles for Russia, Kazakhstan and UkraineNOTEl For vehicles equipped with the Auto Stop & Go (AS&G) system, contact a MITSUBISHI MOTORS Authorized Service Point when replacing the battery.

Tyres and wheels
E01100902969Tyre215/65R16 98H215/60R17 96HWheelSize16x6 1/2J17x6 1/2 JOffset46 mmNOTElContact your MITSUBISHI MOTORS Authorized Service Point for details on the combination used on your vehicle.

Tyres and wheels
11-12
OGAE14E1Specifications11

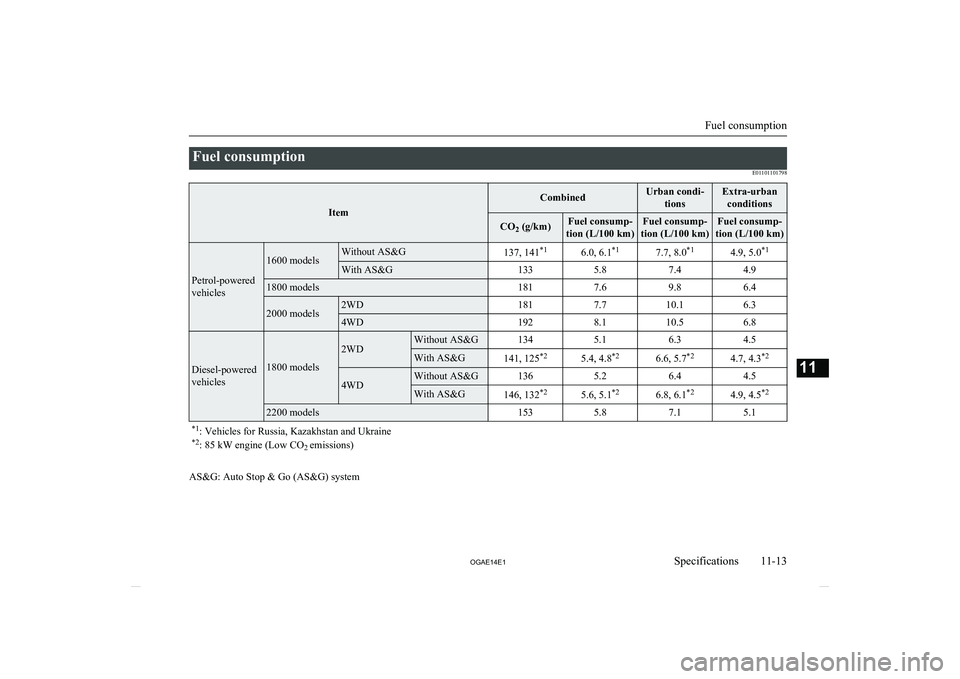

Fuel consumptionE01101101798
Item
CombinedUrban condi-tionsExtra-urbanconditionsCO 2 (g/km)Fuel consump-
tion (L/100 km)Fuel consump-
tion (L/100 km)Fuel consump-
tion (L/100 km)
Petrol-powered
vehicles
1600 modelsWithout AS&G137, 141 *16.0, 6.1*17.7, 8.0*14.9, 5.0*1With AS&G1335.87.44.91800 models1817.69.86.42000 models2WD1817.710.16.34WD1928.110.56.8
Diesel-powered
vehicles1800 models
2WDWithout AS&G1345.16.34.5With AS&G141, 125 *25.4, 4.8*26.6, 5.7*24.7, 4.3*24WDWithout AS&G1365.26.44.5With AS&G146, 132 *25.6, 5.1*26.8, 6.1*24.9, 4.5*22200 models1535.87.15.1*1
: Vehicles for Russia, Kazakhstan and Ukraine
*2 : 85 kW engine (Low CO 2 emissions)

AS&G: Auto Stop & Go (AS&G) system
Fuel consumption
11-13
OGAE14E1Specifications11

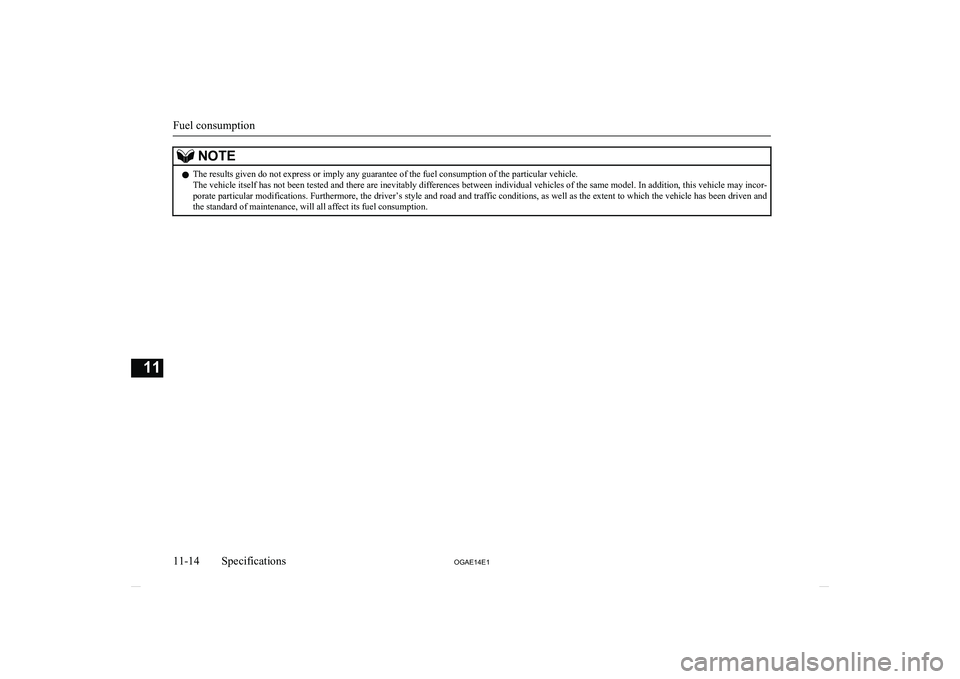

NOTElThe results given do not express or imply any guarantee of the fuel consumption of the particular vehicle.
The vehicle itself has not been tested and there are inevitably differences between individual vehicles of the same model. In addition, this vehicle may incor- porate particular modifications. Furthermore, the driver’s style and road and traffic conditions, as well as the extent to which the vehicle has been driven and the standard of maintenance, will all affect its fuel consumption.

Fuel consumption
11-14 OGAE14E1Specifications11

Refill capacitiesE01101305743
Refill capacities
11-15

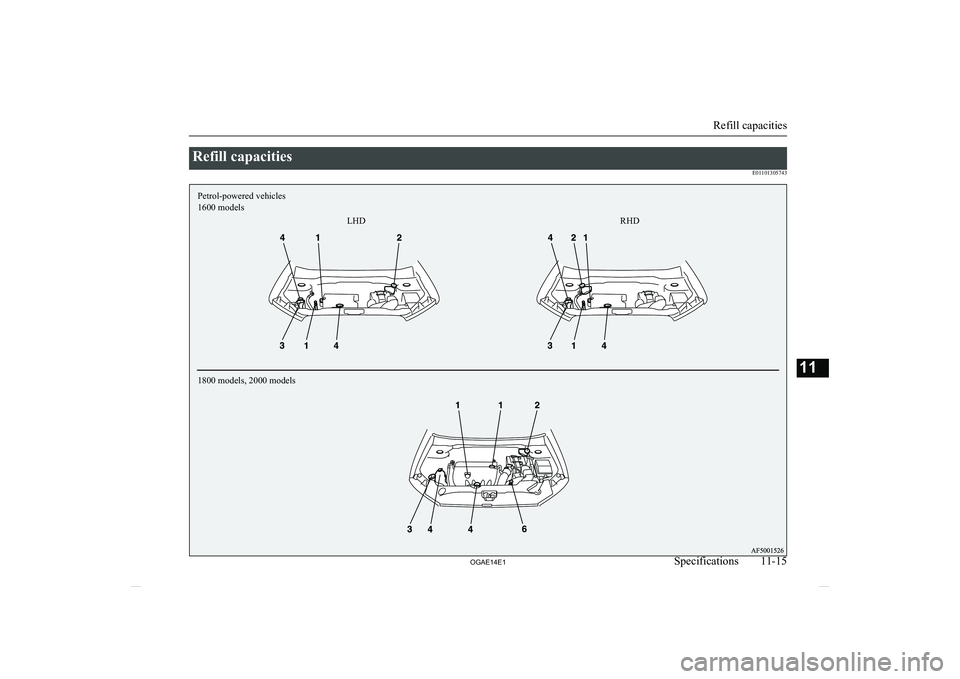

OGAE14E1Specifications11Petrol-powered vehicles 1600 modelsRHD
LHD
1800 models, 2000 models

Refill capacities

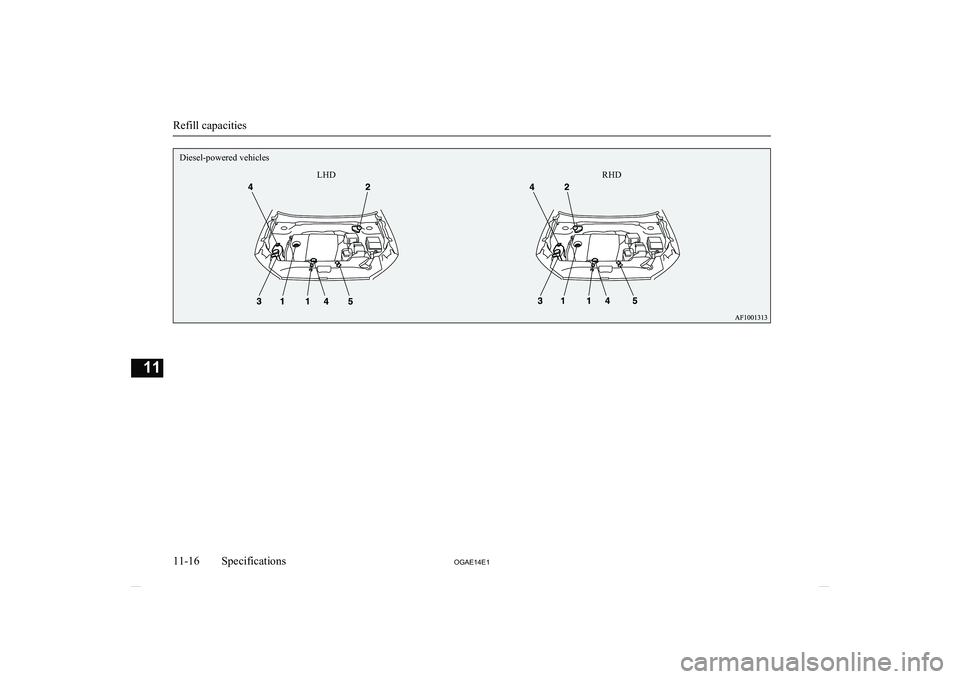

11-16OGAE14E1Specifications11Diesel-powered vehiclesLHD RHD
