MITSUBISHI ASX 2014 Owner's Manual (in English)
Manufacturer: MITSUBISHI, Model Year: 2014, Model line: ASX, Model: MITSUBISHI ASX 2014Pages: 418, PDF Size: 14.02 MB

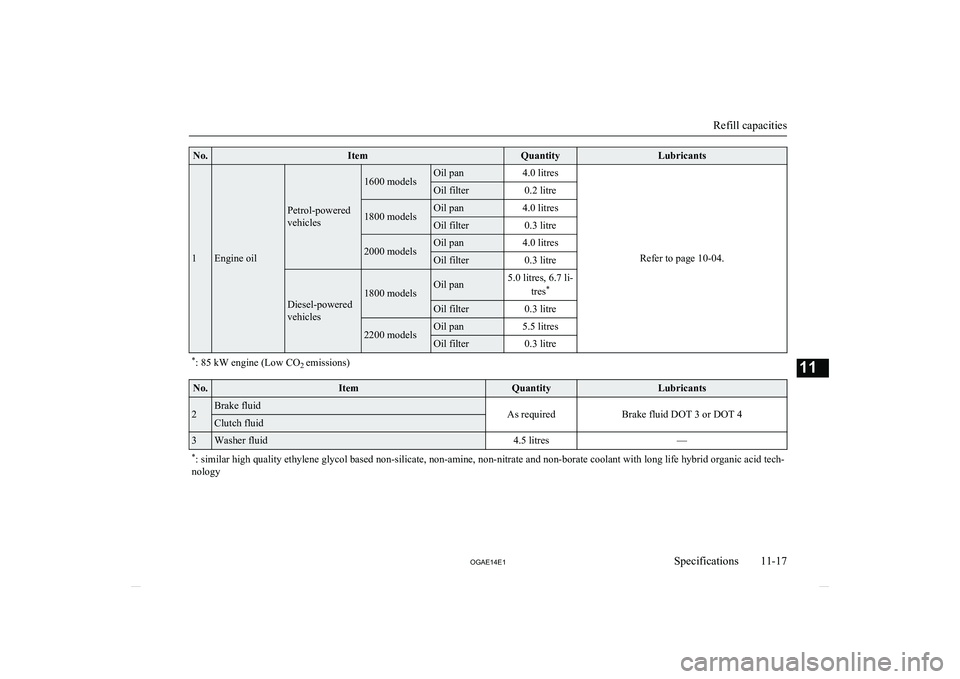

Page 401 of 418
No.ItemQuantityLubricants
1Engine oil
Petrol-powered
vehicles
1600 modelsOil pan4.0 litres
Refer to page 10-04.
Oil filter0.2 litre1800 modelsOil pan4.0 litresOil filter0.3 litre2000 modelsOil pan4.0 litresOil filter0.3 litre
Diesel-powered
vehicles1800 modelsOil pan5.0 litres, 6.7 li-
tres*Oil filter0.3 litre2200 modelsOil pan5.5 litresOil filter0.3 litre*
: 85 kW engine (Low CO 2 emissions)No.ItemQuantityLubricants2Brake fluidAs requiredBrake fluid DOT 3 or DOT 4Clutch fluid3Washer fluid4.5 litres—*
: similar high quality ethylene glycol based non-silicate, non-amine, non-nitrate and non-borate coolant with long life hybrid organic acid tech-
nology
Refill capacities
11-17
OGAE14E1Specifications11

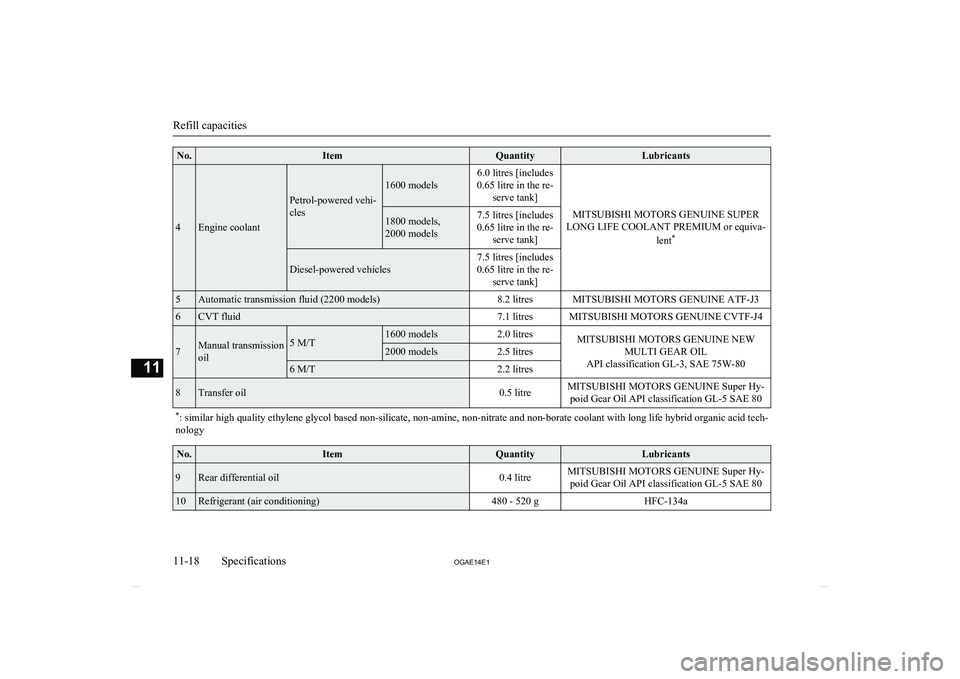

Page 402 of 418
No.ItemQuantityLubricants
4Engine coolant
Petrol-powered vehi-
cles
1600 models
6.0 litres [includes
0.65 litre in the re- serve tank]
MITSUBISHI MOTORS GENUINE SUPER
LONG LIFE COOLANT PREMIUM or equiva-
lent*
1800 models,
2000 models7.5 litres [includes
0.65 litre in the re- serve tank]
Diesel-powered vehicles
7.5 litres [includes
0.65 litre in the re- serve tank]5Automatic transmission fluid (2200 models)8.2 litresMITSUBISHI MOTORS GENUINE ATF-J36CVT fluid7.1 litresMITSUBISHI MOTORS GENUINE CVTF-J4
7Manual transmission
oil5 M/T1600 models2.0 litresMITSUBISHI MOTORS GENUINE NEW MULTI GEAR OIL
API classification GL-3, SAE 75W-802000 models2.5 litres6 M/T2.2 litres8Transfer oil0.5 litreMITSUBISHI MOTORS GENUINE Super Hy- poid Gear Oil API classification GL-5 SAE 80* : similar high quality ethylene glycol based non-silicate, non-amine, non-nitrate and non-borate coolant with long life hybrid organic acid tech-
nologyNo.ItemQuantityLubricants9Rear differential oil0.4 litreMITSUBISHI MOTORS GENUINE Super Hy- poid Gear Oil API classification GL-5 SAE 8010Refrigerant (air conditioning)480 - 520 gHFC-134a
Refill capacities
11-18 OGAE14E1Specifications11
Page 403 of 418
4
4-wheel drive operation.....................................6-39A
Accessory (Installation).....................................2-04
Accessory socket............................................... 7-71
Active stability control (ASC)...........................6-50
Additional equipment...................................... 10-19
Air conditioning................................................ 7-03 Important operation tips for the airconditioning................................................. 7-11
Air purifier.........................................................7-12
Airbag................................................................ 4-24
Antenna............................................................. 7-46
Anti-lock brake system (ABS).......................... 6-46 Display.......................................................... 6-47
Warning lamp................................................6-47
Ashtray.............................................................. 7-70
Assist grips........................................................ 7-80
Audio CD player...................................................... 7-12
LW/MW/FM radio........................................ 7-12
Steering wheel audio remote con- trol switches................................................. 7-25
Troubleshooting............................................ 7-44
Auto Stop & Go (AS&G) system......................6-18
Automatic transmission Fluid............................................................ 11-15
Selector lever operation........................ 6-25,6-31
Selector lever position.......................... 6-27,6-33
Sports mode.......................................... 6-28,6-34
B
Battery............................................................. 10-08
Charge warning lamp.................................... 5-45
Discharged battery (Emergency starting)..... 8-02
Disposal information for used batteries........ 2-06
Specification............................................... 11-11
Bluetooth® 2.0 interface................................... 7-47
Bonnet............................................................. 10-03
Bottle holder...................................................... 7-79
Brake assist system............................................6-45
Brake Anti-lock brake............................................. 6-46
Braking.......................................................... 6-43
Fluid.................................................. 10-08,11-15
Parking brake................................................ 6-06
Bulb capacity................................................... 10-26
C
Capacities........................................................ 11-15
Card holder................................................7-69,7-77
Cargo loads........................................................6-64
Catalytic converter.......................................... 10-02
Cautions on handling of 4-wheel drive vehicles................................................... 6-42
CD player.......................................................... 7-12
Central door locks............................................. 3-26
Charge warning lamp........................................ 5-45
Chassis number............................................... 11-02
Check engine warning lamp.............................. 5-44
Child restraint.................................................... 4-15
Caution for installing the child re- straint on vehicles with a front
passenger airbag.................................. 4-15,4-27
Child-protection rear doors............................... 3-30
Cigarette lighter................................................. 7-70
Cleaning
Exterior of your vehicle................................ 9-03
Interior of your vehicle................................. 9-02
Clutch
Fluid............................................................ 10-08
Coat hook.......................................................... 7-80
Combination headlamps and dipper switch...... 5-47
Coolant (engine)....................................10-06,11-15
Cruise control.................................................... 6-52
Cup holder......................................................... 7-78
D
Daytime running lampsReplacement................................................ 10-32
Demister (rear window).................................... 5-61
Diesel particulate filter (DPF)........................... 6-16Digital clock Time Setting.................................................. 7-41
Dimensions...................................................... 11-05
Dipper (High/Low beam change)......................5-50
Doors Central door locks......................................... 3-26Child-protection............................................ 3-30 Dead Lock System........................................ 3-27
Lock and unlock............................................ 3-25
Driving, alcohol and drugs................................ 6-03
Alphabetical index
11- 1
OGAE14E1Alphabetical index
Page 404 of 418
E
Economical driving........................................... 6-02
Electric power steering system (EPS)............... 6-49
Electric window control.................................... 3-39
Electrical system............................................. 11-11
Electronic immobilizer (Anti-theft starting system)................................................ 3-03
Electronically controlled 4WD system............. 6-37
Emergency starting............................................8-02
Emergency stop signal system.......................... 6-46
Engine specifications.......................................11-10
Engine switch.................................................... 3-13
Engine Coolant..............................................10-06,11-15
Number....................................................... 11-03
Oil............................................................... 10-04
Oil and filter................................................ 11-15
Overheating................................................... 8-04
Specifications.............................................. 11-10
Used engine oils safety instructions and disposal information............................. 2-05
Exterior and interior lamp operation............... 10-18
F
Fluid capacities and lubricants........................ 11-15
Fluid Automatic transmission fluid...................... 11-15
Brake fluid........................................ 10-08,11-15
Clutch fluid................................................. 10-08
CVT fluid.................................................... 11-15
Engine coolant.................................. 10-06,11-15
Power steering fluid.................................... 11-15
Twin Clutch SST fluid................................ 11-15
Washer fluid..................................... 10-07,11-15
For cold and snowy weather............................10-18
Front fog lamps Bulb capacity.............................................. 10-26
Replacement................................................ 10-31
Switch........................................................... 5-55
Front room lamp
Bulb capacity.............................................. 10-27
Front seat........................................................... 4-03
Front turn-signal lamps Bulb capacity.............................................. 10-26
Replacement................................................ 10-30
Fuel consumption............................................ 11-13
Fuel Filling the fuel tank....................................... 2-03Fuel selection................................................ 2-02Modification/alterations to the electrical or fuel systems............................. 2-05
Tank capacity................................................ 2-03
Fuses................................................................ 10-19
Fusible links.................................................... 10-19
G
General maintenance....................................... 10-18
General vehicle data........................................ 11-05
Genuine parts.....................................................2-05
Glove box lamp Bulb capacity.............................................. 10-27
H
Hazard warning flasher switch.......................... 5-54
Hazard warning indication lamps......................5-43
Head restraints................................................... 4-07
Headlamp levelling switch................................ 5-52
Headlamp washer switch...................................5-61
Headlamps Bulb capacity.............................................. 10-26
Headlamp flasher.......................................... 5-50 Replacement..................................... 10-27,10-28Switch........................................................... 5-47
Heated mirror.................................................... 6-11
Heated seats....................................................... 4-06
Heater................................................................ 7-03
High-mounted stop lamp Bulb capacity.............................................. 10-27
Replacement................................................ 10-36
Hill start assist................................................... 6-44
Hinges and latches lubrication........................ 10-18
Horn switch....................................................... 5-62
I
If the vehicle breaks down................................ 8-02
Ignition switch................................................... 6-11
Indication lamps................................................ 5-43
Information screen display................................ 5-45
Inside rear-view mirror......................................6-08
Inside tailgate release........................................ 3-31
Inspection and maintenance following rough road operation........................................ 6-41
Instruments........................................................ 5-02
Interior lamps.................................................... 7-72 Map lamps..................................................... 7-73
Alphabetical index
11- 2 OGAE14E1Alphabetical index
Page 405 of 418
J
Jack.................................................................... 8-06Storage.......................................................... 8-06
Jump starting (Emergency starting).................. 8-02
K
Key slot............................................................. 3-20
Keyless entry system.................................3-04,3-22
Keyless operation system.................................. 3-07
Keys...................................................................3-02
L
Labeling...........................................................11-02
Lamp monitor buzzer........................................ 5-50
Leakage (Fuel, engine coolant, oil and exhaust gas)............................................. 10-18
Licence plate lamps Bulb capacity.............................................. 10-27
Replacement................................................ 10-36
Link System.......................................................7-46
Lubricants........................................................ 11-15
Luggage hooks.................................................. 7-81
Luggage room lamp.......................................... 7-73 Bulb capacity.............................................. 10-27
LW/MW/FM radio............................................ 7-12
M
Making a luggage compartment........................ 4-08
Manual transmission......................................... 6-22
Map lamps.................................................7-72,7-73 Bulb capacity.............................................. 10-27
Mirror
Inside rear-view mirror................................. 6-08
Outside rear-view mirrors............................. 6-09
Modification/alterations to the electri- cal or fuel systems............................................2-05
Multi-information display................................. 5-03
O
OilEngine oil.................................................... 10-04Manual transmission oil.............................. 11-15Rear differential oil..................................... 11-15
Transfer oil.................................................. 11-15
Operation mode................................................. 3-14
Operation under adverse driving conditions..... 8-24
Outside rear-view mirrors................................. 6-09
Overheating....................................................... 8-04
P
Parking.............................................................. 6-07Parking brake................................................ 6-06
Position lamps
Bulb capacity.............................................. 10-26
Replacement................................................ 10-30
Power steering
Fluid............................................................ 11-15
Precautions to observe when using wipers and washers.......................................... 5-61
Pregnant women restraint.................................. 4-14
Puncture Tyre changing............................................... 8-13
Tyre repair kit............................................... 8-07
R
Rear combination lampsBulb capacity.............................................. 10-27
Replacement................................................ 10-34
Rear differential oil......................................... 11-15
Rear fog lamp Bulb capacity.............................................. 10-27
Replacement..................................... 10-33,10-34
Switch........................................................... 5-55
Rear room lamp
Bulb capacity.............................................. 10-27
Rear shelf panel................................................. 7-79
Rear turn-signal lamps Bulb capacity.............................................. 10-27
Replacement................................................ 10-34
Rear window demister switch........................... 5-61
Rear-view camera..............................................6-61
Rear-view mirror Inside............................................................. 6-08
Outside.......................................................... 6-09
Refill capacities............................................... 11-15
Replacement of lamp bulbs............................. 10-25
Reversing lamps
Bulb capacity.............................................. 10-27
Replacement................................................ 10-34
Reversing sensor system................................... 6-57
Roof carrier precaution......................................6-65
Room lamp (front).............................................7-72
Room lamp (rear).............................................. 7-73
Running-in recommendations........................... 6-04
Alphabetical index
11- 3
OGAE14E1Alphabetical index
Page 406 of 418
S
Safe driving techniques..................................... 6-03
Seat belt............................................................. 4-09 Adjustable seat belt anchor........................... 4-11
Child restraint................................................4-15
Force limiter.................................................. 4-15
Inspection...................................................... 4-24
Pregnant women restraint............................. 4-14
Pretensioner...................................................4-14
Seat
Adjustment.................................................... 4-03
Front seat....................................................... 4-03
Head restraints.............................................. 4-07
Heated seats.................................................. 4-06
Making a luggage compartment....................4-08
Rear seat........................................................ 4-06
Security alarm system....................................... 3-32
Service precaution........................................... 10-02
Side turn-signal lamp Bulb capacity.............................................. 10-26
Side turn-signal lamps
Replacement................................................ 10-31
Snow tyres....................................................... 10-15
Spare wheel....................................................... 8-14
Spark plug....................................................... 11-11
Specifications.................................................. 11-02
Starting.............................................................. 6-13
Starting and stopping the engine....................... 3-17
Steering Power steering fluid.................................... 11-15
Steering wheel height and reach adjustment. 6-08
Steering wheel lock.............................. 3-16,6-13
Stop and tail lamps
Replacement................................................ 10-34
Stop lamps
Bulb capacity.............................................. 10-25
Storage spaces................................................... 7-75
Sun visors.......................................................... 7-69
Sunshade............................................................3-41
Sunshade illumination....................................... 7-74
Supplemental restraint system...........................4-24 Servicing....................................................... 4-36
T
Tachometer........................................................ 5-02
Tail lamps Bulb capacity.............................................. 10-27
Replacement................................................ 10-34
Tailgate.............................................................. 3-30
Tank capacity.................................................... 2-03
Time Setting...................................................... 7-41
Tissue holder..................................................... 7-78
Tools.................................................................. 8-06 Storage.......................................................... 8-06
Towing.............................................................. 8-20
Trailer towing.................................................... 6-66
Transfer oil...................................................... 11-15
Transmission Automatic transmission........................ 6-25,6-31Manual transmission..................................... 6-22
Turbocharger operation..................................... 6-18
Turn-signal indication lamps.............................5-43
Turn/Lane-change signals................................. 5-54
Twin Clutch SST (Sport Shift Transmission) Fluid............................................................ 11-15
Tyres................................................................ 10-12
How to change a tyre.................................... 8-13Inflation pressures....................................... 10-13
Rotation....................................................... 10-14
Size (tyre and wheel).................................. 11-12
Snow tyres................................................... 10-15
Tread wear indicators.................................. 10-13
Tyre chains.................................................. 10-15
Tyre repair kit............................................... 8-07
U
USB input terminal............................................7-66
USB input terminal device How to connect a USB memory device........ 7-66
How to connect an iPod................................ 7-67
Used engine oils safety instructions and disposal information..................................2-05
V
Vanity mirror lampBulb capacity.............................................. 10-27
Vehicle care precautions................................... 9-02
Vehicle dimensions......................................... 11-05
Vehicle identification number plate................ 11-03
Vehicle information code plate....................... 11-03
Vehicle labeling...............................................11-02
Vehicle performance....................................... 11-06
Vehicle weight.................................................11-07
Ventilators......................................................... 7-02
Alphabetical index
11- 4 OGAE14E1Alphabetical index
Page 407 of 418

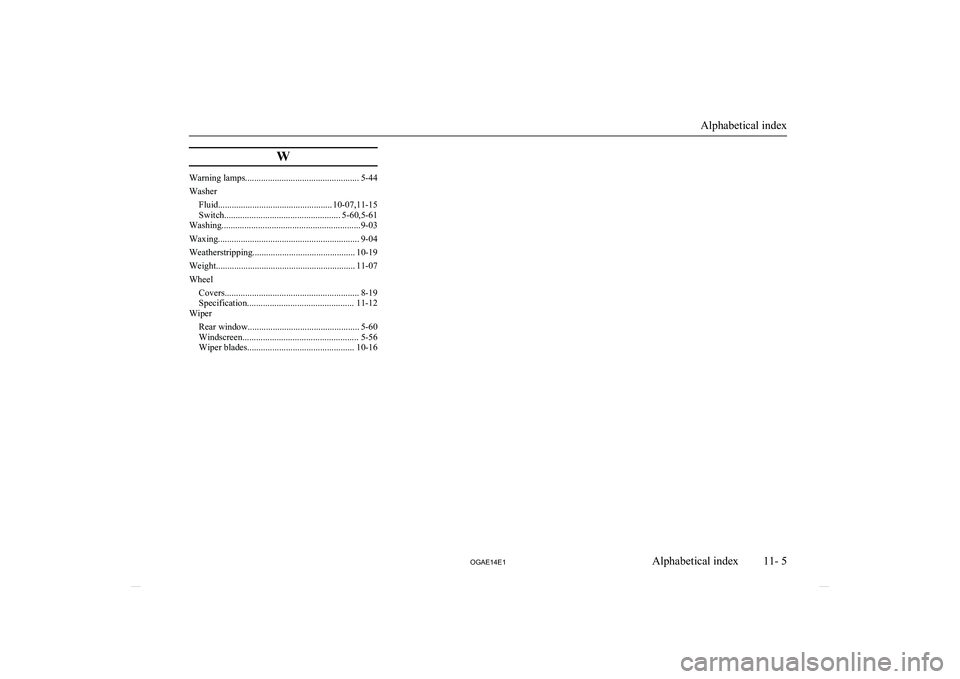

W
Warning lamps.................................................. 5-44
Washer Fluid.................................................. 10-07,11-15
Switch................................................... 5-60,5-61
Washing.............................................................9-03
Waxing.............................................................. 9-04
Weatherstripping............................................. 10-19
Weight............................................................. 11-07
Wheel Covers........................................................... 8-19
Specification............................................... 11-12
Wiper
Rear window................................................. 5-60
Windscreen................................................... 5-56
Wiper blades............................................... 10-16Alphabetical index
11- 5
OGAE14E1Alphabetical index
Page 408 of 418
12- 6OGAE14E1Declaration of Conformity
Page 409 of 418
12- 7
OGAE14E1Declaration of Conformity
Page 410 of 418
12- 8OGAE14E1Declaration of Conformity
