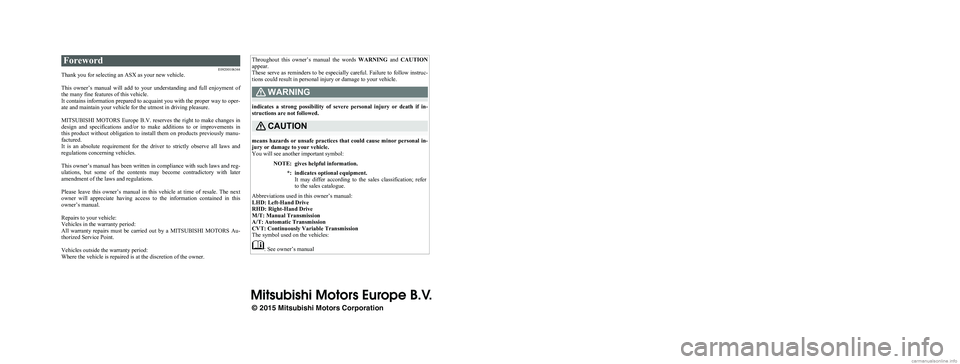

Foreword
E09200106344
Thank you for selecting an ASX as your new vehicle.
This owner’s
manual will add to your understanding and full enjoyment of
the many fine features of this vehicle.
It contains information prepared to acquaint you with the proper way to oper-
ate and maintain your vehicle for the utmost in driving pleasure.
MITSUBISHI MOTORS Europe B.V. reserves the right to make changes in
design and specifications and/or to make additions to or improvements in
this product without obligation to install them on products previously manu- factured.
It is an absolute requirement for the driver to strictly observe all laws and
regulations concerning vehicles.
This owner’s manual has been written in compliance with such laws and reg-
ulations, but some of the contents may become contradictory with later amendment of the laws and regulations.
Please leave this owner’s manual in this vehicle at time of resale. The next
owner will appreciate having access to the information contained in this
owner’s manual.
Repairs to your vehicle:
Vehicles in the warranty period:
All warranty repairs must be carried out by a MITSUBISHI MOTORS Au- thorized Service Point.
Vehicles outside the warranty period:
Where the vehicle is repaired is at the discretion of the owner. Throughout this owner’s manual the words
WARNING and CAUTION
appear.
These
serve as reminders to be especially careful. Failure to follow instruc-
tions could result in personal injury or damage to your vehicle. WARNING
indicates a strong possibility of severe personal injury or death if in- structions are not followed. CAUTION
means hazards or unsafe practices that could cause minor personal in-
jury or damage to your vehicle.
You will see another important symbol: NOTE: gives helpful information.
*: indicates optional equipment.It may
differ according to the sales classification; refer
to the sales catalogue.
Abbreviations used in this owner’s manual:
LHD: Left-Hand Drive
RHD: Right-Hand Drive
M/T : Manual Transmission
A/T: Automatic Transmission
CVT: Continuously Variable Transmission
The symbol used on the vehicles: : See owner’s manual Information for station service
E09300104149 Fuel Capacity
Petrol-powered vehicles 2WD models
58 litres
*1
63 litres *2
4WD models 60 litres
Diesel-powered vehicles 60 litres Fuel requirements
Petrol-powered vehicles
Unleaded petrol octane number (EN228)1600 models, 1800 models: 95 RON or higher
2000 models: 90 RON or higher
Diesel-powered vehicles Cetane number (EN590): 51 or higher
Refer to the “General information” section for the fuel selection. Engine oil
Refer to the “Maintenance” section for the selection of engine oil. Tyre inflation pressure
Refer to the “Maintenance” section for the tyre inflation pressure.
*1 : For vehicles with vehicle identification numbers that begin with “4”
*2 : For vehicles with vehicle identification numbers that begin with “J” CAUTION
l Diesel-powered vehicles are designed to use only diesel fuel that meets the EN 590 standard.
Use of any other type of diesel fuel can adversely affect the engine. NOTE
l
For the location of the vehicle identification number, refer to “Vehicle identification number” on page 11-02. © 2015 Mitsubishi Motors Corporation
15 OGAE15E5
BLO-15-000456
Page 3 of 452

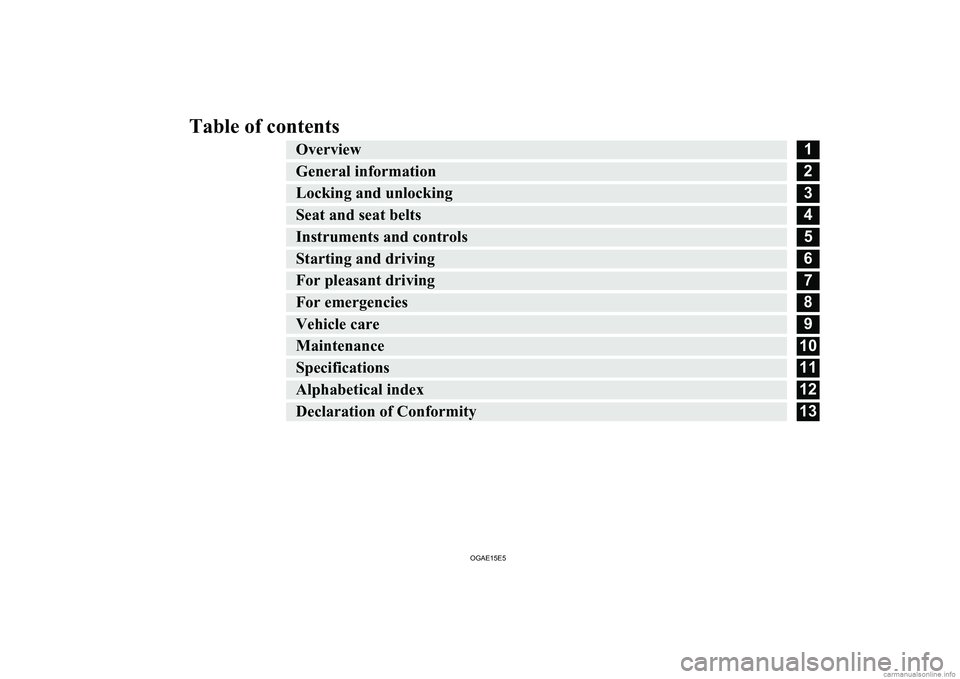

Table of contents
Overview
1
General information
2
Locking and unlocking
3
Seat and seat belts
4
Instruments and controls
5
Starting and driving
6
For pleasant driving
7
For emergencies
8
Vehicle care
9
Maintenance
10
Specifications
11
Alphabetical index
12
Declaration of Conformity
13
OGAE15E5
Page 4 of 452

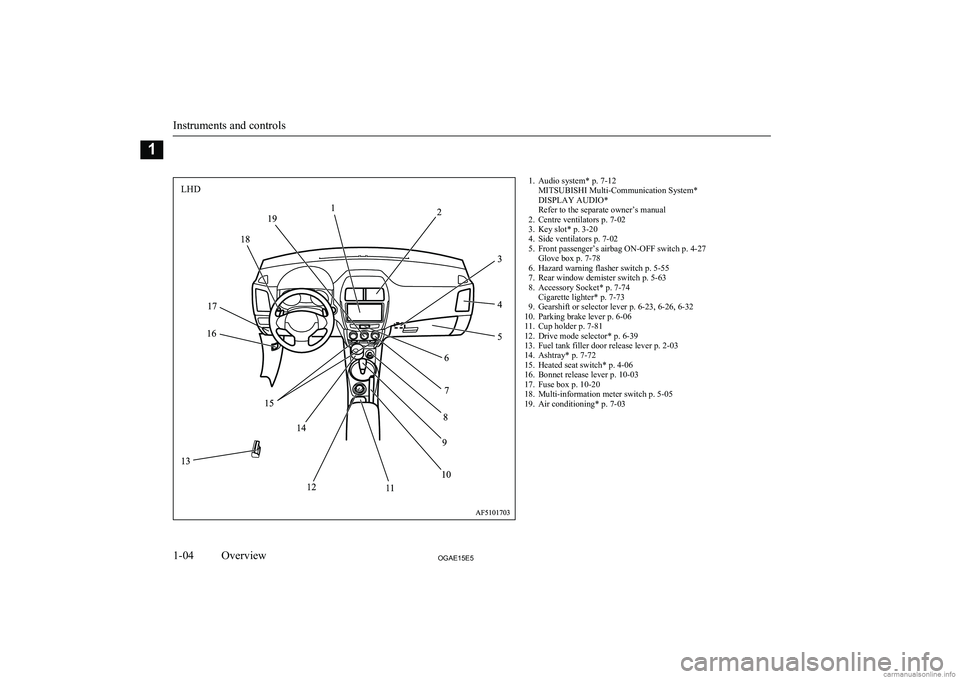

Instruments and controlsE001001086631. Combination headlamps and dipper switch p. 5-48Turn-signal lever p. 5-55
Front fog lamp switch* p. 5-56
Rear fog lamp switch p. 5-56
Headlamp washer switch* p. 5-62
2. Instruments p. 5-02
3. Shift paddles* p. 6-36
4. Windscreen wiper and washer switch p. 5-57 Rear window wiper and washer switch p. 5-61
5. Engine switch* p. 3-13
6. Cruise control switch* p. 6-54
7. Ignition switch* p. 6-12
8. Supplemental restraint system - driver’s knee airbag* p. 4-29
9. Supplemental restraint system - airbag (for driver’s seat) p. 4-24, 4-29
Horn switch p. 5-63
10. Tilt & Telescopic steering lever p. 6-08
11. Bluetooth® 2.0 interface* p. 7-48
12. Steering wheel audio remote control switches* p. 7-24
13. Sonar switch* p. 6-66
14. Active stability control (ASC) OFF switch* p. 6-52
15. Headlamp levelling switch* p. 5-54
16. Auto Stop & Go (AS&G) OFF switch* p. 6-22
Instruments and controls
1-02OGAE15E5Overview11516
13
14 1
2
34
5 6
7
8
9
10
11
12
LHD
Page 5 of 452
1. Instruments p. 5-02
2. Combination headlamps and dipper switch p. 5-48 Turn-signal lever p. 5-55
Front fog lamp switch* p. 5-56
Rear fog lamp switch p. 5-56
Headlamp washer switch* p. 5-62
3. Auto Stop & Go (AS&G) OFF switch* p. 6-22
4. Headlamp levelling switch* p. 5-54
5. Active stability control (ASC) OFF switch* p. 6-52
6. Sonar switch* p. 6-66
7. Cruise control switch* p. 6-54
8. Supplemental restraint system - airbag (for driver’s seat) p. 4-24, 4-29
Horn switch p. 5-63
9. Ignition switch* p. 6-12
10. Supplemental restraint system - driver’s knee airbag* p. 4-29
11. Bluetooth® 2.0 interface* p. 7-48
12. Steering wheel audio remote control switches* p. 7-24
13. Tilt & Telescopic steering lever p. 6-08
14. Engine switch* p. 3-13
15. Windscreen wiper and washer switch p. 5-57 Rear window wiper and washer switch p. 5-61
16. Shift paddles* p. 6-36
Instruments and controls
1-03OGAE15E5Overview12
1
16
15
14 13
12 11 10 98
7 5
6
3
4
RHD
Page 6 of 452
1. Audio system* p. 7-12MITSUBISHI Multi-Communication System*
DISPLAY AUDIO*
Refer to the separate owner’s manual
2. Centre ventilators p. 7-02
3. Key slot* p. 3-20
4. Side ventilators p. 7-02
5. Front passenger’s airbag ON-OFF switch p. 4-27 Glove box p. 7-78
6. Hazard warning flasher switch p. 5-55
7. Rear window demister switch p. 5-63
8. Accessory Socket* p. 7-74 Cigarette lighter* p. 7-73
9. Gearshift or selector lever p. 6-23, 6-26, 6-32
10. Parking brake lever p. 6-06
11. Cup holder p. 7-81
12. Drive mode selector* p. 6-39
13. Fuel tank filler door release lever p. 2-03
14. Ashtray* p. 7-72
15. Heated seat switch* p. 4-06
16. Bonnet release lever p. 10-03
17. Fuse box p. 10-20
18. Multi-information meter switch p. 5-05
19. Air conditioning* p. 7-03
Instruments and controls
1-04OGAE15E5Overview1LHD
Page 7 of 452

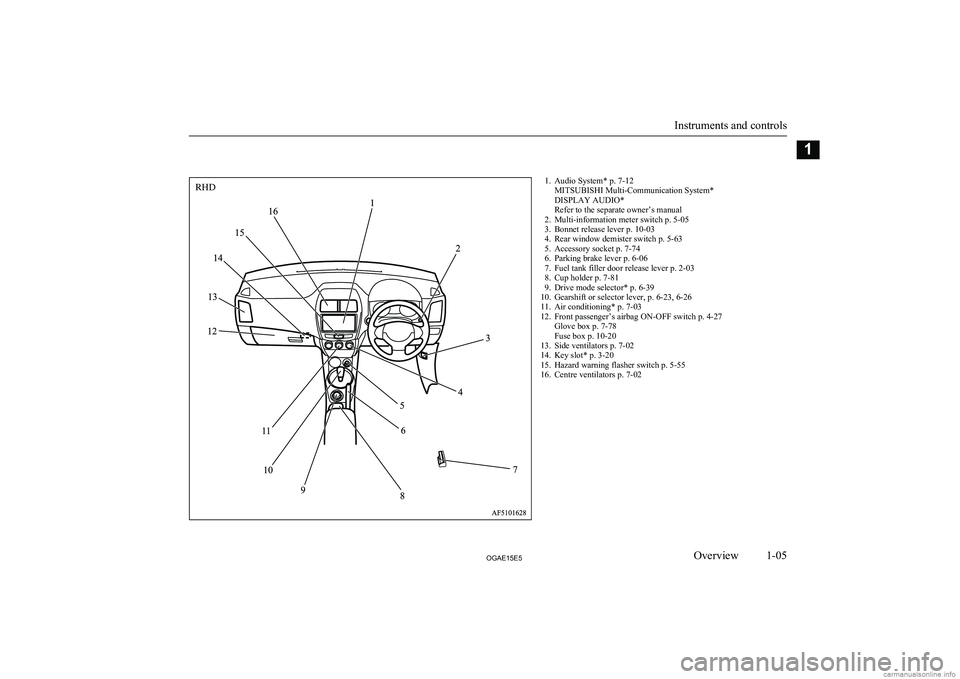

1. Audio System* p. 7-12MITSUBISHI Multi-Communication System*
DISPLAY AUDIO*
Refer to the separate owner’s manual
2. Multi-information meter switch p. 5-05
3. Bonnet release lever p. 10-03
4. Rear window demister switch p. 5-63
5. Accessory socket p. 7-74
6. Parking brake lever p. 6-06
7. Fuel tank filler door release lever p. 2-03
8. Cup holder p. 7-81
9. Drive mode selector* p. 6-39
10. Gearshift or selector lever, p. 6-23, 6-26
11. Air conditioning* p. 7-03
12. Front passenger’s airbag ON-OFF switch p. 4-27 Glove box p. 7-78
Fuse box p. 10-20
13. Side ventilators p. 7-02
14. Key slot* p. 3-20
15. Hazard warning flasher switch p. 5-55
16. Centre ventilators p. 7-02
Instruments and controls
1-05OGAE15E5Overview1RHD
Page 8 of 452

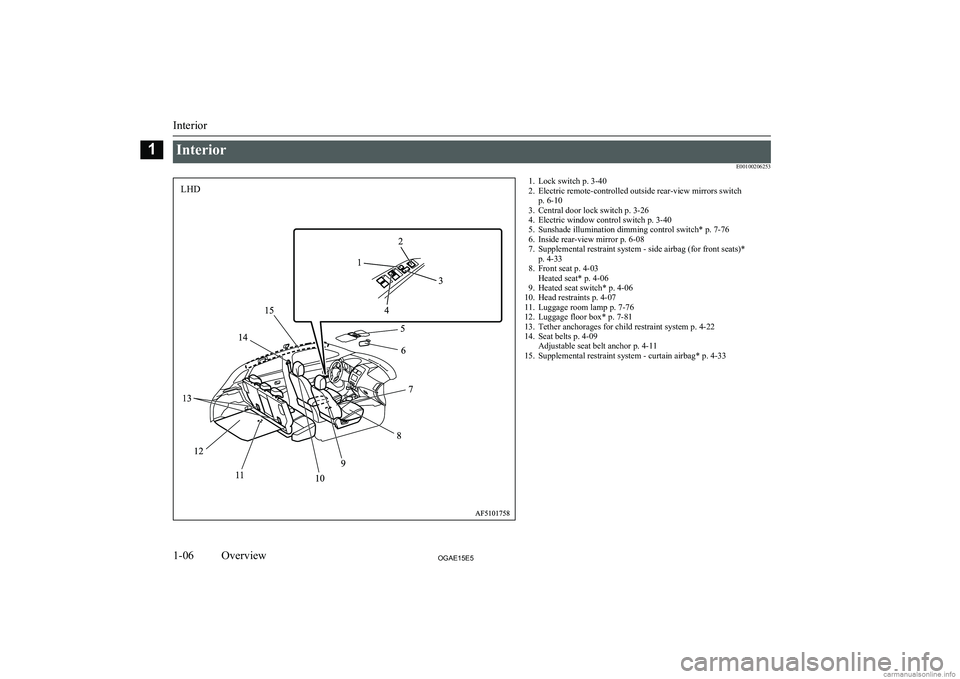

InteriorE001002062531. Lock switch p. 3-402. Electric remote-controlled outside rear-view mirrors switch p. 6-10
3. Central door lock switch p. 3-26
4. Electric window control switch p. 3-40
5. Sunshade illumination dimming control switch* p. 7-76
6. Inside rear-view mirror p. 6-08
7. Supplemental restraint system - side airbag (for front seats)* p. 4-33
8. Front seat p. 4-03 Heated seat* p. 4-06
9. Heated seat switch* p. 4-06
10. Head restraints p. 4-07
11. Luggage room lamp p. 7-76
12. Luggage floor box* p. 7-81
13. Tether anchorages for child restraint system p. 4-22
14. Seat belts p. 4-09 Adjustable seat belt anchor p. 4-11
15. Supplemental restraint system - curtain airbag* p. 4-33
Interior
1-06OGAE15E5Overview1LHD
Page 9 of 452
1. Rear shelf panel p. 7-82
2. Assist grip p. 7-83 Coat hook p. 7-83
3. Room lamp (rear)* p. 7-75
4. Sun visors p. 7-71 Vanity mirror p. 7-71
Card holder p. 7-71
5. Map lamp & room lamp (front) p. 7-75 Sunshade switch* p. 3-41
Microphone (for Bluetooth® 2.0 interface)* p. 7-49
6. Supplemental restraint system - airbag (for front passenger’s seat) p. 4-24, 4-29
7. Bottle holder p. 7-81
8. Armrest* p. 4-05 Auxiliary Audio connector (RCA)* p. 7-38
USB input terminal* p. 7-68
Accessory socket p. 7-74
9. Rear seat p. 4-06
10. Armrest* p. 4-06 Cup holder* p. 7-81
Interior
1-07OGAE15E5Overview1LHD1 2
3
4
5
67
8
9
10
Page 10 of 452

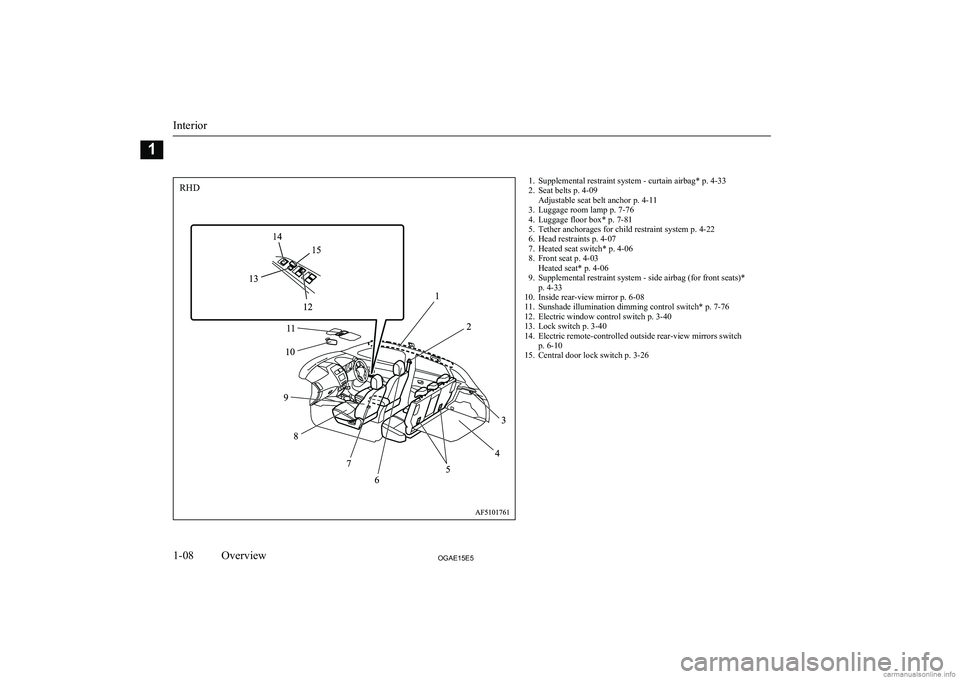

1. Supplemental restraint system - curtain airbag* p. 4-33
2. Seat belts p. 4-09 Adjustable seat belt anchor p. 4-11
3. Luggage room lamp p. 7-76
4. Luggage floor box* p. 7-81
5. Tether anchorages for child restraint system p. 4-22
6. Head restraints p. 4-07
7. Heated seat switch* p. 4-06
8. Front seat p. 4-03 Heated seat* p. 4-06
9. Supplemental restraint system - side airbag (for front seats)* p. 4-33
10. Inside rear-view mirror p. 6-08
11. Sunshade illumination dimming control switch* p. 7-76
12. Electric window control switch p. 3-40
13. Lock switch p. 3-40
14. Electric remote-controlled outside rear-view mirrors switch p. 6-10
15. Central door lock switch p. 3-26
Interior
1-08OGAE15E5Overview1RHD
