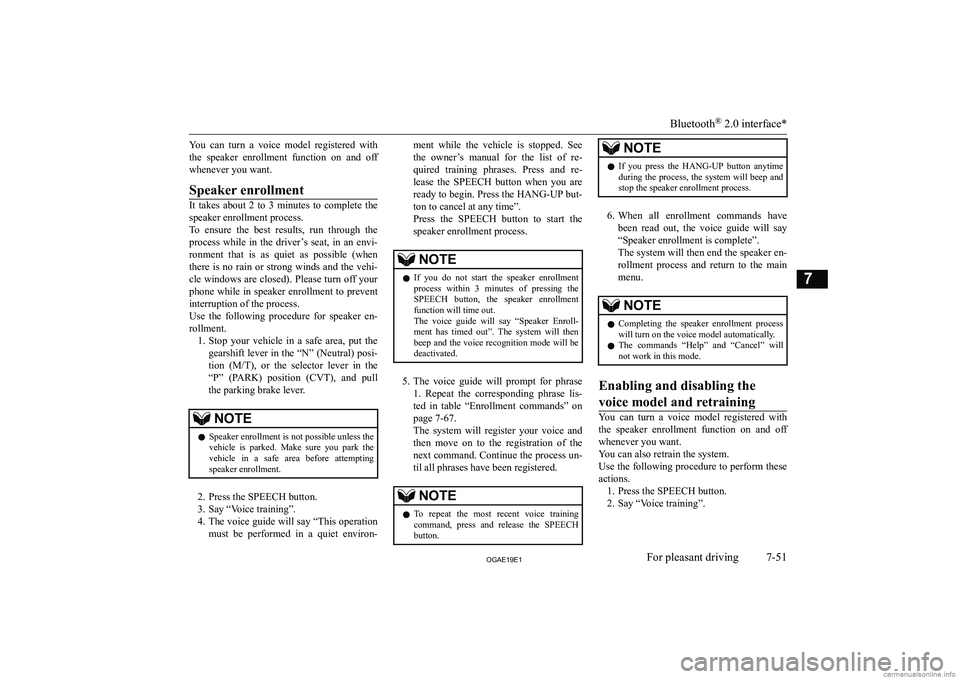

You can turn a voice model registered with
the speaker enrollment function on and off
whenever you want.Speaker enrollment
It takes about 2 to 3 minutes to complete the
speaker enrollment process.
To ensure the best results, run through the
process while in the driver

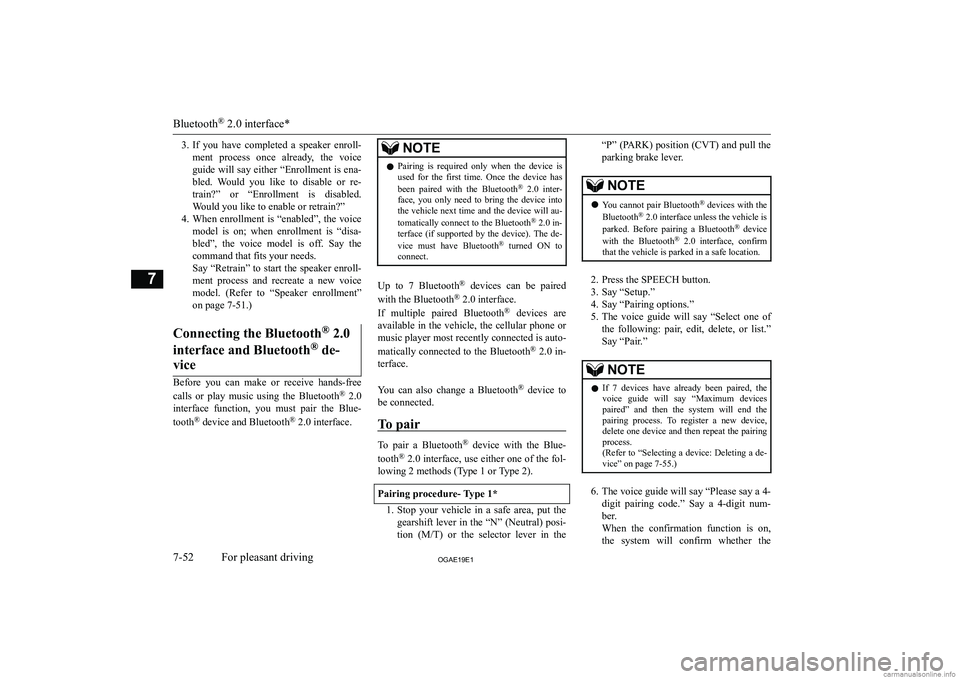

3.If you have completed a speaker enroll-
ment process once already, the voiceguide will say either “Enrollment is ena-
bled. Would you like to disable or re-
train?” or “Enrollment is disabled. Would you like to enable or retrain?”
4. When enrollment is “enabled”, the voice
model is on; when enrollment is “disa-
bled”, the voice model is off. Say the command that fits your needs.
Say “Retrain” to start the speaker enroll-
ment process and recreate a new voice model. (Refer to “Speaker enrollment”
on page 7-51.)Connecting the Bluetooth

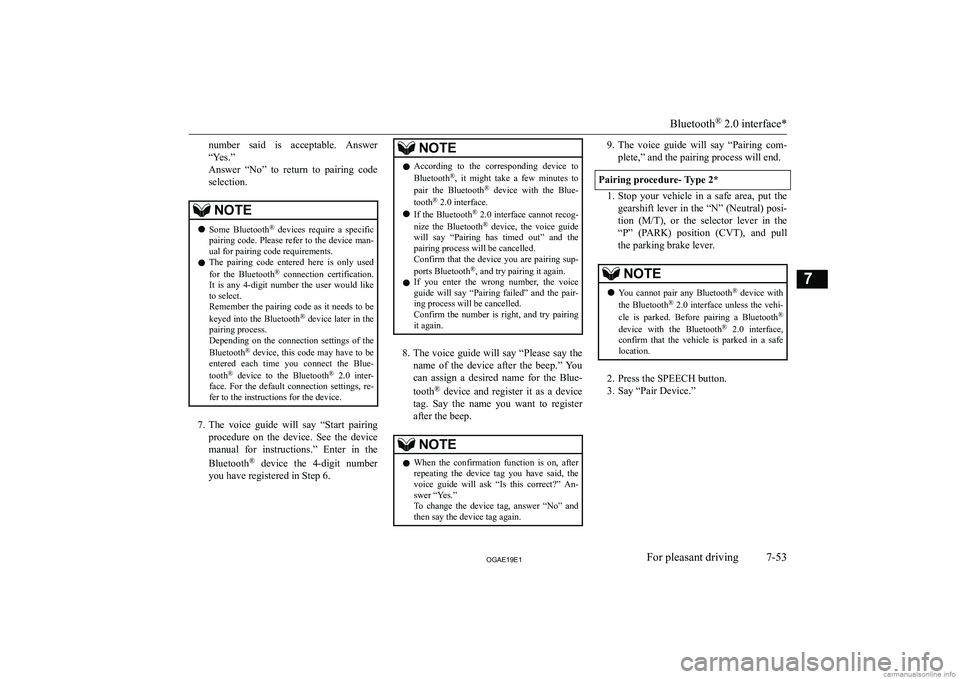

number said is acceptable. Answer
“Yes.”
Answer “No” to return to pairing code selection.NOTEz Some Bluetooth

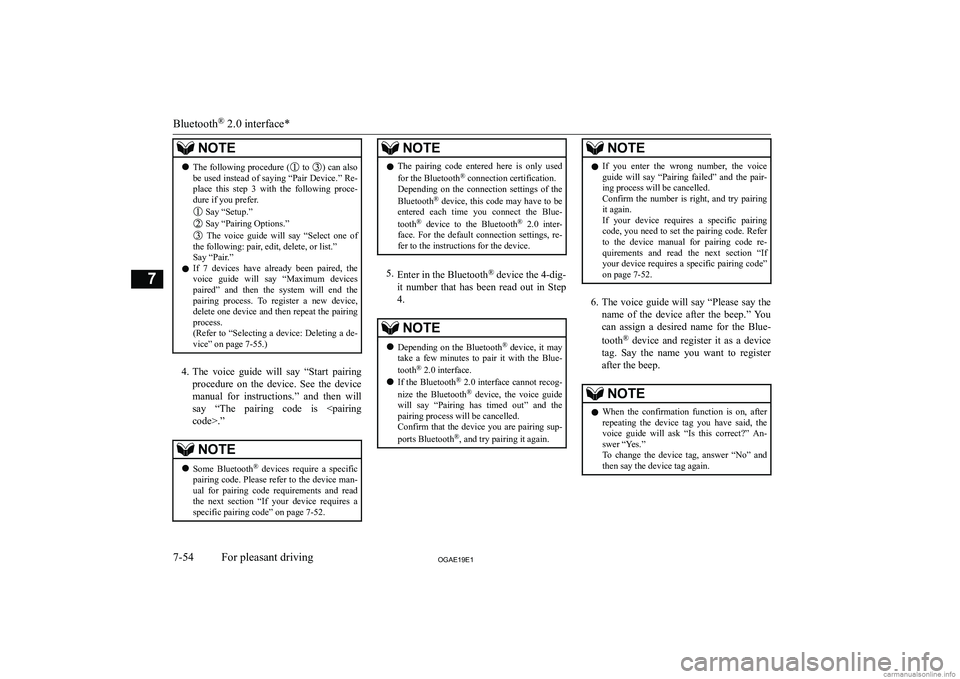

NOTEzThe following procedure ( to ) can also
be used instead of saying “Pair Device.” Re- place this step 3 with the following proce-dure if you prefer.
Say “Setup.”
Say “Pairing Options.”
The voice guide will say “Select one of
the following: pair, edit, delete, or list.”
Say “Pair.”
z If 7 devices have already been paired, the
voice guide will say “Maximum devicespaired” and then the system will end the
pairing process. To register a new device, delete one device and then repeat the pairing
process.
(Refer to “Selecting a device: Deleting a de- vice” on page 7-55.)
4. The voice guide will say “Start pairing
procedure on the device. See the device manual for instructions.” and then willsay “The pairing code is <pairing
code>.”
NOTEz Some Bluetooth

7.The voice guide will say “Pairing Com-
plete. Would you like to import the con-
tacts from your mobile device now?”
Answer “Yes,” and the voice guide will say “Please wait while the contacts are
imported. This may take several mi- nutes.” Answer “No” to end the pairingprocess.

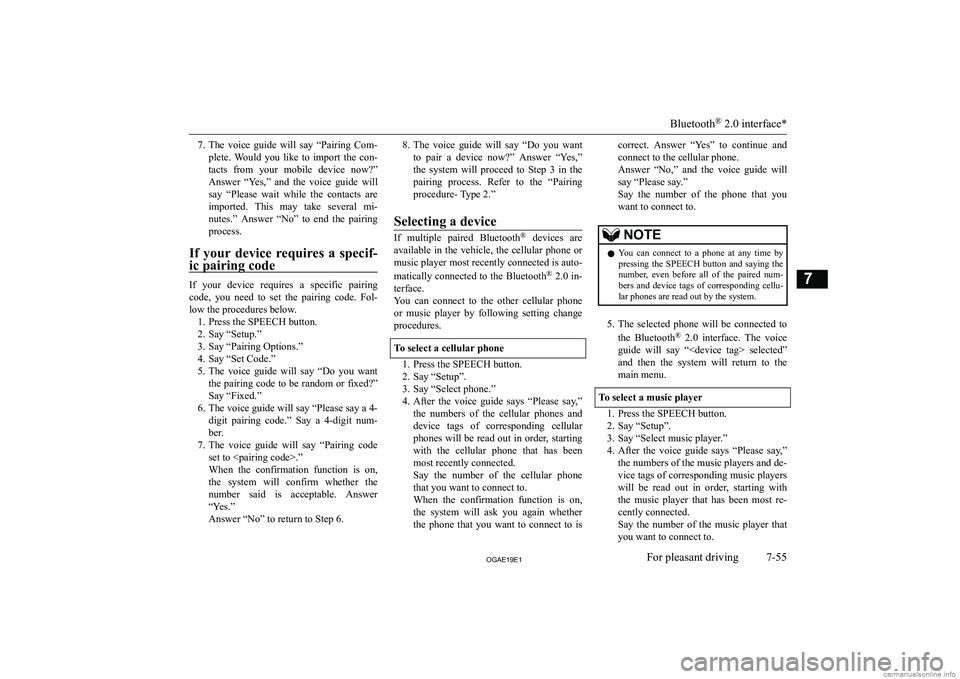

If your device requires a specif-
ic pairing code
If your device requires a specific pairing
code, you need to set the pairing code. Fol-
low the procedures below. 1. Press the SPEECH button.
2. Say “Setup.”
3. Say “Pairing Options.”
4. Say “Set Code.”
5. The voice guide will say “Do you want
the pairing code to be random or fixed?”
Say “Fixed.”
6. The voice guide will say “Please say a 4-
digit pairing code.” Say a 4-digit num- ber.
7. The voice guide will say “Pairing code
set to <pairing code>.”
When the confirmation function is on, the system will confirm whether the
number said is acceptable. Answer “Yes.”
Answer “No” to return to Step 6.
8. The voice guide will say “Do you want
to pair a device now?” Answer “Yes,” the system will proceed to Step 3 in thepairing process. Refer to the “Pairing
procedure- Type 2.”Selecting a device
If multiple paired Bluetooth

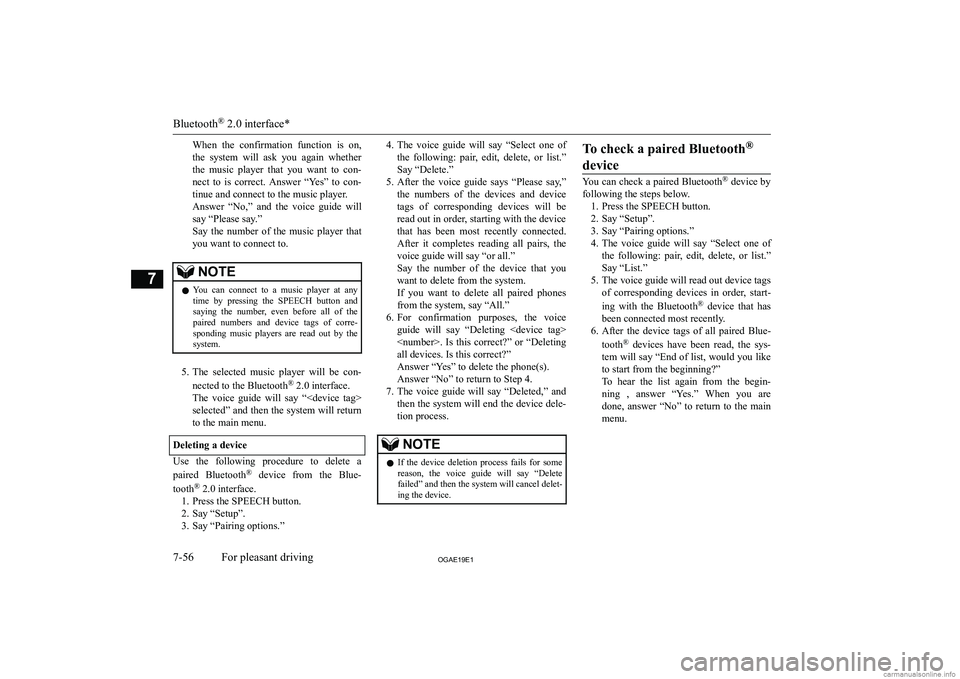

When the confirmation function is on,the system will ask you again whether
the music player that you want to con- nect to is correct. Answer “Yes” to con- tinue and connect to the music player.
Answer “No,” and the voice guide will say “Please say.”
Say the number of the music player that
you want to connect to.NOTEz You can connect to a music player at any
time by pressing the SPEECH button andsaying the number, even before all of thepaired numbers and device tags of corre-
sponding music players are read out by the
system.
5. The selected music player will be con-
nected to the Bluetooth

NOTEzIf you press and release the SPEECH button
and say “Continue” or “Previous” while the list is being read, the system will advance or
rewind the list.
Say “Continue” to proceed to the device with the next highest number or “Previous”
to return to the phone with the previous
number.
z You can change the device tag by pressing
and releasing the SPEECH button and then
saying “Edit” while the list is being read.
z You can change the phone to be connected
by pressing and releasing the SPEECH but- ton and then saying “Select phone” while the list is being read.
z You can change the music player to be con-
nected by pressing and releasing the

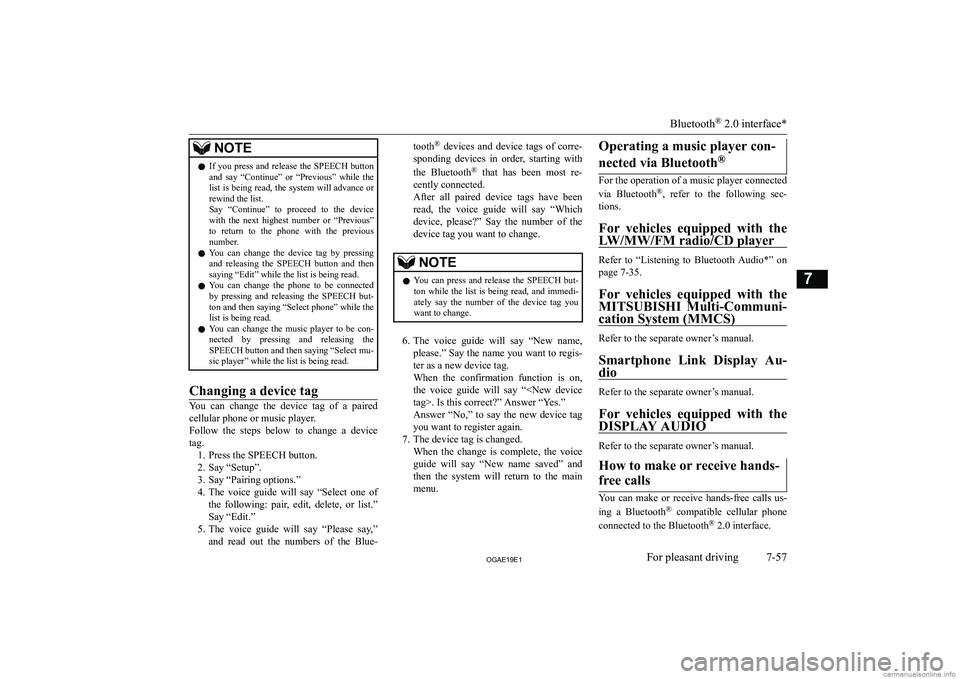

SPEECH button and then saying “Select mu- sic player” while the list is being read.Changing a device tag
You can change the device tag of a paired
cellular phone or music player.
Follow the steps below to change a device
tag. 1. Press the SPEECH button.
2. Say “Setup”.
3. Say “Pairing options.”
4. The voice guide will say “Select one of
the following: pair, edit, delete, or list.”
Say “Edit.”
5. The voice guide will say “Please say,”
and read out the numbers of the Blue-
tooth

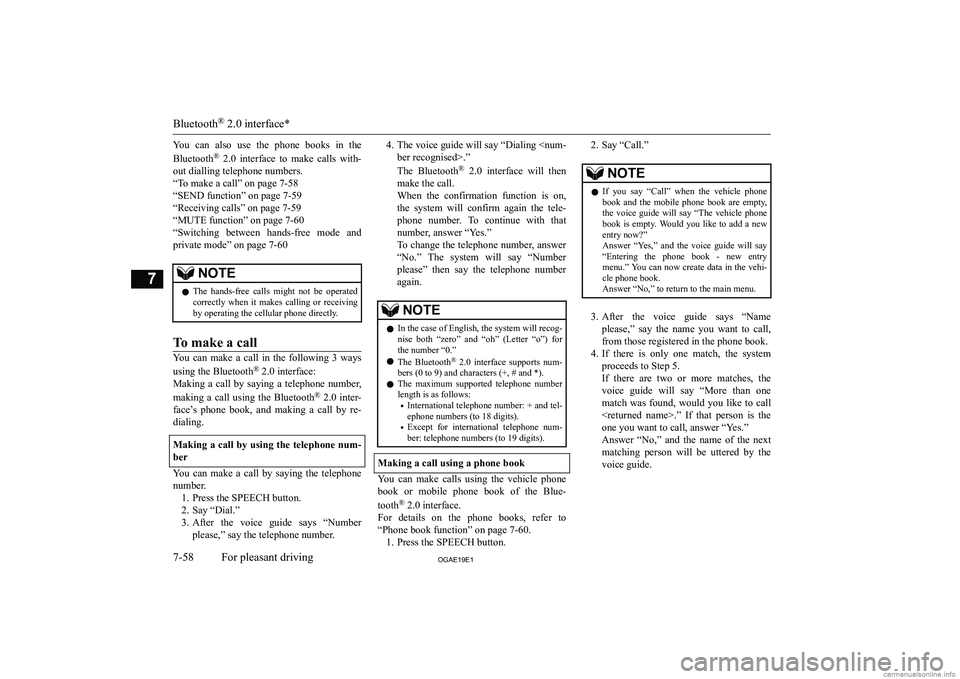

You can also use the phone books in the
Bluetooth

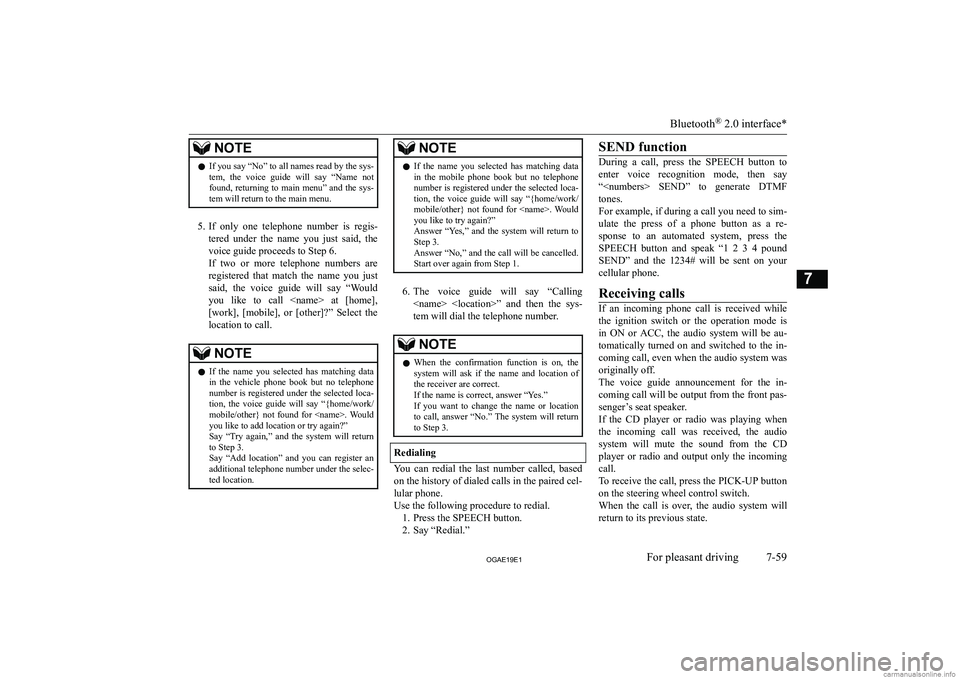

NOTEzIf you say “No” to all names read by the sys-
tem, the voice guide will say “Name not found, returning to main menu” and the sys-
tem will return to the main menu.
5. If only one telephone number is regis-
tered under the name you just said, the
voice guide proceeds to Step 6.
If two or more telephone numbers are registered that match the name you just
said, the voice guide will say “Would you like to call <name> at [home@, [work@, [mobile@, or [other@?” Select the
location to call.
NOTEz If the name you selected has matching data
in the vehicle phone book but no telephone
number is registered under the selected loca- tion, the voice guide will say “{home/work/
mobile/other` not found for <name>. Would you like to add location or try again?”Say “Try again,” and the system will return to Step 3.
Say “Add location” and you can register an
additional telephone number under the selec-
ted location.NOTEz If the name you selected has matching data
in the mobile phone book but no telephone
number is registered under the selected loca- tion, the voice guide will say “{home/work/
mobile/other` not found for <name>. Would you like to try again?”
Answer “Yes,” and the system will return to Step 3.
Answer “No,” and the call will be cancelled.
Start over again from Step 1.
6. The voice guide will say “Calling
<name> <location>” and then the sys-
tem will dial the telephone number.
NOTEz When the confirmation function is on, the
system will ask if the name and location of the receiver are correct.
If the name is correct, answer “Yes.”
If you want to change the name or location
to call, answer “No.” The system will return to Step 3.
Redialing
You can redial the last number called, based
on the history of dialed calls in the paired cel-
lular phone.
Use the following procedure to redial. 1. Press the SPEECH button.
2. Say “Redial.”
SEND function
During a call, press the SPEECH button to
enter voice recognition mode, then say “<numbers> SEND” to generate DTMF
tones.
For example, if during a call you need to sim- ulate the press of a phone button as a re- sponse to an automated system, press theSPEECH button and speak “1 2 3 4 pound
SEND” and the 1234 will be sent on your cellular phone.
Receiving calls
If an incoming phone call is received whilethe ignition switch or the operation mode is
in ON or ACC, the audio system will be au- tomatically turned on and switched to the in-
coming call, even when the audio system was
originally off.
The voice guide announcement for the in- coming call will be output from the front pas- senger

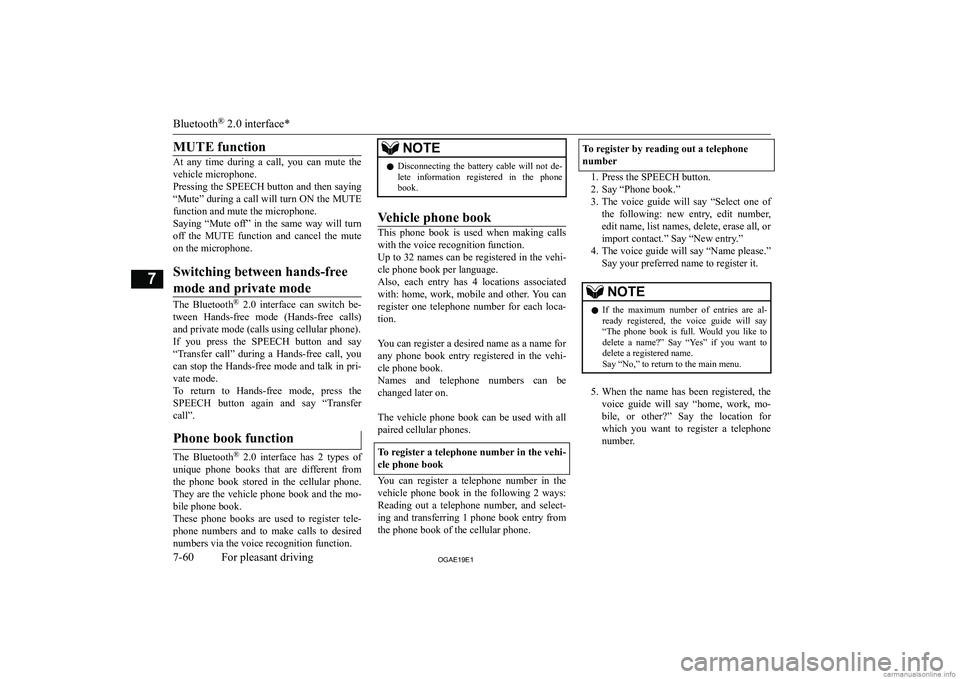

MUTE function
At any time during a call, you can mute thevehicle microphone.
Pressing the SPEECH button and then saying
“Mute” during a call will turn ON the MUTE
function and mute the microphone.
Saying “Mute off” in the same way will turn off the MUTE function and cancel the muteon the microphone.
Switching between hands-free
mode and private mode
The Bluetooth
