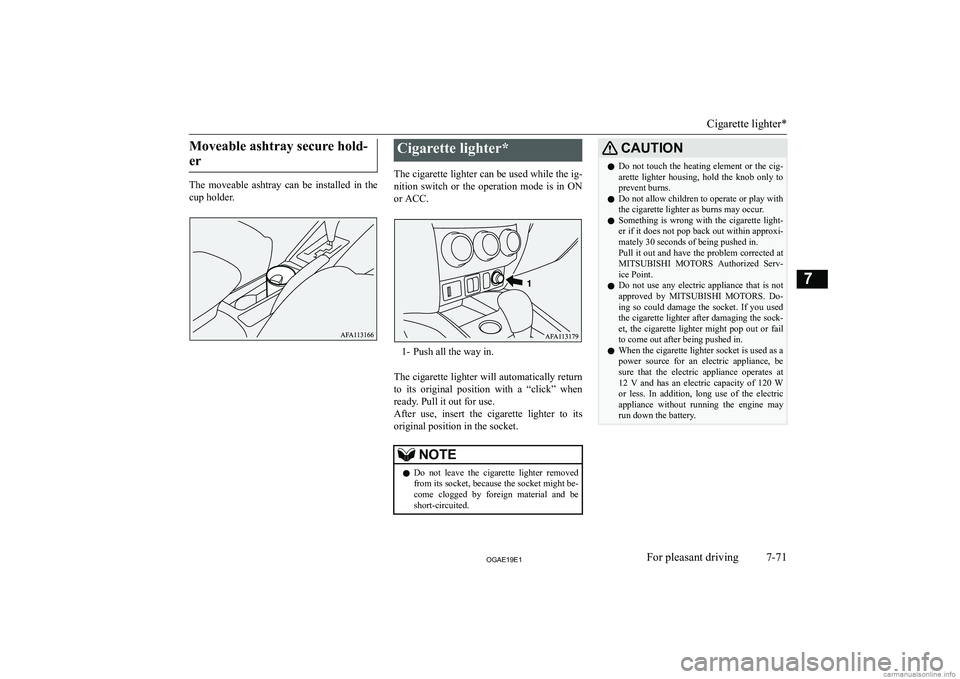

Moveable ashtray secure hold-er
The moveable ashtray can be installed in the
cup holder.
Cigarette lighter*
The cigarette lighter can be used while the ig- nition switch or the operation mode is in ON
or ACC.
1- Push all the way in.
The cigarette lighter will automatically return to its original position with a “click” when ready. Pull it out for use.
After use, insert the cigarette lighter to its
original position in the socket.
NOTEz Do not leave the cigarette lighter removed
from its socket, because the socket might be- come clogged by foreign material and be
short-circuited.CAUT,ONz Do not touch the heating element or the cig-
arette lighter housing, hold the knob only to prevent burns.
z Do not allow children to operate or play with
the cigarette lighter as burns may occur.
z Something is wrong with the cigarette light-
er if it does not pop back out within approxi-
mately 30 seconds of being pushed in.
Pull it out and have the problem corrected at MITSUBISHI MOTORS Authorized Serv-
ice Point.
z Do not use any electric appliance that is not
approved by MITSUBISHI MOTORS . Do-
ing so could damage the socket. If you used the cigarette lighter after damaging the sock-
et, the cigarette lighter might pop out or fail to come out after being pushed in.
z When the cigarette lighter socket is used as a
power source for an electric appliance, be sure that the electric appliance operates at
12 V and has an electric capacity of 120 W or less. In addition, long use of the electricappliance without running the engine may
run down the battery.
Cigarette lighter*
7-712*$((For pleasant driving7

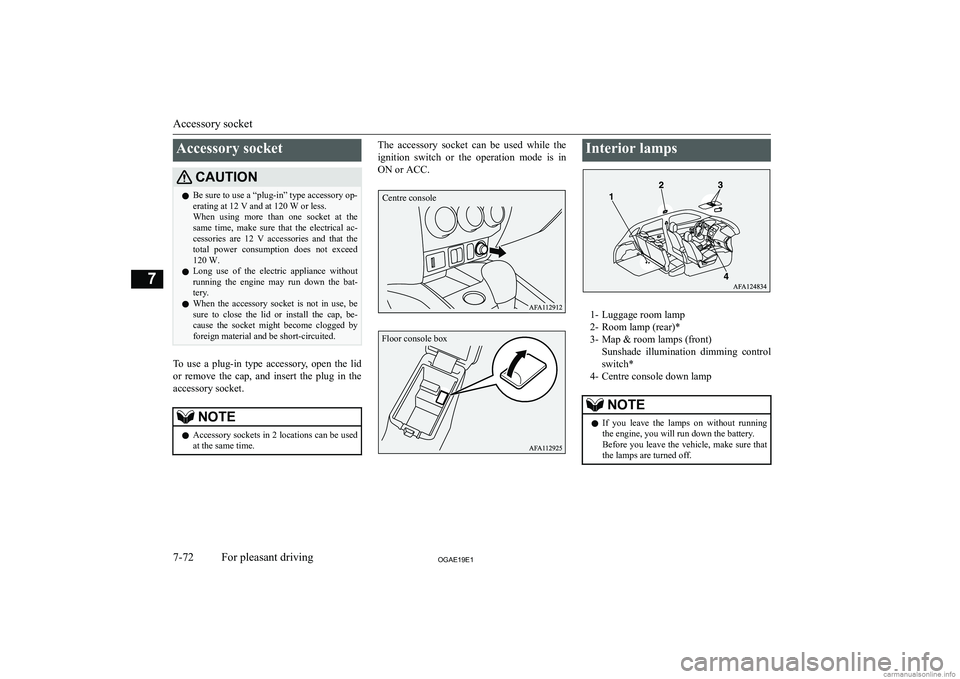

Accessory socketCAUT,ONzBe sure to use a “plug-in” type accessory op-
erating at 12 V and at 120 W or less.
When using more than one socket at the same time, make sure that the electrical ac- cessories are 12 V accessories and that the
total power consumption does not exceed
120 W.
z Long use of the electric appliance without
running the engine may run down the bat-
tery.
z When the accessory socket is not in use, be
sure to close the lid or install the cap, be-
cause the socket might become clogged by foreign material and be short-circuited.
To use a plug-in type accessory, open the lid
or remove the cap, and insert the plug in the accessory socket.
NOTEz Accessory sockets in 2 locations can be used
at the same time.The accessory socket can be used while the
ignition switch or the operation mode is in
ON or ACC.Interior lamps
1- Luggage room lamp
2- Room lamp (rear)*
3- Map & room lamps (front) Sunshade illumination dimming control
switch*
4- Centre console down lamp
NOTEz If you leave the lamps on without running
the engine, you will run down the battery.
Before you leave the vehicle, make sure that
the lamps are turned off.
Accessory socket
7-722*$((For pleasant driving7 Centre console Floor console box

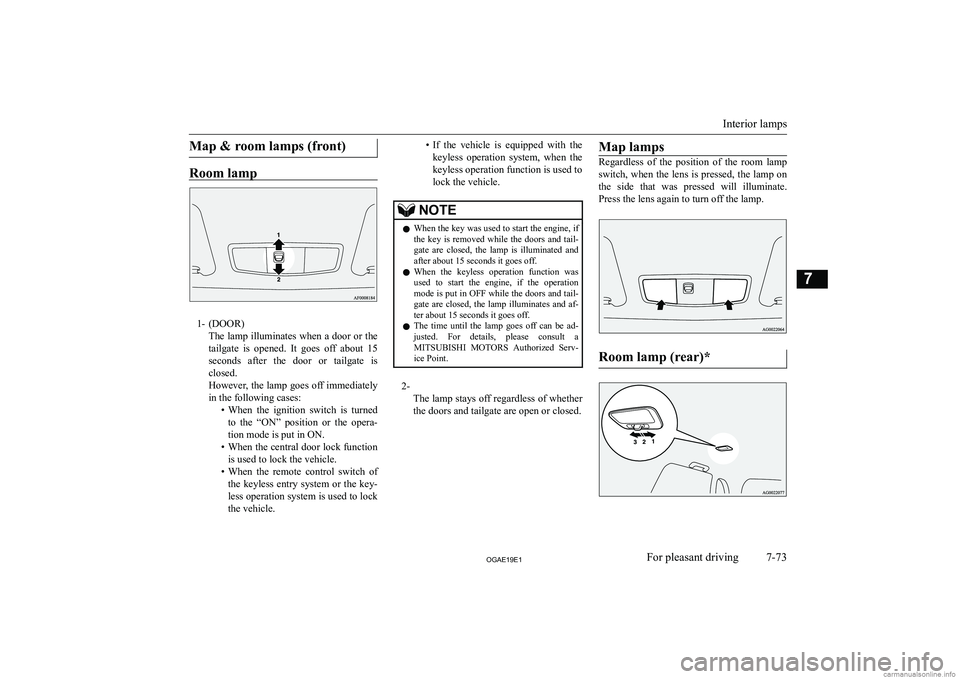

Map room lamps (front)
Room lamp
1- (DOOR)The lamp illuminates when a door or thetailgate is opened. It goes off about 15
seconds after the door or tailgate is
closed.
However, the lamp goes off immediately in the following cases:

1- ()
The lamp illuminates regardless of whether the doors and tailgate are open
or closed.
2- (

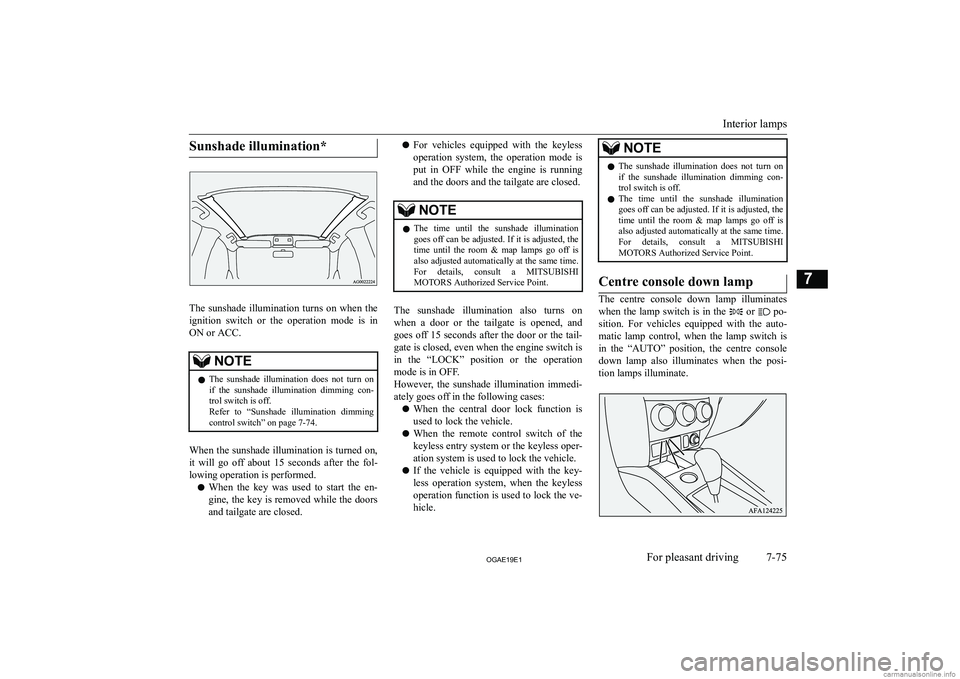

Sunshade illumination*
The sunshade illumination turns on when the
ignition switch or the operation mode is in
ON or ACC.
NOTEz The sunshade illumination does not turn on
if the sunshade illumination dimming con-
trol switch is off.
Refer to “Sunshade illumination dimming
control switch” on page 7-74.
When the sunshade illumination is turned on,
it will go off about 15 seconds after the fol-
lowing operation is performed.
z When the key was used to start the en-
gine, the key is removed while the doors
and tailgate are closed.
z For vehicles equipped with the keyless
operation system, the operation mode is put in OFF while the engine is running and the doors and the tailgate are closed.NOTEz The time until the sunshade illumination
goes off can be adjusted. If it is adjusted, the time until the room & map lamps go off is also adjusted automatically at the same time.
For details, consult a MITSUBISHI
MOTORS Authorized Service Point.
The sunshade illumination also turns on
when a door or the tailgate is opened, and
goes off 15 seconds after the door or the tail-
gate is closed, even when the engine switch is
in the “LOCK” position or the operation mode is in OFF.
However, the sunshade illumination immedi- ately goes off in the following cases:
z When the central door lock function is
used to lock the vehicle.
z When the remote control switch of the
keyless entry system or the keyless oper- ation system is used to lock the vehicle.
z If the vehicle is equipped with the key-
less operation system, when the keyless operation function is used to lock the ve-hicle.
NOTEz The sunshade illumination does not turn on
if the sunshade illumination dimming con-
trol switch is off.
z The time until the sunshade illumination
goes off can be adjusted. If it is adjusted, the time until the room & map lamps go off is
also adjusted automatically at the same time.
For details, consult a MITSUBISHI
MOTORS Authorized Service Point.Centre console down lamp
The centre console down lamp illuminates
when the lamp switch is in the
or po-
sition. For vehicles equipped with the auto-
matic lamp control, when the lamp switch is
in the “AUTO” position, the centre console down lamp also illuminates when the posi-
tion lamps illuminate.
Interior lamps
7-752*$((For pleasant driving7

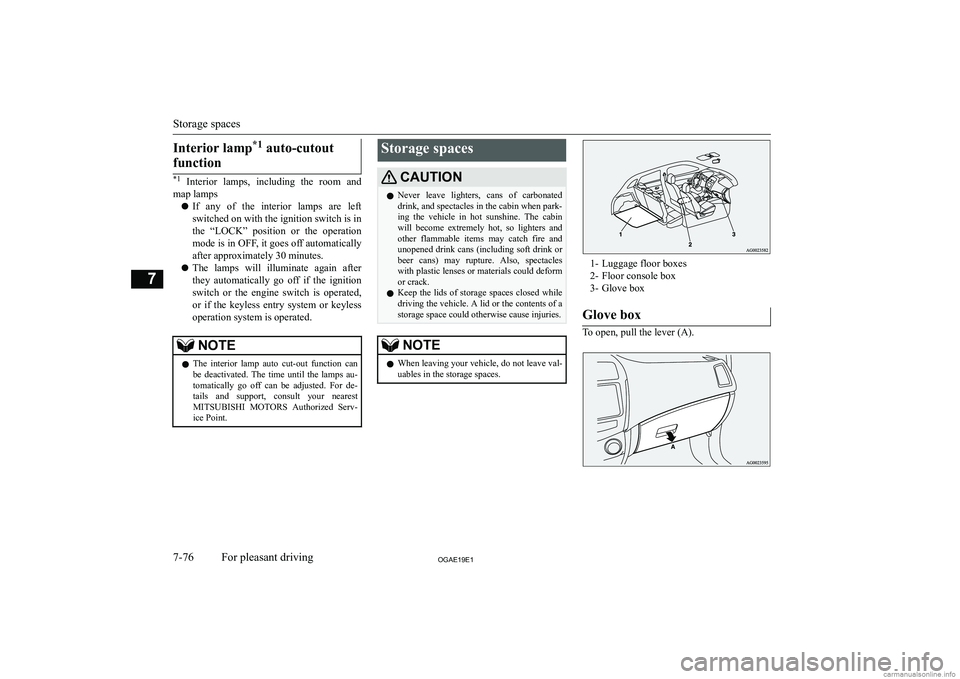

Interior lamp*1
auto-cutout
function
*1 Interior lamps, including the room and
map lamps
z If any of the interior lamps are left
switched on with the ignition switch is in
the “LOCK” position or the operation
mode is in OFF, it goes off automatically after approximately 30 minutes.
z The lamps will illuminate again after
they automatically go off if the ignitionswitch or the engine switch is operated,
or if the keyless entry system or keyless operation system is operated.
NOTEz The interior lamp auto cut-out function can
be deactivated. The time until the lamps au- tomatically go off can be adjusted. For de-
tails and support, consult your nearest MITSUBISHI MOTORS Authorized Serv-
ice Point.Storage spacesCAUT,ONz Never leave lighters, cans of carbonated
drink, and spectacles in the cabin when park-
ing the vehicle in hot sunshine. The cabin will become extremely hot, so lighters and
other flammable items may catch fire and unopened drink cans (including soft drink or beer cans) may rupture. Also, spectacles
with plastic lenses or materials could deform
or crack.
z Keep the lids of storage spaces closed while
driving the vehicle. A lid or the contents of a
storage space could otherwise cause injuries.NOTEz When leaving your vehicle, do not leave val-
uables in the storage spaces.
1- Luggage floor boxes
2- Floor console box
3- Glove box
Glove box
To open, pull the lever (A).
Storage spaces
7-762*$((For pleasant driving7

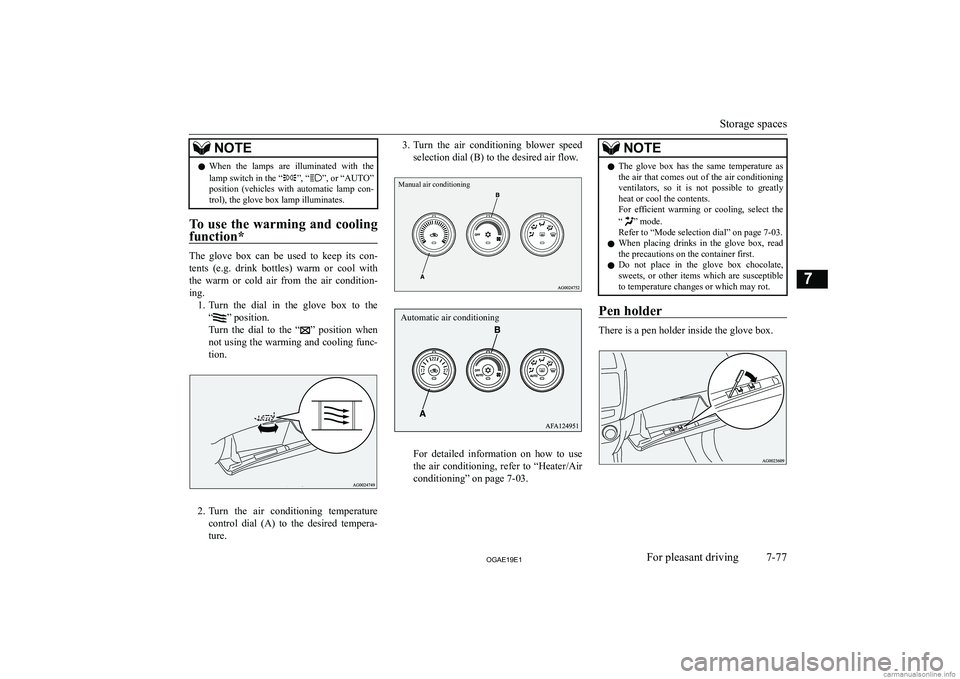

NOTEzWhen the lamps are illuminated with the
lamp switch in the “”, “”, or “AUTO”
position (vehicles with automatic lamp con-
trol), the glove box lamp illuminates.
To use the warming and cooling
function*
The glove box can be used to keep its con-
tents (e.g. drink bottles) warm or cool with the warm or cold air from the air condition-
ing. 1. Turn the dial in the glove box to the
“
” position.
Turn the dial to the “
” position when
not using the warming and cooling func- tion.
2. Turn the air conditioning temperature
control dial (A) to the desired tempera- ture.
3. Turn the air conditioning blower speed
selection dial (B) to the desired air flow.Manual air conditioning
For detailed information on how to use
the air conditioning, refer to “Heater/Air
conditioning” on page 7-03.
NOTEz The glove box has the same temperature as
the air that comes out of the air conditioningventilators, so it is not possible to greatly heat or cool the contents.
For efficient warming or cooling, select the
“
” mode.
Refer to “Mode selection dial” on page 7-03.
z When placing drinks in the glove box, read
the precautions on the container first.
z Do not place in the glove box chocolate,
sweets, or other items which are susceptible
to temperature changes or which may rot.
Pen holder
There is a pen holder inside the glove box.
Storage spaces
7-772*$((For pleasant driving7 Automatic air conditioning

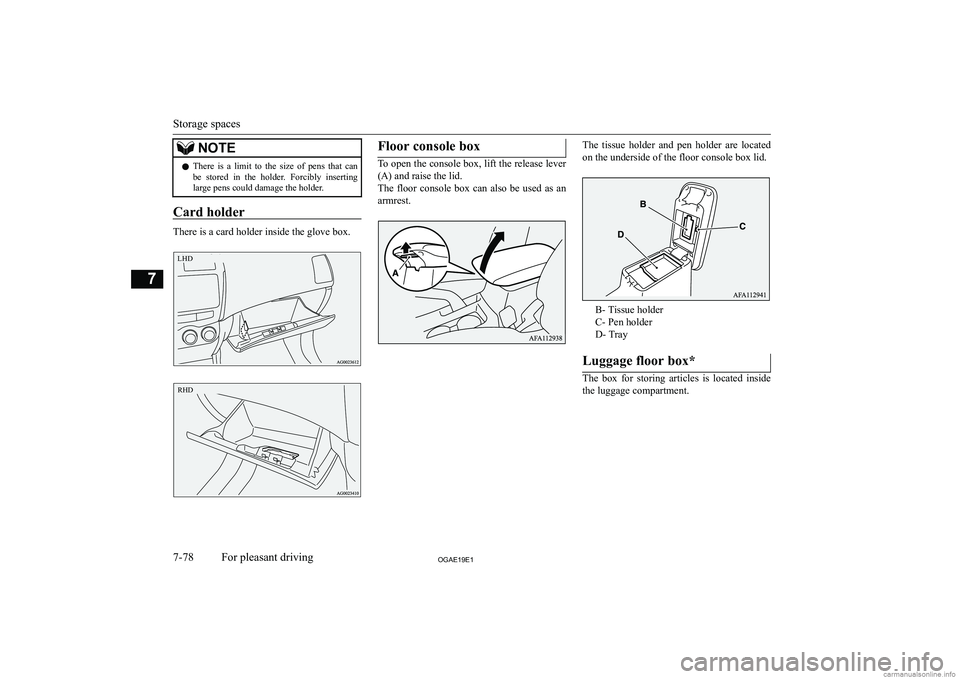

NOTEzThere is a limit to the size of pens that can
be stored in the holder. Forcibly inserting large pens could damage the holder.
Card holder
There is a card holder inside the glove box.
Floor console box
To open the console box, lift the release lever
(A) and raise the lid.
The floor console box can also be used as an
armrest.
The tissue holder and pen holder are located on the underside of the floor console box lid.
B- Tissue holder
C- Pen holder
D- Tray
Luggage floor box*
The box for storing articles is located inside the luggage compartment.
Storage spaces
7-782*$((For pleasant driving7 LHD RHD

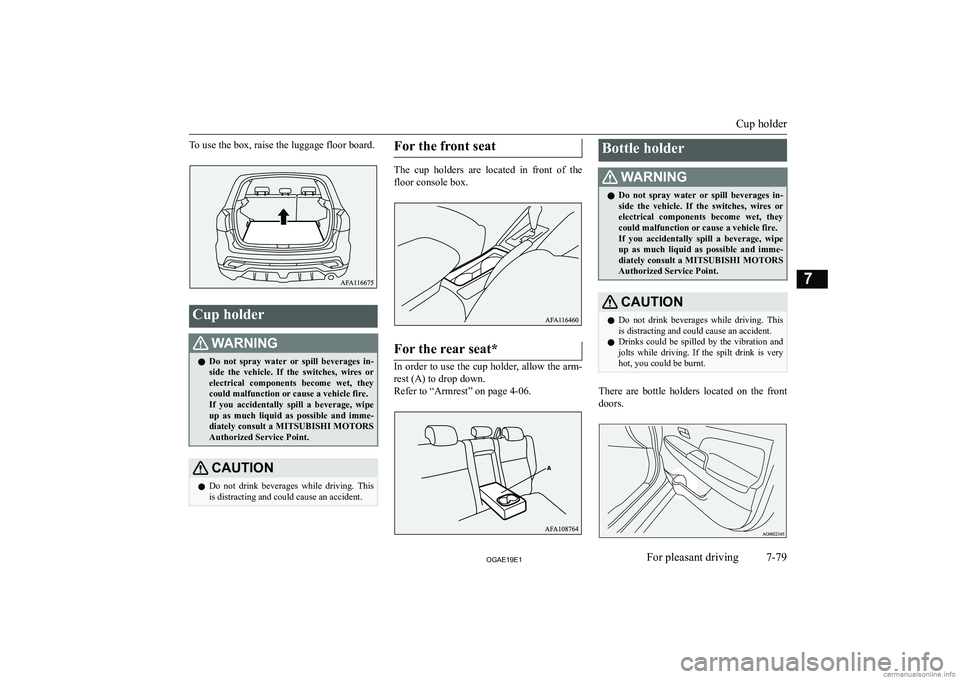

To use the box, raise the luggage floor board.Cup holder:ARN,NGzDo not spray water or spill beverages in-
side the vehicle. If the switches, wires or electrical components become wet, they
could malfunction or cause a vehicle fire. If you accidentally spill a beverage, wipe
up as much liquid as possible and imme- diately consult a MITSUBISHI MOTORS
Authorized Service Point.CAUT,ONz Do not drink beverages while driving. This
is distracting and could cause an accident.For the front seat
The cup holders are located in front of the
floor console box.
For the rear seat*
In order to use the cup holder, allow the arm-
rest (A) to drop down.
Refer to “Armrest” on page 4-06.
Bottle holder:ARN,NGz Do not spray water or spill beverages in-
side the vehicle. If the switches, wires or
electrical components become wet, they could malfunction or cause a vehicle fire.If you accidentally spill a beverage, wipe
up as much liquid as possible and imme- diately consult a MITSUBISHI MOTORS
Authorized Service Point.CAUT,ONz Do not drink beverages while driving. This
is distracting and could cause an accident.
z Drinks could be spilled by the vibration and
jolts while driving. If the spilt drink is very
hot, you could be burnt.
There are bottle holders located on the front
doors.
Cup holder
7-792*$((For pleasant driving7

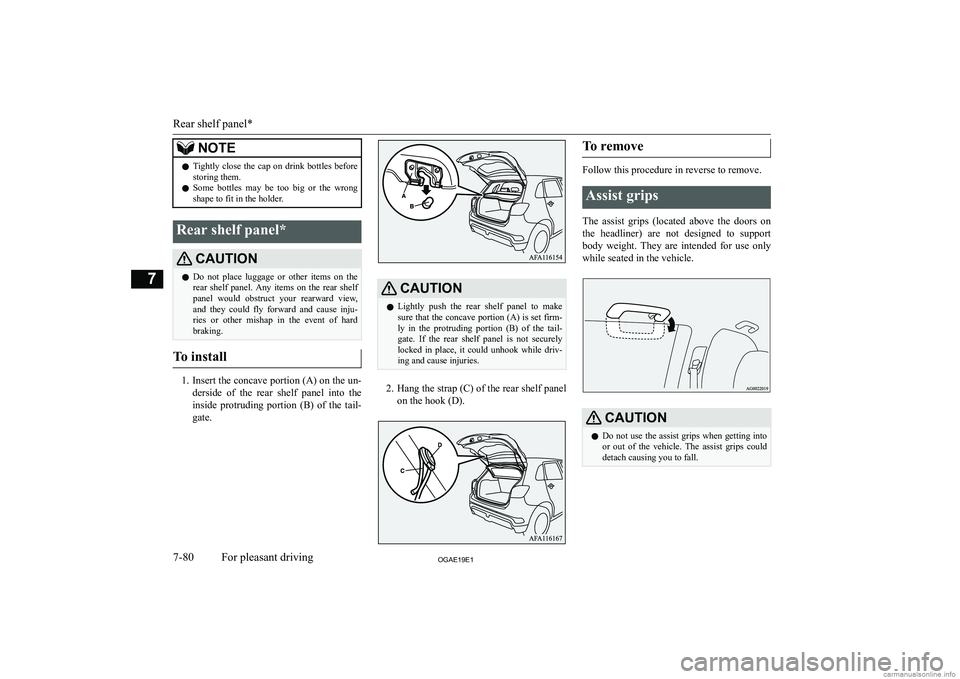

NOTEzTightly close the cap on drink bottles before
storing them.
z Some bottles may be too big or the wrong
shape to fit in the holder.Rear shelf panel*CAUT,ONz Do not place luggage or other items on the
rear shelf panel. Any items on the rear shelf
panel would obstruct your rearward view, and they could fly forward and cause inju-
ries or other mishap in the event of hard
braking.
To install
1. Insert the concave portion (A) on the un-
derside of the rear shelf panel into theinside protruding portion (B) of the tail-
gate.
CAUT,ONz Lightly push the rear shelf panel to make
sure that the concave portion (A) is set firm-ly in the protruding portion (B) of the tail- gate. If the rear shelf panel is not securely
locked in place, it could unhook while driv- ing and cause injuries.
2. Hang the strap (C) of the rear shelf panel
on the hook (D).
To remove
Follow this procedure in reverse to remove.
Assist grips
The assist grips (located above the doors on
the headliner) are not designed to support
body weight. They are intended for use only while seated in the vehicle.
CAUT,ONz Do not use the assist grips when getting into
or out of the vehicle. The assist grips could
detach causing you to fall.
Rear shelf panel*
7-802*$((For pleasant driving7
