MITSUBISHI ASX 2020 Owner's Manual (in English)

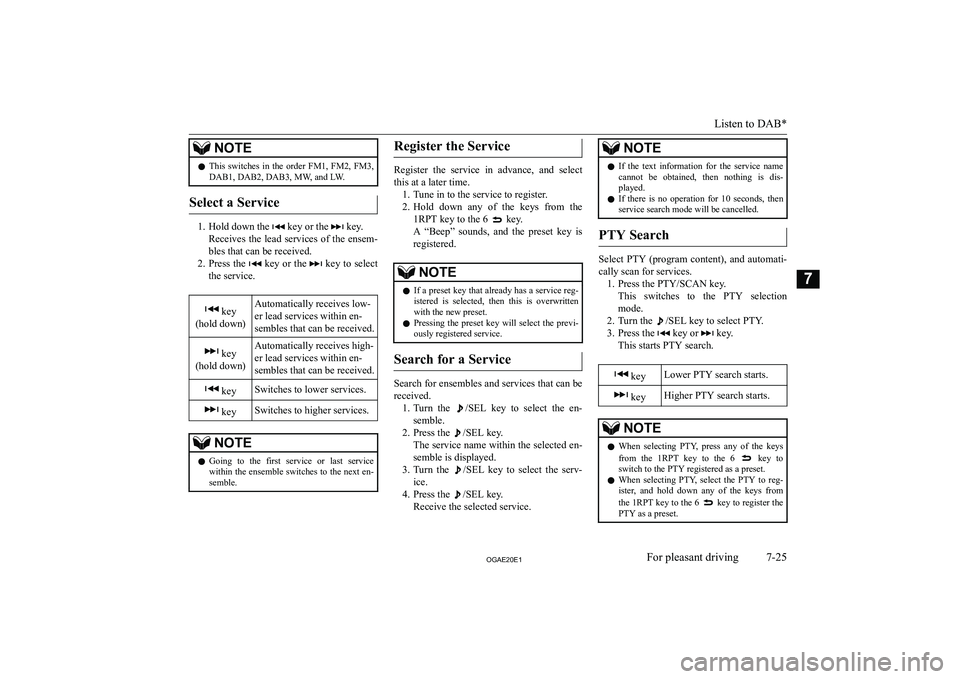

NOTEzThis switches in the order FM1, FM2, FM3,
DAB1, DAB2, DAB3, MW, and LW.
Select a Service
1. Hold down the key or the key.
Receives the lead services of the ensem-
bles that can be received.
2. Press the
key or the key to select
the service.
key
(hold down)Automatically receives low-
er lead services within en-
sembles that can be received. key
(hold down)Automatically receives high-
er lead services within en-
sembles that can be received. keySwitches to lower services. keySwitches to higher services.NOTEz Going to the first service or last service
within the ensemble switches to the next en-
semble.Register the Service
Register the service in advance, and select
this at a later time. 1. Tune in to the service to register.
2. Hold down any of the keys from the
1RPT key to the 6
key.
A “Beep” sounds, and the preset key is registered.
NOTEz If a preset key that already has a service reg-
istered is selected, then this is overwrittenwith the new preset.
z Pressing the preset key will select the previ-
ously registered service.
Search for a Service
Search for ensembles and services that can be
received. 1. Turn the
/SEL key to select the en-
semble.
2. Press the
/SEL key.
The service name within the selected en-
semble is displayed.
3. Turn the
/SEL key to select the serv-
ice.
4. Press the
/SEL key.
Receive the selected service.
NOTEz If the text information for the service name
cannot be obtained, then nothing is dis-
played.
z If there is no operation for 10 seconds, then
service search mode will be cancelled.
PTY Search
Select PTY (program content), and automati-
cally scan for services. 1. Press the PTY/SCAN key. This switches to the PTY selectionmode.
2. Turn the
/SEL key to select PTY.
3. Press the
key or key.
This starts PTY search.
keyLower PTY search starts. keyHigher PTY search starts.NOTEz When selecting PTY, press any of the keys
from the 1RPT key to the 6 key to
switch to the PTY registered as a preset.
z When selecting PTY, select the PTY to reg-
ister, and hold down any of the keys from
the 1RPT key to the 6
key to register the
PTY as a preset.
Listen to DAB*
7-252*$(20(1For pleasant driving7

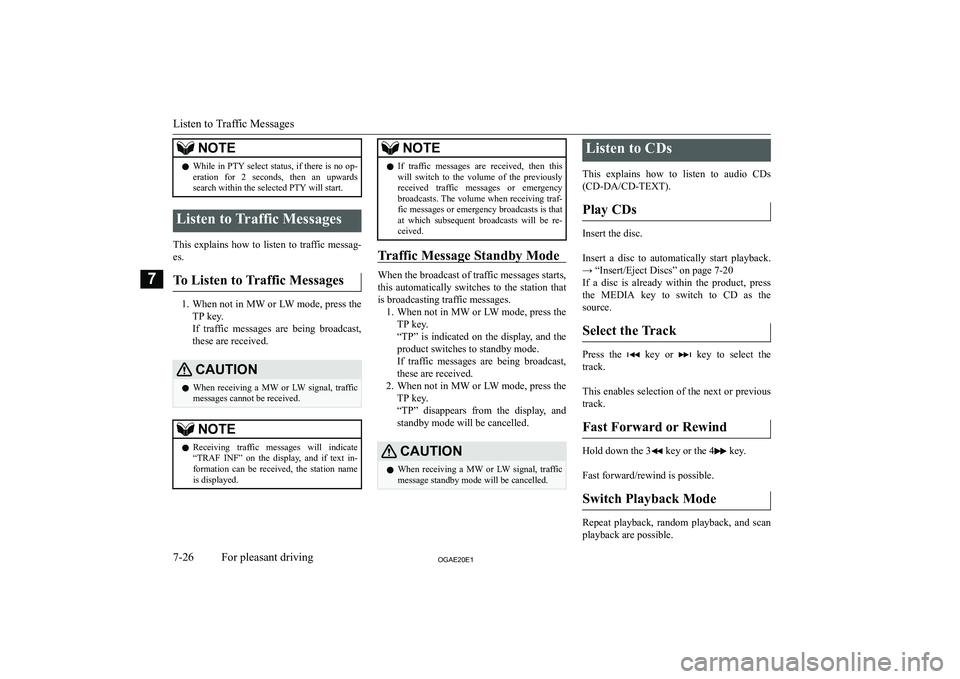

NOTEzWhile in PTY select status, if there is no op-
eration for 2 seconds, then an upwards search within the selected PTY will start.Listen to Traffic Messages
This explains how to listen to traffic messag-
es.
To Listen to Traffic Messages
1. When not in MW or LW mode, press the
TP key.
If traffic messages are being broadcast,
these are received.
CAUT,ONz When receiving a MW or LW signal, traffic
messages cannot be received.NOTEz Receiving traffic messages will indicate
“TRAF INF” on the display, and if text in-
formation can be received, the station name is displayed.NOTEz If traffic messages are received, then this
will switch to the volume of the previouslyreceived traffic messages or emergency broadcasts. The volume when receiving traf-
fic messages or emergency broadcasts is that at which subsequent broadcasts will be re- ceived.
Traffic Message Standby Mode
When the broadcast of traffic messages starts,
this automatically switches to the station that
is broadcasting traffic messages. 1. When not in MW or LW mode, press the
TP key.
“TP” is indicated on the display, and the
product switches to standby mode.
If traffic messages are being broadcast, these are received.
2. When not in MW or LW mode, press the
TP key.
“TP” disappears from the display, and standby mode will be cancelled.
CAUT,ONz When receiving a MW or LW signal, traffic
message standby mode will be cancelled.Listen to CDs
This explains how to listen to audio CDs (CD-DA/CD-TEXT).
Play CDs
Insert the disc.

Insert a disc to automatically start playback.

W “Insert/Eject Discs” on page 7-20
If a disc is already within the product, press the MEDIA key to switch to CD as the
source.
Select the Track
Press the key or key to select the
track.

This enables selection of the next or previous
track.
Fast Forward or Rewind
Hold down the 3 key or the 4 key.

Fast forward/rewind is possible.
Switch Playback Mode
Repeat playback, random playback, and scan
playback are possible.
Listen to Traffic Messages
7-262*$(20(1For pleasant driving7

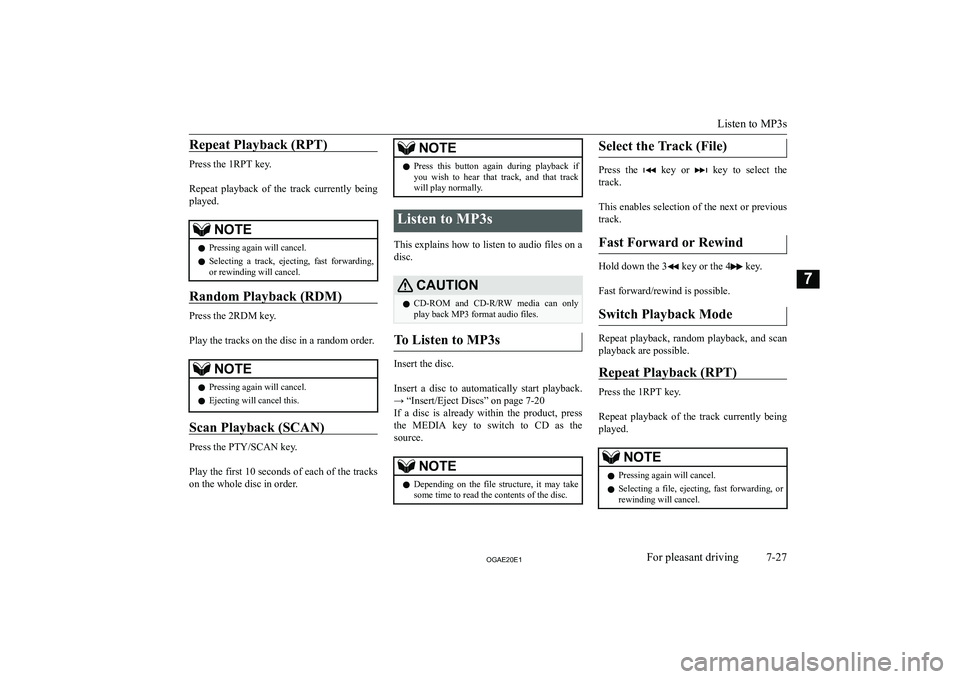

Repeat Playback (RPT)
Press the 1RPT key.

Repeat playback of the track currently being
played.
NOTEz Pressing again will cancel.
z Selecting a track, ejecting, fast forwarding,
or rewinding will cancel.
Random Playback (RDM)
Press the 2RDM key.

Play the tracks on the disc in a random order.
NOTEz Pressing again will cancel.
z Ejecting will cancel this.
Scan Playback (SCAN)
Press the PTY/SCAN key.

Play the first 10 seconds of each of the tracks
on the whole disc in order.
NOTEz Press this button again during playback if
you wish to hear that track, and that trackwill play normally.Listen to MP3s
This explains how to listen to audio files on a
disc.
CAUT,ONz CD-ROM and CD-R/RW media can only
play back MP3 format audio files.
To Listen to MP3s
Insert the disc.

Insert a disc to automatically start playback.

W “Insert/Eject Discs” on page 7-20 If a disc is already within the product, press the MEDIA key to switch to CD as the
source.
NOTEz Depending on the file structure, it may take
some time to read the contents of the disc.Select the Track (File)
Press the key or key to select the
track.

This enables selection of the next or previous
track.
Fast Forward or Rewind
Hold down the 3 key or the 4 key.

Fast forward/rewind is possible.
Switch Playback Mode
Repeat playback, random playback, and scan
playback are possible.
Repeat Playback (RPT)
Press the 1RPT key.

Repeat playback of the track currently being
played.
NOTEz Pressing again will cancel.
z Selecting a file, ejecting, fast forwarding, or
rewinding will cancel.
Listen to MP3s
7-272*$(20(1For pleasant driving7

Folder Repeat Playback
Hold down the 1RPT key.

Repeat playback of the tracks within the fold- er currently being played.
NOTEz Pressing again will cancel.
z Even if the file is selected, folder repeat
playback will not be cancelled.
Random Playback (RDM)
Press the 2RDM key.

Play the tracks in the folder in a random or-
der.
NOTEz Pressing again will cancel.
Folder Random Playback
Hold down the 2RDM key.

Play all tracks in folders on the disc in a ran-
dom order.
NOTEz Pressing again will cancel.
Scan Playback (SCAN)
Press the SCAN key.

Play the first 10 seconds of each of the tracks
in the folder currently being played in order.
Search Tracks
Search folders and files, and select a track. 1. Turn the
/SEL key to select the folder.
2. Press the
/SEL key.

Files within the selected folder are dis- played.
3. Turn the
/SEL key to select the file.
4. Press the
/SEL key.

This plays the selected file (track).
NOTEz While the folder is selected, press the 6 key to cancel track search mode.
z If there is no operation for 10 seconds after
selecting the folder, then track search mode will be cancelled.NOTEz Select the folder, and hold down the /SEL
key to start playback from the first track in
that folder.
z While the file is selected, press the 6
key
to return to the previous operation.
z While the file is selected, hold down the 6
key to cancel rack search mode.
z If there is no operation for five seconds after
selecting the file, that file is played back.
z Disc operations such as selecting a track will
cancel track search mode.
Listening to an iPod
By connecting commercially-available iPod/
iPhone devices to this product, you can play
back tracks on these through the product.
CAUT,ONz Do not leave the iPod/iPhone unattended in
the vehicle.
z Never hold these devices in your hand to op-
erate while driving, as this is dangerous.
z No indemnification for data loss resulting
when the iPod/iPhone is connected to the
product will be possible.
z Depending on how the devices are handled,
audio files being damaged or lost, therefore
it is recommended that data be backed up.
Listening to an iPod
7-282*$(20(1For pleasant driving7

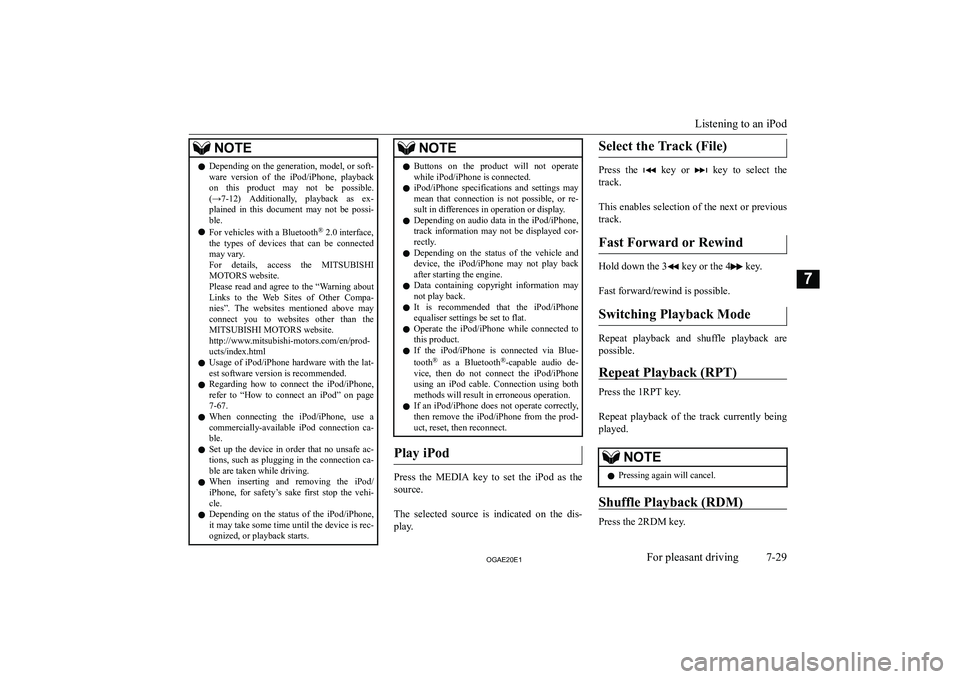

NOTEzDepending on the generation, model, or soft-
ware version of the iPod/iPhone, playback
on this product may not be possible. (
W7-12 ) Additionally, playback as ex-
plained in this document may not be possi- ble.
z For vehicles with a Bluetooth

Play tracks in the category currently beingplayed in a random order.NOTEz Pressing again will cancel.
Album Shuffle Playback
Hold down the 2RDM key.

Play back the album in a random order
(tracks in any order on the album).
NOTEz Pressing again will cancel.
Search Tracks
Search categories or track names, and select a
track. 1. Turn the
/SEL key to select the cate-
gory.
2. Press the
/SEL key. Categories or
tracks within the selected category are displayed.
3. Turn the
/SEL key to select the cate-
gory or track.
4. Press the /SEL key.
Repeat steps 1 to 4, and search for tracks.
Select the track, and press the
/SEL
key to play.
NOTEz While the category (1 st
level) is selected,
press the 6 key to cancel track search
mode.
z If there is no operation for 10 seconds after
selecting the category, then track search
mode will be cancelled.
z Select the category, and hold down the
/SEL key to start playback from the first
track in that category.
z While the track is selected, press the 6
key to return to the previous operation.
z While the track is selected, hold down the 6
key to cancel track search mode.
z If there is no operation for five seconds after
selecting the track, that file is played back.
z iPod operations such as selecting a track will
cancel track search mode.
Listen to Audio Files on a
USB Device
By connecting commercially-available USB
devices such as USB memory to this product,
you can play back audio files on these through the product.
CAUT,ONz Do not leave the USB device unattended in
the vehicle.
z Never hold these devices in your hand to op-
erate while driving, as this is dangerous.
z Do not use hard discs, card readers, or mem-
ory readers, as damage may occur to these or
to the data contained therein. If these are er- roneously connected, then turn the ignition
switch to the “LOCK” position or put the operation mode in OFF, then remove.
z Because of the risk of data loss, it is recom-
mended that files be backed up.
z No guarantee is made as regards damage to
the USB device, nor regarding loss or dam- age to data contained therein.
z Depending on how the devices are handled,
audio files being damaged or lost, therefore
it is recommended that data be backed up.NOTEz Digital audio players that support the mass
storage class specifications can be connec- ted.
z For details regarding the types of USB devi-
ces that can be connected and the types of files that can be played back in vehicles with
a Bluetooth

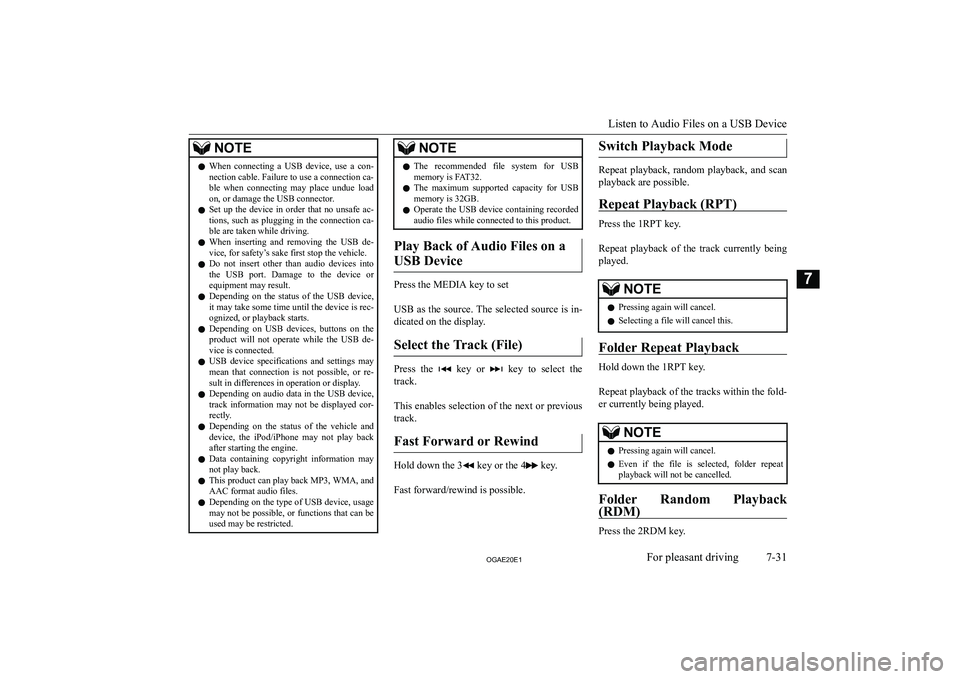

NOTEzWhen connecting a USB device, use a con-
nection cable. Failure to use a connection ca-
ble when connecting may place undue load
on, or damage the USB connector.
z Set up the device in order that no unsafe ac-
tions, such as plugging in the connection ca-ble are taken while driving.
z When inserting and removing the USB de-
vice, for safety

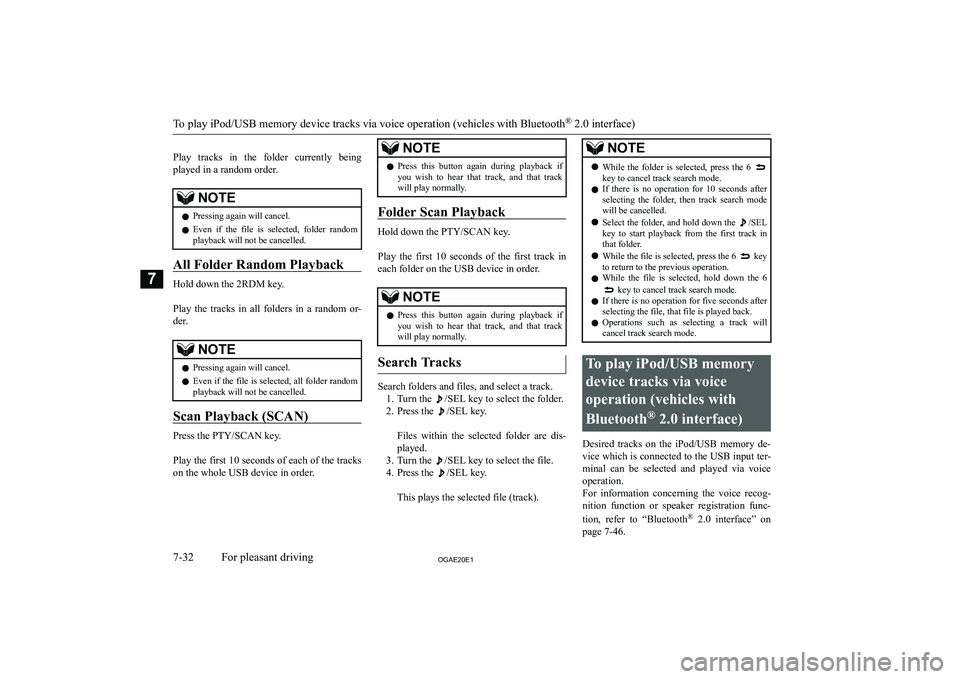

Play tracks in the folder currently being
played in a random order.NOTEz Pressing again will cancel.
z Even if the file is selected, folder random
playback will not be cancelled.
All Folder Random Playback
Hold down the 2RDM key.

Play the tracks in all folders in a random or-
der.
NOTEz Pressing again will cancel.
z Even if the file is selected, all folder random
playback will not be cancelled.
Scan Playback (SCAN)
Press the PTY/SCAN key.

Play the first 10 seconds of each of the tracks
on the whole USB device in order.
NOTEz Press this button again during playback if
you wish to hear that track, and that trackwill play normally.
Folder Scan Playback
Hold down the PTY/SCAN key.

Play the first 10 seconds of the first track in
each folder on the USB device in order.
NOTEz Press this button again during playback if
you wish to hear that track, and that trackwill play normally.
Search Tracks
Search folders and files, and select a track.
1. Turn the
/SEL key to select the folder.
2. Press the
/SEL key.

Files within the selected folder are dis- played.
3. Turn the
/SEL key to select the file.
4. Press the
/SEL key.

This plays the selected file (track).
NOTEz While the folder is selected, press the 6 key to cancel track search mode.
z If there is no operation for 10 seconds after
selecting the folder, then track search mode will be cancelled.
z Select the folder, and hold down the
/SEL
key to start playback from the first track in
that folder.
z While the file is selected, press the 6
key
to return to the previous operation.
z While the file is selected, hold down the 6
key to cancel track search mode.
z If there is no operation for five seconds after
selecting the file, that file is played back.
z Operations such as selecting a track will
cancel track search mode.
To play iPod/USB memory
device tracks via voice
operation (vehicles with
Bluetooth

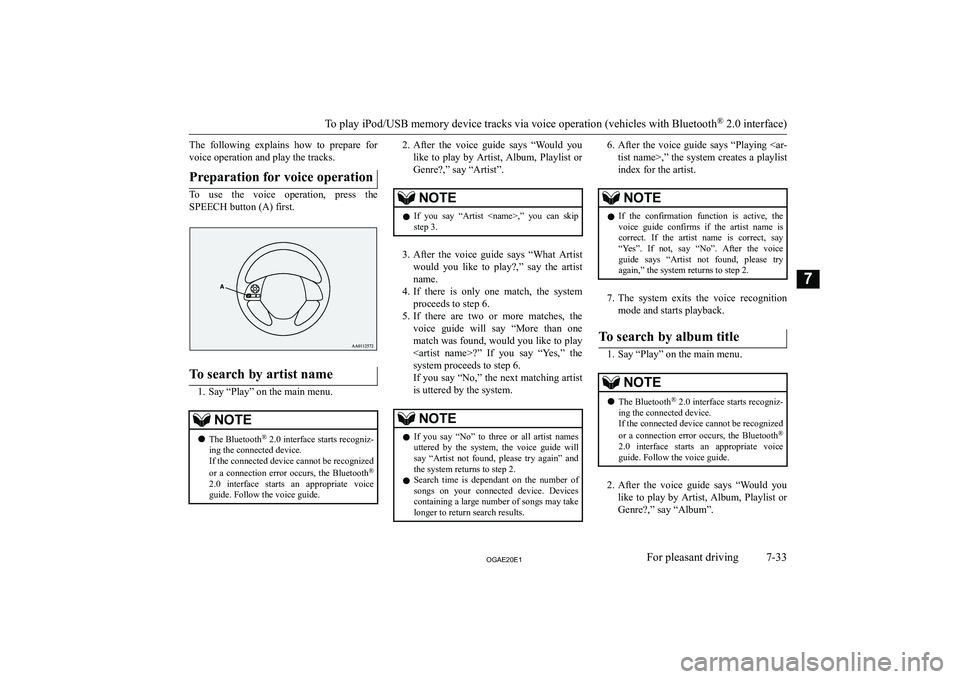

The following explains how to prepare forvoice operation and play the tracks.Preparation for voice operation
To use the voice operation, press the
SPEECH button (A) first.
To search by artist name
1. Say “Play” on the main menu.
NOTEz The Bluetooth

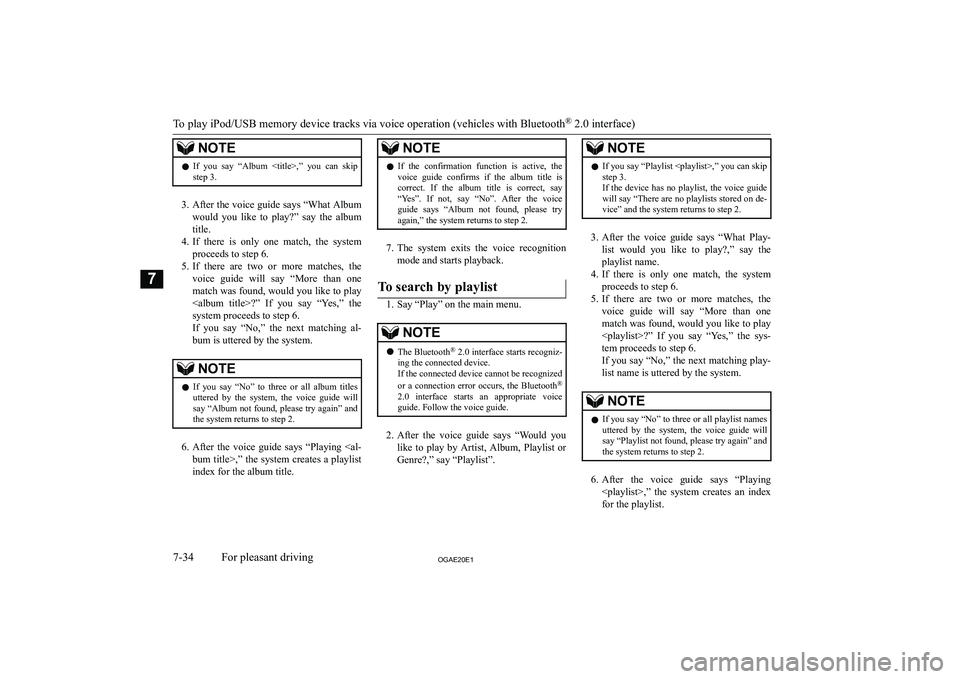

NOTEzIf you say “Album <title>,” you can skip
step 3.
3. After the voice guide says “What Album
would you like to play?” say the album title.
4. If there is only one match, the system
proceeds to step 6.
5. If there are two or more matches, the
voice guide will say “More than one
match was found, would you like to play <album title>?” If you say “Yes,” thesystem proceeds to step 6.
If you say “No,” the next matching al-
bum is uttered by the system.
NOTEz If you say “No” to three or all album titles
uttered by the system, the voice guide will say “Album not found, please try again” and
the system returns to step 2.
6. After the voice guide says “Playing <al-
bum title>,” the system creates a playlist index for the album title.
NOTEz If the confirmation function is active, the
voice guide confirms if the album title is
correct. If the album title is correct, say
“Yes”. If not, say “No”. After the voice guide says “Album not found, please try
again,” the system returns to step 2.
7. The system exits the voice recognition
mode and starts playback.
To search by playlist
1. Say “Play” on the main menu.
NOTEz The Bluetooth
