MITSUBISHI ASX 2020 Owner's Manual (in English)

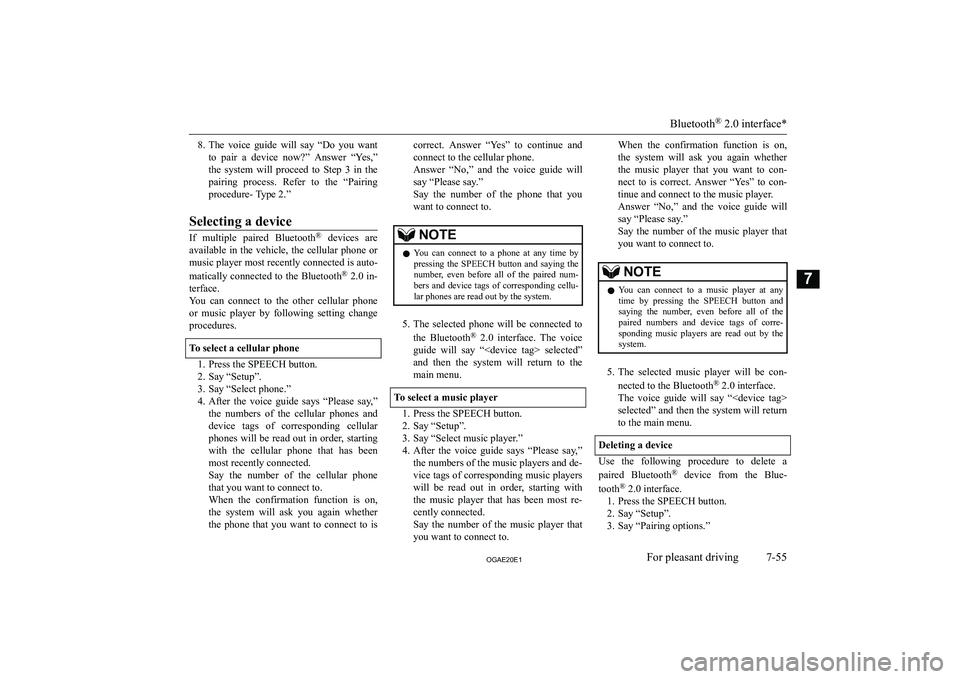

8.The voice guide will say “Do you want
to pair a device now?” Answer “Yes,” the system will proceed to Step 3 in thepairing process. Refer to the “Pairing
procedure- Type 2.”Selecting a device
If multiple paired Bluetooth

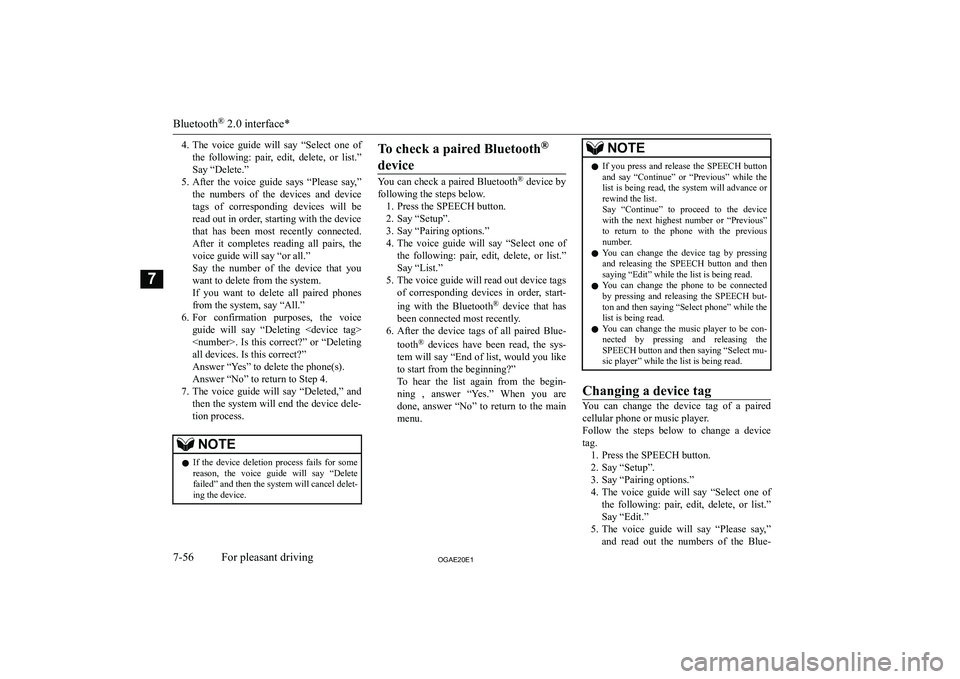

4.The voice guide will say “Select one of
the following: pair, edit, delete, or list.” Say “Delete.”
5. After the voice guide says “Please say,”
the numbers of the devices and device
tags of corresponding devices will be read out in order, starting with the device
that has been most recently connected.
After it completes reading all pairs, the voice guide will say “or all.”
Say the number of the device that you
want to delete from the system.
If you want to delete all paired phones
from the system, say “All.”
6. For confirmation purposes, the voice
guide will say “Deleting <device tag> <number>. Is this correct?” or “Deletingall devices. Is this correct?”
Answer “Yes” to delete the phone(s).
Answer “No” to return to Step 4.
7. The voice guide will say “Deleted,” and
then the system will end the device dele- tion process.NOTEz If the device deletion process fails for some
reason, the voice guide will say “Delete failed” and then the system will cancel delet- ing the device.To check a paired Bluetooth

tooth

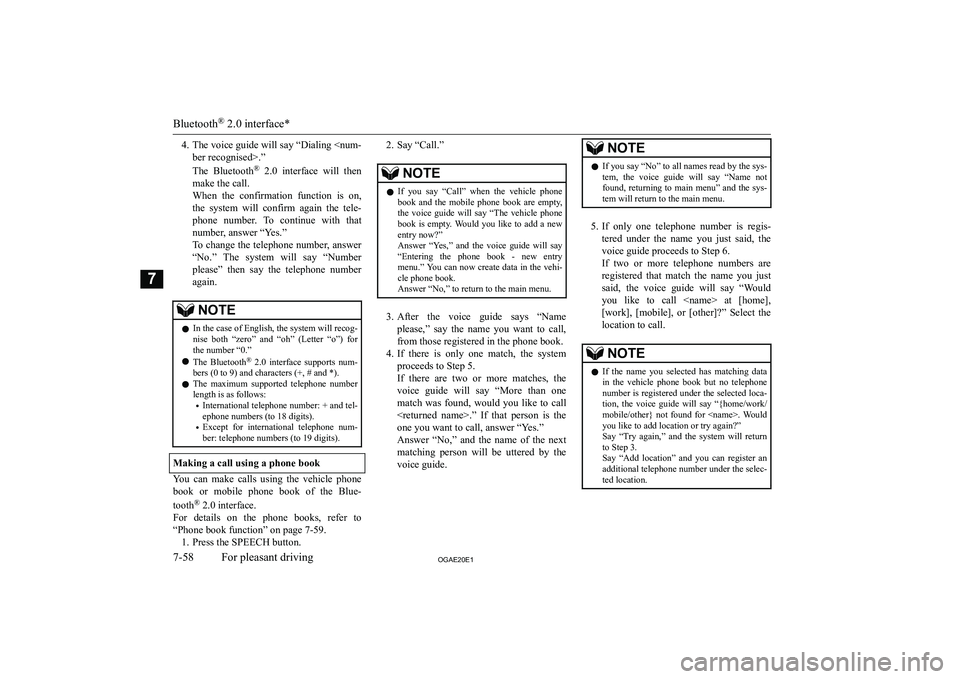

4.The voice guide will say “Dialing <num-
ber recognised>.”
The Bluetooth

NOTEzIf the name you selected has matching data
in the mobile phone book but no telephone
number is registered under the selected loca- tion, the voice guide will say “{home/work/
mobile/other` not found for <name>. Would you like to try again?”
Answer “Yes,” and the system will return to Step 3.
Answer “No,” and the call will be cancelled.
Start over again from Step 1.
6. The voice guide will say “Calling
<name> <location>” and then the sys-
tem will dial the telephone number.
NOTEz When the confirmation function is on, the
system will ask if the name and location of the receiver are correct.
If the name is correct, answer “Yes.”
If you want to change the name or location
to call, answer “No.” The system will return to Step 3.

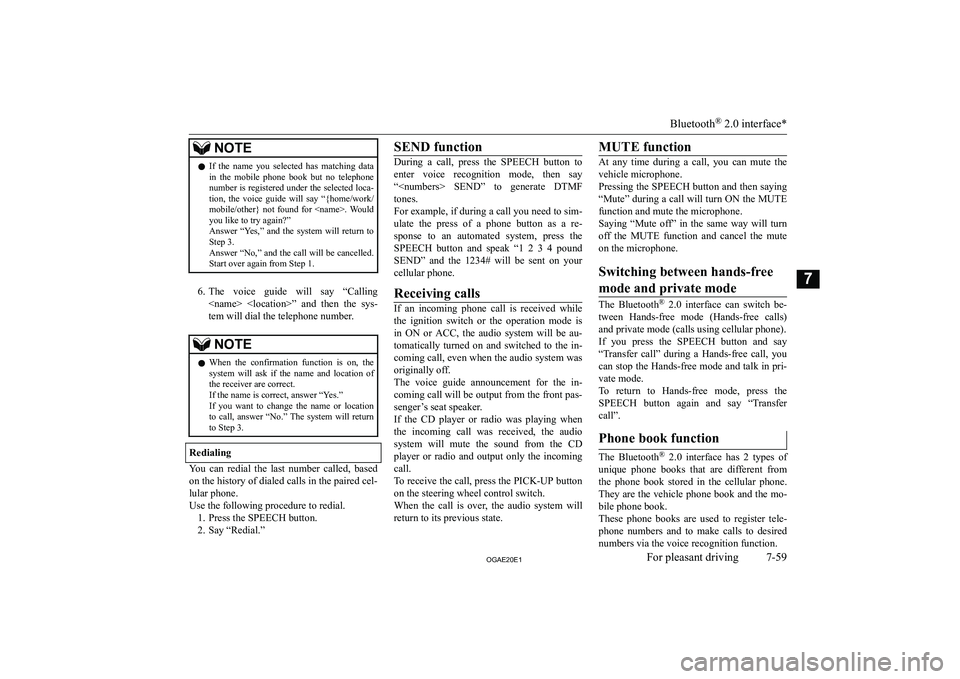

Redialing
You can redial the last number called, based
on the history of dialed calls in the paired cel-
lular phone.
Use the following procedure to redial. 1. Press the SPEECH button.
2. Say “Redial.”
SEND function
During a call, press the SPEECH button to
enter voice recognition mode, then say “<numbers> SEND” to generate DTMF
tones.
For example, if during a call you need to sim- ulate the press of a phone button as a re- sponse to an automated system, press theSPEECH button and speak “1 2 3 4 pound
SEND” and the 1234 will be sent on your cellular phone.
Receiving calls
If an incoming phone call is received whilethe ignition switch or the operation mode is
in ON or ACC, the audio system will be au- tomatically turned on and switched to the in-
coming call, even when the audio system was
originally off.
The voice guide announcement for the in- coming call will be output from the front pas- senger

NOTEzDisconnecting the battery cable will not de-
lete information registered in the phone

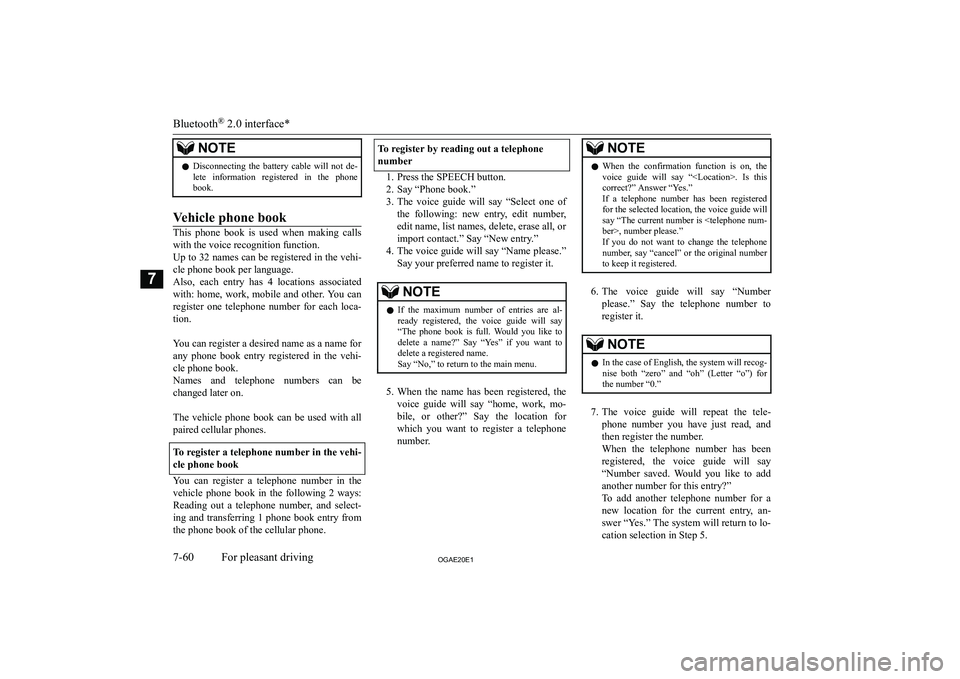

book.Vehicle phone book
This phone book is used when making calls
with the voice recognition function.
Up to 32 names can be registered in the vehi-
cle phone book per language.
Also, each entry has 4 locations associated with: home, work, mobile and other. You can
register one telephone number for each loca-
tion.

You can register a desired name as a name for
any phone book entry registered in the vehi- cle phone book.
Names and telephone numbers can be
changed later on.

The vehicle phone book can be used with all paired cellular phones.
To register a telephone number in the vehi-
cle phone book
You can register a telephone number in the vehicle phone book in the following 2 ways: Reading out a telephone number, and select-
ing and transferring 1 phone book entry from the phone book of the cellular phone.
To register by reading out a telephone
number
1. Press the SPEECH button.
2. Say “Phone book.”
3. The voice guide will say “Select one of
the following: new entry, edit number,
edit name, list names, delete, erase all, or
import contact.” Say “New entry.”
4. The voice guide will say “Name please.”
Say your preferred name to register it.
NOTEz If the maximum number of entries are al-
ready registered, the voice guide will say“The phone book is full. Would you like to
delete a name?” Say “Yes” if you want to
delete a registered name.
Say “No,” to return to the main menu.
5. When the name has been registered, the
voice guide will say “home, work, mo- bile, or other?” Say the location forwhich you want to register a telephone
number.
NOTEz When the confirmation function is on, the
voice guide will say “<Location>. Is thiscorrect?” Answer “Yes.”
If a telephone number has been registered for the selected location, the voice guide will say “The current number is <telephone num-
ber>, number please.”
If you do not want to change the telephone number, say “cancel” or the original number to keep it registered.
6. The voice guide will say “Number
please.” Say the telephone number to register it.
NOTEz In the case of English, the system will recog-
nise both “zero” and “oh” (Letter “o”) for the number “0.”
7. The voice guide will repeat the tele-
phone number you have just read, and
then register the number.
When the telephone number has been registered, the voice guide will say
“Number saved. Would you like to add
another number for this entry?”
To add another telephone number for a
new location for the current entry, an-
swer “Yes.” The system will return to lo- cation selection in Step 5.
Bluetooth

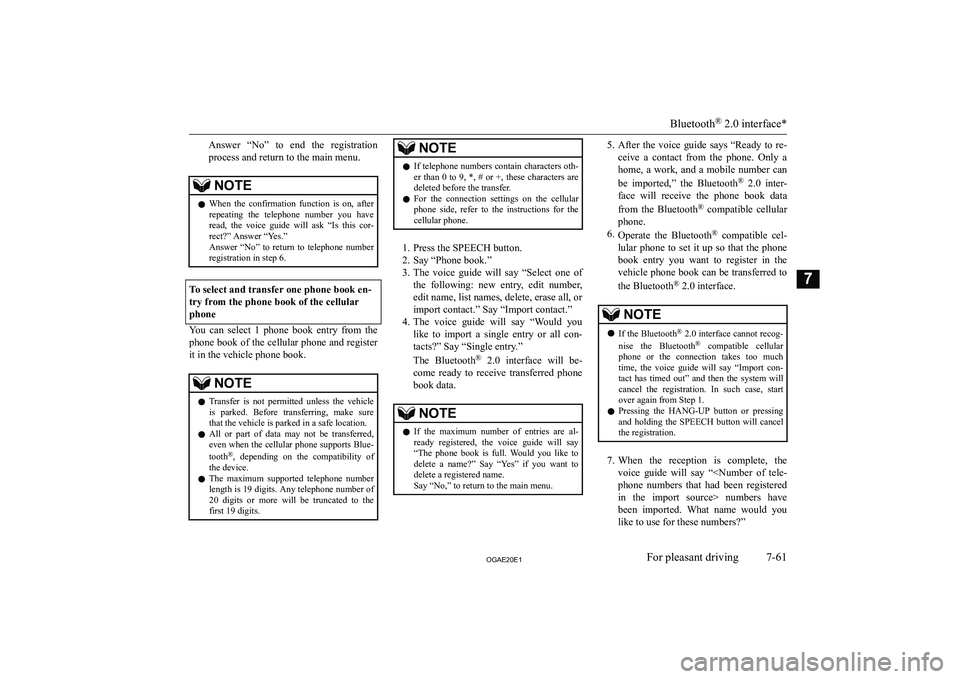

Answer “No” to end the registrationprocess and return to the main menu.NOTEz When the confirmation function is on, after
repeating the telephone number you have
read, the voice guide will ask “Is this cor- rect?” Answer “Yes.”
Answer “No” to return to telephone number registration in step 6.To select and transfer one phone book en-
try from the phone book of the cellular
phone
You can select 1 phone book entry from the
phone book of the cellular phone and register it in the vehicle phone book.
NOTEz Transfer is not permitted unless the vehicle
is parked. Before transferring, make sure
that the vehicle is parked in a safe location.
z All or part of data may not be transferred,
even when the cellular phone supports Blue-
tooth

Say the name you want to register for
this phone book entry.NOTEz If the entered name is already used for other
phone book entry or similar to a name used
for other phone book entry, that name cannot be registered.
8. The voice guide will say “Adding
<name>.”
When the confirmation function is on, the system will ask if the name is cor-
rect. Answer “Yes.”
Answer “No,” and the voice guide will say “Name please.” Register a differentname.
9. The voice guide will say “Numbers
saved.”
10. The voice guide will say “Would you
like to import another contact?”
Answer “Yes” if you want to continue
with the registration. You can continue to register a new phone book entry from Step 5.
Answer “No,” to return to the main menu.
To change the content registered in the ve-
hicle phone book
You can change or delete a name or tele- phone number registered in the vehicle phone
book.
You can also listen to the list of names regis-
tered in the vehicle phone book.
NOTEz The system must have at least one entry.Editing a telephone number
1. Press the SPEECH button.
2. Say “Phone book.”
3. The voice guide will say “Select one of
the following: new entry, edit number, edit name, list names, delete, erase all, or
import contact.” Say “Edit number.”
4. The voice guide will say “Please say the
name of the entry you would like to edit, or say list names.” Say the name of the
phone book entry you want to edit.
NOTEz Say “List names,” and the names registered
in the phone book will be read out in order.Refer to “Vehicle phone book: Listening to the list of registered names” on page 7-63.5. The voice guide will say “Home, work,
mobile or other?” Select and say the lo- cation where the telephone number youwant to change or add is registered.
When the confirmation function is on, the system will check the target name
and location again. Answer “Yes” if you want to continue with the editing.
Answer “No” to return to Step 3.
6. The voice guide will say “Number
please.” Say the telephone number you
want to register.NOTEz If the telephone number is already registered
in the selected location, the voice guide will
say “The current number is <current num-
ber>. New number, please.” Say a new tele- phone number to change the current number.
7. The voice guide will repeat the tele-
phone number.
When the confirmation function is on, the system will ask if the number is cor-
rect. Answer “Yes.”
Answer “No” to return to Step 3.
8. Once the telephone number is registered,
the voice guide will say “Number saved”
and then the system will return to the main menu.
Bluetooth

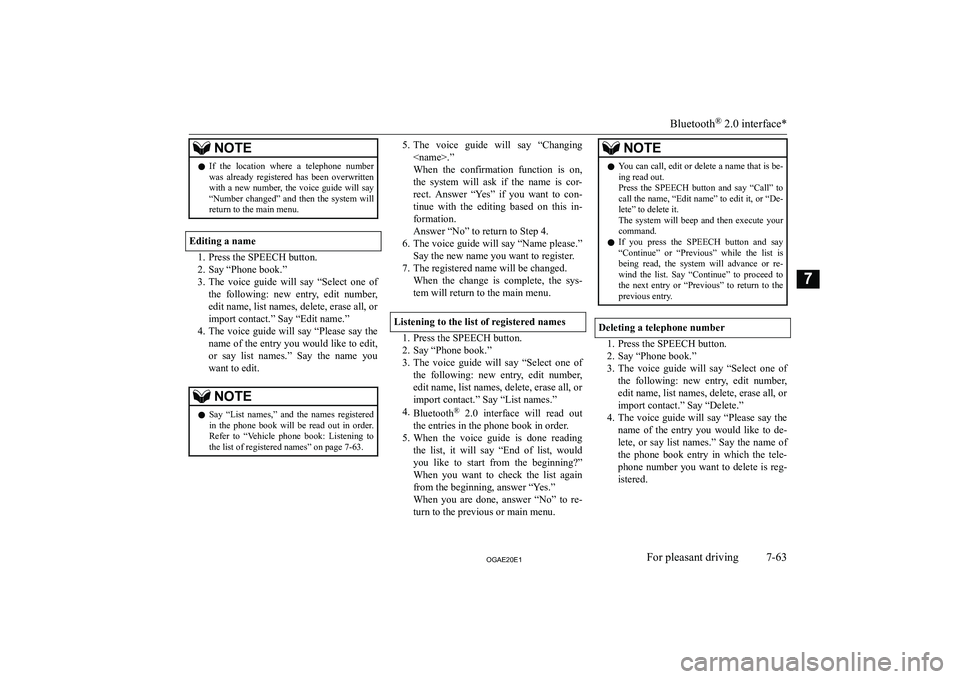

NOTEzIf the location where a telephone number
was already registered has been overwritten
with a new number, the voice guide will say “Number changed” and then the system will return to the main menu.Editing a name
1. Press the SPEECH button.
2. Say “Phone book.”
3. The voice guide will say “Select one of
the following: new entry, edit number, edit name, list names, delete, erase all, or
import contact.” Say “Edit name.”
4. The voice guide will say “Please say the
name of the entry you would like to edit, or say list names.” Say the name you want to edit.
NOTEz Say “List names,” and the names registered
in the phone book will be read out in order.Refer to “Vehicle phone book: Listening to the list of registered names” on page 7-63.5. The voice guide will say “Changing
<name>.”
When the confirmation function is on, the system will ask if the name is cor-
rect. Answer “Yes” if you want to con-
tinue with the editing based on this in- formation.
Answer “No” to return to Step 4.
6. The voice guide will say “Name please.”
Say the new name you want to register.
7. The registered name will be changed. When the change is complete, the sys-
tem will return to the main menu.Listening to the list of registered names
1. Press the SPEECH button.
2. Say “Phone book.”
3. The voice guide will say “Select one of
the following: new entry, edit number,
edit name, list names, delete, erase all, or
import contact.” Say “List names.”
4. Bluetooth

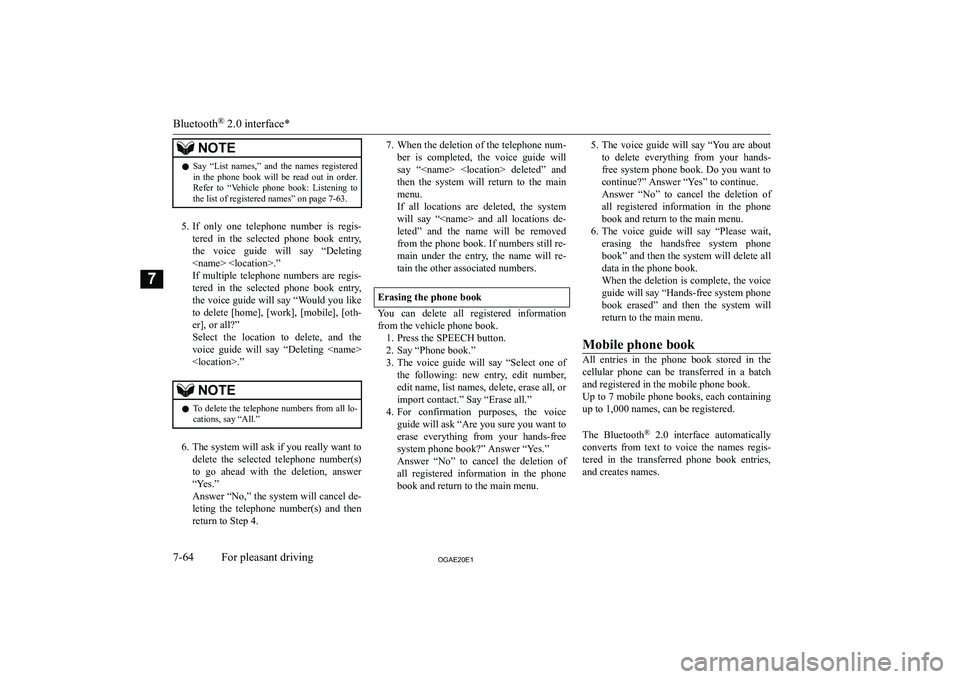

NOTEzSay “List names,” and the names registered
in the phone book will be read out in order.Refer to “Vehicle phone book: Listening to the list of registered names” on page 7-63.
5. If only one telephone number is regis-
tered in the selected phone book entry, the voice guide will say “Deleting <name> <location>.”
If multiple telephone numbers are regis- tered in the selected phone book entry,the voice guide will say “Would you like
to delete [home@, [work@, [mobile@, [oth-
er@, or all?”
Select the location to delete, and the voice guide will say “Deleting <name> <location>.”
NOTEz To delete the telephone numbers from all lo-
cations, say “All.”
6. The system will ask if you really want to
delete the selected telephone number(s)
to go ahead with the deletion, answer
“Yes.”
Answer “No,” the system will cancel de- leting the telephone number(s) and thenreturn to Step 4.
7. When the deletion of the telephone num-
ber is completed, the voice guide will
say “<name> <location> deleted” and then the system will return to the main
menu.
If all locations are deleted, the system will say “<name> and all locations de-
leted” and the name will be removed from the phone book. If numbers still re-
main under the entry, the name will re- tain the other associated numbers.Erasing the phone book
You can delete all registered information from the vehicle phone book. 1. Press the SPEECH button.
2. Say “Phone book.”
3. The voice guide will say “Select one of
the following: new entry, edit number,
edit name, list names, delete, erase all, or
import contact.” Say “Erase all.”
4. For confirmation purposes, the voice
guide will ask “Are you sure you want toerase everything from your hands-free system phone book?” Answer “Yes.”
Answer “No” to cancel the deletion of
all registered information in the phone
book and return to the main menu.
5. The voice guide will say “You are about
to delete everything from your hands-
free system phone book. Do you want to continue?” Answer “Yes” to continue.
Answer “No” to cancel the deletion of
all registered information in the phone
book and return to the main menu.
6. The voice guide will say “Please wait,
erasing the handsfree system phone book” and then the system will delete all
data in the phone book.
When the deletion is complete, the voice guide will say “Hands-free system phone
book erased” and then the system will return to the main menu.Mobile phone book
All entries in the phone book stored in thecellular phone can be transferred in a batch
and registered in the mobile phone book.
Up to 7 mobile phone books, each containing
up to 1,000 names, can be registered.

The Bluetooth
