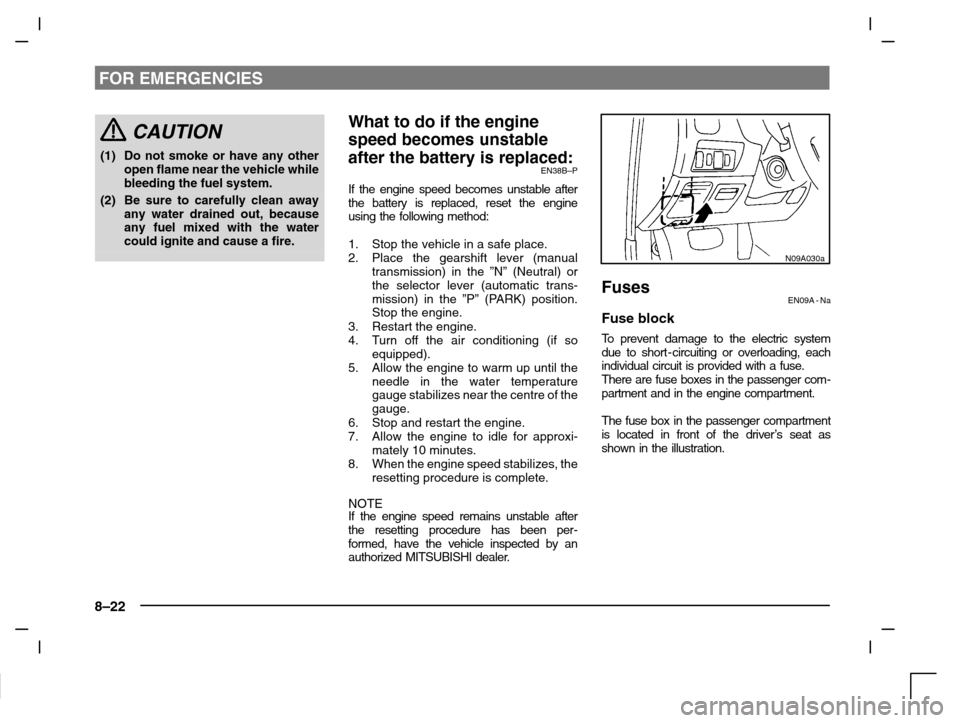

Page 222 of 280
FOR EMERGENCIES
8–22
CAUTION
(1) Do not smoke or have any other
open flame near the vehicle while
bleeding the fuel system.
(2) Be sure to carefully clean away
any water drained out, because
any fuel mixed with the water
could ignite and cause a fire.
What to do if the engine
speed becomes unstable
after the battery is replaced:
EN38B–P
If the engine speed becomes unstable after
the battery is replaced, reset the engine
using the following method:
1. Stop the vehicle in a safe place.
2. Place the gearshift lever (manual
transmission) in the ”N” (Neutral) or
the selector lever (automatic trans-
mission) in the ”P” (PARK) position.
Stop the engine.
3. Restart the engine.
4. Turn off the air conditioning (if so
equipped).
5. Allow the engine to warm up until the
needle in the water temperature
gauge stabilizes near the centre of the
gauge.
6. Stop and restart the engine.
7. Allow the engine to idle for approxi-
mately 10 minutes.
8. When the engine speed stabilizes, the
resetting procedure is complete.
NOTE
If the engine speed remains unstable after
the resetting procedure has been per-
formed, have the vehicle inspected by an
authorized MITSUBISHI dealer.
N09A030a
FusesEN09A - Na
Fuse block
To prevent damage to the electric system
due to short - circuiting or overloading, each
individual circuit is provided with a fuse.
There are fuse boxes in the passenger com-
partment and in the engine compartment.
The fuse box in the passenger compartment
is located in front of the driver’s seat as
shown in the illustration.
Page 223 of 280
FOR EMERGENCIES
8–23
N09A031a
In the engine compartment, the fuse box is
located as shown in the illustration.
N29B071a
Fuse load capacityEN29BMKd
The fuse capacity and the name of the elec-
trical systems protected by the fuses are
indicated on the inside of the coin box lo-
cated at the driver’s leg area and on the fuse
box lid for fuses located in the engine com-
partment.
Passenger compartment
NOTE
Spare fuses are contained in the fuse hous-
ing. Always use a fuse of the same capacity
for replacement.
NOSym-
bolNameCapacity
1Cigarette lighter15 A
2Electric remote-con-
trolled outside rear-view
mirrors10A
3Supplemental restraint
system (SRS)10 A
4Relay15 A
5Rear fog lamp15 A
6Windscreen wiper20 A
7Sunroof20 A
8Horn10 A
9Reversing lamps10 A
10Auto-speed (cruise)
control10 A
11Heated seat20 A
12Gauges10 A
13Heater25 A
14–Spare fuse25 A
15–Spare fuse20 A
16–Spare fuse15 A
17–Spare fuse10 A

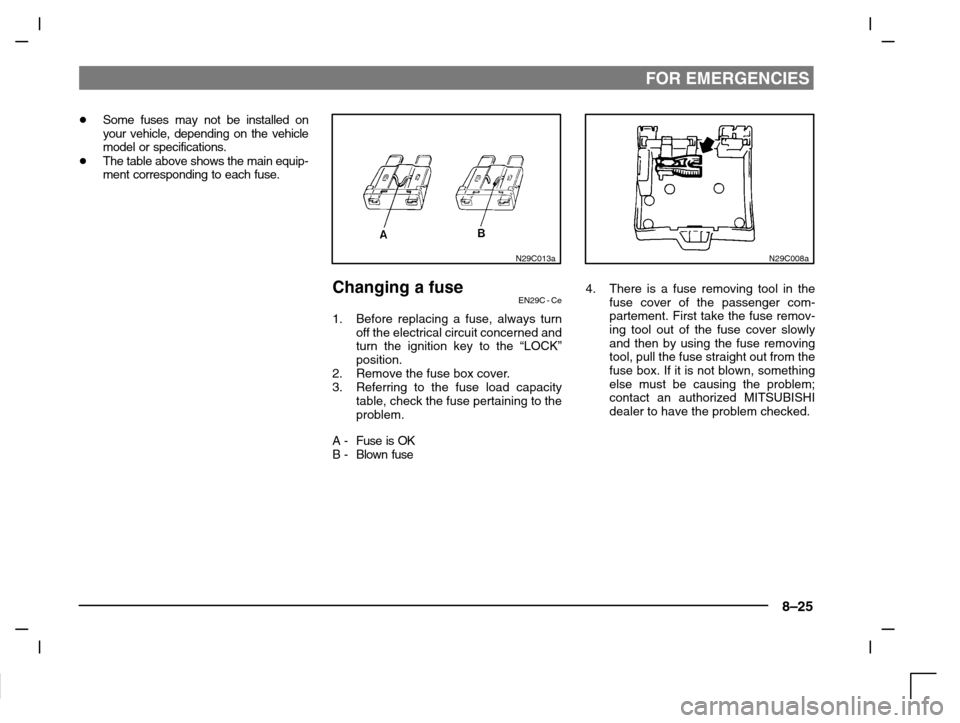

Page 225 of 280
FOR EMERGENCIES
8–25
Some fuses may not be installed on
your vehicle, depending on the vehicle
model or specifications.
The table above shows the main equip-
ment corresponding to each fuse.
N29C013a
Changing a fuseEN29C - Ce
1. Before replacing a fuse, always turn
off the electrical circuit concerned and
turn the ignition key to the “LOCK”
position.
2. Remove the fuse box cover.
3. Referring to the fuse load capacity
table, check the fuse pertaining to the
problem.
A - Fuse is OK
B - Blown fuse
N29C008a
4. There is a fuse removing tool in the
fuse cover of the passenger com-
partement. First take the fuse remov-
ing tool out of the fuse cover slowly
and then by using the fuse removing
tool, pull the fuse straight out from the
fuse box. If it is not blown, something
else must be causing the problem;
contact an authorized MITSUBISHI
dealer to have the problem checked.

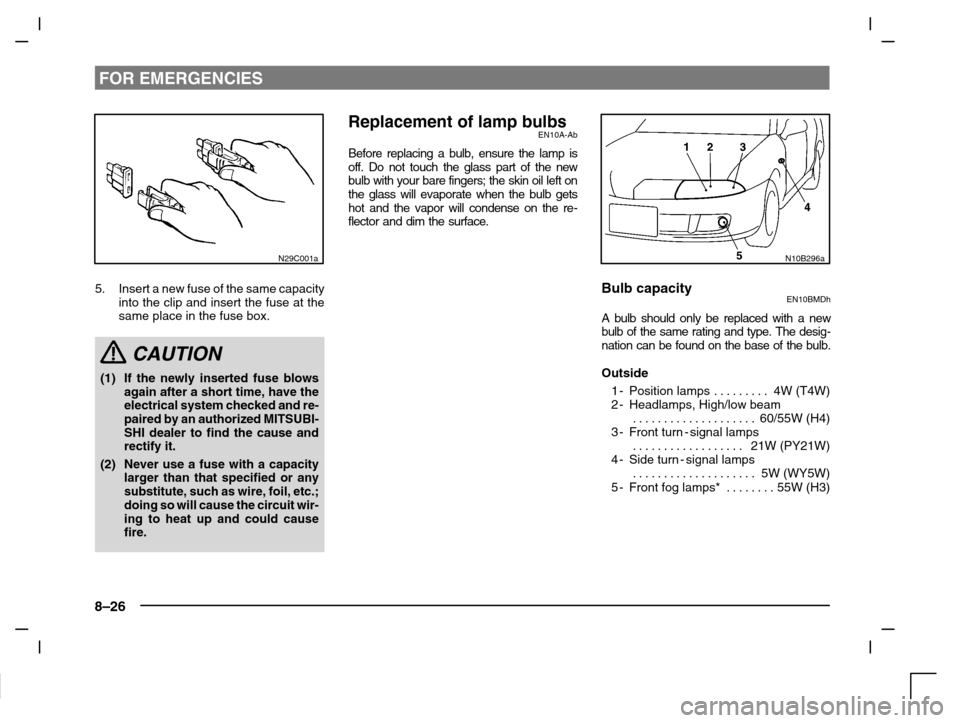

Page 226 of 280
FOR EMERGENCIES
8–26
N29C001a
5. Insert a new fuse of the same capacity
into the clip and insert the fuse at the
same place in the fuse box.
CAUTION
(1) If the newly inserted fuse blows
again after a short time, have the
electrical system checked and re-
paired by an authorized MITSUBI-
SHI dealer to find the cause and
rectify it.
(2) Never use a fuse with a capacity
larger than that specified or any
substitute, such as wire, foil, etc.;
doing so will cause the circuit wir-
ing to heat up and could cause
fire.
Replacement of lamp bulbsEN10A-Ab
Before replacing a bulb, ensure the lamp is
off. Do not touch the glass part of the new
bulb with your bare fingers; the skin oil left on
the glass will evaporate when the bulb gets
hot and the vapor will condense on the re-
flector and dim the surface.
N10B296a
Bulb capacityEN10BMDh
A bulb should only be replaced with a new
bulb of the same rating and type. The desig-
nation can be found on the base of the bulb.
Outside
1-Position lamps 4W (T4W). . . . . . . . .
2-Headlamps, High/low beam
60/55W (H4) . . . . . . . . . . . . . . . . . . . .
3-Front turn - signal lamps
21W (PY21W) . . . . . . . . . . . . . . . . . .
4-Side turn - signal lamps
5W (WY5W) . . . . . . . . . . . . . . . . . . . .
5-Front fog lamps* 55W (H3). . . . . . . .
Page 276 of 280
