3-8 Instruments and controls
3Indicator lamps
E00501600012
Turn-signal indicator lamps/Hazard
warning indicator lamps
E00501700042
These indicator lamps blink on and off when a
turn-signal lamp is operating.
NOTE●
If the blinking is too fast, the cause may be
a faulty turn-signal connection or a blown
lamp bulb.
When the hazard warning lamp switch is
pressed, all turn-signal lamps will flash on and
off continuously.
High-beam indicator lampE00501800072
This indicator lamp illuminates when the high
beam is used.
Front fog lamp indicator lamp*E00501900158
This indicator lamp illuminates while the front
fog lamps are on.
Rear fog lamp indication lampE00502000084
This indication lamp illuminates while the rear
fog lamp is on.
Low coolant temperature indicator
lamp
E00502200028
When the engine coolant temperature is low, this
indicator lamp illuminates and then goes out
when the temperature rises to roughly 40 °C or
more.
NOTE● When the indicator lamp goes out, this
should be used as a rough indication of
when the heating starts working.
● If the indicator lamp stays illuminated,
there may be a fault in the temperature sen-
sor or other component. We recommend
you to have your vehicle inspected.

3-36 Instruments and controls
3Turn-signal lever
E00506500537
The turn-signal lamps flash when the lever is operated (with
the ignition switch in the “ON” position). At the same time, the
turn signal indicator lamp flashes.
NOTE●
If the lamp flashes unusually quickly, the bulb in a turn-
signal lamp may have burned out. We recommend you to
have the vehicle inspected.
● It is possible to change the number of times the turn-signal
lamps flash for a lane-change. For details, we recommend
you to consult a MITSUBISHI MOTORS Authorized
Service Point.
1- Turn-signals
When making a normal turn, use position (1). The lever will
return automatically when cornering is completed.
There are times when the lever will not return after corner-
ing. This occurs when the steering wheel is turned only
slightly.
In such cases, return the lever by hand.
2- Lane-change signals When changing lane, gently move the lever once to position
(2). The turn-signal lamps and the indicator lamp in the
meter will flash three times.

Instruments and controls3-37
3
Hazard warning flasher switch
E00506600088
Use the hazard warning flasher switch when the vehicle has to
be parked on the road for any emergency.
The hazard warning flashers can always be operated, regard-
less of the position of the ignition key.
Push the switch to turn on the hazard warning flashers; push
the switch again to turn them off.
When this switch is operated, all turn-signal lamps flash con-
tinuously, as do the turn-signal indicator lamps in the instru-
ment cluster.
Front fog lamp switch*
E00506800543
The front fog lamps illuminate only when the headlamps or tail
lamps turn on. Push the switch to turn on the front fog lamps,
and push the switch again to turn them off.
The indicator lamp in the instrument cluster will illuminate
while the front fog lamps are on.
NOTE●
The front fog lamps are automa tically turned off when the
headlamps and tail lamps turn off. To turn on the front fog
lamps again, push the switch again when the headlamps or
tail lamps turn on.
● In case of vehicles with Daytime Running Lamp, the front
fog lamp can be operated even if the lamp switch is set to
the “ ” (OFF) position, becau se the low beam of the
headlamps, tail lamps, etc. illuminate when the ignition
key is at the “ON” position.
CAUTION!
● If the lamps are kept flashing for a long time, the
battery will be discharged, resulting in difficulty or
inability to start the engine.

For pleasant driving5-33
5
RDS uses PI (program identifi cation) signal and AF (alterna-
tive frequency) list transmitted in addition to the normal FM
broadcasting programs, and picks up the FM stations that are
transmitting the same program from the AF list and automati-
cally tunes to the station with the strongest signal intensity.
Therefore, you can continue listening to one program in, for
example, a long distance driving without retuning to the other
station transmitting the same program when you are leaving
the service area of the currently receiving station.
The RDS radio also features th e limited reception of the pro-
gram types, the break-in receptio n of the traffic announcement
to the EON (enhanced other network) and emergency broad-
cast, and the limite d/unlimited reception of the regional pro-
grams.
AF (Alternative Frequencies) functionE00720900032
The AF function finds a statio n broadcasting the same program
and selects the station with the strongest signal of AF lists.
The AF function is turned on (with the AF indicator (13)
shown on the display) at all times unless you manually switch
it off.
The AF function can be turned ON and OFF.
Refer to “Function setup mode” on page 5-38.
CT (Clock Time) functionE00721000014
The clock can be set automatically by using the signal from the
local RDS stations. Refer to “Digital clock” on page 3-16.
REG (Regional) functionE00721100015
REG function limits to receive the stations broadcasting
regional programs.
Regional programming and regional networks are organized
differently depending on the country or area (they may be
changed according to the hour, state, or broadcast area), so if
you don’t want to receive the re gional programs automatically,
you can set up REG ON not to receive regional programs.
The REG function can be turned ON and OFF.
Refer to “Function setup mode” on page 5-38.
PI (Program Identification) search functionE00721200032
When travelling long distance an d the recalled preset station is
weak, the radio searches another frequency broadcasting the
same programming with the same PI code in AF list.
If there are no frequencies broadcasting the same program-
ming, the radio searches a frequency broadcasting the regional
programming. The radio succeeds in searching the regional
programming, then the display shows the REG indicator (10).
If the radio does not succeed in searching the regional pro-
gramming, the radio returns to the recalled preset station.
PTY (Program type)E00721300105
RDS broadcasts are classified according to program type
(PTY) as follows. Use the TUNE/SEEK button (3 or 4) to
select your desired PTY.

For pleasant driving5-37
5
TP (Traffic information Program) search functionE00721800038
The traffic information program standby function is turned on
(with the TP indicator (11) shown on the display) and after
about 45 seconds since the RDS indicator (9) turns off due to
weak signal or the tuning station is changed over from a TP
station to a station which does not broadcast traffic informa-
tion, the sound will beep 5 times and seeks out a TP station in
all frequencies automatically.
The TP search function can be turned ON and OFF.
Refer to “Function setup mode” on page 5-38.

For emergencies6-13
6
• The tyre is punctured in the side wall (A), not in thetread (B).
• The vehicle has been driven with the tyre almost com-
pletely flat.
• The tyre has completely sl ipped over the wheel rim and
come off the wheel.
• The wheel is damaged.
● Only use the tyre sealant at ambient temperatures of -
20 °C to + 60 °C.
● Effect an emergency repair without pulling out the object
(nail, screw, etc.) that is stuck in the tyre.
● Do not use the tyre sealant if the tyre has been damaged
by being driven when insufficiently inflated (e.g. bumps,
cuts, cracks, etc. on the tyre).
● Wipe tyre sealant off paintwork immediately with a damp
cloth. ●
Immediately wash out any clot hes contaminated with the
tyre sealant.
Before repairing a tyre, first stop your vehicle in a safe, flat
location. 1. Park the vehicle on level and stable ground.
2. Set the parking brake firmly.
3. On vehicles with manual transmission, turn the ignition key to the “LOCK” position, move the gearshift lever to
the “R” (Reverse) position.
On vehicles with automated manual transmission, move
the allshift lever to the “R” (Reverse) position, turn the
ignition key to the “LOCK” position.
With an automated manual transmission vehicle, confirm
that there is an “R” in th e allshift indicator display.
4. Turn on the hazard flashers and set up a warning triangle, flashing signal lamp, etc., at an adequate distance from the
vehicle, and have all your passengers leave the vehicle.

For emergencies6-23
6
Jacking up the vehicle
E00801001016
1. Park the vehicle on level and stable ground.
2. Set the parking brake firmly.
3. On vehicles with manual transmission, turn the ignition
key to the “LOCK” position, move the gearshift lever to
the “R” (Reverse) position.
On vehicles with automated manual transmission, move
the allshift lever to the “R” (Reverse) position, turn the
ignition key to the “LOCK” position.
With an automated manual tr ansmission vehicle, confirm
that there is an “A” or “1” in the allshift indicator display.
4. Turn on the hazard flashers and set up a warning triangle,
flashing signal lamp, etc., at an adequate distance from the
vehicle, and have all your passengers leave the vehicle. 5. To prevent the vehicle from roll
ing when it is raised on the
jack, place a chock or block (A) at the tyre that is diago-
nally opposite from the tyre (B) you are changing.
NOTE● The chock shown in the illustration does not come with
your vehicle. It is recommended that you keep one in the
vehicle for use if needed.
● If a chock is not available, use a stone or any other object
that is large enough to hold the wheel in position.
WARNING!
●Be sure to apply a chock to the correct tyre when
jacking up the vehi cle. If the vehicle moves while
jacked up, the jack could slip out of position and
cause an accident.

6-28 For emergencies
6
2. Remove the clamp (B) which secures the spare wheel byturning it anticlockwise. Take out the spare wheel.
To install
To install the spare wheel, ti ghten the clamp by turning it
clockwise until the sp are wheel cannot move.
How to change a tyre
E00801201568
Before changing a tyre, first stop your vehicle in a safe, flat
location.
1. Park the vehicle on level and stable ground.
2. Set the parking brake firmly.
3. On vehicles with manual transmission, turn the ignition key to the “LOCK” position, move the gearshift lever to
the “R” (Reverse) position.
On vehicles with automated manual transmission, move
the allshift lever to the “R” (Reverse) position, turn the
ignition key to the “LOCK” position.
With an automated manual tran smission vehicle, confirm
that there is an “R” in th e allshift indicator display.
4. Turn on the hazard flashers an d set up a warning triangle,
flashing signal lamp, etc., at an adequate distance from the
vehicle, and have all your passengers leave the vehicle.

Maintenance8-41
8
Bulb capacityE01003200043
When replacing a bulb, use a new bulb with the same wattage
and colour.
OutsideE01003301344
Codes in parentheses indicate bulb types.
Front (3-door models)
1- Headlamps, high beam: 55 W (H7)
2- Headlamps, low beam: 55 W (H7)
3- Position lamps: 5 W (W5W)
4- Front turn-signal lamps: 21 W (P21W)
5- Side turn-signal lamps: 5 W (WY5W)
6- Front fog lamps*: 55 W (H11)
Front (5-door models)

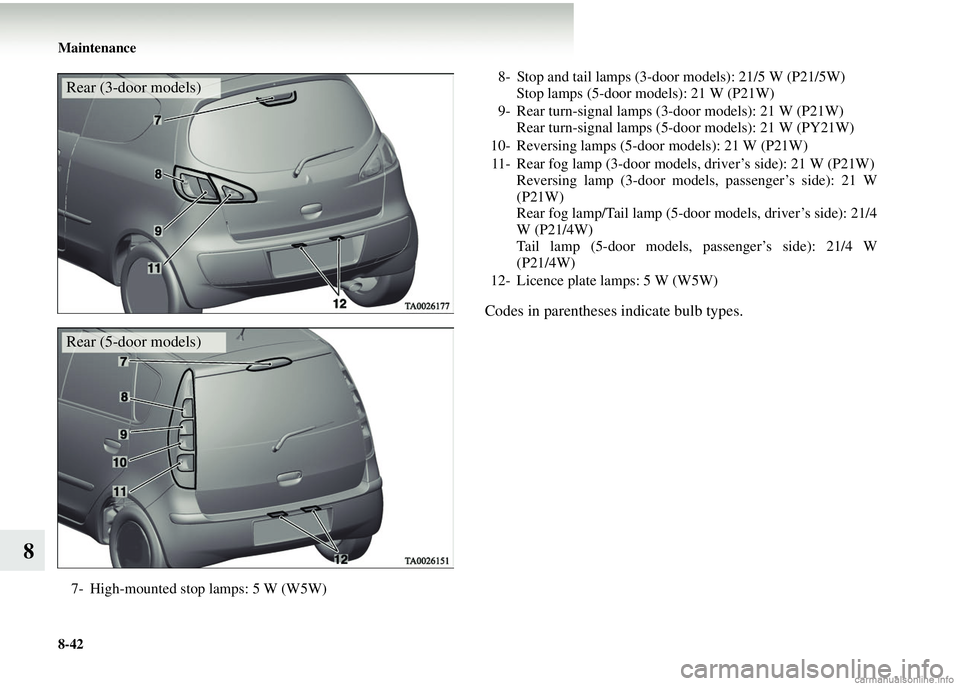

8-42 Maintenance
8
Codes in parentheses indicate bulb types.
7- High-mounted stop lamps: 5 W (W5W)
Rear (3-door models)
Rear (5-door models)
8- Stop and tail lamps (3-door models): 21/5 W (P21/5W)Stop lamps (5-door models): 21 W (P21W)
9- Rear turn-signal lamps (3-door models): 21 W (P21W) Rear turn-signal lamps (5-door models): 21 W (PY21W)
10- Reversing lamps (5-door models): 21 W (P21W) 11- Rear fog lamp (3-door models, driver’s side): 21 W (P21W) Reversing lamp (3-door models, passenger’s side): 21 W
(P21W)
Rear fog lamp/Tail lamp (5-door models, driver’s side): 21/4
W (P21/4W)
Tail lamp (5-door models, passenger’s side): 21/4 W
(P21/4W)
12- Licence plate lamps: 5 W (W5W)
