Page 25 of 450
General information5
4. To fill with fuel correctly mainly depends on correct han-dling of the fuel filler gun. Do not tilt the gun. Insert the
gun in the tank port as far as it will go.
5. When the gun stops automatically, withdraw it halfway in the tank port. After the second automatic stop, do not fill
with any more fuel.
6. To close, turn the fuel tank filler tube cap slowly clock-
wise until you hear a clicking sound, then gently push the
fuel tank filler door closed.Installation of accessories
E00200300413
We recommend you to consult your MITSUBISHI MOTORS
Authorized Service Point.
● The installation of accessories, optional parts, should only
be carried out within the limits prescribed by law in your
country, and in accordance wi th the guidelines fitting
instructions and warnings contained within the documents
accompanying the parts or accessories.
● Improper installation of electrical components may cause
an electrical fire if incorrect ly fitted. Please refer to the
“Modification/alterations to th e electrical or fuel systems”
section within this owner’s manual.
● Using a cellular phone or radio set inside the vehicle with-
out an external antenna may cause electrical system inter-
ference, which could lead to unsafe vehicle operation.
● Tyres and wheels which do no t meet specifications must
not be used.
Refer to the “Specifications ” section for information
regarding wheel and tyre sizes.
CAUTION!
● A label which reads “UNLEADED FUEL ONLY” is
attached to the fuel tank f iller lid of vehicles which
can only operate on unlead ed petrol. Serious engine
and catalytic converter damage will result if leaded
petrol is put into these ve hicles, and this must conse-
quently never be attempted.
CAUTION!
● To avoid fuel spillage and overfilling, do not “top-
off” the fuel tank.
CAUTION!
●If you need to replace the fuel tank filler tube cap,
use only the cap specified for your vehicle model.
Page 56 of 450
2-8 Seat and seat belts
2
NOTE●Do not place heavy objects on th e seat or stick pins, nee-
dles, or other pointed objects into it.
● When cleaning the seat, do not use benzene, gasoline,
alcohol, or other organic solvents; this might damage the
surface of the seat and al so the heater element.
● If water or any other liquid is spilled on the seat, allow it
to dry thoroughly before attempting to use the heater.
Rear seat*
E00401300207
NOTE●It is possible to adjust each si de of the rear seats forward
and backward independently of the other side (5-door
models, separated seat only), to adjust the seatback angle
independently on each side, a nd to fold the seatback for-
ward independently on each side.
● If the following types of p ersons use the heated seats,
they might become too ho t or receive minor burns
(red skin, heat blisters, etc.):
• Children, elderly or ill people
• People with sensitive skin
• Excessively tired people
• People under the influence of alcohol or sleep inducing medication (cold medicine, etc.)
● Do not use a blanket, cushio n, or other material with
high heat insulation properties on the seat while
using the heater; this might cause the heater element
to overheat.
● Turn the heater off immediately if it appears to be
malfunctioning during use.
CAUTION!
WARNING!
●When a person is sitting in the rear seats, pull up the
head restraint to a height at which it locks in posi-
tion. Be sure to make this adjustment before starting
to drive. Serious injuries could otherwise result in
an impact. Refer to “Head restraints” on page 2-10.
Page 138 of 450
3-18 Instruments and controls
3
3. Make your selection by pressing the “ ” button or the“ ” button.
NOTE● After selecting a mode, you can leave the function setup
mode by taking either of the following steps: • Press the “MENU” button for at least 2 seconds.
• Make no entry for 7 seconds.
Automatic mode (For ve hicles with MITSUBISHI
MOTORS genuine audio)
The automatic mode can set the local time automatically by
using the signal from the local RDS stations. In this mode, CT
(A) is shown in the display. Refer to “Radio data system
(RDS)” on page 5-32, 5-32.
- CT ON (Automatic mode)
- CT OFF (Manual mode)
Page 139 of 450

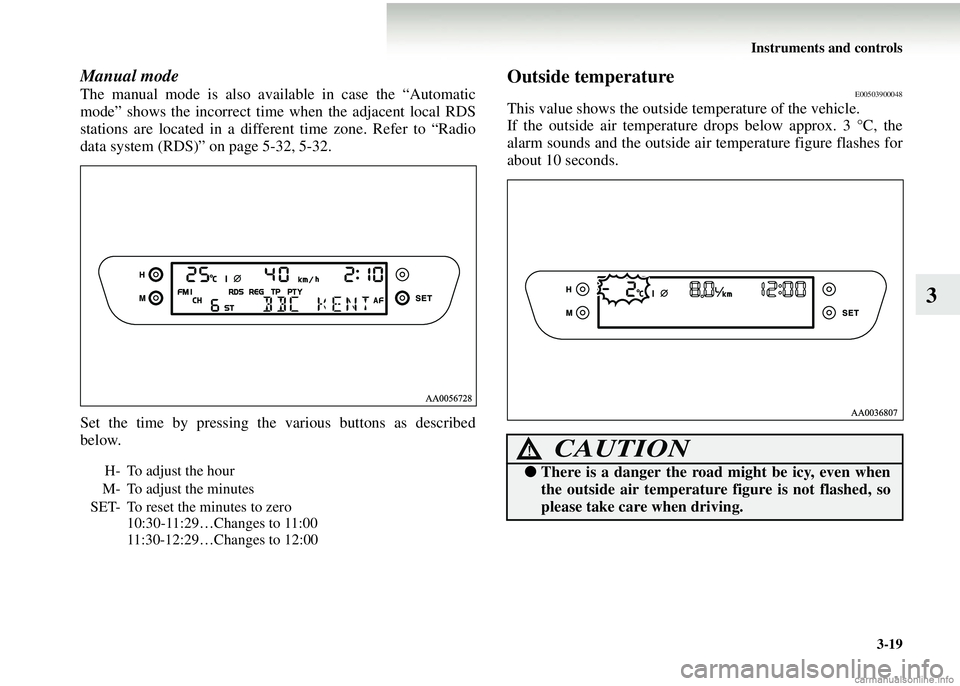

Instruments and controls3-19
3
Manual mode
The manual mode is also available in case the “Automatic
mode” shows the incorrect time when the adjacent local RDS
stations are located in a different time zone. Refer to “Radio
data system (RDS)” on page 5-32, 5-32.
Set the time by pressing the various buttons as described
below.
Outside temperatureE00503900048
This value shows the outside temperature of the vehicle.
If the outside air temperature drops below approx. 3 °C, the
alarm sounds and the outside ai r temperature figure flashes for
about 10 seconds.
H- To adjust the hour
M- To adjust the minutes
SET- To reset the minutes to zero 10:30-11:29…Changes to 11:00
11:30-12:29…Changes to 12:00
CAUTION!
●There is a danger the road might be icy, even when
the outside air temperature figure is not flashed, so
please take care when driving.
Page 142 of 450
3-22 Instruments and controls
3
Average fuel consumptionE00509300057
This value shows the average fuel consumption (in L/100km,
km/L or mpg).
NOTE●When the ignition switch is turned on, the average fuel
consumption which was being displayed when the igni-
tion switch was previously turned off will be displayed
once again.
● Average fuel consumption va ries according to the condi-
tions under which a vehicle is travelling (road conditions,
the manner in which the vehicle is being driven, etc.).
Observe this display for reference because the fuel con-
sumption display may differ from the actual fuel con-
sumption. To reset the display
You can switch from the automa
tic reset mode to the manual
reset mode by performing the following operations:
1. Press and hold down button (A), then press the “SET” button (B) within 1 second, and a buzzer will sound and
the reset mode will be changed.
Page 144 of 450
3-24 Instruments and controls
3
●Automatic reset mode
When 4 hours have passed after the ignition switch is
turned to the “OFF” or “ACC” position, the display is
automatically reset. It then shows “---”.
● Manual reset mode
If you reset the display at the time when you want to start
the measurements, average fu el consumption from that
point of time can be displayed.
Push the “DISP” button for more than 5 seconds.
NOTE● While the ignition switch is in the “ON” position, the
automatic reset mode is perm anently selected. If you wish
to make continuous measur ements, select the manual
mode.
Driving rangeE00509400045
This value shows the distance (in km or miles) that can be
driven on the fuel remaining in the fuel tank.
Page 146 of 450
3-26 Instruments and controls
3
●Automatic reset mode
When 4 hours have passed after the ignition switch is
turned to the “OFF” or “ACC” position, the display is
automatically reset. It then shows “---”.
● Manual reset mode
If you reset the display at the time when you want to start
the measurements, average speed from that point of time
can be displayed.
To reset the display, push the “DISP” button for about 5
seconds or more.
NOTE● While the ignition switch is in the “ON” position, the
automatic reset mode is perm anently selected. If you wish
to make continuous measur ements, select the manual
mode.
Display brightness adjustmentE00509600050
1. Press and hold down button (A), then press the “H” button (B) within 1 second. A buzzer will sound, and the system
will allow adjustment of the display brightness.
Page 171 of 450
Starting and driving4-5
4
Running-in recommendations
E00600401170
During the running-in period for the first 1,000 km (620 miles),
it is advisable to drive your new vehicle using the following
precautions as a guideline to aid
long life as well as future
economy and performance. ● Do not race the engine at high speeds.
● Avoid rapid starting, accelerating, braking and prolonged
high-speed running.
● Keep to the running-in speed limit shown below.
Please note that the legal speed limits displayed must be
adhered to.
● Do not exceed loading limits.
● Refrain from towing a trailer.
Vehicles with manual transmission
Petrol-powered vehicles Diesel-powered vehicles
Shift
point
Speed limit
1100
models1300
models
1500 models
Except for
vehicles with turbocharger Vehicles
with
turbocharger
1st gear 30 km/h
(19 mph) 30 km/h
(19 mph) 30 km/h
(19 mph) 35 km/h
(22 mph)
2nd gear 50 km/h
(31 mph) 55 km/h
(34 mph) 55 km/h
(34 mph) 65 km/h
(40 mph)
3rd gear 80 km/h
(50 mph) 85 km/h
(53 mph) 85 km/h
(53 mph) 90 km/h
(56 mph)
4th gear 110 km/h
(68 mph) 115 km/h
(71 mph) 115 km/h
(71 mph) 120 km/h
(75 mph)
5th gear 135 km/h
(84 mph) 140 km/h
(87 mph) 140 km/h
(87 mph) 150 km/h
(93 mph)
Shift point
Speed limit
1.5L DI-D 50 kW (68PS)1.5L DI-D 70 kW (95PS)
1st gear 25 km/h (16 mph) 25 km/h (16 mph)
2nd gear 40 km/h (25 mph) 40 km/h (25 mph)
3rd gear 65 km/h (40 mph) 65 km/h (40 mph)
4th gear 95 km/h (59 mph) 95 km/h (59 mph)
5th gear 125 km/h (78 mph) 125 km/h (78 mph)
Shift
point
Speed limit
1100
models1300
models
1500 models
Except for
vehicles with turbocharger Vehicles
with
turbocharger
Page 189 of 450
Starting and driving4-23
4
Economical driving speedE00610700573
The following shift points ar e recommended to assist fuel
economy. The driver may vary these points to suit driving con-
ditions and load.
Petrol-powered vehicles Diesel-powered vehicles
Shift point
Speed limit
1100
models1300
models
1500 models
Except for
vehicles with turbocharger Vehicles
with turbo- charger
1st gear to
2nd gear 25 km/h
(16 mph) 30 km/h
(19 mph) 30 km/h
(19 mph) 25 km/h
(16 mph)
2nd gear to 3rd gear 40 km/h
(25 mph) 50 km/h
(31 mph) 50 km/h
(31 mph) 50 km/h
(31 mph)
3rd gear to 4th gear 65 km/h
(40 mph) 80 km/h
(50 mph) 80 km/h
(50 mph) 75 km/h
(47 mph)
4th gear to 5th gear 85 km/h
(53 mph) 105 km/h
(65 mph) 105 km/h
(65 mph) 95 km/h
(59 mph)
Shift point
Speed limit
1.5L DI-D
50kW (68PS)1.5L DI-D
70kW (95PS)
1st gear to 2nd gear 10 km/h (6 mph) 15 km/h (9 mph)
2nd gear to 3rd gear 20 km/h (12 mph) 25 km/h (16 mph)
3rd gear to 4th gear 35 km/h (22 mph) 40 km/h (25 mph)
4th gear to 5th gear 50 km/h (31 mph) 55 km/h (34 mph)
Page 190 of 450
4-24 Starting and driving
4
Possible driving speedE00610800734
Petrol-powered vehiclesDiesel-powered vehicles
5th gear is an overdrive ratio and its use reduces engine speed
below that of the 4th gear. Us
e 5th gear whenever vehicle
speed allows, for maximum fuel economy.
Shift
point
Speed limit
1100
models1300
models
1500 models
Except for
vehicles with turbocharger Vehicles
with turbo- charger
1st gear 45 km/h
(28 mph) 45 km/h
(28 mph) 45 km/h
(28 mph) 50 km/h
(31 mph)
2nd gear 80 km/h
(50 mph) 85 km/h
(53 mph) 85 km/h
(53 mph) 95 km/h
(59 mph)
3rd gear 120 km/h
(75 mph) 130 km/h
(81 mph) 130 km/h
(81 mph) 135 km/h
(84 mph)
4th gear 165 km/h
(100 mph) 170 km/h
(110 mph) 170 km/h
(110 mph) 180 km/h
(110 mph)
Shift point
Speed limit
1.5L DI-D 50 kW (68PS)1.5L DI-D 70 kW (95PS)
1st gear 35 km/h (22 mph) 35 km/h (22 mph)
2nd gear 65 km/h (40 mph) 65 km/h (40 mph)
3rd gear 100 km/h (62 mph) 100 km/h (62 mph)
4th gear 145 km/h (90 mph) 145 km/h (90 mph)
