9-12 Specifications

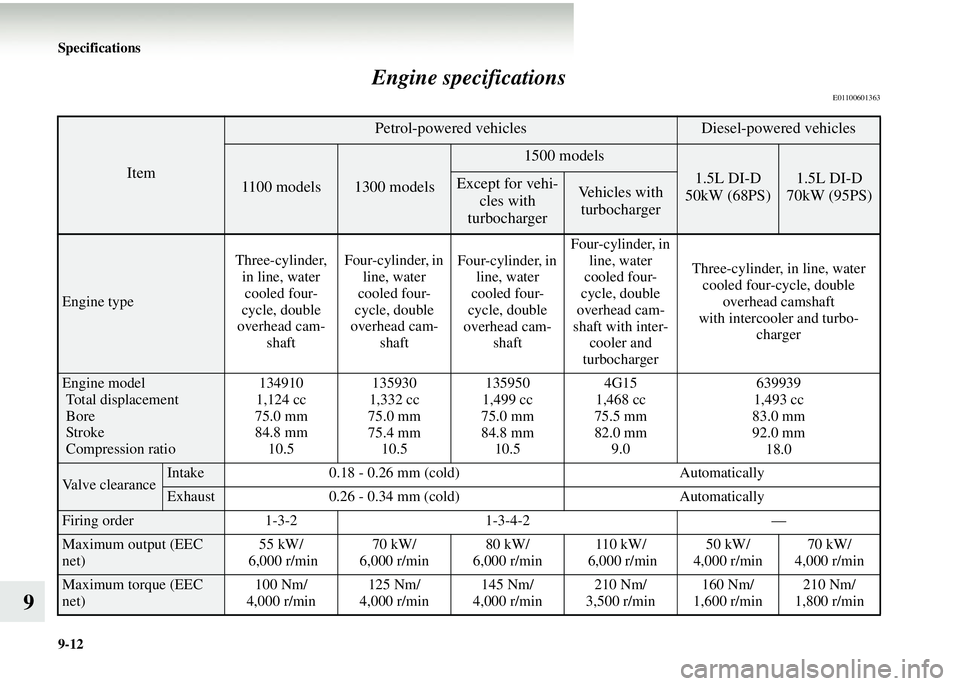

9Engine specifications
E01100601363
Item
Petrol-powered vehiclesDiesel-powered vehicles
1100 models1300 models
1500 models
1.5L DI-D
50kW (68PS)1.5L DI-D
70kW (95PS)Except for vehi- cles with
turbochargerVehicles with turbocharger
Engine type Three-cylinder,
in line, water cooled four-
cycle, double
overhead cam- shaft Four-cylinder, in
line, water
cooled four-
cycle, double
overhead cam- shaft Four-cylinder, in
line, water
cooled four-
cycle, double
overhead cam- shaft Four-cylinder, in
line, water
cooled four-
cycle, double
overhead cam-
shaft with inter- cooler and
turbocharger Three-cylinder, in line, water
cooled four-cycle, double overhead camshaft
with intercooler and turbo- charger
Engine model
Total displacement
Bore
Stroke
Compression ratio 134910
1,124 cc
75.0 mm
84.8 mm 10.5 135930
1,332 cc
75.0 mm
75.4 mm 10.5 135950
1,499 cc
75.0 mm
84.8 mm 10.5 4G15
1,468 cc
75.5 mm
82.0 mm 9.0 639939
1,493 cc
83.0 mm
92.0 mm 18.0
Valve clearanceIntake 0.18 - 0.26 mm (cold) Automatically
Exhaust0.26 - 0.34 mm (cold) Automatically
Firing order1-3-2 1-3-4-2 —
Maximum output (EEC
net)55 kW/
6,000 r/min 70 kW/
6,000 r/min 80 kW/
6,000 r/min 110 kW/
6,000 r/min 50 kW/
4,000 r/min 70 kW/
4,000 r/min
Maximum torque (EEC
net) 100 Nm/
4,000 r/min 125 Nm/
4,000 r/min 145 Nm/
4,000 r/min 210 Nm/
3,500 r/min 160 Nm/
1,600 r/min 210 Nm/
1,800 r/min
