ESP MITSUBISHI COLT 2009 10.G Owner's Manual

Downloaded from www.Manualslib.com manuals search engine No.SymbolElectrical systemCa-
pacity26Rear window wiper15 A27———28———29———30———31Hazard warning flasher10 A32———33Door locks15 A34Front fog lamps15 A35Headlamp low beam (left)10 A36Headlamp low beam
(right)10 A37Reversing lamp7.5 A38Engine control7.5 A39Ignition coil10 A40Gauge7.5 A41Relay7.5 A42STOPStop lamps15 A43Air conditioning7.5 A44———
l Some fuses may not be installed on your ve-
hicle, depending on the vehicle model or spec-
ifications.
l The table above shows the main equipment
corresponding to each fuse.
Identification of fuseCapacityColour7.5 ABrown10 ARed15 ABlue20 AYellow30 AGreen40 AOrange (fuse type)/Green (fusi- ble link type)
Fuse replacement
1.Before replacing a fuse, always turn off the
electrical circuit concerned and place the ig-
nition switch in the “LOCK” position.
2. Remove the fuse puller from the cover. (Re-
fer to “To remove the cover” on pages 8-22,
8-22.)
3. Referring to the fuse load capacity table,
check the fuse pertaining to the problem.
A- Fuse is OK B- Blown fuse
NOTE l If any system does not function but the fuse
corresponding to that system is normal, there
may be a fault in the system elsewhere. We
recommend you to have your vehicle checked.
Maintenance
8-21
8 LHD RHD

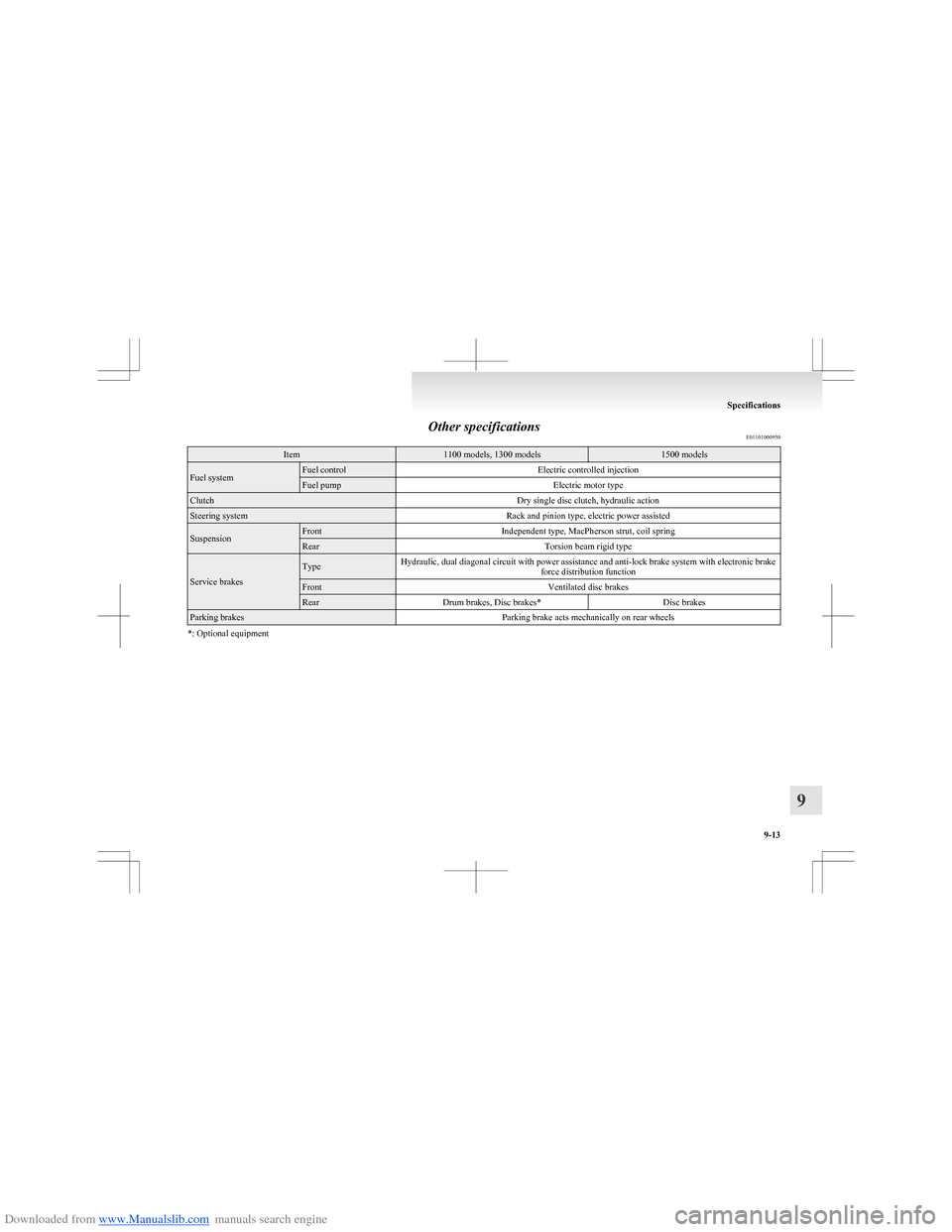

Downloaded from www.Manualslib.com manuals search engine Other specificationsE01101000950Item1100 models, 1300 models1500 modelsFuel systemFuel controlElectric controlled injectionFuel pumpElectric motor typeClutchDry single disc clutch, hydraulic actionSteering systemRack and pinion type, electric power assistedSuspensionFrontIndependent type, MacPherson strut, coil springRearTorsion beam rigid type
Service brakes
TypeHydraulic, dual diagonal circuit with power assistance and anti-lock brake system with electronic brake
force distribution functionFrontVentilated disc brakesRearDrum brakes, Disc brakes*Disc brakesParking brakesParking brake acts mechanically on rear wheels
*: Optional equipment
Specifications
9-13
9
