Fuel tank MITSUBISHI COLT 2009 10.G Owners Manual

Downloaded from www.Manualslib.com manuals search engine 1. Hazard warning flasher switch p. 3-23
2. Audio* p. 5-12
3. Supplemental restraint system (SRS) - airbag (for front passen- ger’s seat) p. 2-22
4. Heater* p. 5-04 Automatic air conditioning* p. 5-07
5. Front passenger’s airbag ON-OFF switch p. 2-25
6. Rear window demister switch p. 3-29
7. Gearshift lever* p. 4-16 Allshift lever* p. 4-19
8. Heated seats switch* p. 2-06
9. Parking brake lever p. 4-06
10. Cup holder (for rear seats) p. 5-42
11. Cup holder (for front seats) p. 5-42
12. Heated seats switch* p. 2-06
13. Fuel tank filler door release lever p. 02
14. Accessory socket p. 5-37
15. Ventilators p. 5-02
OverviewLHD123
4
5 67
8
9
10
12 11
13 14
15

Downloaded from www.Manualslib.com manuals search engine 1. Audio* p. 5-12
2. Hazard warning flasher switch p. 3-23
3. Ventilators p. 5-02
4. Accessory socket p. 5-37
5. Fuel tank filler door release lever p. 02
6. Heated seats switch* p. 2-06
7. Cup holder (for front seats) p. 5-42
8. Cup holder (for rear seats) p. 5-42
9. Parking brake lever p. 4-06
10. Heated seats switch* p. 2-06
11. Gearshift lever* p. 4-16 Allshift lever* p. 4-19
12. Rear window demister switch p. 3-29
13. Front passenger’s airbag ON-OFF switch p. 2-25
14. Fuses p. 8-19
15. Heater* p. 5-04 Automatic air conditioning* p. 5-07
16. Supplemental restraint system (SRS) - airbag (for front passen- ger’s seat) p. 2-22
OverviewRHD12
3
4 5
6
8 7
9
10
11
12
13
14 15 16

Downloaded from www.Manualslib.com manuals search engine ExteriorE00100503633
3-door models12345678910111. Electric window control p. 1-11
2. Outside rear-view mirrors p. 4-08
3. Fuel tank filler p. 02
4. Locking and unlocking p. 1-05 Keyless entry system p. 1-03
5. Side turn-signal lamps p. 3-23, 8-24, 8-26
6. Front turn-signal lamps p. 3-23, 8-24, 8-26
7. Headlamps, low/high-beam p. 3-20, 3-21, 8-23, 8-25
8. Front fog lamps* p. 3-24, 8-23, 8-26
9. Position lamps p. 3-20, 8-23, 8-25
10. Bonnet p. 8-03
11. Windscreen wipers p. 3-25
Overview

Downloaded from www.Manualslib.com manuals search engine 5-door models12345678910111. Electric window control p. 1-11
2. Outside rear-view mirrors p. 4-08
3. Fuel tank filler p. 02
4. Locking and unlocking p. 1-05 Keyless entry system p. 1-03
5. Side turn-signal lamps p. 3-23, 8-24, 8-26
6. Front turn-signal lamps p. 3-23, 8-24, 8-26
7. Headlamps, low/high-beam p. 3-20, 3-21, 8-23, 8-25
8. Front fog lamps* p. 3-24, 8-23, 8-26
9. Position lamps p. 3-20, 8-23, 8-25
10. Bonnet p. 8-03
11. Windscreen wipers p. 3-25
Overview

Downloaded from www.Manualslib.com manuals search engine Fuel selection................................................................................... 02
Filling the fuel tank .......................................................................... 02
Installation of accessories ................................................................ 04
Modification/alterations to the electrical or fuel systems ................05
Genuine parts ................................................................................... 05
Used engine oils safety instructions and disposal infor- mation .......................................................................................... 05
Disposal information for used batteries ...........................................06General information

Downloaded from www.Manualslib.com manuals search engine Fuel selectionE00200102590Recom-
mended
fuelUnleaded petrol octane num-
ber (EN228) 95 RON or higherCAUTIONlThe use of leaded fuel can result in seri-
ous damage to the engine and catalytic
converter. Do not use leaded fuel.
NOTE
l Your vehicle has the knock control system
so that you can use unleaded petrol 90 RON
as an emergent measure in case unleaded pet-
rol 95 RON or higher is not available on jour-
ney, etc. In such a case, you don’t need to ad-
just the engine specially.
In case of using unleaded petrol 90 RON, the
engine performance level is reduced.
l Repeatedly driving short distances at low
speeds can cause deposits to form in the fuel
system and engine, resulting in poor starting
and poor acceleration. If these problems oc-
cur, you are advised to add a detergent addi-
tive to the gasoline when you refuel the vehi-
cle. The additive will remove the deposits,
thereby returning the engine to a normal con-
dition. Be sure to use a genuine
MITSUBISHI FUEL SYSTEM CLEANER.
Using an unsuitable additive could make the
engine malfunction. For details, please con-
tact a MITSUBISHI MOTORS Authorized
Service Point.
l Poor quality petrol can cause problems such
as difficult starting, stalling, engine noise
and hesitation. If you experience these prob-
lems, try another brand and/or grade of petrol.
If the check engine warning lamp flashes,
have the system checked as soon as possible
at a MITSUBISHI MOTORS Authorized
Service Point.Filling the fuel tank E00200202331WARNINGlGasoline is highly flammable and explo-
sive. You could be burned or seriously in-
jured when handling it. When refueling
your vehicle, always turn the engine off
and keep away from flames, sparks, and
smoking materials. Always handle fuel in
well-ventilated outdoor areas.
l Before removing the fuel cap, be sure to
get rid of your body’s static electricity by
touching a metal part of the car or the
fuel pump. Any static electricity on your
body could create a spark that ignites
fuel vapour.
l Perform the whole refueling process
(opening the fuel tank filler door, remov-
ing the fuel cap, etc.) by yourself. Do not
let any other person come near the fuel
tank filler. If you allowed a person to
help you and that person was carrying
static electricity, fuel vapour could be ig-
nited.
l Do not move away from the fuel tank fill-
er until refueling is finished. If you
moved away and did something else (for
example, cleaning your windscreen) part-
way through the refueling process, you
could pick up a fresh charge of static elec-
tricity.
l Be careful not to inhale fuel vapour. Fuel
contains toxic substances.
General information
02

Downloaded from www.Manualslib.com manuals search engine WARNINGlKeep the doors and windows closed while
refueling the vehicle. If they were open,
fuel vapour could get into the cabin.
Fuel tank capacity
47 litres
Refueling 1. Before filling with fuel, stop the engine.
2. The fuel tank filler is located on the rear left
side of your vehicle.
The fuel tank filler door can be opened from
inside the vehicle with the fuel tank filler
door release lever located the side of the driv-
er’s seat.
3. Open the fuel tank filler tube by slowly turn-
ing the cap anticlockwise.
A- Remove B- Close
CAUTIONl Since the fuel system may be under pres-
sure, remove the fuel tank filler tube cap
slowly. This relieves any pressure or vac-
uum that might have built up in the fuel
tank. If the cap is venting vapour or if
you hear a hissing sound, wait until it
stops before removing the cap. Other-
wise, fuel may spray out, injuring you or
others.
4. To fill with fuel correctly depends mainly on
correct handling of the fuel filler gun. Do not
tilt the gun. Insert the gun in the tank port as
far as it goes.
CAUTIONl A label which reads “UNLEADED FUEL
ONLY” is attached to the fuel tank filler
lid of vehicles which can only operate us-
ing unleaded petrol. Serious engine and
catalytic converter damage will result if
leaded petrol is filled into these vehicles,
and consequently, this must never be at-
tempted.
5. When the gun stops automatically, do not fill
with fuel any more.
CAUTIONl To avoid fuel spillage and overfilling, do
not “top-off” the fuel tank.
General information
03 LHD RHD

Downloaded from www.Manualslib.com manuals search engine 6.To close, turn the fuel tank filler tube cap
slowly clockwise until you hear clicking
sounds, then gently push the fuel tank filler
door closed.CAUTIONl If you need to replace the fuel tank filler
tube cap, use only the cap specified for
your model vehicle.Installation of accessories E00200300413
We recommend you to consult your MITSUBISHI
MOTORS Authorized Service Point.
l The installation of accessories, optional
parts, should only be carried out within the
limits prescribed by law in your country, and
in accordance with the guidelines fitting in-
structions and warnings contained within the
documents accompanying the parts or acces-
sories.
l Improper installation of electrical compo-
nents may cause an electrical fire if incorrect-
ly fitted. Please refer to the Modification/al-
teration to the electrical or fuel systems sec-
tion within this owner’s manual.
l Using a cellular phone or radio set inside the
vehicle without an external antenna may
cause electrical system interference, which
could lead to unsafe vehicle operation.
l Tyres and wheels which do not meet specifi-
cations must not be used.
Refer to the “Specifications” section for in-
formation regarding wheel and tyre sizes.
Important points!
Due to large number of accessory and replacement
parts of different manufactures available in the mar-
ket, it is not possible, not only for MITSUBISHI
MOTORS , but also for a MITSUBISHI MOTORS
Authorized Service Point, to check whether the at-
tachment or installation of such parts affects the
overall safety of your MITSUBISHI-vehicle.
Even when such parts are officially authorized, for
example by a “general operators permit” (an ap-
praisal for the part) or through the execution of the
part in an officially approved manner of construc-
tion, or when a single operation permit following
the attachment or installation of such parts, it can-
not be deduced from that alone, that the driving safe-
ty of your vehicle has not been affected.

Consider also that there basically exists no liability
on the part of the appraiser or the official. Only in
the case of parts ( MITSUBISHI MOTORS original
replacement or exchange parts as well as
MITSUBISHI MOTORS genuine accessories) that
are recommended and released by a MITSUBISHI
MOTORS Authorized Service Point and that are at-
tached or installed by a MITSUBISHI MOTORS
Authorized Service Point can you assume, that op-
timal safety has been provided. The same also per-
tains to modifications of MITSUBISHI vehicle
with respect to the production specifications. For
your own safety, in such cases, you should only un-
dertake modifications according to the recommen-
dations of a MITSUBISHI MOTORS Authorized
Service Point.
General information
04

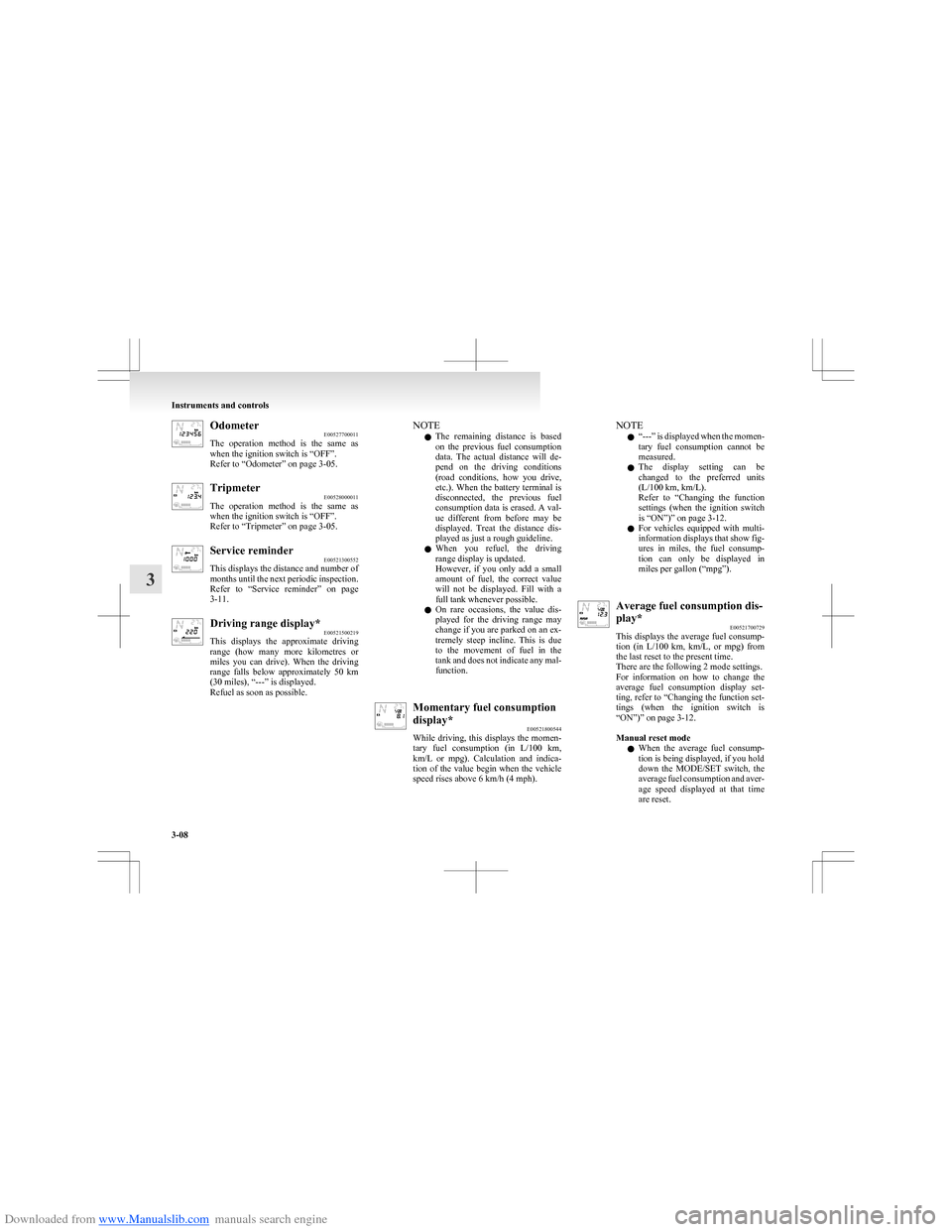

Downloaded from www.Manualslib.com manuals search engine OdometerE00527700011
The operation method is the same as
when the ignition switch is “OFF”.
Refer to “Odometer” on page 3-05.Tripmeter E00528000011
The operation method is the same as
when the ignition switch is “OFF”.
Refer to “Tripmeter” on page 3-05.Service reminder E00521300552
This displays the distance and number of
months until the next periodic inspection.
Refer to “Service reminder” on page
3-11.Driving range display* E00521500219
This displays the approximate driving
range (how many more kilometres or
miles you can drive). When the driving
range falls below approximately 50 km
(30 miles), “---” is displayed.
Refuel as soon as possible.NOTE
l The remaining distance is based
on the previous fuel consumption
data. The actual distance will de-
pend on the driving conditions
(road conditions, how you drive,
etc.). When the battery terminal is
disconnected, the previous fuel
consumption data is erased. A val-
ue different from before may be
displayed. Treat the distance dis-
played as just a rough guideline.
l When you refuel, the driving
range display is updated.
However, if you only add a small
amount of fuel, the correct value
will not be displayed. Fill with a
full tank whenever possible.
l On rare occasions, the value dis-
played for the driving range may
change if you are parked on an ex-
tremely steep incline. This is due
to the movement of fuel in the
tank and does not indicate any mal-
function.Momentary fuel consumption
display* E00521800544
While driving, this displays the momen-
tary fuel consumption (in L/100 km ,
km/L or mpg). Calculation and indica-
tion of the value begin when the vehicle
speed rises above 6 km/h (4 mph).NOTE
l “
---” is displayed when the momen-
tary fuel consumption cannot be
measured.
l The display setting can be
changed to the preferred units
(L/100 km, km/L).
Refer to “Changing the function
settings (when the ignition switch
is “ON”)” on page 3-12.
l For vehicles equipped with multi-
information displays that show fig-
ures in miles, the fuel consump-
tion can only be displayed in
miles per gallon (“mpg”).Average fuel consumption dis-
play* E00521700729
This displays the average fuel consump-
tion (in L/100 km, km/L, or mpg) from
the last reset to the present time.
There are the following 2 mode settings.
For information on how to change the
average fuel consumption display set-
ting, refer to “Changing the function set-
tings (when the ignition switch is
“ON”)” on page 3-12.

Manual reset mode
l When the average fuel consump-
tion is being displayed, if you hold
down the MODE/SET switch, the
average fuel consumption and aver-
age speed displayed at that time
are reset.
Instruments and controls
3-08
3

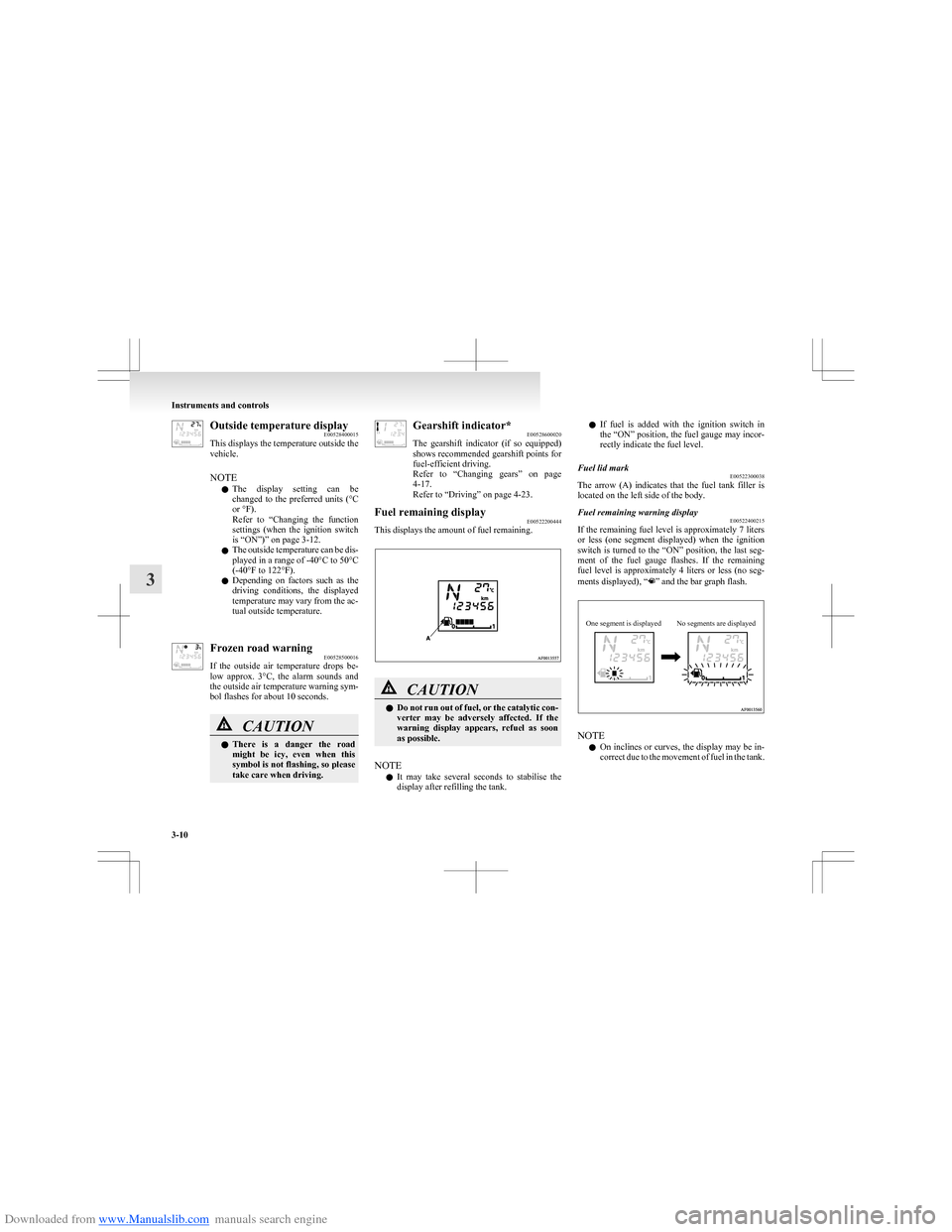

Downloaded from www.Manualslib.com manuals search engine Outside temperature displayE00528400015
This displays the temperature outside the
vehicle.
NOTE l The display setting can be
changed to the preferred units ( °C
or °F).
Refer to “Changing the function
settings (when the ignition switch
is “ON”)” on page 3-12.
l The outside temperature can be dis-
played in a range of -40°C to 50°C
(-40°F to 122°F).
l Depending on factors such as the
driving conditions, the displayed
temperature may vary from the ac-
tual outside temperature.Frozen road warning E00528500016
If the outside air temperature drops be-
low approx. 3°C, the alarm sounds and
the outside air temperature warning sym-
bol flashes for about 10 seconds.CAUTIONl There is a danger the road
might be icy, even when this
symbol is not flashing, so please
take care when driving.Gearshift indicator* E00528600020
The gearshift indicator (if so equipped)
shows recommended gearshift points for
fuel-efficient driving.
Refer to “Changing gears” on page
4-17.
Refer to “Driving” on page 4-23.Fuel remaining display E00522200444
This displays the amount of fuel remaining.
CAUTIONlDo not run out of fuel, or the catalytic con-
verter may be adversely affected. If the
warning display appears, refuel as soon
as possible.
NOTE
l It may take several seconds to stabilise the
display after refilling the tank.
l If fuel is added with the ignition switch in
the “ON” position, the fuel gauge may incor-
rectly indicate the fuel level.Fuel lid mark E00522300038
The arrow (A) indicates that the fuel tank filler is
located on the left side of the body.
Fuel remaining warning display E00522400215
If the remaining fuel level is approximately 7 liters
or less (one segment displayed) when the ignition
switch is turned to the “ON” position, the last seg-
ment of the fuel gauge flashes. If the remaining
fuel level is approximately 4 liters or less (no seg-
ments displayed), “
” and the bar graph flash.
One segment is displayedNo segments are displayed
NOTE
l On inclines or curves, the display may be in-
correct due to the movement of fuel in the tank.
Instruments and controls
3-10
3
