Downloaded from www.Manualslib.com manuals search engine Tyre repair kit*E00802200294
This kit enables emergency repair of a small punc-
ture in the tread area of a tyre that has run over a
nail, screw, or similar object.
1- 80 km/h and 50 mph labels
2- Tyre sealant bottle
3- Tyre compressor
CAUTIONl The tyre sealant can cause health damage
if swallowed. If you accidentally swallow
it, drink as much water as possible and im-
mediately consult a doctor.
l If the tyre sealant gets in your eyes or on
your skin, rinse with lots of water. If you
still sense an abnormality, consult a doc-
tor.CAUTIONl Consult a doctor immediately if any aller-
gic reactions occur.
l Do not allow children to touch the tyre
sealant.
l Do not breathe in the vapours of tyre seal-
ant.
NOTE
l The tyre sealant cannot be used in any of the
situations listed below. If any of these situa-
tions occurs, please contact a MITSUBISHI
MOTORS Authorized Service Point or anoth-
er specialist. •The tyre sealant’s expiry date has passed.
(The expiry date is shown on the bottle la-
bel.)
• More than one tyre is punctured.
• The puncture hole has a length or width
of 4 mm or more.
• The tyre is punctured in the side wall (A), not in the tread (B).
•The vehicle has been driven with the tyre
almost completely flat.
• The tyre has completely slipped over the
wheel rim and has come off the wheel.
• The wheel is damaged.
l Use the tyre sealant only at ambient tempera-
tures of -20 °C to + 60 °C.
l Effect an emergency repair without pulling
out the object (nail, screw, etc.) that is stuck
in the tyre.
l Do not use the tyre sealant if the tyre has
been damaged by being driven when insuffi-
ciently inflated (e.g. bumps, cuts, cracks etc.
on the tyre).
l Wipe tyre sealant off the paintwork immedi-
ately with a damp cloth.
l Immediately wash out any clothes contamina-
ted with the tyre sealant.
Before repairing a tyre, first stop your vehicle in a
safe, flat location. 1. Park the vehicle on level and stable ground.
2. Set the parking brake firmly.
For emergencies
6-07
6

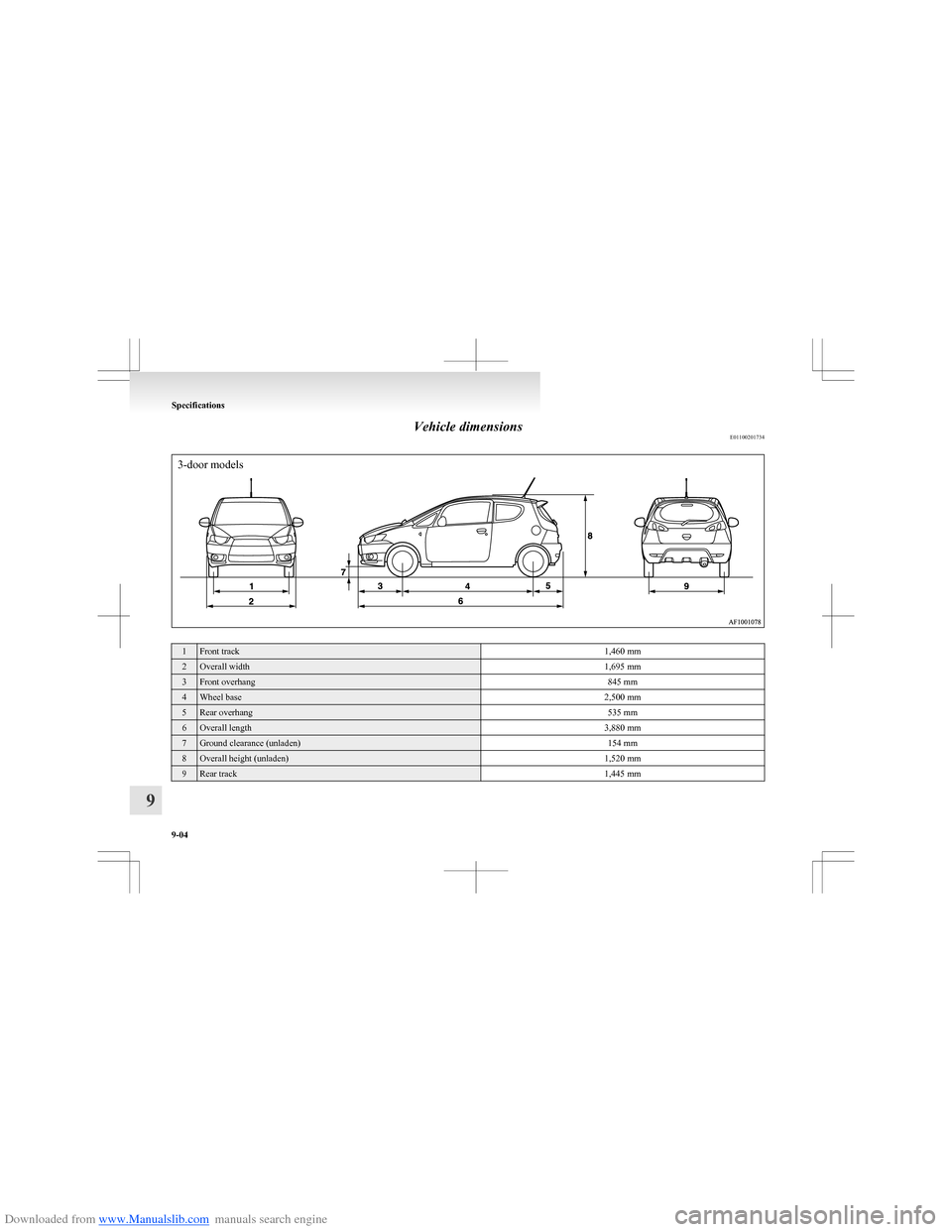

Downloaded from www.Manualslib.com manuals search engine Vehicle dimensionsE01100201734
3-door models1Front track1,460 mm2Overall width1,695 mm3Front overhang845 mm4Wheel base2,500 mm5Rear overhang535 mm6Overall length3,880 mm7Ground clearance (unladen)154 mm8Overall height (unladen)1,520 mm9Rear track1,445 mm
Specifications
9-04
9

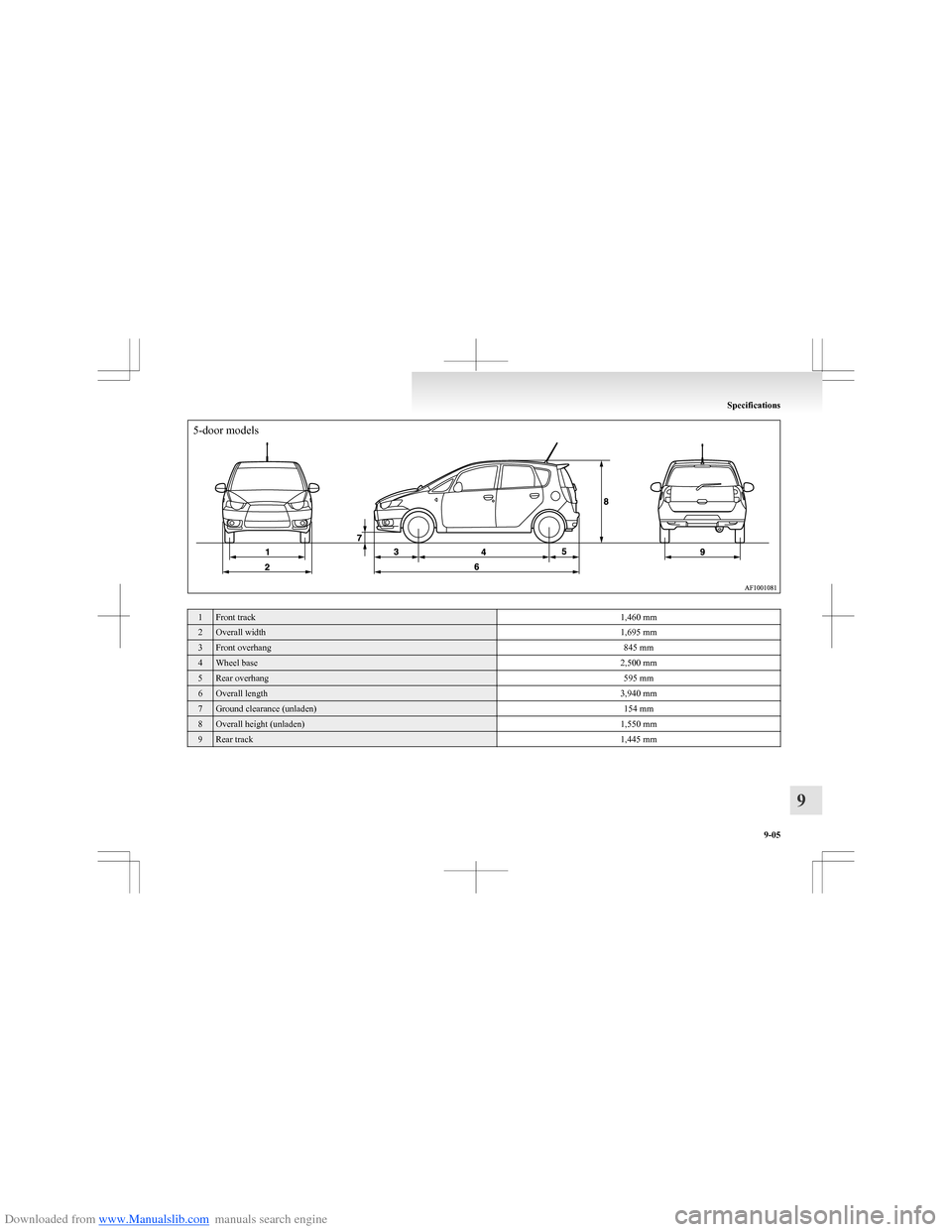

Downloaded from www.Manualslib.com manuals search engine 5-door models1Front track1,460 mm2Overall width1,695 mm3Front overhang845 mm4Wheel base2,500 mm5Rear overhang595 mm6Overall length3,940 mm7Ground clearance (unladen)154 mm8Overall height (unladen)1,550 mm9Rear track1,445 mm
Specifications
9-05
9
