MITSUBISHI ECLIPSE 2003 Service Repair Manual AK102960
*1
*1
*2 INTAKE MANIFOLDTHROTTLE BODY
TO COMBUSTION
CHAMBERFROM AIR
CLEANER
EGR SOLENOID
(ON: CLOSE)
FUEL
PRESSURE
REGULATOREVAPORATIVE
EMISSION
PURGE
SOLENOID
(ON: OPEN)
VACUUM
CONTROL

AK102960
*1
*1
*2 INTAKE MANIFOLDTHROTTLE BODY
TO COMBUSTION
CHAMBERFROM AIR
CLEANER
EGR SOLENOID
(ON: CLOSE)
FUEL
PRESSURE
REGULATOREVAPORATIVE
EMISSION
PURGE
SOLENOID
(ON: OPEN)
VACUUM
CONTROL
VALVE
EGR VALVE
FUEL TANK
EVAPORATIVE
EMISSION
CANISTER
EVAPORATIVE EMISSION
VENTILATION SOLENOID
(ON: CLOSE) VACUUM
TA N K
VARIABLE
INDUCTION
CONTROL
SOLENOID
(ON: OPEN)
VARIABLE
INDUCTION
CONTROL
ACTUATORB
L
B W
W
B
B
YB
B
B
B
BG
G
WG
BY Y
B : BLACK
G : GREEN
L : LIGHT BLUE
W: WHITE
Y: YELLOW
*1: RED PAINT MARK
*2: RESTRICTOR
AB

Page 822 of 1000

AKX01297
VENTILATION HOSE
POSITIVE CRANKCASE
VENTILATION (PCV)
VA LV E
BREATHER HOSE
AB

Page 823 of 1000

MITSUBISHI ECLIPSE 2003 Service Repair Manual AKX00334
BREATHER HOSE VENTILATION HOSE
PCV VALVE
AB
AK101366AB
POSITIVE CRANKCASE VENTILATION
(PCV) VALVE
< 2.4L ENGINE >
AKX01300AB
POSITIVE CRANKCASE VENTILATION
(PCV) VALVE
<3.0L ENGINE>

AKX00334
BREATHER HOSE VENTILATION HOSE
PCV VALVE
AB
AK101366AB
POSITIVE CRANKCASE VENTILATION
(PCV) VALVE
< 2.4L ENGINE >
AKX01300AB
POSITIVE CRANKCASE VENTILATION
(PCV) VALVE
<3.0L ENGINE>

Page 824 of 1000

MITSUBISHI ECLIPSE 2003 Service Repair Manual AK100058
PCV VALVE
AB
AK100059
5 – 10 mm
(0.2 – 0.3 in)
THIN ROD
(VERY SMOOTH)
PCV VALVE
VACUUM SIDE
AC
<2.4L ENGINE>
AKX00337
5 – 10 mm
(0.2 – 0.3 in)
PCV VALVE
VACUUM SIDETHIN ROD
(VERY
SMOO

AK100058
PCV VALVE
AB
AK100059
5 – 10 mm
(0.2 – 0.3 in)
THIN ROD
(VERY SMOOTH)
PCV VALVE
VACUUM SIDE
AC
<2.4L ENGINE>
AKX00337
5 – 10 mm
(0.2 – 0.3 in)
PCV VALVE
VACUUM SIDETHIN ROD
(VERY
SMOOTH)
AC
<3.0L ENGINE>

Page 825 of 1000

MITSUBISHI ECLIPSE 2003 Service Repair Manual AK100999
FUEL TANK DIFFERENTIAL
PRESSURE SENSOR
LIQUID SEPARATOR
EVAP
CANISTER EVAPORATIVE
EMISSION
PURGE
SOLENOID
ON: OPEN ECM <M/T>
PCM <A/T>
BAROMETRIC PRESSURE
SENSOR
INTAKE AIR TEMPERATURE

AK100999
FUEL TANK DIFFERENTIAL
PRESSURE SENSOR
LIQUID SEPARATOR
EVAP
CANISTER EVAPORATIVE
EMISSION
PURGE
SOLENOID
ON: OPEN ECM
PCM
BAROMETRIC PRESSURE
SENSOR
INTAKE AIR TEMPERATURE
SENSOR
ENGINE COOLANT
TEMPERATURE SENSOR
VOLUME AIR FLOW SENSORFUEL
TA N K
MFI RELAYFUEL VENT
VA LV E
FUEL CUT
OFF VALVE
LEVELING VALVE
VENT VALVE
AIR FILTER EVAPORATIVE EMISSION
VENTILATION SOLENOID
ON: CLOSED
AB
CHAMBER

Page 826 of 1000

MITSUBISHI ECLIPSE 2003 Service Repair Manual AK101000
FUEL TANK DIFFERENTIAL
PRESSURE SENSOR
LIQUID SEPARATOR
EVAP
CANISTER EVAPORATIVE
EMISSION
PURGE
SOLENOID
ON: OPEN ECM <M/T>
PCM <A/T>
BAROMETRIC PRESSURE
SENSOR
INTAKE AIR TEMPERATURE

AK101000
FUEL TANK DIFFERENTIAL
PRESSURE SENSOR
LIQUID SEPARATOR
EVAP
CANISTER EVAPORATIVE
EMISSION
PURGE
SOLENOID
ON: OPEN ECM
PCM
BAROMETRIC PRESSURE
SENSOR
INTAKE AIR TEMPERATURE
SENSOR
ENGINE COOLANT
TEMPERATURE SENSOR
VOLUME AIR FLOW SENSORFUEL
TA N K
MFI RELAYFUEL VENT
VALVE
FUEL CUT
OFF VALVE
LEVELING VALVE
VENT VALVE
AIR FILTER EVAPORATIVE EMISSION
VENTILATION SOLENOID
ON: CLOSED
AB
AKX01304AB
EVAPORATIVE EMISSION PURGE
SOLENOID
<2.4L ENGINE>
AK102961AB
EVAPORATIVE EMISSION PURGE
SOLENOID
<3.0L ENGINE – WITH VIC>
AKX01306AC
EVAPORATIVE EMISSION PURGE
SOLENOID
<3.0L ENGINE – WITHOUT VIC>

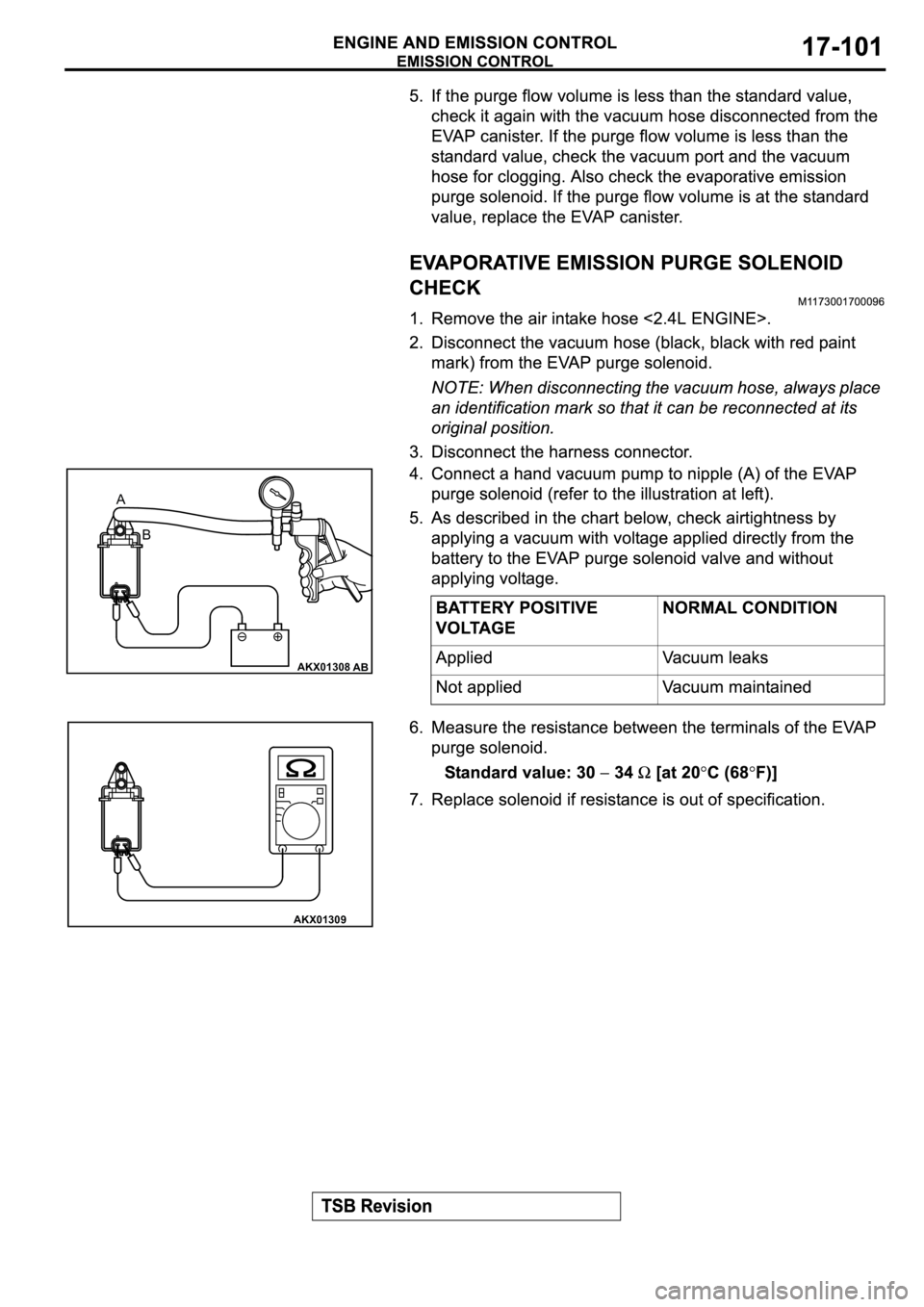

AKX01305
EVAP VENTILATION SOLENOID
FUEL TANK
AB

Page 827 of 1000

MITSUBISHI ECLIPSE 2003 Service Repair Manual AKX00340
INTAKE MANIFOLD THROTTLE BODY
TO COMBUSTION
CHAMBERFROM
AIR
CLEANER
OFF
ONEVAP PURGE SOLENOID
(ON: OPENED)
PURGE
FLOW
INDICATOR
(MB995061) PURGE HOSE
EVAP CANISTER
AB

AKX00340
INTAKE MANIFOLD THROTTLE BODY
TO COMBUSTION
CHAMBERFROM
AIR
CLEANER
OFF
ONEVAP PURGE SOLENOID
(ON: OPENED)
PURGE
FLOW
INDICATOR
(MB995061) PURGE HOSE
EVAP CANISTER
AB
