MITSUBISHI ECLIPSE 2010 4.G Owners Manual

3-106 Features and controls

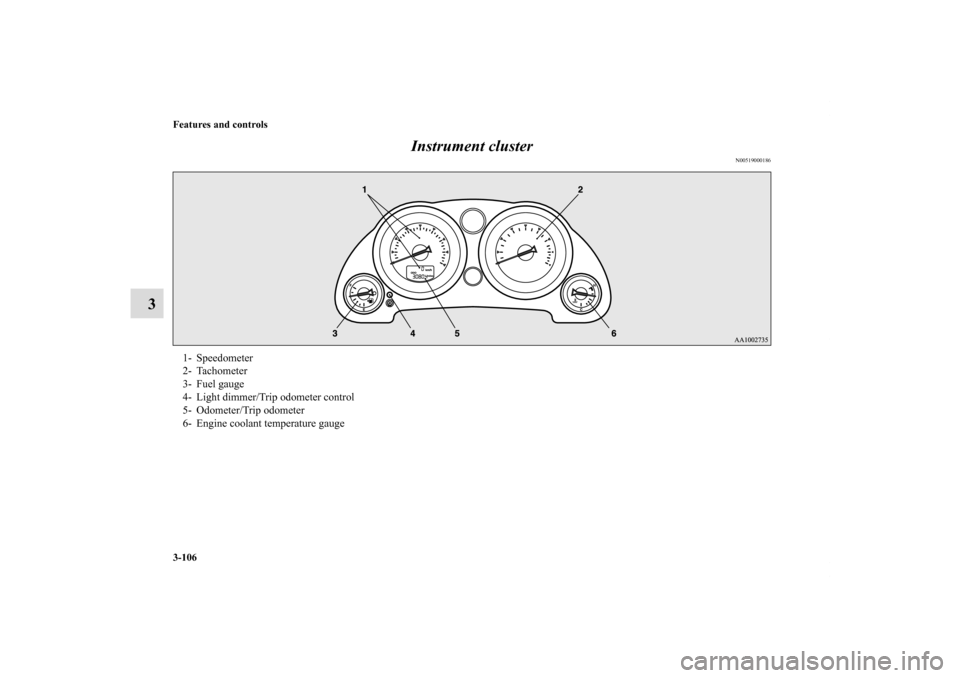

3Instrument cluster
N00519000186
1- Speedometer
2- Tachometer
3- Fuel gauge
4- Light dimmer/Trip odometer control
5- Odometer/Trip odometer
6- Engine coolant temperature gauge
BK0098300US.book 106 ページ ２００８年１２月８日　月曜日　午前１１時３７分

Features and controls
3-107
3

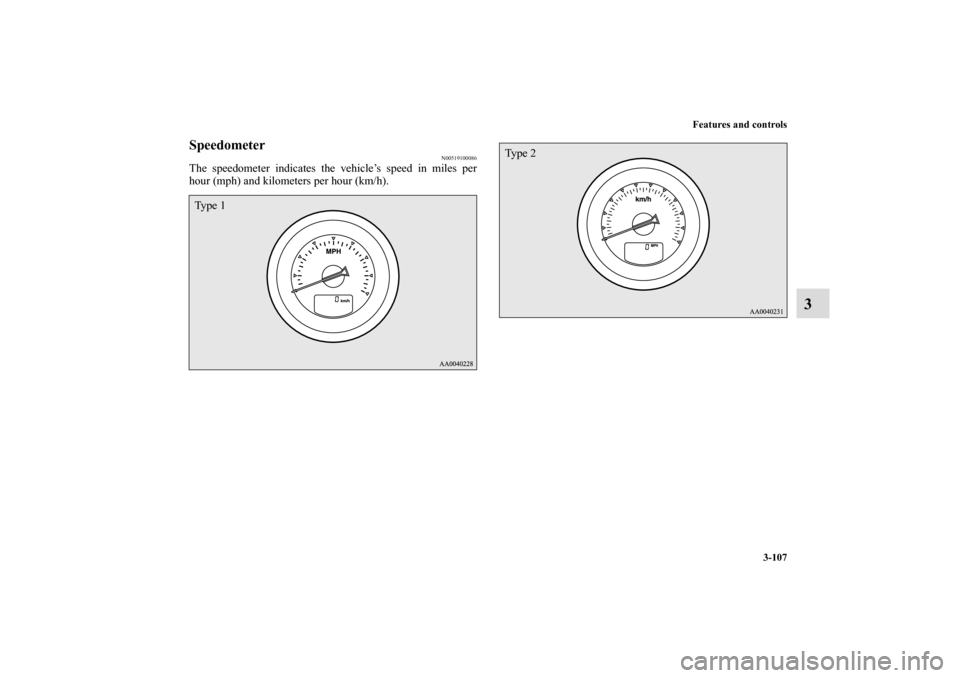

Speedometer
N00519100086
The speedometer indicates the vehicle’s speed in miles per
hour (mph) and kilometers per hour (km/h).Ty p e 1
Ty p e 2
BK0098300US.book 107 ページ ２００８年１２月８日　月曜日　午前１１時３７分

3-108 Features and controls
3
Tachometer
N00519200159
The tachometer shows engine revolutions per minute. This
allows the driver to determine the most efficient gear range and
engine speed combinations.
This gauge also assists in evaluating engine performance.
Odometer/Trip odometer
N00519500282
When the ignition switch is in the “ON” position, an “ODO” or
“TRIP” indicator is displayed.
CAUTION
!
The red zone indicates an engine speed beyond the
range of safe operation.
Select the correct gear to control the engine speed so
that the tachometer indicator does not enter the red
zone.
1- Reset button
2- Odometer/Trip odometer
BK0098300US.book 108 ページ ２００８年１２月８日　月曜日　午前１１時３７分

Features and controls
3-109
3
Every time the reset button (1) is pressed lightly (less than one
second), the indicators are changed.
ODO-OdometerThe odometer shows the total distance the vehicle has traveled. TRIP-Trip odometerThe trip odometer shows the distance traveled since the last
time it was reset.
There are two trip odometer displays: and .
TRIP can be used to measure the distance traveled since
the current trip began.
At the same time, TRIP can be used to measure the dis-
tance from a second location.
To reset the trip odometer
To zero the counter, press and hold the reset button for more
than one second. Only the currently displayed value will be
reset.
If TRIP is displayed, for example, only TRIP will be
reset. NOTE
Both TRIP and TRIP can measure trips up to
9999.9 miles/kilometers.

Even when the engine has been stopped, the odometer/trip
odometer indication is given for about 30 seconds if any
of the following steps is taken.
• The ignition key is turned to the “OFF” position.
• The driver’s door is opened.
• The odometer/trip odometer reset button is pressed.

If the battery is disconnected for a long time, both of these
displays will be reset to “0”.
Ty p e 1Ty p e 2
BK0098300US.book 109 ページ ２００８年１２月８日　月曜日　午前１１時３７分

3-110 Features and controls
3

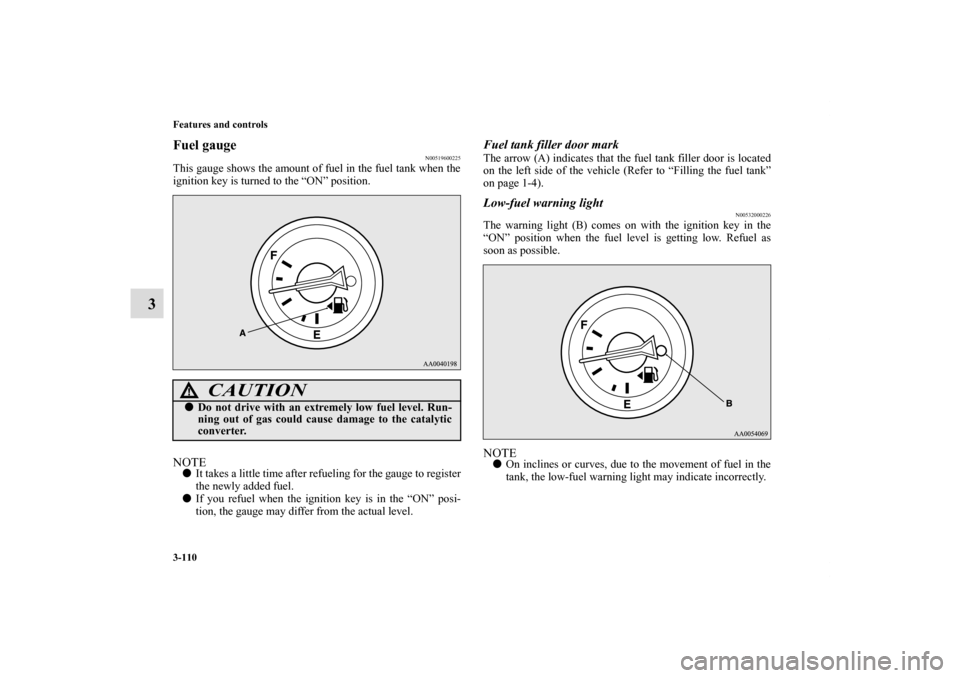

Fuel gauge
N00519600225
This gauge shows the amount of fuel in the fuel tank when the
ignition key is turned to the “ON” position.NOTE
It takes a little time after refueling for the gauge to register
the newly added fuel.

If you refuel when the ignition key is in the “ON” posi-
tion, the gauge may differ from the actual level.
Fuel tank filler door markThe arrow (A) indicates that the fuel tank filler door is located
on the left side of the vehicle (Refer to “Filling the fuel tank”
on page 1-4).Low-fuel warning light
N00532000226
The warning light (B) comes on with the ignition key in the
“ON” position when the fuel level is getting low. Refuel as
soon as possible.NOTE
On inclines or curves, due to the movement of fuel in the
tank, the low-fuel warning light may indicate incorrectly.
CAUTION
!
Do not drive with an extremely low fuel level. Run-
ning out of gas could cause damage to the catalytic
converter.
BK0098300US.book 110 ページ ２００８年１２月８日　月曜日　午前１１時３７分

Features and controls
3-111
3

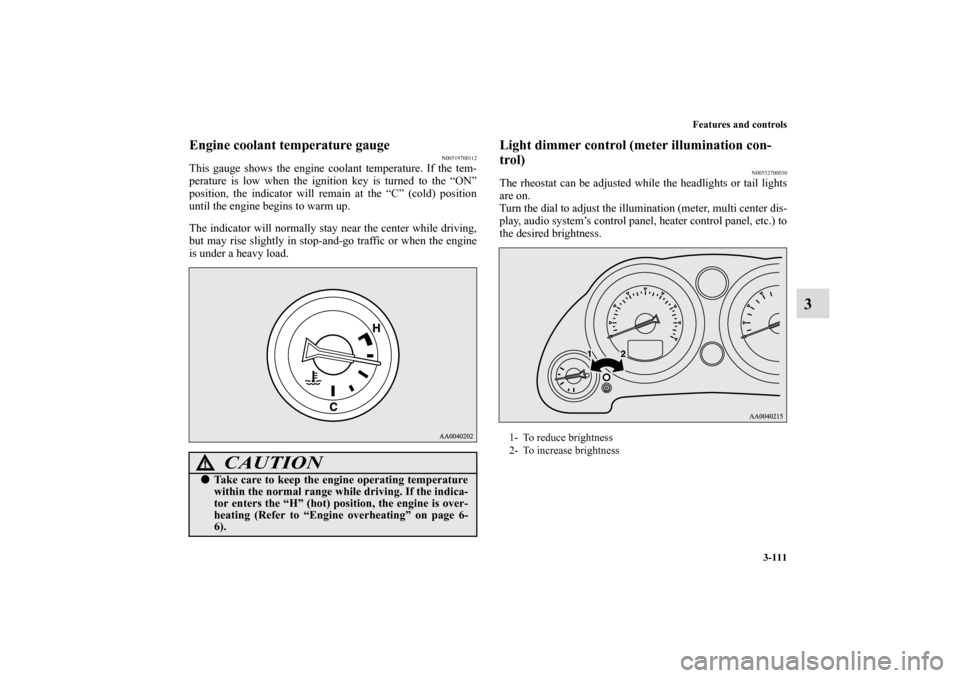

Engine coolant temperature gauge
N00519700112
This gauge shows the engine coolant temperature. If the tem-
perature is low when the ignition key is turned to the “ON”
position, the indicator will remain at the “C” (cold) position
until the engine begins to warm up.
The indicator will normally stay near the center while driving,
but may rise slightly in stop-and-go traffic or when the engine
is under a heavy load.
Light dimmer control (meter illumination con-
trol)
N00552700030
The rheostat can be adjusted while the headlights or tail lights
are on.
Turn the dial to adjust the illumination (meter, multi center dis-
play, audio system’s control panel, heater control panel, etc.) to
the desired brightness.
CAUTION
!
Take care to keep the engine operating temperature
within the normal range while driving. If the indica-
tor enters the “H” (hot) position, the engine is over-
heating (Refer to “Engine overheating” on page 6-
6).
1- To reduce brightness
2- To increase brightness
BK0098300US.book 111 ページ ２００８年１２月８日　月曜日　午前１１時３７分

3-112 Features and controls
3Indicator and warning light package
N00519800777
Ty p e 1 Ty p e 21- ASC OFF indicator → P.3-88
2- ASC indicator → P.3-88
3- Anti-lock braking system warning light
→ P. 3 - 8 3
4- Cruise control indicator → P.3-92
5- Door-ajar warning light → P. 3 - 1 1 6
6- Turn signal indicators/Hazard warning lights → P. 3 - 1 1 3
7- Charging system warning light → P. 3 - 1 1 5
8- Brake warning light → P. 3 - 1 1 3
9- Supplemental Restraint System (SRS) warning light
→ P.2-44
10- Tire pressure monitoring system warning light → P.3-99
11- Oil pressure warning light → P. 3 - 1 1 5
12- Low-fuel warning light → P. 3 - 1 1 013- Driver’s seat belt reminder/warning light
→ P.2-18
14- Selector lever position indicator (if so equipped)
→ P.3-75
15- High beam indicator → P. 3 - 1 1 3
16- Engine malfunction indicator (“SERVICE ENGINE SOON”
or “Check engine light”) → P. 3 - 1 1 4
17- Immobilizer indicator → P. 3 - 3
18- Front fog light indicator (if so equipped) → P. 3 - 1 1 3
BK0098300US.book 112 ページ ２００８年１２月８日　月曜日　午前１１時３７分

Features and controls
3-113
3 Indicator
N00519900042
Turn signal indicators/Hazard warning lights
N00520000173
The arrows will flash in time with the corresponding exterior
turn signals when the turn signal lever is used.
Both arrows will flash when the hazard warning flasher switch
is pressed. NOTE
If the indicator flashes faster than usual or if the indicator
stays on without flashing, check for a malfunctioning turn
signal light bulb or turn signal connection.High beam indicator
N00520100060
A blue light comes on when the headlights are on high beam.Front fog light indicator
(if so equipped)
N00520200146
This indicator comes on while the front fog lights are on.
Warning lights
N00520300062
Brake warning light
N00520400210
This light comes on when the ignition key is turned to the
“ON” position (engine off).
When the engine is started, the light should go off.
The light will illuminate under the following conditions:

When the parking brake lever is engaged.

When the brake fluid level in the reservoir falls to a low
level.

When the brake circuit is not operating correctly.
Before driving your vehicle, release the parking brake and
make certain that the brake warning light has gone out.
CAUTION
!
Brake performance or your ability to control the
vehicle may be compromised or the vehicle may
become unstable if the brakes are applied suddenly
in the following situations:
• The brake warning light does not illuminate when
the parking brake is applied or does not turn off
when the parking brake is released.
• The brake warning light remains illuminated dur-
ing driving.
• If any of the above situations occur, stop the vehi-
cle in a safe location, avoiding any sudden brake
application, contact and your nearest authorized
Mitsubishi Motors dealer or a repair facility of
your choice.
BK0098300US.book 113 ページ ２００８年１２月８日　月曜日　午前１１時３７分

3-114 Features and controls
3
Engine malfunction indicator (“SERVICE
ENGINE SOON” or “Check engine light”)
N00520500396
This indicator is a part of the onboard diagnostic (OBD) sys-
tem which monitors the emissions, engine, and automatic tran-
saxle control systems. If a problem is detected in one of these
systems, this indicator comes on. When the ignition key is
turned to the “ON” position, this indicator normally comes on
and goes off a few seconds later.
This indicator will come on if the fuel tank filler cap is not
properly tightened. If the indicator comes on and stays on after
refueling, stop the engine and check that the cap is properly
tightened. (Turn the cap clockwise until you hear clicking
sounds.)
If this indicator does not go off after several seconds or lights
up while driving, have the system checked as soon as possible
at an authorized Mitsubishi Motors dealer or a repair facility of
your choice.
NOTE
Do not disconnect the battery cable when the Engine mal-
function indicator (“SERVICE ENGINE SOON” or
“Check engine light”) is on.
The engine electronic control module stores critical OBD
information (especially exhaust emission data), which
may be lost if the battery cable is disconnected while the
engine malfunction indicator is on. This will make it diffi-
cult to diagnose the cause of future problems.

The vehicle should be brought to a stop in the fol-
lowing manner when brake performance has deteri-
orated while driving.
• Press the brake pedal harder than usual.
• Should the brakes fail, shift down to a lower gear
to reduce your speed and slowly pull the parking
brake lever to park your vehicle. Press the brake
pedal to operate your rear brake lights to alert
vehicles behind you.CAUTION
!
CAUTION
!
Driving for a long time with the engine malfunction
indicator on may cause more damage to the emission
control system. This could also affect fuel economy
and drivability.
If this indicator does not come on when the ignition
key is turned to the “ON” position, have the system
checked by an authorized Mitsubishi Motors dealer
or a repair facility of your choice.
If the indicator comes on while the engine is run-
ning, avoid driving at high speeds.
During vehicle operation with the indicator on, the
vehicle may not accelerate when you depress the
accelerator pedal.
When the vehicle is stationary with the indicator on,
you must depress the brake pedal more firmly than
usual since the engine idling speed is higher than
usual and the vehicle with an automatic transaxle
has a stronger tendency to creep forward.
BK0098300US.book 114 ページ ２００８年１２月８日　月曜日　午前１１時３７分

Features and controls
3-115
3
Charging system warning light
N00520600166
This light comes on in the event of a malfunction in the charg-
ing system or when the ignition key is turned to the “ON” posi-
tion (engine off). When the engine is started, the light should
go out. Check to make sure that the light has gone out before
driving.
Oil pressure warning light
N00520700154
This light comes on when the engine oil pressure is below nor-
mal. If the light stays on while driving, stop the engine as soon
as possible. Do not run the engine until the cause of the low oil
pressure is corrected.
CAUTION
!
If the warning light stays on after the engine has
started, the battery charging system may be mal-
functioning. In this case, take your vehicle to an
authorized Mitsubishi Motors dealer or a repair
facility of your choice and have the system checked.
CAUTION
!
If this light comes on when the engine oil level is not
low, have your vehicle checked at an authorized Mit-
subishi Motors dealer or a repair facility of your
choice.
This warning light does not show the amount of oil
in the crankcase. This can only be determined by
checking the oil level with the dipstick with the
engine turned off.
BK0098300US.book 115 ページ ２００８年１２月８日　月曜日　午前１１時３７分
