5-32 Comfort controls
5

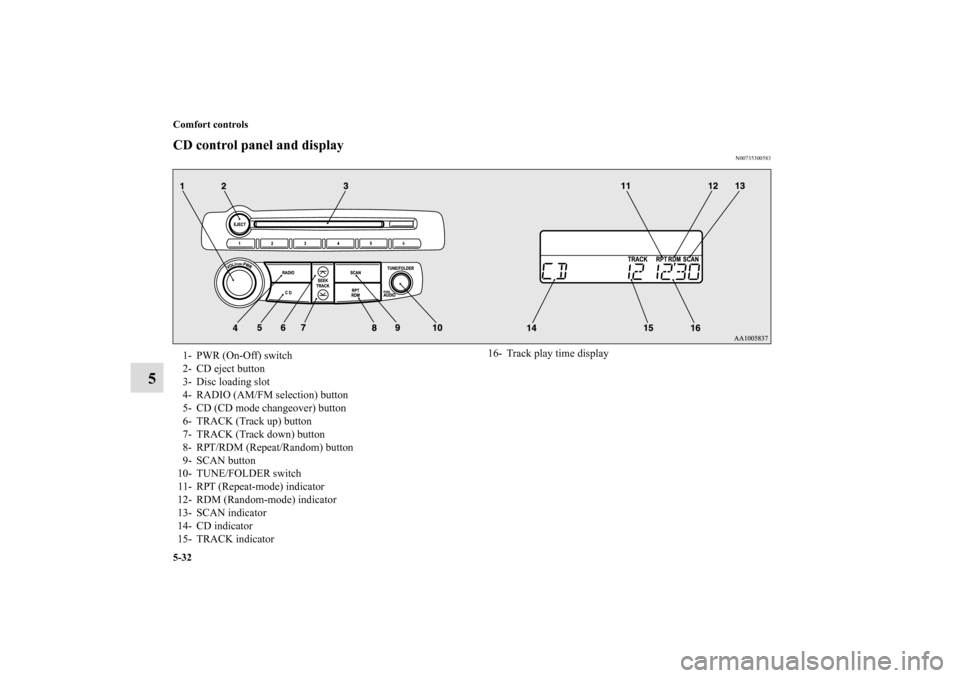

CD control panel and display
N00735300583
1- PWR (On-Off) switch
2- CD eject button
3- Disc loading slot
4- RADIO (AM/FM selection) button
5- CD (CD mode changeover) button
6- TRACK (Track up) button
7- TRACK (Track down) button
8- RPT/RDM (Repeat/Random) button
9- SCAN button
10- TUNE/FOLDER switch
11- RPT (Repeat-mode) indicator
12- RDM (Random-mode) indicator
13- SCAN indicator
14- CD indicator
15- TRACK indicator16- Track play time display
BK0098300US.book 32 ページ ２００８年１２月８日　月曜日　午前１１時３７分

Comfort controls
5-33
5
To listen to a CD
N00735500891
1. Press the CD button (5) and the CD mode will be selected,
starting a playback.
2. To adjust the volume and tone, refer to “To adjust the vol-
ume” on page 5-27 and “To adjust the tone” on page 5-28.
3. To stop the CD, turn off the power by pressing the PWR
switch (1) or switch to the other mode by pressing the
RADIO button (4).NOTE
For information concerning the handling of the compact
discs, refer to “Handling of compact discs” on page 5-71.

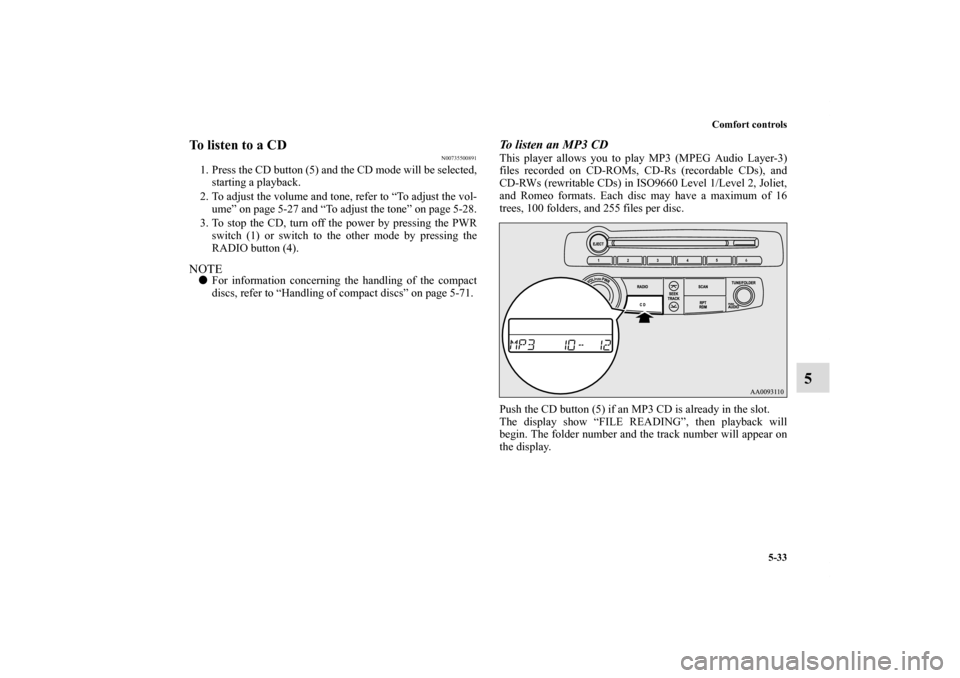

To listen an MP3 CDThis player allows you to play MP3 (MPEG Audio Layer-3)
files recorded on CD-ROMs, CD-Rs (recordable CDs), and
CD-RWs (rewritable CDs) in ISO9660 Level 1/Level 2, Joliet,
and Romeo formats. Each disc may have a maximum of 16
trees, 100 folders, and 255 files per disc.
Push the CD button (5) if an MP3 CD is already in the slot.
The display show “FILE READING”, then playback will
begin. The folder number and the track number will appear on
the display.
BK0098300US.book 33 ページ ２００８年１２月８日　月曜日　午前１１時３７分

Comfort controls
5-35
5
To fast forward/reverse the discTo fast forward or reverse, use the TRACK button (6 or 7).
Fast forward
You can fast forward by holding down the side of the
TRACK button (6) for more than about 1 second.
Fast reverse
You can fast reverse by holding down the side of the
TRACK button (7) for more than about 1 second.

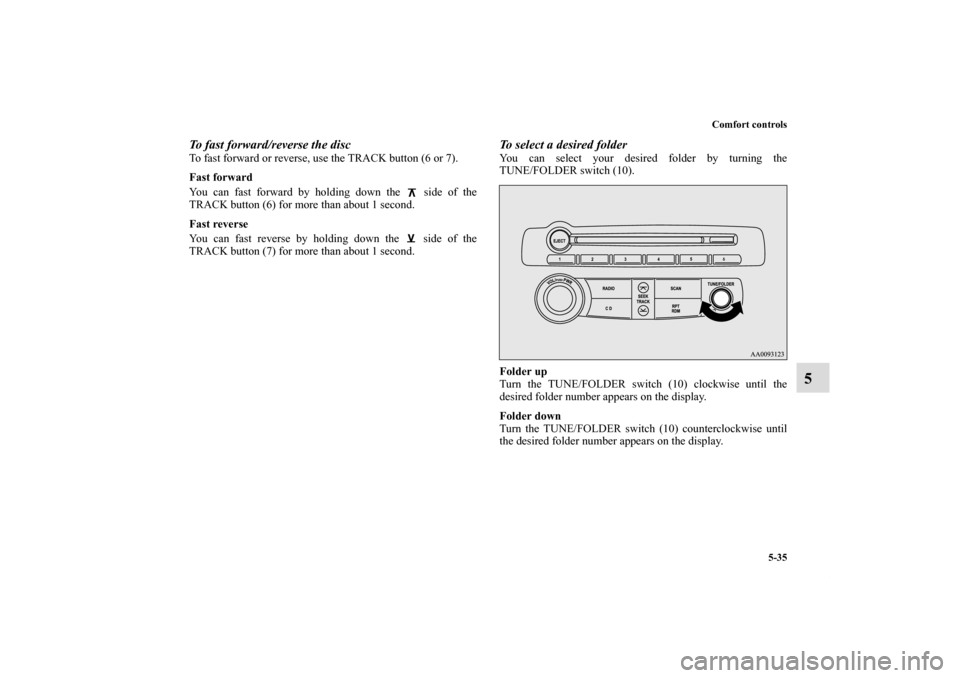

To select a desired folderYou can select your desired folder by turning the
TUNE/FOLDER switch (10).
Folder up
Turn the TUNE/FOLDER switch (10) clockwise until the
desired folder number appears on the display.
Folder down
Turn the TUNE/FOLDER switch (10) counterclockwise until
the desired folder number appears on the display.
BK0098300US.book 35 ページ ２００８年１２月８日　月曜日　午前１１時３７分

5-36 Comfort controls
5
To select a desired trackYou can select by using the TRACK button (6 or 7).
Track up
Press the side of the TRACK button (6) until the desired
track is reached.
The TRACK indicator (15) will display the number of the
selected track.
Track down
Press the side of the TRACK button (7) until the desired
track is reached.
The TRACK indicator (15) will display the number of the
selected track.NOTE
Pressing the side of the TRACK button (7) once during
the song will cause the CD to restart playing from the
beginning of the song.
To repeat the same track or change the order of tracks
for playback Press the RPT/RDM button (8) to select RPT → RDM →
RPT/RDM mode off.To repeat the same track Select the RPT mode, and the RPT indicator (11) will come on.
You can listen to the same track repeatedly. NOTE
The track repeat mode will be canceled by pressing the
TRACK button (6 or 7), the SCAN button (9) or the CD
eject button (2).

With a disc that contains both CD-DA and MP3 files, the
repeat mode causes only files of the same format (CD-DA
only or MP3 files only) to be repeated. To change the order of tracks for playbackRandom playback for a disc (music CDs only)
Select the RDM mode, and the RDM indicator (12) will come
on. Tracks are randomly played.
BK0098300US.book 36 ページ ２００８年１２月８日　月曜日　午前１１時３７分

5-38 Comfort controls
5
To find the start of each track on a disc for playbackPress the SCAN button (9). “SCAN” will appear on the display
and the player will play back the first 10 seconds of each track
on the selected disc.
The track number will blink while the scan mode is selected.
To exit the scan mode, press the SCAN button again.NOTE
Once all tracks on the disc have been scanned, playback
of the disc will restart from the beginning of the track that
was playing when scanning started.

The scan mode will be canceled when radio or CD opera-
tion is selected.

With a disc that contains both CD-DA and MP3 files, the
scan mode causes only files of the same format (CD-DA
only or MP3 files only) to be played.To eject a discWhen the CD eject button (2) is pressed, the disc automatically
stops and is ejected. The system automatically switches to
radio mode.BK0098300US.book 38 ページ ２００８年１２月８日　月曜日　午前１１時３７分

Comfort controls
5-39
5 AM/FM electronically tuned radio with CD autochanger-Type 2 (if so equipped)
AM/FM/Satellite electronically tuned radio with CD autochanger-Type 3 (if so equipped)
N00734300821
Volume and tone control panel-Type 2, Type 3
N00711900585
1- PWR (On-Off) switch
2- VOL (Volume control) knob
3- Memory select buttons
4- AUDIO switch
5- Display
BK0098300US.book 39 ページ ２００８年１２月８日　月曜日　午前１１時３７分

5-40 Comfort controls
5
To adjust the volume
N00712000192
VOL (Volume control) Turn the VOL knob (2) clockwise to increase the volume;
counterclockwise to decrease the volume.
The status will be displayed in the display (5).NOTE
The volume control mode will shut off automatically if
either the radio or CD is selected, or if no adjustment is
made within about 2 seconds.
BK0098300US.book 40 ページ ２００８年１２月８日　月曜日　午前１１時３７分

Comfort controls
5-41
5
To adjust the tone
N00712100584
1. Press the AUDIO switch (4) repeatedly to select your
desired sound customization setting to change. The order
is: SUB PUNCH → BASS → MID → TRE → FADE →
BAL → FIELD → TYPE → SOUND PRESET → Sound
customization mode off.
The status will be displayed in the display (5).
QUICK ACCESS MODE
To access the sound customization features quickly, push
and hold the AUDIO switch (4), then turn the switch
clockwise or counterclockwise to access your desired
sound customization setting. Release the switch to adjust
the setting.
BK0098300US.book 41 ページ ２００８年１２月８日　月曜日　午前１１時３７分

5-44 Comfort controls
5
Speed Compensated Volume function
N00752200082
Speed Compensated Volume function is a feature that automat-
ically adjusts the VOL, BASS, MID, and TRE settings in
accordance with the vehicle speed. It is possible to turn this
function ON-OFF using the following method:
1. If you are presently pushing the AUDIO switch (4) and
making a tone adjustment, finish making the tone adjust-
ment.
2. Push the AUDIO switch for at least about 2 seconds. The
system will switch to MENU mode and the characters
“SCV Select” will be shown on the display.
3. Turn the AUDIO switch (4) clockwise to the turn the
function ON. Turn it counterclockwise to turn the function
OFF.NOTE
The MENU mode will automatically shut off when either
the radio or CD is selected or the user does not move any
of the switches for 10 seconds.
BK0098300US.book 44 ページ ２００８年１２月８日　月曜日　午前１１時３７分

Comfort controls
5-45
5
Radio control panel and display-Type 2
N00734900683
1- PWR (On-Off) switch
2- Memory select buttons
3- RADIO (AM/FM selection) button
4- SEEK (Up-seek) button
5- SEEK (Down-seek) button
6- SCAN button
7- TUNE/FOLDER switch
8- SCAN indicator
9- AM/FM (AM/FM1/FM2) indicators
10- Preset memory number display
11- ST (Stereo) indicator
12- Frequency display
