engine MITSUBISHI ECLIPSE 2011 4.G Owners Manual

Vehicle care and maintenance
7-41
7
Passenger compartment fuse location tablePassenger compartment fuse location
No.
Symbol
Electrical system
Capacity
1 Ignition coil 10 A
2 Gauge 7.5 A
3 Back-up lights 7.5 A
4 Electric convertible top 7.5 A
5 Relay 7.5 A
6 Door mirror heater 7.5 A
7— — —
8 Engine control 7.5 A
9— — —
10 — — —
11 Outside rearview mirrors 7.5 A
12 Engine control 7.5 A
13 — — —
14 Rear window wiper 15 A
15 Power door locks 15 A
16 Power outlet 15 A
17 — — —
18 — — —
19 Heater 30 A
20 Rear window defogger 30 A
BK0115900US.book 41 ページ ２００９年１０月２７日　火曜日　午後１２時１分

7-42 Vehicle care and maintenance
7

Some fuses may not be installed on your vehicle, depend-
ing on the vehicle model or specifications.

The table above shows the main equipment corresponding
to each fuse.
The fuse block does not contain spare 7.5 A, 10 A and 15
A fuses. If a fuse of one of these capacities blows, replace
it temporarily by borrowing the one that matches from:
7.5 A: Door mirror heater
10 A: Dome light (in engine compartment)
15 A: Power outlet
Replace the borrowed fuse as soon as possible.
Engine compartment fuse location table2.4 liter & 3.8 liter models

21 Sunroof 20 A
22 — — —
23 Electric window control 7.5 A
24 Electric convertible top 15 A
25 — Spare fuse 20 A
26 — Spare fuse 30 A
27 — Spare fuse 30 A No.
Symbol
Electrical system
Capacity
Engine compartment fuse location
Front
BK0115900US.book 42 ページ ２００９年１０月２７日　火曜日　午後１２時１分

Vehicle care and maintenance
7-43
7
No.
Symbol
Electrical system
Capacity
1 Fuse (+B)
80 A*
1
2 Radiator fan motor30 A*
2,
50 A*3
3 Anti-lock braking system
60 A*
1
4 Ignition switch
40 A*1
5 Power window control
30 A*1
6 Front fog lights 15 A
7 Heated seat 20 A
8 Horn 15 A
9 Engine control 20 A
10 Air conditioning 10 A
11 Stop lights 7.5 A
12 Audio 30 A
13 Alternator 7.5 A
14 Hazard warning flasher 10 A
15 Automatic transaxle 20 A
16 Headlight high beam (right) 10 A
17 Headlight high beam (left) 10 A
18 Headlight low beam (right)10 A*4,
20 A*5
19 Headlight low beam (left)10 A*
4,
20 A*5
20 Position light (right) 7.5 A
21 Position light (left) 7.5 A
22 Dome light 10 A
23 Radio 15 A
24
Fuel pump 15 A
25 Windshield wiper 30 A
26 Electric convertible top
40 A*
1
*1:Fusible link
*2:Fusible link (2.4 liter models)
*3:Fusible link (3.8 liter models)
*4:Except for vehicles with high intensity discharge headlights
*5:Vehicles with high intensity discharge headlightsNo.
Symbol
Electrical system
Capacity
BK0115900US.book 43 ページ ２００９年１０月２７日　火曜日　午後１２時１分

7-44 Vehicle care and maintenance
7
2.4 liter models

*: Fusible link

Some fuses may not be installed on your vehicle, depend-
ing on the vehicle model or specifications.

The table above shows the main equipment corresponding
to each fuse.
Identification of fuse
N00901100049
No.
Symbol
Electrical system
Capacity
1 Condenser fan motor 20 A*Engine compartment fuse location
Front
Capacity
Color
7.5 A Brown
10 A Red
15 A Blue
20 A Yellow (fuse type) / Light blue (fusible link type)
30 A Green (fuse type) / Pink (fusible link type)
40 A Green
50 A Red
60 A Yellow
80 A White
BK0115900US.book 44 ページ ２００９年１０月２７日　火曜日　午後１２時１分

Vehicle care and maintenance
7-73
7 Cleaning the outside of your vehicle
N00945700016
To protect your vehicle’s finish, wash it often and thoroughly.
If desired, you may wax your vehicle using a nonabrasive auto-
mobile wax. Foreign material
N00945800017
Industrial pollution, road tar, bird droppings, tree sap, insect
remains, sea water and other foreign matters can damage the
finish on your vehicle.
Generally, the longer any foreign material stays on the finish,
the worse the damage. Wash your vehicle as soon as possible
whenever the finish gets soiled.Wash i ng
N00945900584
Chemicals contained in the dirt and dust picked up from air,
rain, snow or road surfaces can damage the paint and body of
your vehicle if left on.
Frequent washing and waxing is the best way to protect your
vehicle from this damage.
Do not wash the vehicle in direct sunlight. Park the vehicle in
the shade and spray it with water to remove dust. Next, using
plenty of clean water and a car washing mitt or sponge, wash
the vehicle from top to bottom.
Use a mild car washing soap if necessary. Rinse thoroughly
and wipe dry with a chamois or soft cloth. After washing the
vehicle, carefully clean the joints and flanges of the doors,
hood, etc., where dirt is likely to remain.

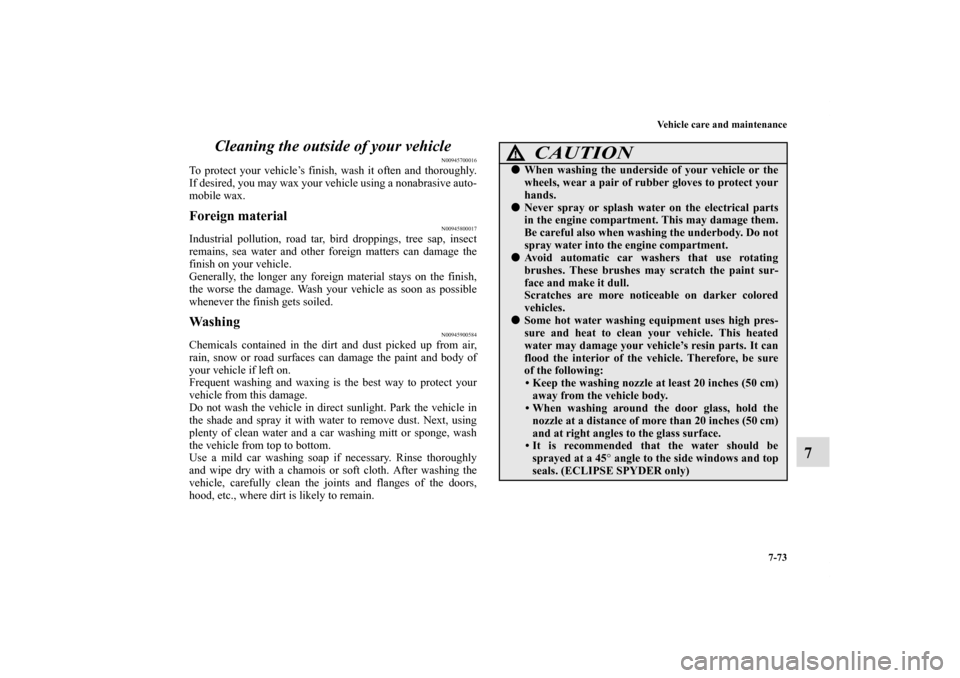

CAUTION
!
When washing the underside of your vehicle or the
wheels, wear a pair of rubber gloves to protect your
hands.
Never spray or splash water on the electrical parts
in the engine compartment. This may damage them.
Be careful also when washing the underbody. Do not
spray water into the engine compartment.
Avoid automatic car washers that use rotating
brushes. These brushes may scratch the paint sur-
face and make it dull.
Scratches are more noticeable on darker colored
vehicles.
Some hot water washing equipment uses high pres-
sure and heat to clean your vehicle. This heated
water may damage your vehicle’s resin parts. It can
flood the interior of the vehicle. Therefore, be sure
of the following:
• Keep the washing nozzle at least 20 inches (50 cm)
away from the vehicle body.
• When washing around the door glass, hold the
nozzle at a distance of more than 20 inches (50 cm)
and at right angles to the glass surface.
• It is recommended that the water should be
sprayed at a 45° angle to the side windows and top
seals. (ECLIPSE SPYDER only)
BK0115900US.book 73 ページ ２００９年１０月２７日　火曜日　午後１２時１分

Vehicle care and maintenance
7-75
7
Polishing
N00946100017
If painted surfaces have been severely damaged and lost their
original luster and color tone, polish the surface lightly with a
fine polishing compound. Avoid limiting your polishing to the
damaged surface only; polish a somewhat wider area, moving
the polishing cloth in one direction. After polishing, flush the
compound from the surface and apply a coat of wax to regain a
beautiful luster.Damaged paint
N00946200076
Small cracks and scratches in the paint coat should be touched
up as soon as possible with touch-up paint to prevent corrosion.
Check body areas facing the road or the tires carefully for dam-
age to the paint caused by flying stones, etc. The paint code
number for your vehicle can be found on the vehicle informa-
tion code plate. Refer to “Vehicle information code plate” on
page 9-2.
Cleaning plastic parts
N00946300178
Use a sponge or chamois to clean these parts.
If a vehicle wax sticks to a gray or black rough surface of the
bumper, molding or lights, the surface may appear white in
color. In this case, wipe it off using lukewarm water and a soft
cloth or chamois. Chrome parts
N00946400010
To prevent spots and corrosion of chrome parts, wash with
water, dry thoroughly, and apply a nonabrasive automotive
wax. If the chrome is severely damaged or pitted, use a com-
mercially available chrome polish.
CAUTION
!
Do not use a scrubbing brush or other rough scrub-
ber as these may damage the plastic surface.
Do not use wax containing compounds (polishing
powder) which may damage the plastic surface.
Do not let the plastic parts get soiled with gasoline,
oil, brake fluids, engine oils, greases, paint thinner,
and sulfuric acid (battery electrolyte). These fluids,
etc., may crack, stain or discolor the plastic parts.
If any of these get on the plastic parts, wipe them up
with a soft cloth or chamois and a mild solution of
soap and water. Then rinse them immediately with
water.
BK0115900US.book 75 ページ ２００９年１０月２７日　火曜日　午後１２時１分

Vehicle care and maintenance
7-77
7
NOTE
Always sprinkle water from above.

Do not run this vehicle through any automatic car washes.
These car washes may cause water to enter the vehicle and
cause damage to the convertible top. If you wash the vehi-
cle by hand do not spray water directly at side windows
and top seals which may cause water to enter the vehicle.
Therefore, be sure to observe the following.
• Maintain a good distance of approx. 16 inches (40 cm)
or more between the vehicle body and the washing noz-
zle.
• It is recommended that the water should be sprayed at a
45° angle to the side windows and top seals.

Do not use harsh or abrasive type cleaners or bleaching
agents on the top material or damage may result.Engine compartment
N00947000084
Never spray or splash water on the electrical components in the
engine compartment, as this may cause damage.
Do not allow any nearby parts (such as plastic parts) come into
contact with sulphuric acid (battery electrolyte), which may
crack, stain, or discolour them.
If this occurs, wipe the parts with a soft cloth saturated with a
mild detergent and water solution.
Then immediately rinse the affected parts with plenty of water.
BK0115900US.book 77 ページ ２００９年１０月２７日　火曜日　午後１２時１分

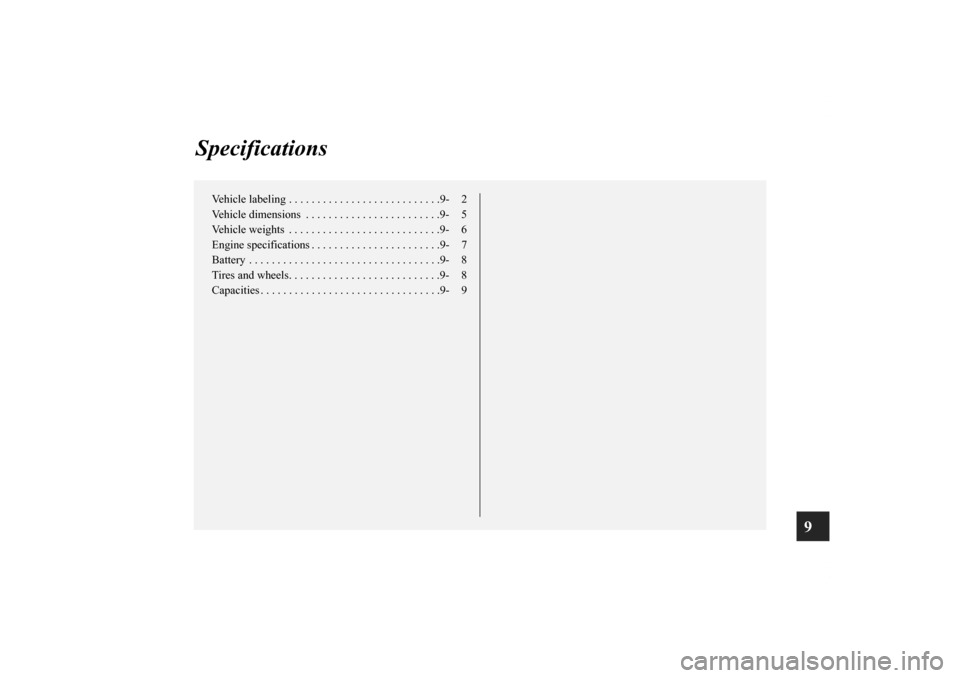

9
Specifications
Vehicle labeling . . . . . . . . . . . . . . . . . . . . . . . . . . .9- 2
Vehicle dimensions . . . . . . . . . . . . . . . . . . . . . . . .9- 5
Vehicle weights . . . . . . . . . . . . . . . . . . . . . . . . . . .9- 6
Engine specifications . . . . . . . . . . . . . . . . . . . . . . .9- 7
Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9- 8
Tires and wheels. . . . . . . . . . . . . . . . . . . . . . . . . . .9- 8
Capacities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9- 9
BK0115900US.book 1 ページ ２００９年１０月２７日　火曜日　午後１２時１分

9-2 Specifications
9Vehicle labeling
N01147400612
Keep a record of the vehicle identification number. This infor-
mation will assist the police if your vehicle is stolen.1 - Vehicle emission control information labelThe vehicle emission control information label is affixed on the
inside panel of the engine hood.2 - Vehicle identification number plateThe vehicle identification number is stamped on the plate riv-
eted to the left front corner of the dashboard. It is visible from
outside of the vehicle through the windshield.3 - Air conditioning labelThe air conditioning label is affixed on the inside panel of the
engine compartment.
4 - Vehicle information code plateThe vehicle information code plate is located on the driver’s
side door pillar.
BK0115900US.book 2 ページ ２００９年１０月２７日　火曜日　午後１２時１分

Specifications
9-3
9

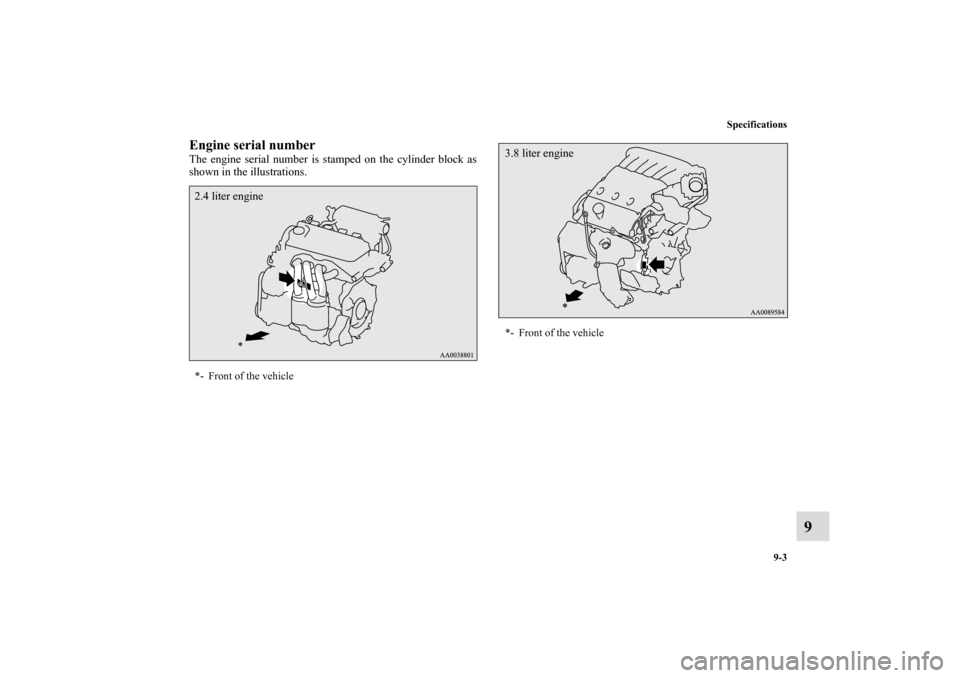

Engine serial numberThe engine serial number is stamped on the cylinder block as
shown in the illustrations. *- Front of the vehicle2.4 liter engine
*- Front of the vehicle3.8 liter engine
