Specifications
9-7

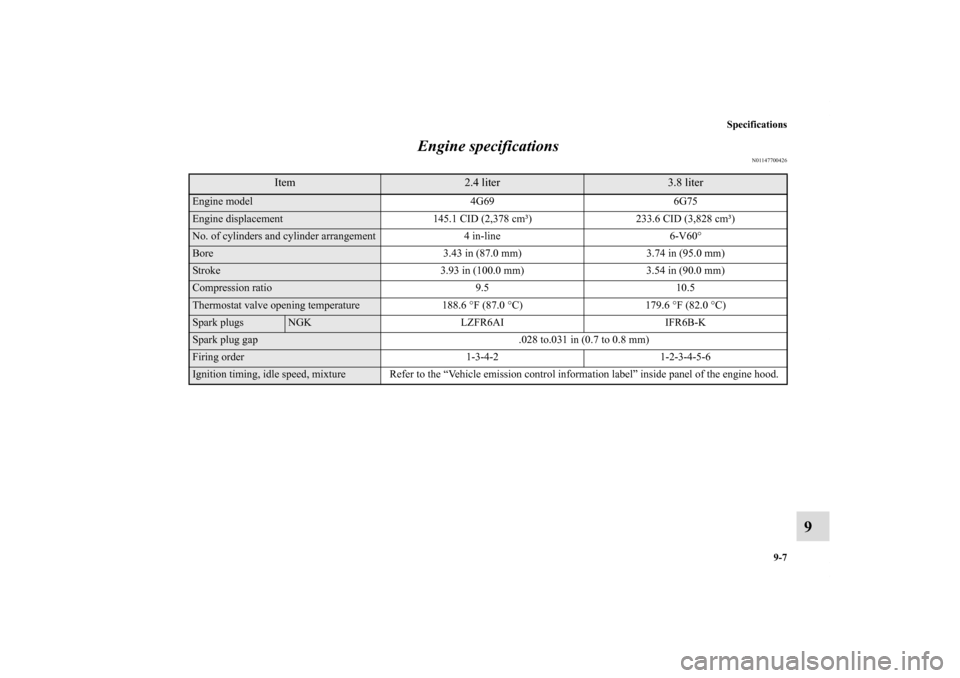

9 Engine specifications
N01147700426
Item
2.4 liter
3.8 liter
Engine model 4G69 6G75Engine displacement 145.1 CID (2,378 cm³) 233.6 CID (3,828 cm³)No. of cylinders and cylinder arrangement 4 in-line 6-V60°Bore 3.43 in (87.0 mm) 3.74 in (95.0 mm)Stroke 3.93 in (100.0 mm) 3.54 in (90.0 mm)Compression ratio 9.5 10.5Thermostat valve opening temperature 188.6 °F (87.0 °C) 179.6 °F (82.0 °C)Spark plugs
NGK LZFR6AI IFR6B-K
Spark plug gap .028 to.031 in (0.7 to 0.8 mm)Firing order 1-3-4-2 1-2-3-4-5-6Ignition timing, idle speed, mixture Refer to the “Vehicle emission control information label” inside panel of the engine hood.
BK0115900US.book 7 ページ ２００９年１０月２７日　火曜日　午後１２時１分

9-8 Specifications
9Battery
N01147800049
Battery is a 12 volt type.NOTE
There are various sizes of batteries in BCI Groups No.24
and 86.
When you replace the battery, confirm the size of the
replacement battery will not interfere with other compo-
nents in the engine compartment.
Tires and wheels
N01147900646
*1: For vehicles sold in Brazil
*2: Except for vehicles sold in Brazil
PCD: Pitch Circle Diameter (installation holes)NOTE
Contact an authorized Mitsubishi Motors dealer for details
on the combination used on your vehicle.

These tires satisfy vehicle loading conditions described in
this owner’s manual.
2.4 liter
BCI Group No.863.8 liter
BCI Group No.24
Tire
P225/50R17 93V*
1
P235/45R18 94V*
2
Wheel
Size 17 x 7 1/2JJ 18 x 8JPCD 4.5 in (114.3 mm)Offset 1.81 in (46 mm)
BK0115900US.book 8 ページ ２００９年１０月２７日　火曜日　午後１２時１分

Specifications
9-9
9 Capacities
N01148000888
Item
Capacity
Lubricants
Fuel (approximate) 17.7 gal (67.0 L) Refer to “Fuel selection” on page 1-2.Engine oil
Oil pan 4.2 qt (4.0 L) Engine oils displaying the ILSAC certification mark
(“starbust” symbol) on the container.
If these oils are not available, an API classification SM
can be used.Oil filter .32 qt (0.3 L)
Power steering As required Genuine Mitsubishi Power Steering Fluid Automatic transaxle
4A/T 8.1 qt (7.7 L)
DIAMOND ATF SP III 5A/T 8.9 qt (8.4 L)
Manual transaxle
5M/T 2.3 qt (2.2 L) DiaQueen NEW MULTI GEAR OIL
API classification GL-3
SAE 75W-806M/T 2.1 qt (2.0 L)
Brake As required Conforming to Brake fluid DOT3 or DOT4 Hood lock release mechanism and safety catch As required Multipurpose type grease NLGI Grade 2 Engine coolant
{Includes .63 qt (0.6 L) in
reserve tank}
2.4 liter
Manual transaxle 9.3 qt (8.8 L)
Long Life Antifreeze Coolant or an equivalentAutomatic transaxle 9.2 qt (8.7 L)
3.8 liter
Manual transaxle 8.6 qt (8.1 L)Automatic transaxle 8.5 qt (8.0 L)
Washer fluid 4.2 qt (4.0 L) — Refrigerant (air conditioning)Refer to the air
conditioning label
on page 9-2.HFC-134a
BK0115900US.book 9 ページ ２００９年１０月２７日　火曜日　午後１２時１分
