MITSUBISHI ECLIPSE 2011 4.G Owner's Manual

6 Quick index
If the indicator flashes and a tone sounds when the electric convertible top is operated
(ECLIPSE SPYDER)
N00200100029
Indicator Lamp
Tone
Do this
Ref. page
Flashes slowly
(approx. one flash
per second).Sounds intermit-
tently and rapidly
(approx. three
times per second).
The requirements for operation of the electric convertible top
are not all satisfied. Ensure satisfaction of all the require-
ments.P. 3 - 3 2

The indicator and tone indicate that the electric convertible
top is not going to operate.
• Check whether the OPEN switch and CLOSE switch are
both being pressed at the same time.
• Check whether the OPEN (or CLOSE) switch is being
pressed when the top is fully open (or closed).P.3-33,
3-36

The indicator and tone indicate that the electric convertible
top has temporarily stopped working because continuous
operation of one switch then the other has triggered a protec-
tion circuit. Wait about seven minutes, then try operating the
electric convertible top again.P. 3 - 3 3
Flashes rapidly
(approx. two
flashes per sec-
ond).Sounds for
approx. five sec-
onds.
The top is partly open. Stop the vehicle and completely open
or close the top. The tone will then stop.P. 3 - 3 8
Sounds intermit-
tently and slowly
(approx. once per
second).
The indicator and tone indicate a system fault. Have the vehi-
cle inspected by an authorized Mitsubishi Motors dealer.P. 3 - 3 8
BK0115900US.book 6 ページ ２００９年１０月２７日　火曜日　午後１２時１分

Quick index
7
If this problem occurs...
N00200900678
Problem
Do this
Ref. Page
Cannot turn the key.
From “LOCK” to “ACC”Turn the key while jogging the steering wheel in either direction.From “ACC” to “LOCK”Vehicles with automatic transaxle:
Check the position of the selector lever.
The key cannot be removed unless the selector lever is set to the “P” (PARK) position.
Vehicles with manual transaxle:
Place the key at the “ACC” position. Push the key in and turn it.P.3-61,
3-63
Cannot shift the selector lever
from the “P” (PARK) position.
(for vehicles with automatic
transaxle)Shift the selector lever while pressing the brake pedal.
Check that the ignition key is in the “ON” position.P.3-72
The windows are fogged up.
1. Set the mode selection dial to the “ ” or “ ” position.
2. Turn on the blower.P.5-12,
5-20
The engine does not start.
The lights do not come on.
The lights are dim.
The horn does not honk.
The horn sound is weak.Have the battery checked. Recharge or replace as needed.P.6-2,
7-16
BK0115900US.book 7 ページ ２００９年１０月２７日　火曜日　午後１２時１分

8 Quick index
Problem
Do this
Ref. page
The engine coolant tempera-
ture gauge indicator is at the
“H” (hot) position.
Steam comes out of the engine
compartment.
The engine is overheated.
Carefully stop the vehicle in a safe place.P. 6 - 6
The vehicle is stuck in sand,
mud, or snow.Move the gearshift lever or selector lever rhythmically between 1st and Reverse gears
(for vehicles with manual transaxle) or “Sports mode” and “R” (REVERSE) positions
(for vehicles with automatic transaxle), while pressing lightly on the accelerator pedal.P.6-22
WA R N I N G
!
When attempting to rock your vehicle out of a stuck position, be sure that no one is near the vehicle. The rocking
motion may cause the vehicle to suddenly lurch forward or backward, possibly injuring bystanders.
Avoid revving the engine or spinning the wheels. Prolonged efforts to free a stuck vehicle may result in overheating
and transaxle failure.
If the vehicle remains stuck after several rocking attempts, have a towing service pull the vehicle out.
BK0115900US.book 8 ページ ２００９年１０月２７日　火曜日　午後１２時１分

Quick index
9
Problem
Do this
Ref. page
The brakes are not functioning
properly after driving through
water. Dry out the brakes by driving slowly while lightly pressing the brake pedal. P.4-6
The automatic transaxle does
not shift when accelerating
and/or the vehicle does not
easily begin to move. There may be a problem in the automatic transaxle.
Have the vehicle inspected by an authorized Mitsubishi Motors dealer or a repair facility
of your choice.
Shift the lever into 2nd gear of the sports mode when starting the vehicle. If the vehicle is
on a level road, shift the lever back to “D” (DRIVE) position.
(This method may or may not work depending on the type of malfunction.)P.3-80
A tire is punctured.
1. Park the vehicle in a safe place where the surface is flat and level.
2. Replace the flat tire with the spare tire.P. 6 - 9
BK0115900US.book 9 ページ ２００９年１０月２７日　火曜日　午後１２時１分

BK0115900US.book 10 ページ ２００９年１０月２７日　火曜日　午後１２時１分

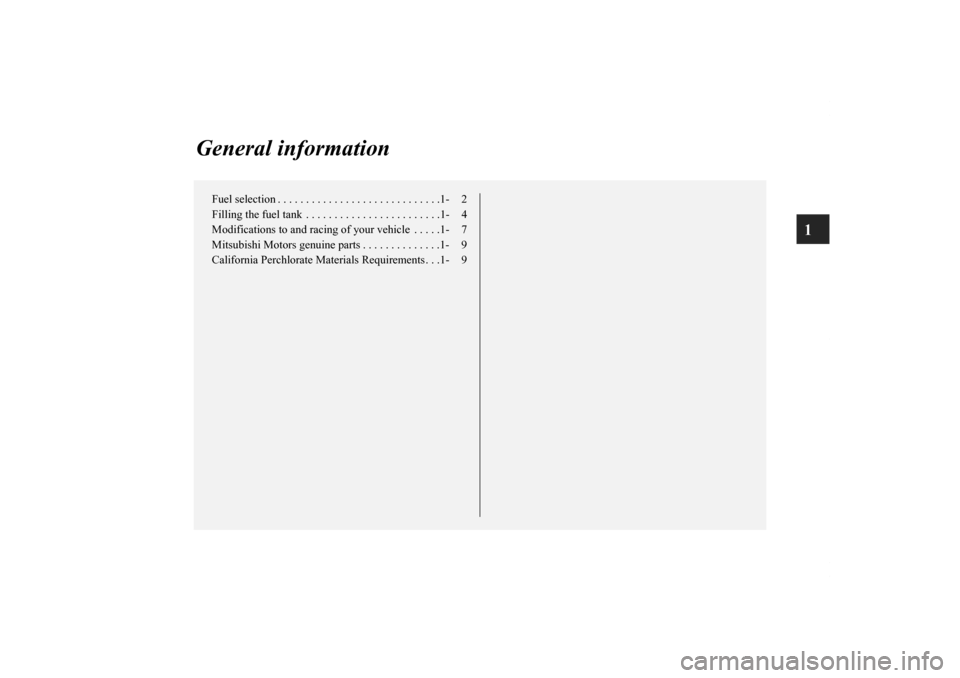

1
General information
Fuel selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1- 2
Filling the fuel tank . . . . . . . . . . . . . . . . . . . . . . . .1- 4
Modifications to and racing of your vehicle . . . . .1- 7
Mitsubishi Motors genuine parts . . . . . . . . . . . . . .1- 9
California Perchlorate Materials Requirements . . .1- 9
BK0115900US.book 1 ページ ２００９年１０月２７日　火曜日　午後１２時１分

1-2 General information
1Fuel selection
N00301000808
Your vehicle is designed to use unleaded gasoline only. It is
equipped with a fuel filler tube especially designed to accept
only a small diameter unleaded gasoline dispensing nozzle. Gasoline detergent additivesIn the United States, fuel suppliers are required by law to add
detergents to their gasoline to minimize fuel-injector fouling
and minimize intake-valve deposits. Detergent gasoline helps
keep your engine in tune and your emission-control system
working properly.
Octane requirement2.4 liter engine modelYour vehicle is designed to operate on unleaded gasoline hav-
ing a minimum octane number of 87 [(MON+RON)/2], or 91
RON.3.8 liter engine modelUnleaded gasoline having an octane number of 87
[(MON+RON)/2] or 91 RON may be used, but Mitsubishi
Motors Corporation recommends that your vehicle be operated
on premium grade unleaded gasoline having a minimum octane
number of 91 [(MON+RON)/2], or 95 RON. For maximum
performance, premium gasoline is recommended.
MON: Motor Octane Number
RON: Research Octane Number Oxygenated gasoline Gasoline sold at some service stations contains oxygenates
such as ethanol and MTBE, although the oxygenates may not
be identified by those names. Oxygenates are required in some
areas of the country. Such fuel can be used in your vehicle.
WA R N I N G
!
Gasoline is highly flammable and explosive. You
could be burned, seriously injured or killed when
handling it. Whenever you refuel your vehicle, stop
the engine and keep flames, sparks, and smoking
materials away from the vehicle. Always handle fuel
in well-ventilated outdoor areas.
CAUTION
!
Using leaded gasoline in your vehicle will damage
the engine, catalytic converter, and the oxygen sen-
sors. Also, using leaded gasoline is illegal, and will
void your warranty coverage of the engine, catalytic
converter, and oxygen sensors.
BK0115900US.book 2 ページ ２００９年１０月２７日　火曜日　午後１２時１分

General information
1-3
1
Ethanol (Gasohol) A mixture of up to 10 % ethanol (grain alcohol) and 90 %
unleaded gasoline may be used in your vehicle, provided the
octane number is at least as high as that recommended for
unleaded gasoline. Methanol Do not operate your vehicle on gasoline containing methanol
(wood alcohol). Using this type of alcohol could adversely
affect the vehicle’s performance and damage critical parts of
the vehicle's fuel system.Reformulated gasoline Many areas of the country require the use of cleaner burning
fuel referred to as “Reformulated Gasoline”.
Reformulated gasoline contains oxygenates and is specially
blended to reduce vehicle emissions and improve air quality.
Mitsubishi Motors Corporation strongly supports the use of
reformulated gasoline. Properly blended reformulated gasoline
has no adverse effect on vehicle performance or on the durabil-
ity of the engine and fuel system.MMT (methylcyclopentadienyl manganese tri-
carbonyl)MMT is a manganese-containing metallic additive that is
blended into some gasolines to increase the octane number.
Mitsubishi Motors Corporation recommends using gasolines
without MMT.
Use of gasolines blended with MMT may adversely affect per-
formance, and cause the malfunction indicator on your instru-
ment panel to come on. If this happens, contact an authorized
Mitsubishi Motors dealer or a repair facility of your choice for
assistance.
Sulfur in gasoline Your vehicle may have been designed to satisfy California’s
low-emission regulations based on clean-burning low-sulfur
gasoline. Gasoline sold in parts of the country other than Cali-
fornia is allowed to have a higher sulfur content. Using such
gasoline could adversely affect the vehicle's catalytic converter
and cause the engine malfunction indicator (“SERVICE
ENGINE SOON” or “CHECK ENGINE”) to come on. Illumi-
nation of this indicator while you are using high-sulfur gaso-
line does not necessarily mean the vehicle’s emission-control
system is malfunctioning. Your authorized Mitsubishi Motors
dealer may suggest you try using a different, lower-sulfur
brand of unleaded gasoline to determine whether the problem
is fuel-related.NOTE
Poor-quality gasoline can cause problems such as poor
starting, stalling during idling, abnormal engine noise, and
poor acceleration. If you experience any of these prob-
lems, try using a different brand of gasoline. If the engine
malfunction indicator (“SERVICE ENGINE SOON” or
“CHECK ENGINE”) flashes, have the vehicle inspected
as soon as possible by the nearest authorized Mitsubishi
Motors dealer or a repair facility of your choice.
BK0115900US.book 3 ページ ２００９年１０月２７日　火曜日　午後１２時１分

1-4 General information
1

Repeatedly driving short distances at low speeds can
cause deposits to form in the fuel system and engine,
resulting in poor starting and poor acceleration. If these
problems occur, you are advised to add a detergent addi-
tive to the gasoline when you refuel the vehicle. The addi-
tive will remove the deposits, thereby returning the engine
to a normal condition. Be sure to use a genuine Mitsubishi
detergent additive. Using an unsuitable additive could
make the engine malfunction. For details, please contact
the nearest authorized Mitsubishi Motors dealer.
Filling the fuel tank
N00301100740
WA R N I N G
!
Gasoline is highly flammable and explosive. You
could be burned, seriously injured or killed when
handling it. When refueling your vehicle, always
turn the engine off and keep away from flames,
sparks, and smoking materials. Always handle fuel
in well-ventilated outdoor areas.
Before removing the fuel cap, be sure to get rid of
your body’s static electricity by touching a metal
part of the car or fuel pump. Any static electricity on
your body could create a spark that ignites fuel
vapor.
Perform the whole refueling process (opening the
fuel tank filler door, removing the fuel cap, etc.) by
yourself. Do not let any other person come near the
fuel tank filler. If you allowed a person to help you
and that person was carrying static electricity, fuel
vapor could be ignited.
Do not move away from the fuel tank filler until
refueling is finished. If you moved away and did
something else (for example, sitting on a seat) part-
way through the refueling process, you could pick
up a fresh charge of static electricity.
Be careful not to inhale fuel vapor. Fuel contains
toxic substances.
Keep the doors and windows closed while refueling
the vehicle. If they were open, fuel vapor could get
into the cabin.
BK0115900US.book 4 ページ ２００９年１０月２７日　火曜日　午後１２時１分

General information
1-5
1
Fuel tank capacity17.7 gal (67 L)Refueling1. Before filling with fuel, stop the engine.
2. The fuel tank filler is located on the rear driver side of
your vehicle.
To open the fuel tank filler door, hook a finger behind the
door, and pull the door toward you.3. Open the fuel tank filler pipe by slowly turning the cap
counterclockwise.
A- Remove
B- Close
WA R N I N G
!
Since the fuel system may be under pressure,
remove the fuel tank filler cap slowly. This relieves
any pressure or vacuum that might have built up in
the fuel tank. If the cap is venting vapor or if you
hear a hissing sound, wait until it stops before
removing the cap. Otherwise, fuel may spray out,
injuring you or others.
BK0115900US.book 5 ページ ２００９年１０月２７日　火曜日　午後１２時１分
