MITSUBISHI ECLIPSE 2011 4.G Workshop Manual

2-16 Seat and restraint systems
2

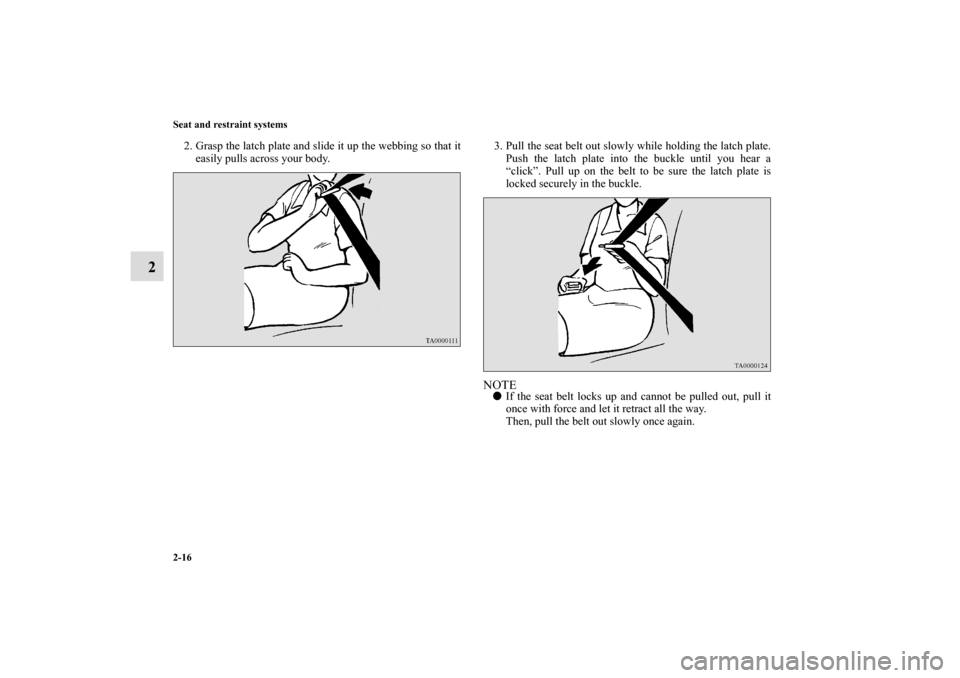

2. Grasp the latch plate and slide it up the webbing so that it
easily pulls across your body. 3. Pull the seat belt out slowly while holding the latch plate.
Push the latch plate into the buckle until you hear a
“click”. Pull up on the belt to be sure the latch plate is
locked securely in the buckle.
NOTE
If the seat belt locks up and cannot be pulled out, pull it
once with force and let it retract all the way.
Then, pull the belt out slowly once again.
BK0115900US.book 16 ページ ２００９年１０月２７日　火曜日　午後１２時１分

Seat and restraint systems
2-17
2

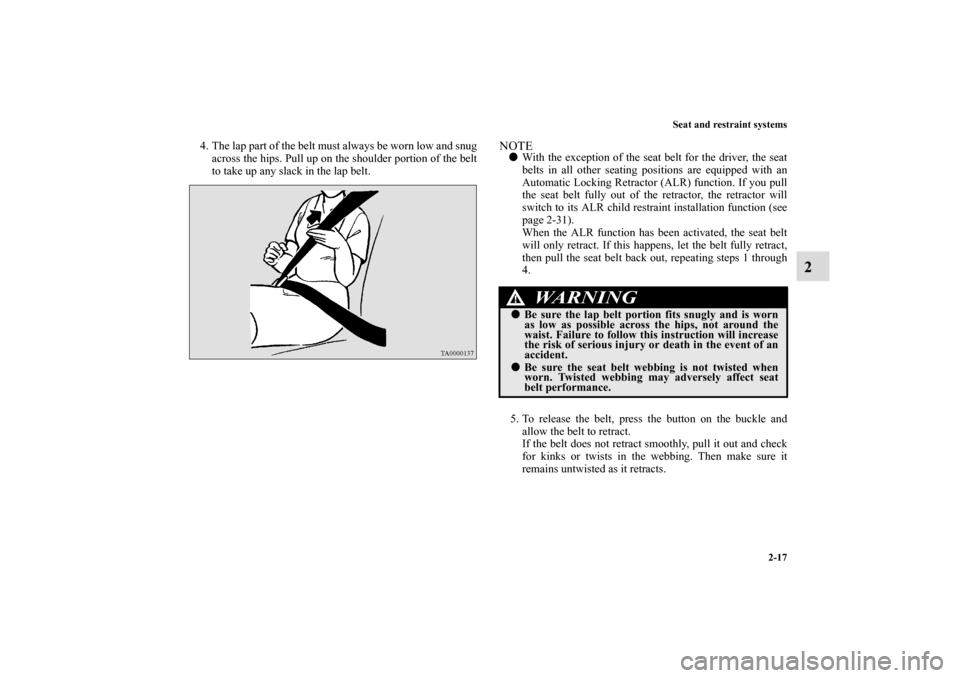

4. The lap part of the belt must always be worn low and snug
across the hips. Pull up on the shoulder portion of the belt
to take up any slack in the lap belt.
NOTE
With the exception of the seat belt for the driver, the seat
belts in all other seating positions are equipped with an
Automatic Locking Retractor (ALR) function. If you pull
the seat belt fully out of the retractor, the retractor will
switch to its ALR child restraint installation function (see
page 2-31).
When the ALR function has been activated, the seat belt
will only retract. If this happens, let the belt fully retract,
then pull the seat belt back out, repeating steps 1 through
4.
5. To release the belt, press the button on the buckle and
allow the belt to retract.
If the belt does not retract smoothly, pull it out and check
for kinks or twists in the webbing. Then make sure it
remains untwisted as it retracts.
WA R N I N G
!
Be sure the lap belt portion fits snugly and is worn
as low as possible across the hips, not around the
waist. Failure to follow this instruction will increase
the risk of serious injury or death in the event of an
accident.
Be sure the seat belt webbing is not twisted when
worn. Twisted webbing may adversely affect seat
belt performance.
BK0115900US.book 17 ページ ２００９年１０月２７日　火曜日　午後１２時１分

2-18 Seat and restraint systems
2
Driver’s seat belt reminder/warning light
N00418400137
A tone and warning light are used to remind the driver to fasten
the seat belt.
When the ignition key is turned to the “ON” position, the warn-
ing light will come on and a tone will sound for about 6 sec-
onds. If the driver’s seat belt remains unfastened
approximately 1 minute later, the warning light will flash and
the tone will sound intermittently (12 times each) when the
vehicle is driven. If the driver subsequently unfastens the seat
belt while driving, the warning light and tone will issue further
warnings. And if the seat belt remains unfastened, the warning
light and tone will issue further warnings each time the vehicle
starts moving from a stop. When the seat belt is fastened, the
warnings will stop.
WA R N I N G
!
In order to reduce the risk of serious injury or death
in an accident, always wear your own seat belt. Do
not allow anyone to ride in your vehicle unless he or
she is also seated and wearing a seat belt. Children
should additionally be restrained in a secure child
restraint system.
BK0115900US.book 18 ページ ２００９年１０月２７日　火曜日　午後１２時１分

Seat and restraint systems
2-19
2

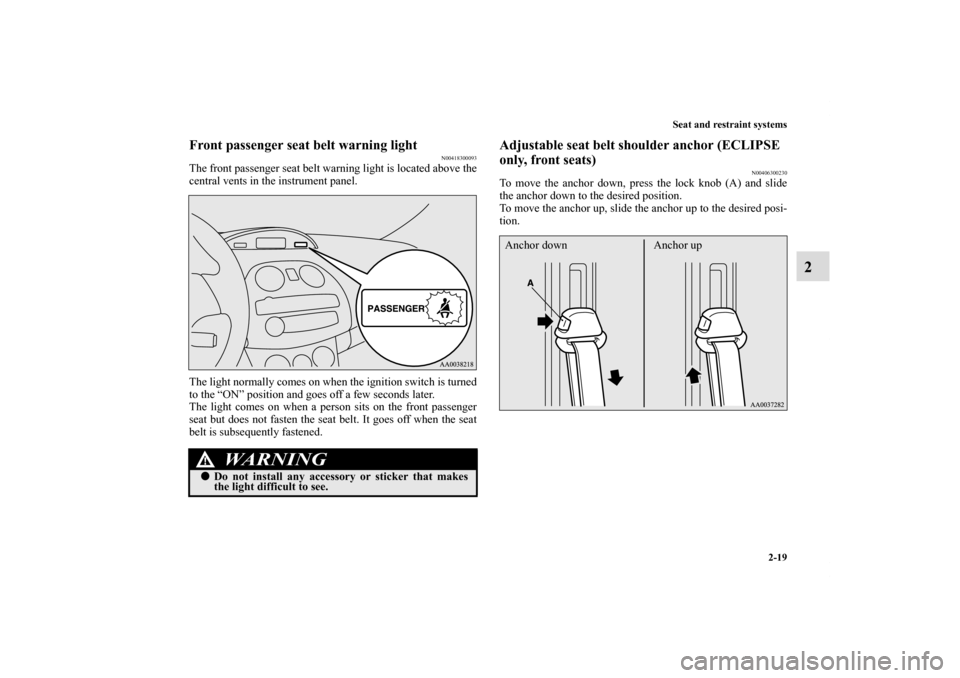

Front passenger seat belt warning light
N00418300093
The front passenger seat belt warning light is located above the
central vents in the instrument panel.
The light normally comes on when the ignition switch is turned
to the “ON” position and goes off a few seconds later.
The light comes on when a person sits on the front passenger
seat but does not fasten the seat belt. It goes off when the seat
belt is subsequently fastened.
Adjustable seat belt shoulder anchor (ECLIPSE
only, front seats)
N00406300230
To move the anchor down, press the lock knob (A) and slide
the anchor down to the desired position.
To move the anchor up, slide the anchor up to the desired posi-
tion.
WA R N I N G
!
Do not install any accessory or sticker that makes
the light difficult to see.
Anchor down Anchor up
BK0115900US.book 19 ページ ２００９年１０月２７日　火曜日　午後１２時１分

2-20 Seat and restraint systems
2

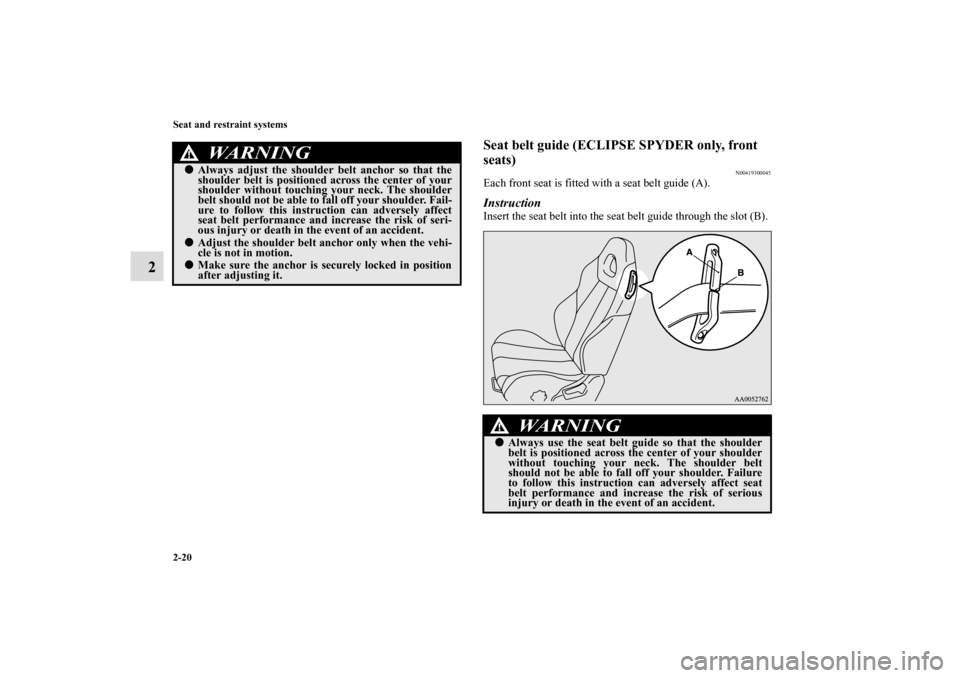

Seat belt guide (ECLIPSE SPYDER only, front
seats)
N00419300045
Each front seat is fitted with a seat belt guide (A).InstructionInsert the seat belt into the seat belt guide through the slot (B).
WA R N I N G
!
Always adjust the shoulder belt anchor so that the
shoulder belt is positioned across the center of your
shoulder without touching your neck. The shoulder
belt should not be able to fall off your shoulder. Fail-
ure to follow this instruction can adversely affect
seat belt performance and increase the risk of seri-
ous injury or death in the event of an accident.
Adjust the shoulder belt anchor only when the vehi-
cle is not in motion.
Make sure the anchor is securely locked in position
after adjusting it.
WA R N I N G
!
Always use the seat belt guide so that the shoulder
belt is positioned across the center of your shoulder
without touching your neck. The shoulder belt
should not be able to fall off your shoulder. Failure
to follow this instruction can adversely affect seat
belt performance and increase the risk of serious
injury or death in the event of an accident.
BK0115900US.book 20 ページ ２００９年１０月２７日　火曜日　午後１２時１分

Seat and restraint systems
2-21
2
NOTE
Remove the seat belt from the seat belt guide when a pas-
senger is going to move to or from the rear seat.

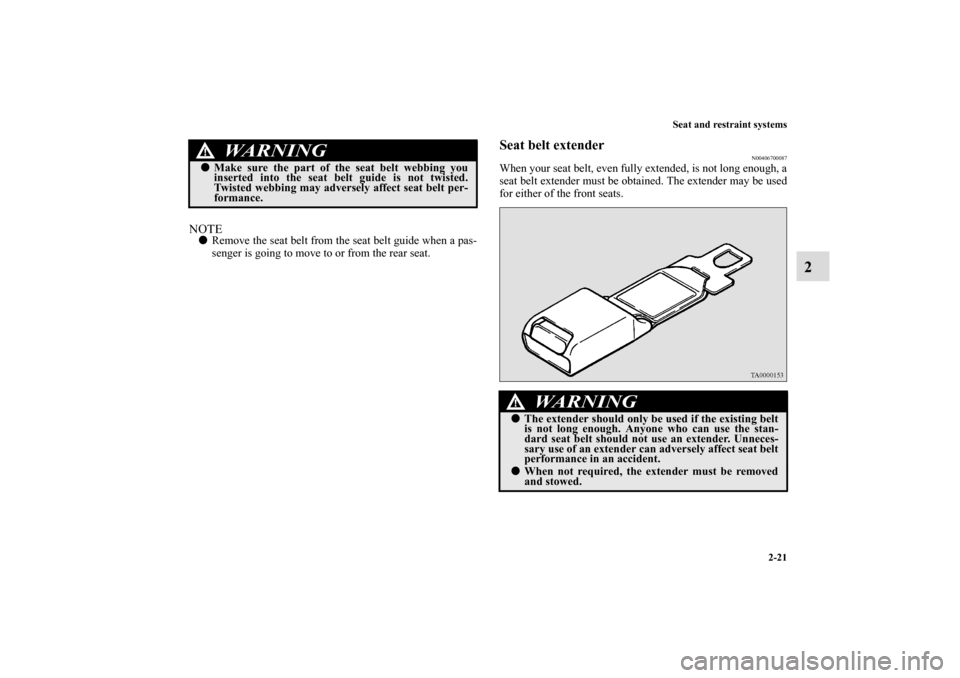

Seat belt extender
N00406700087
When your seat belt, even fully extended, is not long enough, a
seat belt extender must be obtained. The extender may be used
for either of the front seats.

Make sure the part of the seat belt webbing you
inserted into the seat belt guide is not twisted.
Twisted webbing may adversely affect seat belt per-
formance.
WA R N I N G
!
WA R N I N G
!
The extender should only be used if the existing belt
is not long enough. Anyone who can use the stan-
dard seat belt should not use an extender. Unneces-
sary use of an extender can adversely affect seat belt
performance in an accident.
When not required, the extender must be removed
and stowed.
BK0115900US.book 21 ページ ２００９年１０月２７日　火曜日　午後１２時１分

2-22 Seat and restraint systems

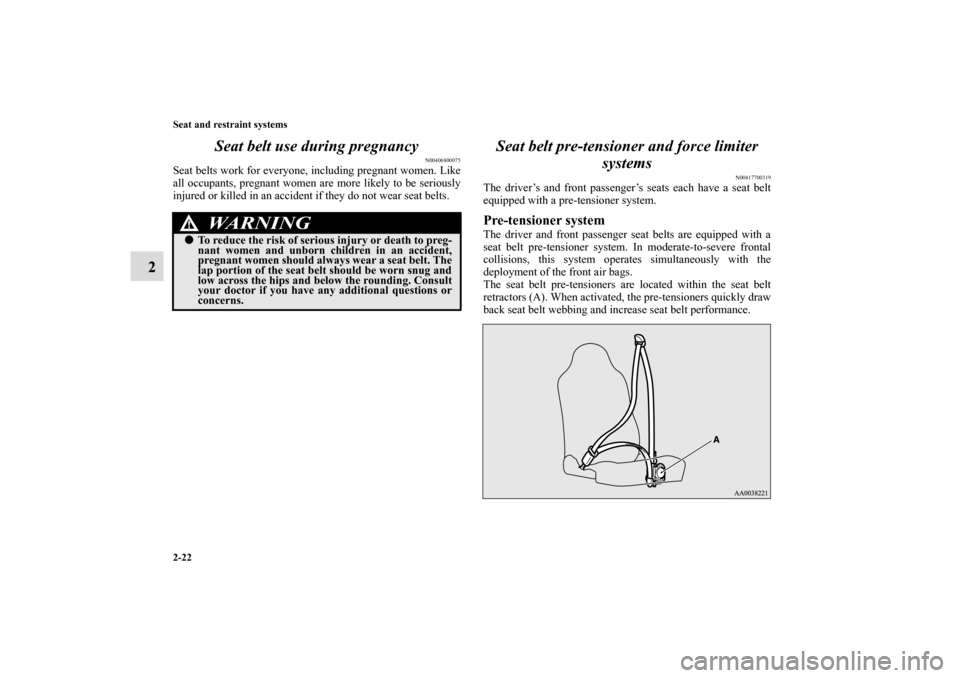

2Seat belt use during pregnancy
N00406800075
Seat belts work for everyone, including pregnant women. Like
all occupants, pregnant women are more likely to be seriously
injured or killed in an accident if they do not wear seat belts.
Seat belt pre-tensioner and force limiter
systems
N00417700319
The driver’s and front passenger’s seats each have a seat belt
equipped with a pre-tensioner system.Pre-tensioner system The driver and front passenger seat belts are equipped with a
seat belt pre-tensioner system. In moderate-to-severe frontal
collisions, this system operates simultaneously with the
deployment of the front air bags.
The seat belt pre-tensioners are located within the seat belt
retractors (A). When activated, the pre-tensioners quickly draw
back seat belt webbing and increase seat belt performance.
WA R N I N G
!
To reduce the risk of serious injury or death to preg-
nant women and unborn children in an accident,
pregnant women should always wear a seat belt. The
lap portion of the seat belt should be worn snug and
low across the hips and below the rounding. Consult
your doctor if you have any additional questions or
concerns.
BK0115900US.book 22 ページ ２００９年１０月２７日　火曜日　午後１２時１分

Seat and restraint systems
2-23
2
The seat belt pre-tensioner system includes the following com-
ponents:
The air bag control unit monitors the readiness of the electronic
parts of the system whenever the ignition switch is in the “ON”
or “START” position. These include all of the items listed
above and all related wiring.
The pre-tensioner seat belts will operate only when the ignition
switch is in the “ON” or “START” position.When the seat belt pre-tensioners activate, some smoke is
released and a loud noise will be heard. The smoke is not harm-
ful, but care should be taken not to intentionally inhale it, as it
may cause some temporary irritation to people with respiratory
problems.
Even in the event of a severe frontal impact, the pre-tensioners
will not operate if the seat belts are not fastened. The seat belt
pre-tensioners may not activate in certain frontal collisions,
even though the vehicle may appear to be severely damaged.
Such non-activation does not mean something is wrong with
the seat belt pre-tensioner system, but rather that the collision
forces were not severe enough or not of the type to activate the
system.1- SRS warning light
2- Front impact sensors
3- Seat belt pre-tensioners
4- Seat belt buckle switches
5- Air bag control unit
WA R N I N G
!
The seat belt pre-tensioner system is designed to
work only once. After the seat belt pre-tensioners
have been activated, they will not work again. They
must promptly be replaced and the entire seat belt
pre-tensioner system inspected by an authorized
Mitsubishi Motors dealer.
BK0115900US.book 23 ページ ２００９年１０月２７日　火曜日　午後１２時１分

2-24 Seat and restraint systems
2
SRS warning light
N00408700049
This warning light tells you if there is a problem involving the
SRS air bags and the pre-tensioner seat belts. Refer to “SRS
warning light” on page 2-44.Force limiter system
N00408900070
In the event of an accident, the seat belt force limiter system
will help reduce the force applied to the driver and front seat
passenger.
Child restraints
N00407100600
When transporting infants or small children in your vehicle, an
appropriate child restraint system must always be used. This is
required by law in the U.S. and Canada.
Child restraints specifically designed for infants and small chil-
dren are offered by several manufacturers. Choose only a child
restraint system with a label certifying that it complies with
Federal Motor Vehicle Safety Standard 213 (FMVSS 213) or
Motor Vehicle Restraint Systems and Booster Cushions Safety
Regulations (RSSR). Look for the manufacturer’s statement of
compliance on the box and child restraint itself.
The child restraint system should be appropriate for your
child’s weight and height, and should properly fit your vehi-
cle’s seat.
For detail information, refer to the instruction manual accom-
panying the child restraint system.Guidelines for child restraint system selectionAll children should be properly restrained in a restraint device
that offers the maximum protection for their size and age.
Be sure to check local, state, or provincial requirements for
child size and age that may vary from the recommendations
listed below.

Children less than 1 year old and children less than 20
pounds (9 kg) MUST ride in a rear-facing child safety seat
that MUST ONLY be used in the rear seat.

Children older than 1 year of age and who weigh less than
40 pounds (18 kg) or who are less than 40 inches (100 cm)
tall must be in a forward-facing restraint used only in the
rear seat.
BK0115900US.book 24 ページ ２００９年１０月２７日　火曜日　午後１２時１分

Seat and restraint systems
2-25
2

Children who weigh more than 40 pounds (18 kg) or who
are more than 40 inches (100 cm) tall, regardless of age,
should use a suitable child seat or a booster seat (including
a booster cushion) in the rear seat until the vehicle’s
lap/shoulder belt fits them properly.

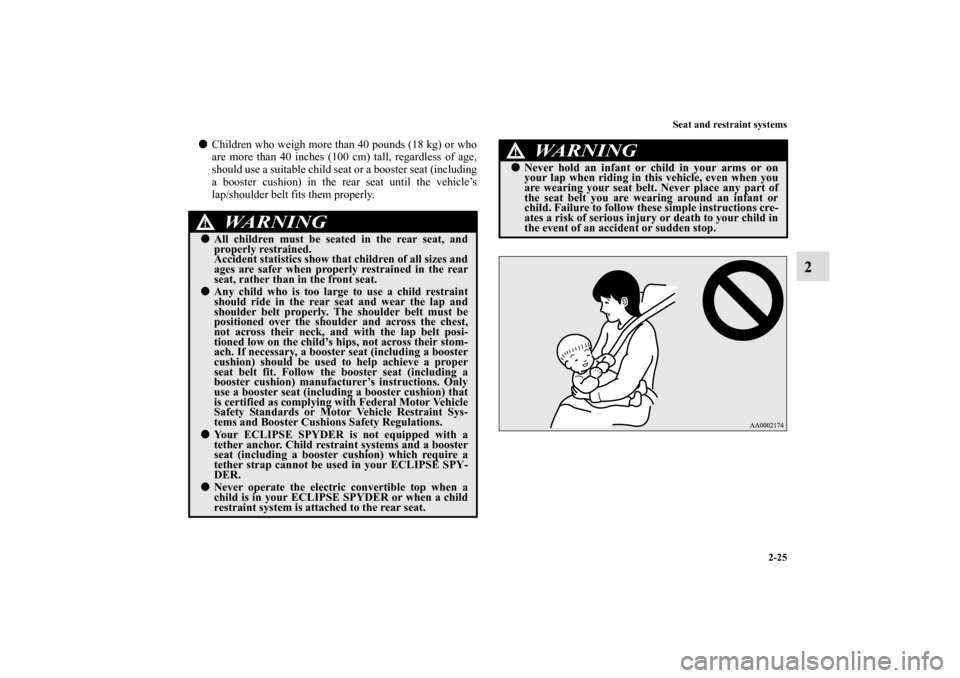

WA R N I N G
!
All children must be seated in the rear seat, and
properly restrained.
Accident statistics show that children of all sizes and
ages are safer when properly restrained in the rear
seat, rather than in the front seat.
Any child who is too large to use a child restraint
should ride in the rear seat and wear the lap and
shoulder belt properly. The shoulder belt must be
positioned over the shoulder and across the chest,
not across their neck, and with the lap belt posi-
tioned low on the child’s hips, not across their stom-
ach. If necessary, a booster seat (including a booster
cushion) should be used to help achieve a proper
seat belt fit. Follow the booster seat (including a
booster cushion) manufacturer’s instructions. Only
use a booster seat (including a booster cushion) that
is certified as complying with Federal Motor Vehicle
Safety Standards or Motor Vehicle Restraint Sys-
tems and Booster Cushions Safety Regulations.
Your ECLIPSE SPYDER is not equipped with a
tether anchor. Child restraint systems and a booster
seat (including a booster cushion) which require a
tether strap cannot be used in your ECLIPSE SPY-
DER.
Never operate the electric convertible top when a
child is in your ECLIPSE SPYDER or when a child
restraint system is attached to the rear seat.

Never hold an infant or child in your arms or on
your lap when riding in this vehicle, even when you
are wearing your seat belt. Never place any part of
the seat belt you are wearing around an infant or
child. Failure to follow these simple instructions cre-
ates a risk of serious injury or death to your child in
the event of an accident or sudden stop.
WA R N I N G
!
BK0115900US.book 25 ページ ２００９年１０月２７日　火曜日　午後１２時１分
